VERONA/2Q

DIRECT BACKLIGHT led panel for recessed installation in false ceiling panels with hidden structure. Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Office, art. 1110 Verona
Models: 144
Color: Matt white
Catalogue abstract
Installation instructions

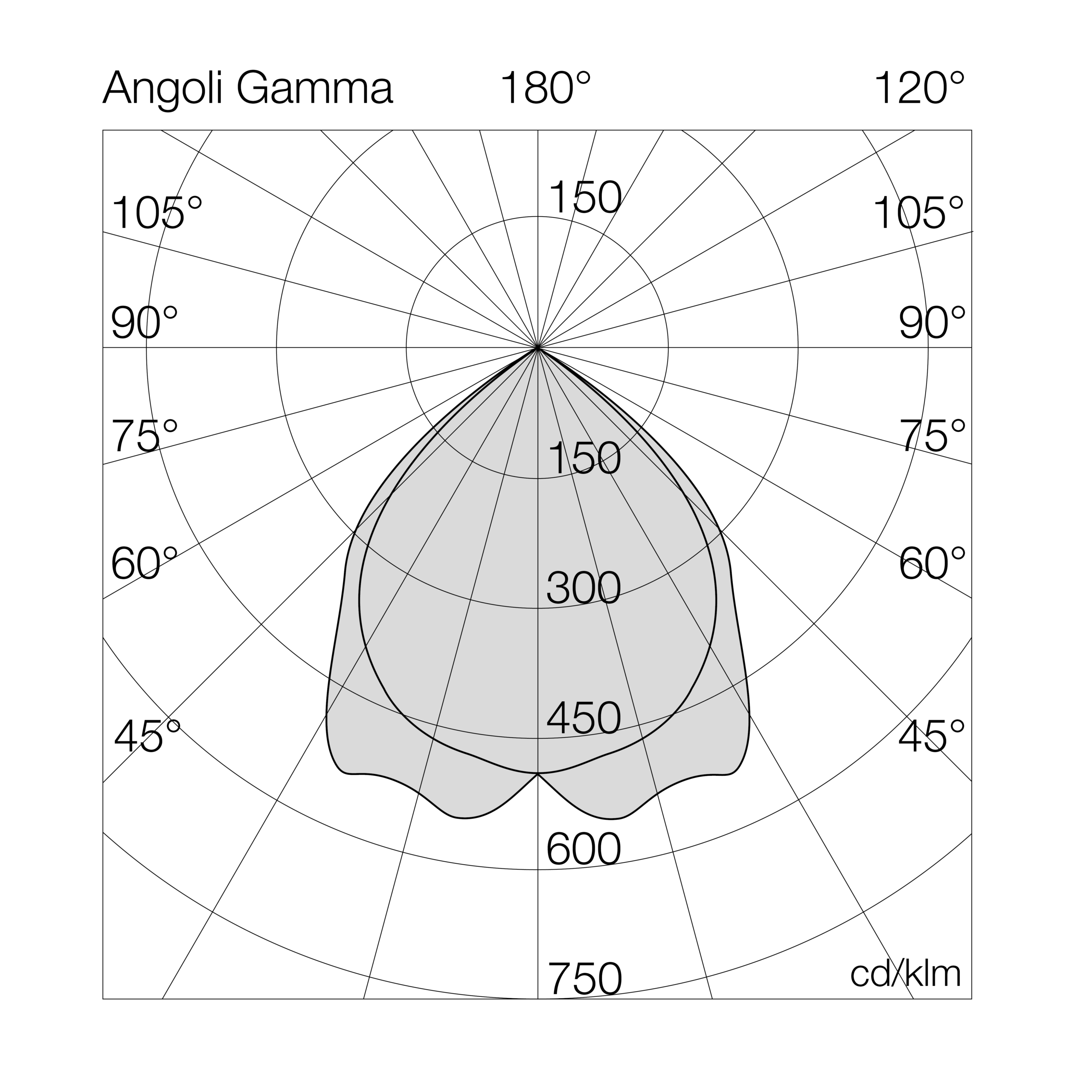

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
11102Q03= 3000°K (CRI >80)23EL= on/off
04= 4000°K (CRI >80)24LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)33D1= dali 2 + em.1h
37E1= em. 1h
42E3= em. 3h
45CS= casambi
48
72

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
11102Q0423EL234000°K - CRI>80on/off2776121598598855.0
11102Q0424EL244000°K - CRI>80on/off2856119598598855.0
11102Q0433EL334000°K - CRI>80on/off3809115598598855.0
11102Q0437EL374000°K - CRI>80on/off3789102598598855.0
11102Q0442EL424000°K - CRI>80on/off4781114598598855.0
11102Q0445EL454000°K - CRI>80on/off5332118598598855.0
11102Q0448EL484000°K - CRI>80on/off5052105598598855.0
11102Q0472EL724000°K - CRI>80on/off7578105598598855.0
11102Q0423LD234000°K - CRI>80dali 2 / dali 2 push2776121598598855.0
11102Q0424LD244000°K - CRI>80dali 2 / dali 2 push2856119598598855.0
11102Q0433LD334000°K - CRI>80dali 2 / dali 2 push3809115598598855.0
11102Q0437LD374000°K - CRI>80dali 2 / dali 2 push3789102598598855.0
11102Q0442LD424000°K - CRI>80dali 2 / dali 2 push4781114598598855.0
11102Q0445LD454000°K - CRI>80dali 2 / dali 2 push5332118598598855.0
11102Q0448LD484000°K - CRI>80dali 2 / dali 2 push5052105598598855.0
11102Q0472LD724000°K - CRI>80dali 2 / dali 2 push7578105598598855.0
11102Q0423D1234000°K - CRI>80dali 2 + em. 1h2776121598598855.0
11102Q0424D1244000°K - CRI>80dali 2 + em. 1h2856119598598855.0
11102Q0433D1334000°K - CRI>80dali 2 + em. 1h3809115598598855.0
11102Q0437D1374000°K - CRI>80dali 2 + em. 1h3789102598598855.0

Accessories
