SIRACUSA/RP

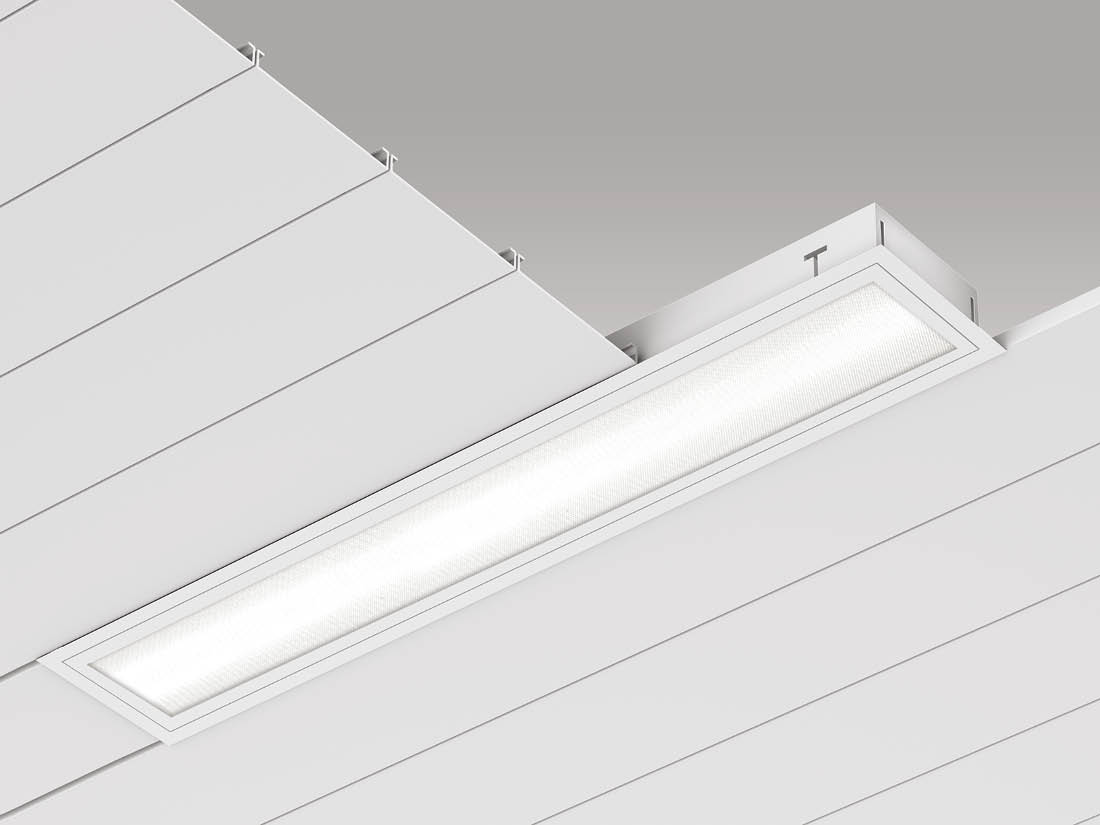

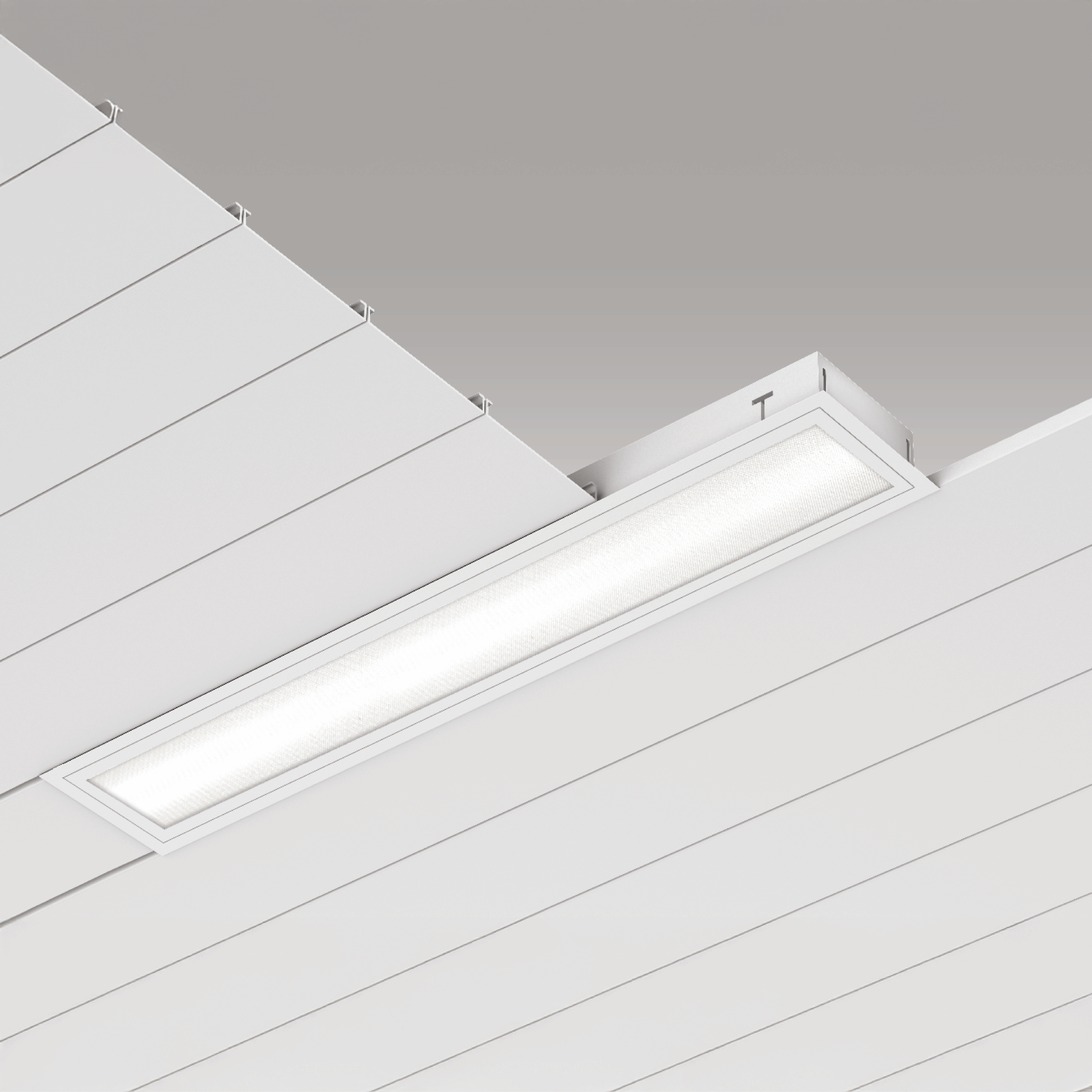

DIRECT BACKLIGHT led for recessed fitting for installation in slats false ceiling or plasterboard ceiling (35 mm pitch 50, 85 mm pitch 100, 135 mm pitch 150, 185 mm pitch 200). Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Office, art. 1160 Siracusa
Models: 144
Color: Matt white
Catalogue abstract
Installation instructions

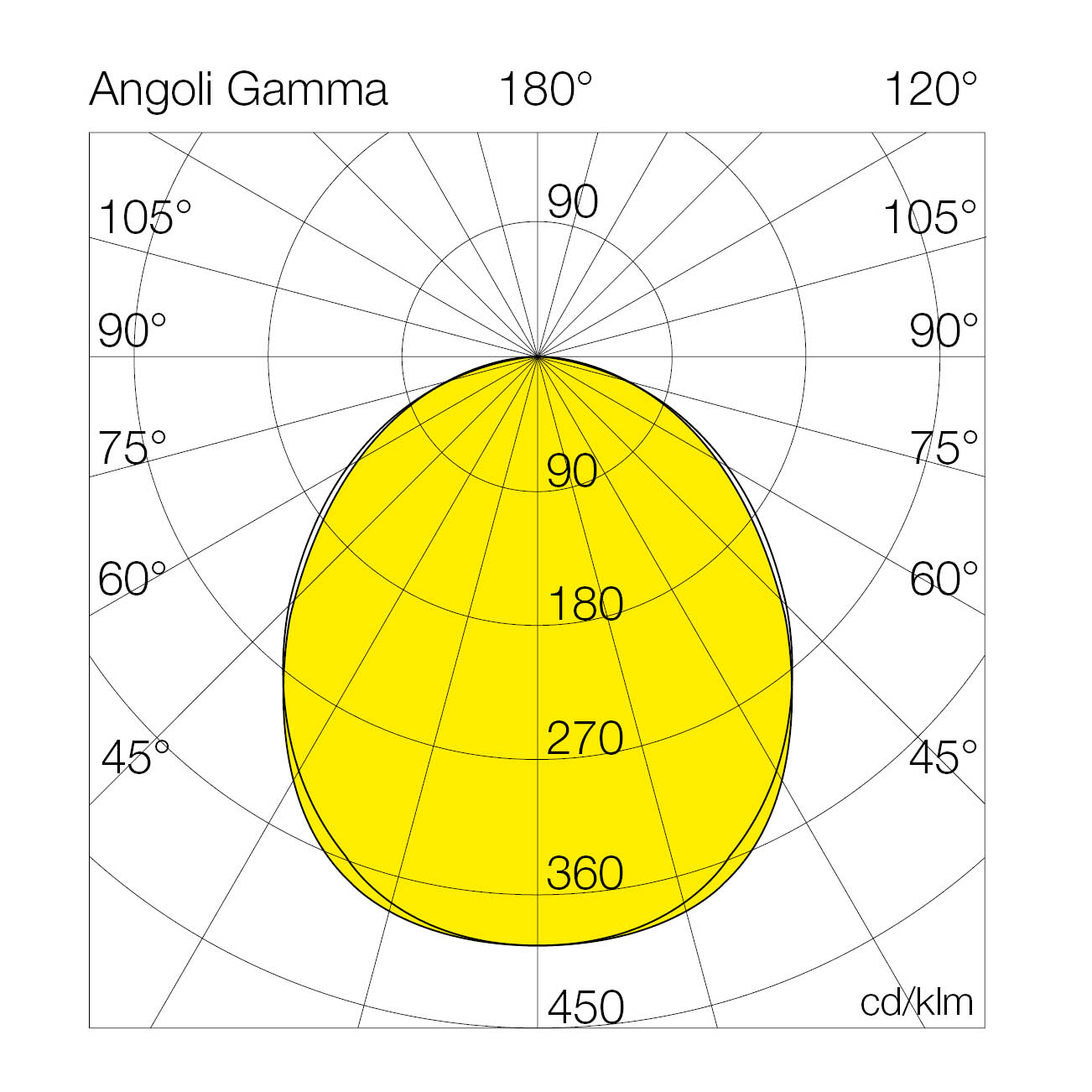

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1160RP03= 3000°K (CRI >80)12EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)23D1= dali 2 + em. 1h
28E1= em. 1h
33E3= em. 3h
38CS= casambi
48
60

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1160RP0412EL124000°K - CRI>80on/off1325110225660601.9
1160RP0415EL154000°K - CRI>80on/off1865124225660601.9
1160RP0423EL234000°K - CRI>80on/off26501152251270603.6
1160RP0428EL284000°K - CRI>80on/off34641242251570604.5
1160RP0433EL334000°K - CRI>80on/off39971212251270603.6
1160RP0438EL384000°K - CRI>80on/off46621232251570604.5
1160RP0448EL484000°K - CRI>80on/off53011102251270604.5
1160RP0460EL604000°K - CRI>80on/off66261102251570604.5
1160RP0412LD124000°K - CRI>80dali 2 / dali 2 push1325110225660601.9
1160RP0415LD154000°K - CRI>80dali 2 / dali 2 push1865124225660601.9
1160RP0423LD234000°K - CRI>80dali 2 / dali 2 push26501152251270603.6
1160RP0428LD284000°K - CRI>80dali 2 / dali 2 push34641242251570604.5
1160RP0433LD334000°K - CRI>80dali 2 / dali 2 push39971212251270603.6
1160RP0438LD384000°K - CRI>80dali 2 / dali 2 push46621232251570604.5
1160RP0448LD484000°K - CRI>80dali 2 / dali 2 push53011102251270604.5
1160RP0460LD604000°K - CRI>80dali 2 / dali 2 push66261102251570604.5
1160RP0412D1124000°K - CRI>80dali 2 + em. 1h1325110225660601.9
1160RP0415D1154000°K - CRI>80dali 2 + em. 1h1865124225660601.9
1160RP0423D1234000°K - CRI>80dali 2 + em. 1h26501152251270603.6
1160RP0428D1284000°K - CRI>80dali 2 + em. 1h34641242251570604.5

Accessories
