CLOE/IR

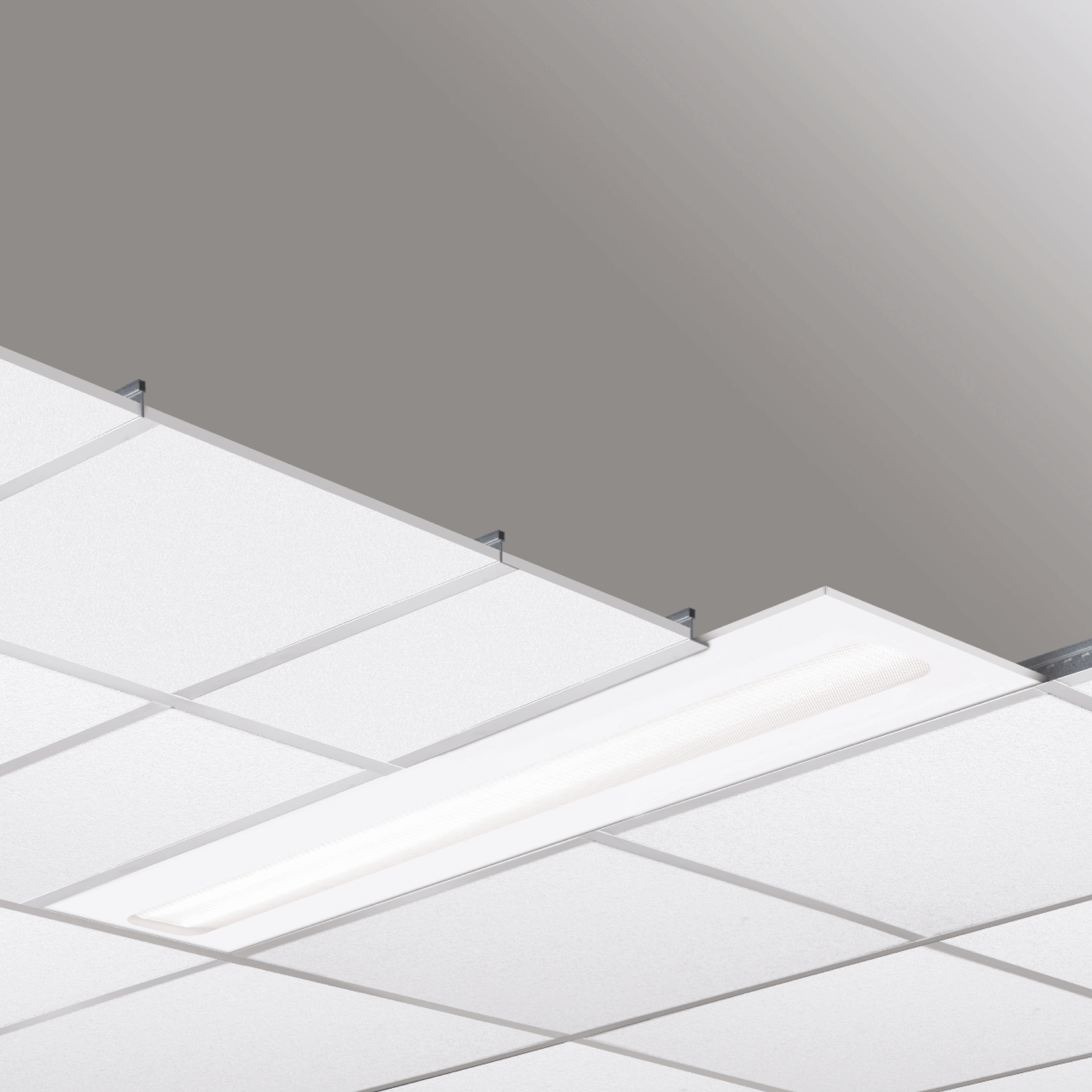

Apparecchio led DIRECT BACKLIGHT multinstallazione, installabile ad incasso in appoggio per controsoffitti in pannelli aventi struttura portante a vista 15/24 mm, a plafone o a sospensione mediante apposito accessorio. Corpo costruito in lamiera d’acciaio, verniciato con polveri epossipoliestere di colore bianco, antingiallente con finitura goffrata fine, pretrattamento di fosfatazione e sgrassaggio. Driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categories: Led, Office, art. 1870 Cloe, art. 1870 Cloe
Models: 224
Color: Bianco opaco
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1870IR03= 3000°K (CRI >80)16EL= on/off
04= 4000°K (CRI >80)24LD= dali 2 / dali 2 push
65= 6500°K (CRI >80)27D1= dali 2 + em. 1h
94= 4000°K (CRI >90)32E1= em. 1h
36E3= em. 3h
42CS= casambi
48SN= sensore dali integrato
52

Models

W tot.
°K - CRI
Options

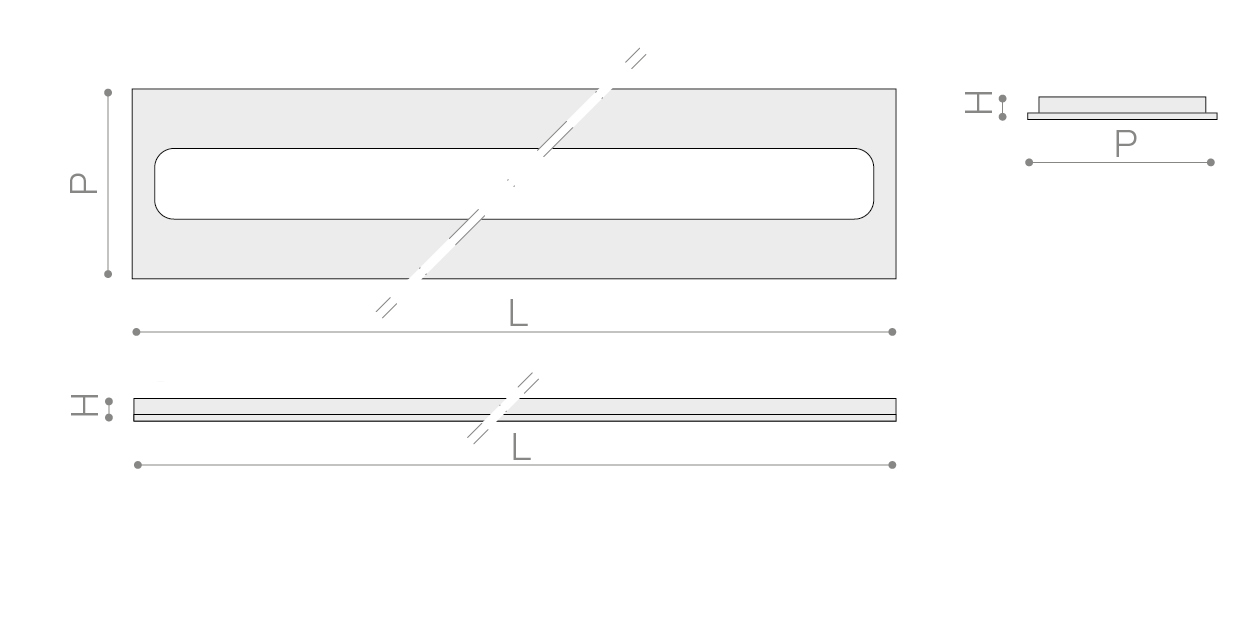

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1870IR0416EL164000°K - CRI>80on/off2061129295595352.0
1870IR0424EL244000°K - CRI>80on/off31991332951195353.2
1870IR0427EL274000°K - CRI>80on/off35681322951195353.2
1870IR0432EL324000°K - CRI>80on/off41221292951195353.2
1870IR0436EL364000°K - CRI>80on/off44041222951195353.2
1870IR0442EL424000°K - CRI>80on/off50391202951195353.2
1870IR0448EL484000°K - CRI>80on/off57161192951195353.2
1870IR0452EL524000°K - CRI>80on/off59621152951195353.2
1870IR0416LD164000°K - CRI>80dali 2 / dali 2 push2061129295595352.0
1870IR0424LD244000°K - CRI>80dali 2 / dali 2 push31991332951195353.2
1870IR0427LD274000°K - CRI>80dali 2 / dali 2 push35681322951195353.2
1870IR0432LD324000°K - CRI>80dali 2 / dali 2 push41221292951195353.2
1870IR0436LD364000°K - CRI>80dali 2 / dali 2 push44041222951195353.2
1870IR0442LD424000°K - CRI>80dali 2 / dali 2 push50391202951195353.2
1870IR0448LD484000°K - CRI>80dali 2 / dali 2 push57161192951195353.2
1870IR0452LD524000°K - CRI>80dali 2 / dali 2 push59621152951195353.2
1870IR0416D1164000°K - CRI>80dali 2 + em. 1h2061129295595352.0
1870IR0424D1244000°K - CRI>80dali 2 + em. 1h31991332951195353.2
1870IR0427D1274000°K - CRI>80dali 2 + em. 1h35681322951195353.2
1870IR0432D1324000°K - CRI>80dali 2 + em. 1h41221292951195353.2

Accessories
