LEILA HCL/QP

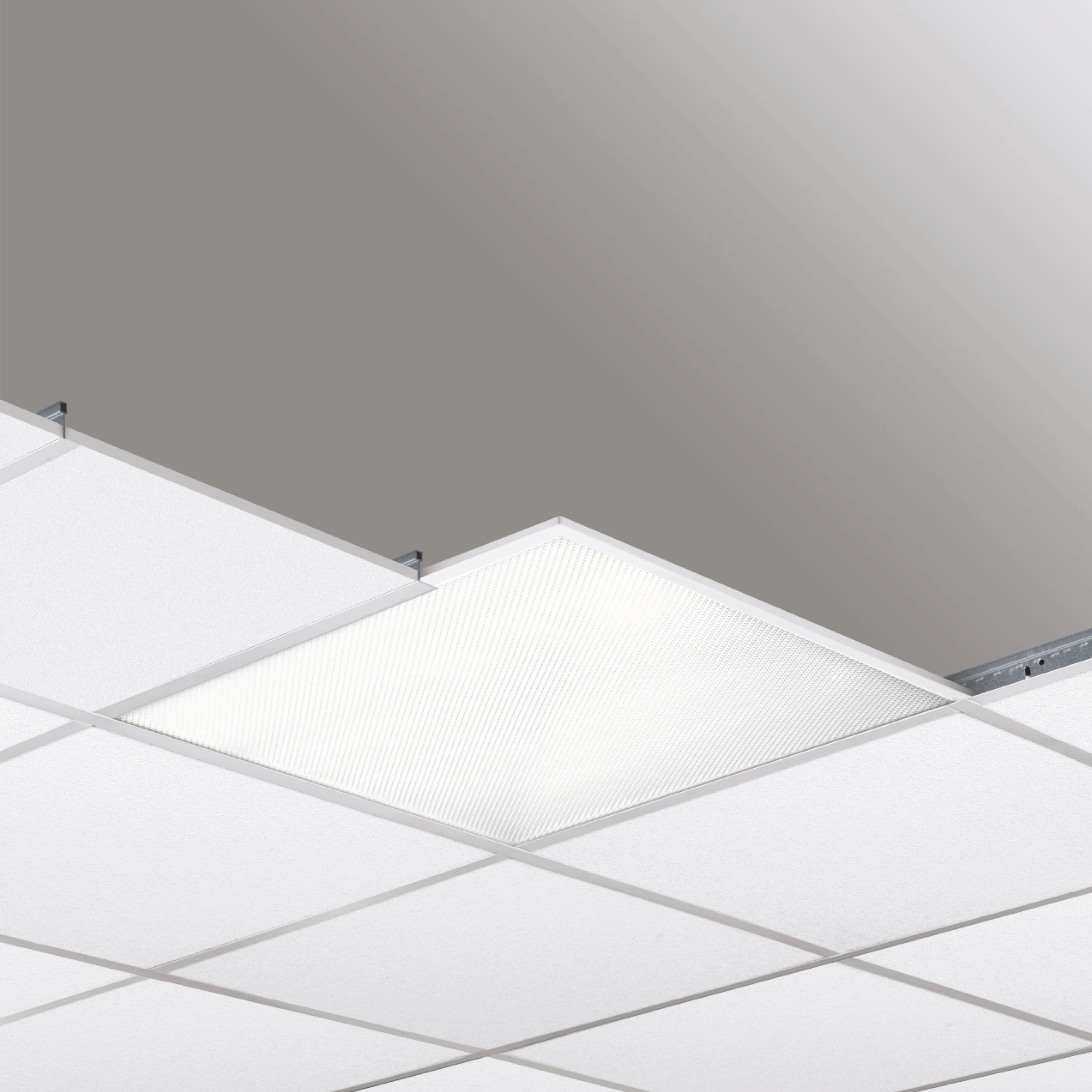

Multi-installation EDGE-LIT led panel, suitable for recessed installation in false ceiling with visible structure 15/24 mm, surface mounting or suspended installation (dedicated kit needed). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Office, art. 1805 Leila HCL
Models: 36
Color: Matt white
Catalogue abstract
Installation instructions

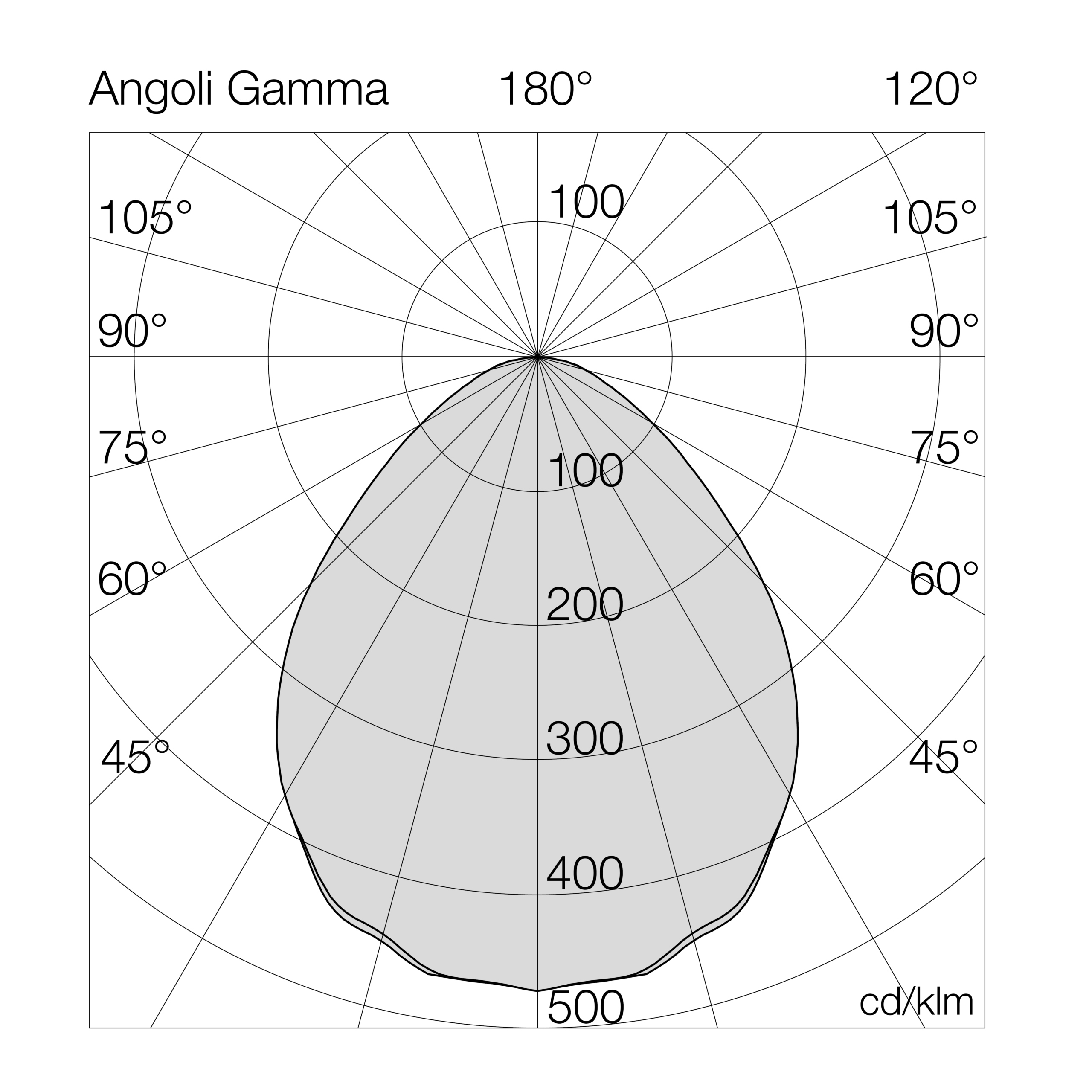

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1805QPTW= 2700°K - 6500°K (CRI >80)27D8= dali 2 DT8
34D1= dali 2 DT8 + em. 1h
38D3= dali 2 DT8 + em. 3h

Models

W tot.
°K - CRI
Options

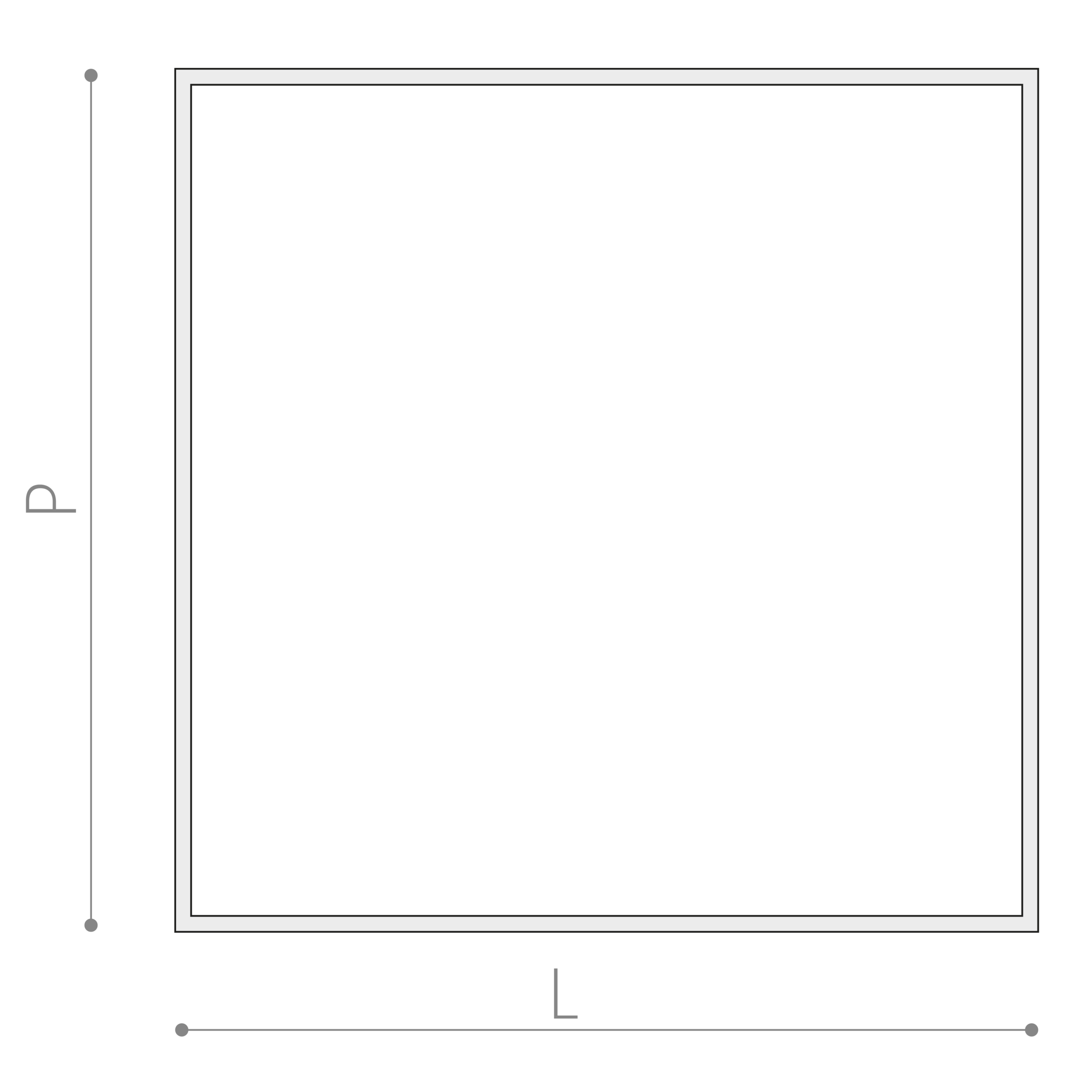

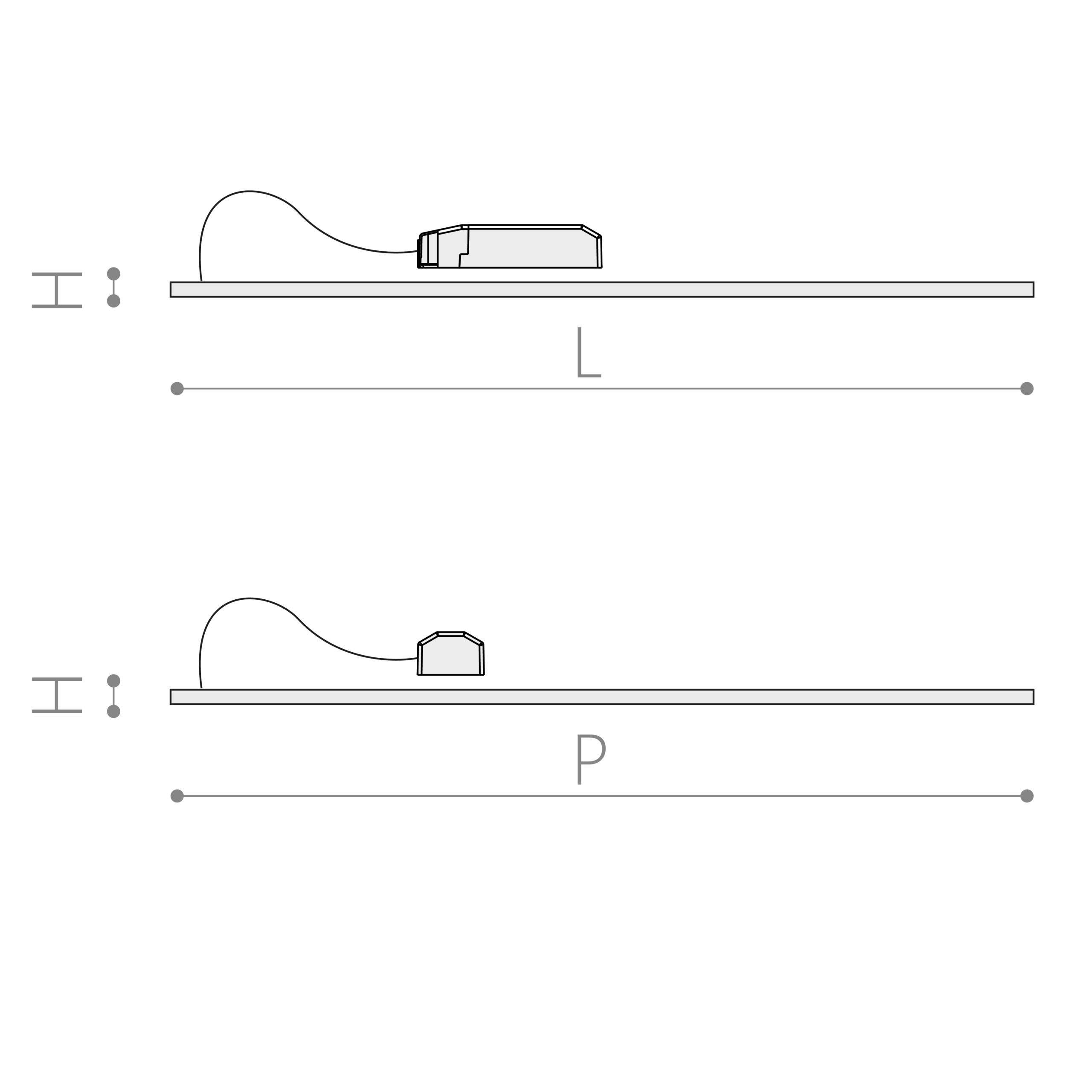

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1805QPTW27D8274000°K - CRI>80dali 2 DT83066114595595102.7
1805QPTW34D8344000°K - CRI>80dali 2 DT83926115595595102.7
1805QPTW38D8384000°K - CRI>80dali 2 DT84279113595595102.7
1805QPTW27D1274000°K - CRI>80dali 2 DT8 + em. 1h3066114595595102.7
1805QPTW34D1344000°K - CRI>80dali 2 DT8 + em. 1h3926115595595102.7
1805QPTW38D1384000°K - CRI>80dali 2 DT8 + em. 1h4279113595595102.7
1805QPTW27D3274000°K - CRI>80dali 2 DT8 + em. 3h3066114595595102.7
1805QPTW34D3344000°K - CRI>80dali 2 DT8 + em. 3h3926115595595102.7
1805QPTW38D3384000°K - CRI>80dali 2 DT8 + em. 3h4279113595595102.7
1805QPTW27D8272700°K - CRI>80dali 2 DT82752102595595102.7
1805QPTW34D8342700°K - CRI>80dali 2 DT83531104595595102.7
1805QPTW38D8382700°K - CRI>80dali 2 DT83854101595595102.7
1805QPTW27D1272700°K - CRI>80dali 2 DT8 + em. 1h2752102595595102.7
1805QPTW34D1342700°K - CRI>80dali 2 DT8 + em. 1h3531104595595102.7
1805QPTW38D1382700°K - CRI>80dali 2 DT8 + em. 1h3854101595595102.7
1805QPTW27D3272700°K - CRI>80dali 2 DT8 + em. 3h2752102595595102.7
1805QPTW34D3342700°K - CRI>80dali 2 DT8 + em. 3h3531104595595102.7
1805QPTW38D3382700°K - CRI>80dali 2 DT8 + em. 3h3854101595595102.7
1805QPTW27D8273000°K - CRI>80dali 2 DT82884107595595102.7
1805QPTW34D8343000°K - CRI>80dali 2 DT83642107595595102.7

Accessories
