art.-1810-diana-2-ip65-qpv

DIANA 2 IP65/QPV

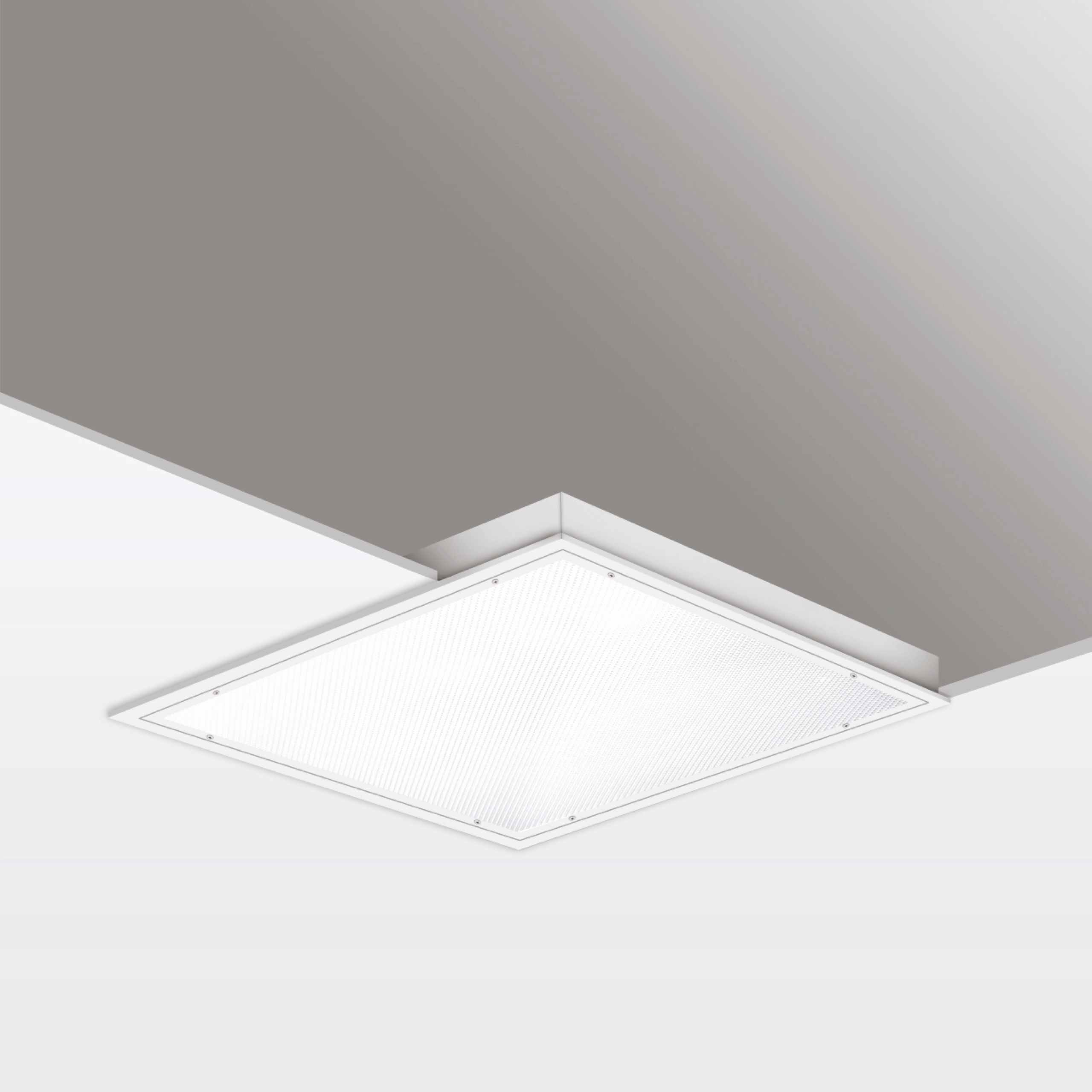

DIRECT BACKLIGHT led panel for recessed installation in slats false ceiling or plasterboard ceiling (35 mm pitch 50, 85 mm pitch 100, 135 mm pitch 150, 185 mm pitch 200). Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Places of Care, art. 1810 Diana 2 IP65
Models: 150
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1810QPV3= 3000°K (CRI >80)22EL= on/off
4= 4000°K (CRI >80)27LD= dali 2 / dali 2 push
9= 4000°K (CRI >90)32D1= dali 2 + em.1h
36E1= em. 1h
38E3= em. 3h
42
48
72
92
12 =120W

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1810QPV422EL224000°K - CRI>80on/off2834129620620708.0
1810QPV427EL274000°K - CRI>80on/off3446128620620708.0
1810QPV432EL324000°K - CRI>80on/off3846120620620708.0
1810QPV436EL364000°K - CRI>80on/off4239118620620708.0
1810QPV438EL384000°K - CRI>80on/off4434117620620708.0
1810QPV442EL424000°K - CRI>80on/off4818115620620708.0
1810QPV448EL484000°K - CRI>80on/off5994125620620708.0
1810QPV472EL724000°K - CRI>80on/off7952110620620708.0
1810QPV492EL924000°K - CRI>80on/off11027120620620708.0
1810QPV412EL1204000°K - CRI>80on/off14435120620620708.0
1810QPV422LD224000°K - CRI>80dali 2 / dali 2 push2834129620620708.0
1810QPV427LD274000°K - CRI>80dali 2 / dali 2 push3446128620620708.0
1810QPV432LD324000°K - CRI>80dali 2 / dali 2 push3846120620620708.0
1810QPV436LD364000°K - CRI>80dali 2 / dali 2 push4239118620620708.0
1810QPV438LD384000°K - CRI>80dali 2 / dali 2 push4434117620620708.0
1810QPV442LD424000°K - CRI>80dali 2 / dali 2 push4818115620620708.0
1810QPV448LD484000°K - CRI>80dali 2 / dali 2 push5994125620620708.0
1810QPV472LD724000°K - CRI>80dali 2 / dali 2 push7952110620620708.0
1810QPV492LD924000°K - CRI>80dali 2 / dali 2 push11027120620620708.0
1810QPV412LD1204000°K - CRI>80dali 2 / dali 2 push14435120620620708.0

Accessories
