DIANA IP65/QP6

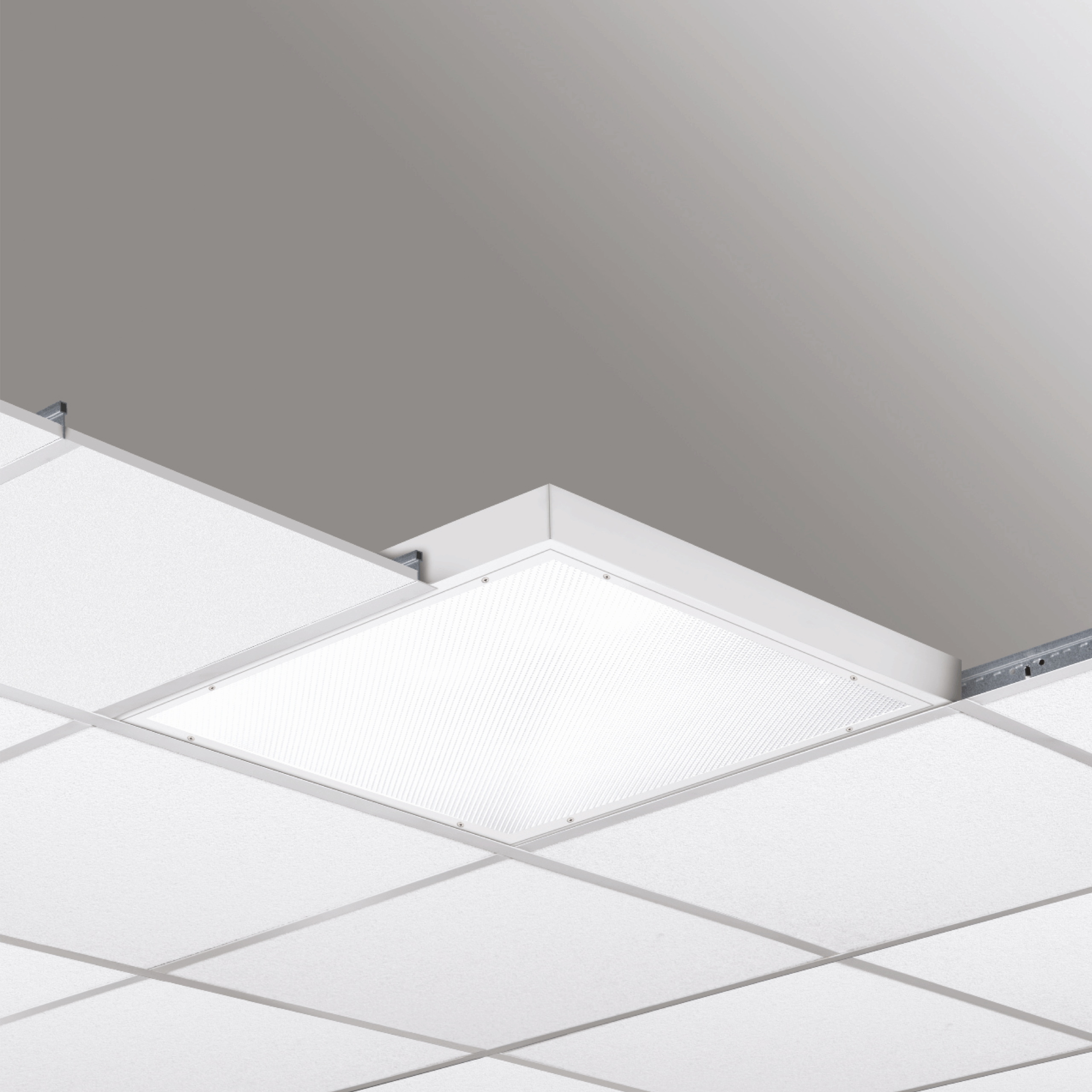

DIRECT BACKLIGHT led panel for countertop installation recessed in false ceiling with 15/24 mm visible structure or surface mounted. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Places of Care, art. 1810 Diana IP65
Models: 150
Color: Matt white
Catalogue abstract
Installation instructions

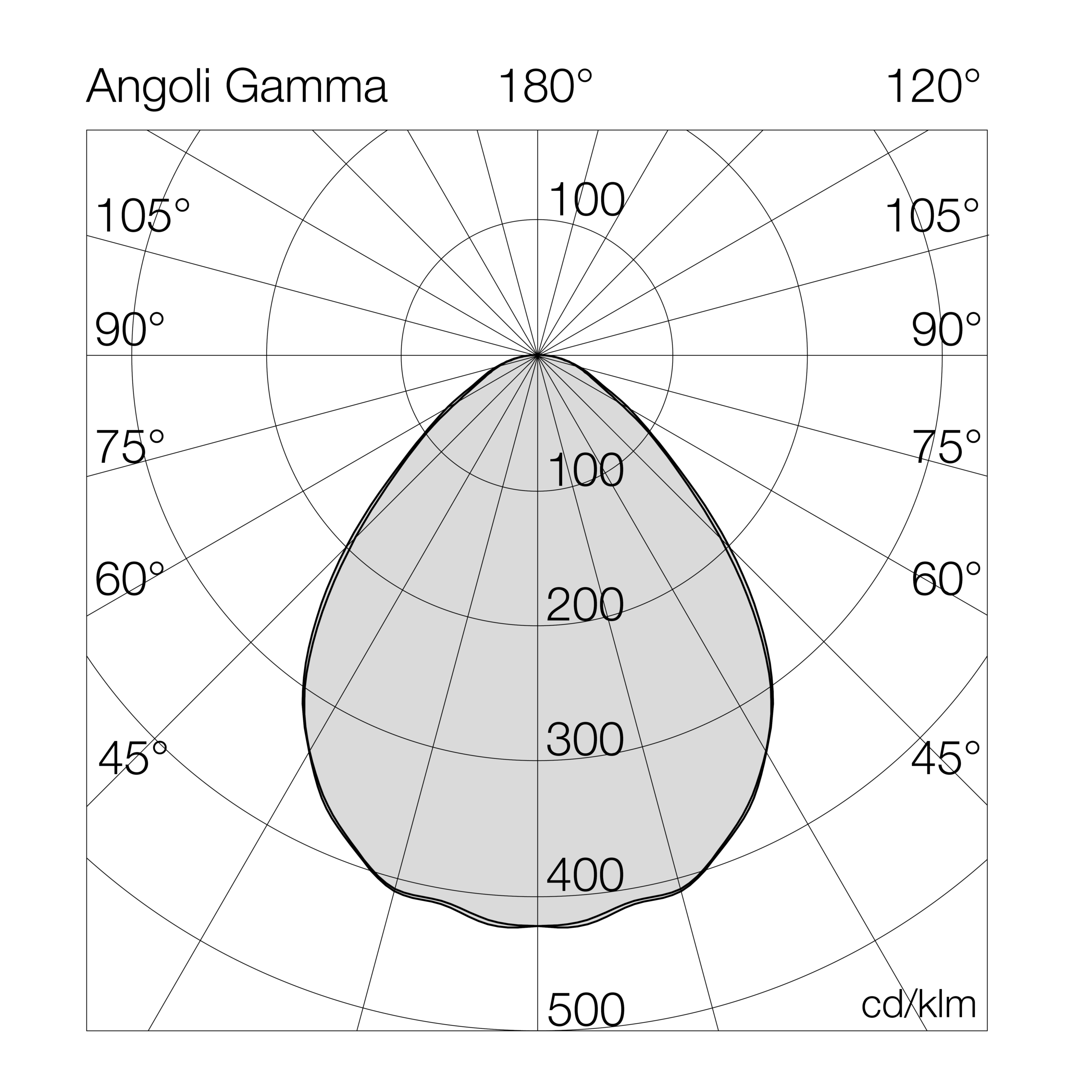

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1810QP63= 3000°K (CRI >80)22EL= on/off
4= 4000°K (CRI >80)27LD= dali 2 / dali 2 push
9= 4000°K (CRI >90)32D1= dali + em.1h
36E1= em. 1h
38E3= em. 3h
42
48
72
92
12 =120W

Models

W tot.
°K - CRI
Options

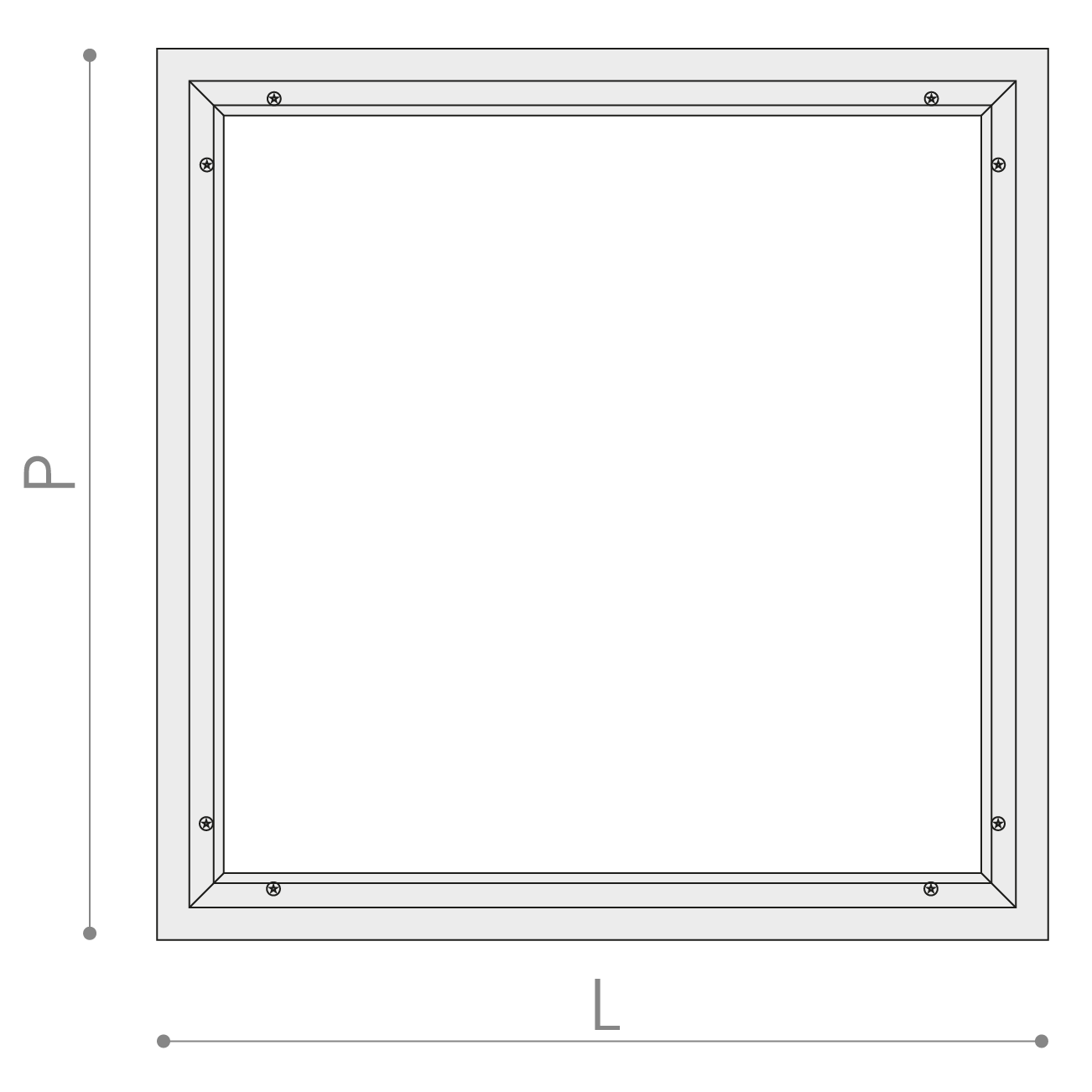

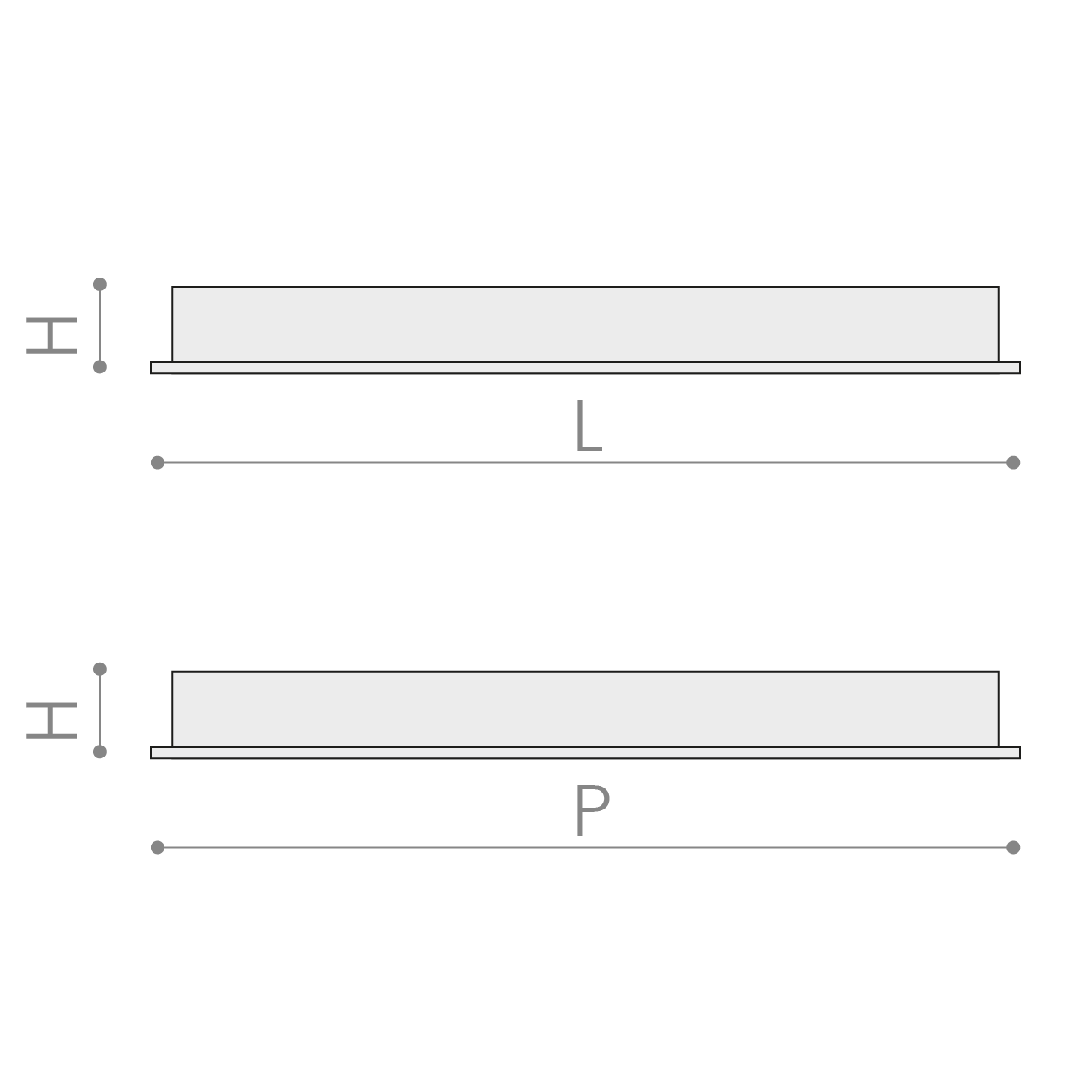

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1810QP6422EL224000°K - CRI>80on/off2834129598598708.0
1810QP6427EL274000°K - CRI>80on/off3446128598598708.0
1810QP6432EL324000°K - CRI>80on/off3846120595595708.0
1810QP6436EL364000°K - CRI>80on/off4239118595595708.0
1810QP6438EL384000°K - CRI>80on/off4434117595595708.0
1810QP6442EL424000°K - CRI>80on/off4818115595595708.0
1810QP6448EL484000°K - CRI>80on/off5994125595595708.0
1810QP6472EL724000°K - CRI>80on/off7952110595595708.0
1810QP6492EL924000°K - CRI>80on/off11027120595595708.0
1810QP6412EL1204000°K - CRI>80on/off14435120595595708.0
1810QP6422LD224000°K - CRI>80dali 2 / dali 2 push2834129598598708.0
1810QP6427LD274000°K - CRI>80dali 2 / dali 2 push3446128598598708.0
1810QP6432LD324000°K - CRI>80dali 2 / dali 2 push3846120595595708.0
1810QP6436LD364000°K - CRI>80dali 2 / dali 2 push4239118595595708.0
1810QP6438LD384000°K - CRI>80dali 2 / dali 2 push4434117595595708.0
1810QP6442LD424000°K - CRI>80dali 2 / dali 2 push4818115595595708.0
1810QP6448LD484000°K - CRI>80dali 2 / dali 2 push5994125595595708.0
1810QP6472LD724000°K - CRI>80dali 2 / dali 2 push7952110595595708.0
1810QP6492LD924000°K - CRI>80dali 2 / dali 2 push11027120595595708.0
1810QP6412LD1204000°K - CRI>80dali 2 / dali 2 push14435120595595708.0
