DIANA IP65/RP6

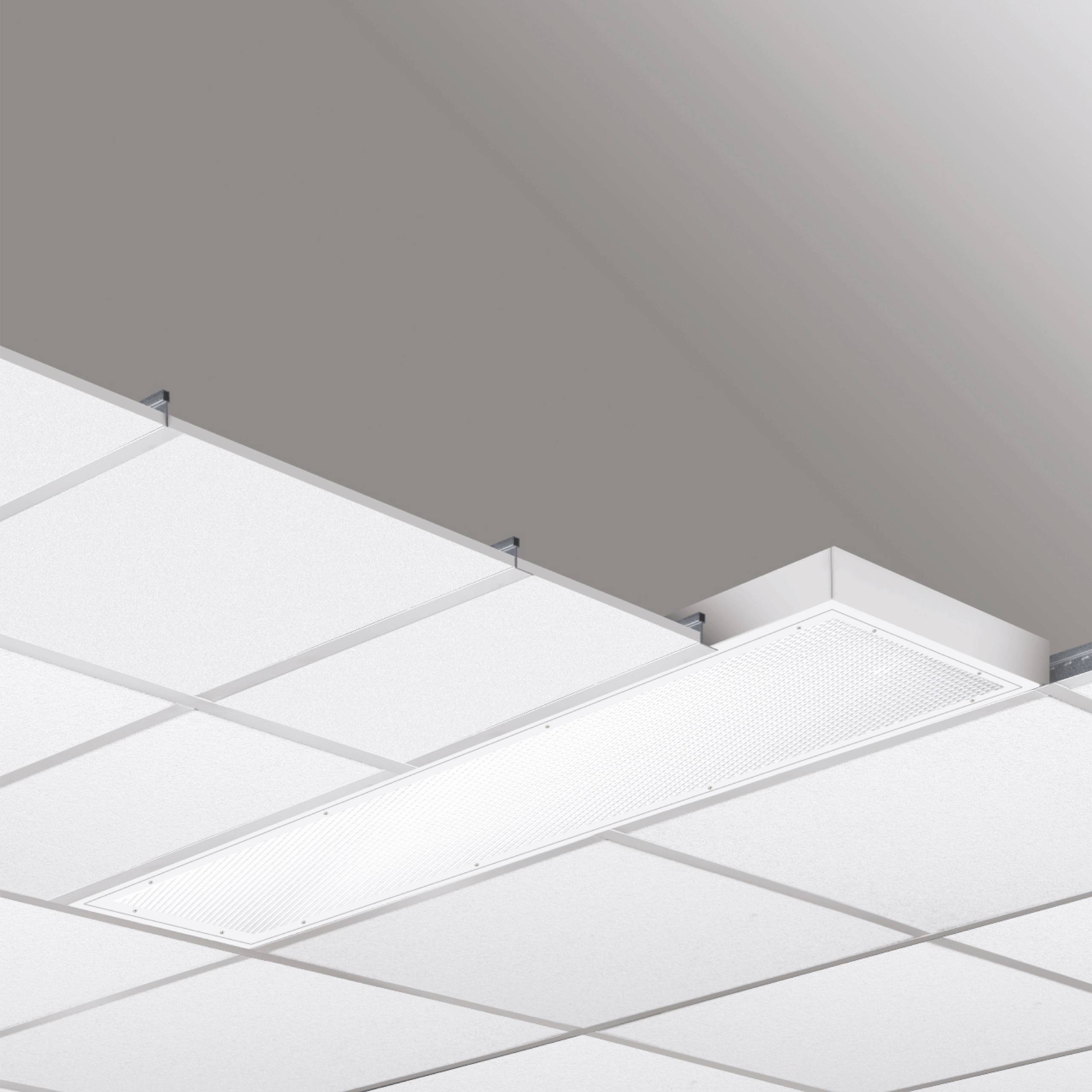

DIRECT BACKLIGHT led panel for countertop installation recessed in false ceiling with 15/24 mm visible structure or surface mounted. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Places of Care, art. 1810 Diana IP65
Models: 150
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1810RP63= 3000°K (CRI >80)22EL= on/off
4= 4000°K (CRI >80)27LD= dali 2 / dali 2 push
9= 4000°K (CRI >90)32D1= dali + em.1h
36E1= em. 1h
38E3= em. 3h
42
48
72
92
12 =120W

Models

W tot.
°K - CRI
Options

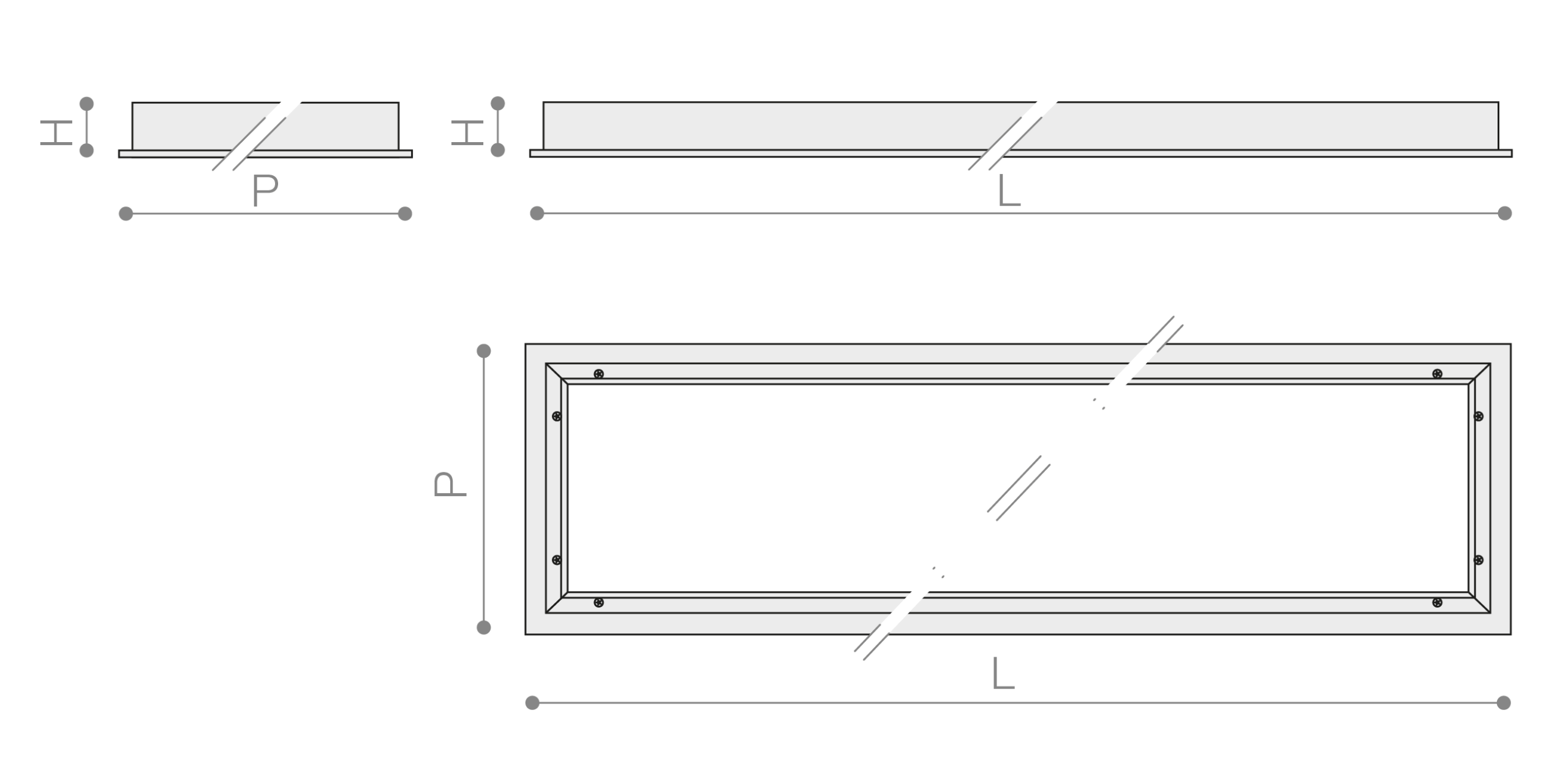

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1810RP6422EL224000°K - CRI>80on/off28341292951195708.0
1810RP6427EL274000°K - CRI>80on/off34461282951195708.0
1810RP6432EL324000°K - CRI>80on/off38461202951195708.0
1810RP6436EL364000°K - CRI>80on/off42391182951195708.0
1810RP6438EL384000°K - CRI>80on/off44341172951195708.0
1810RP6442EL424000°K - CRI>80on/off48181152951195708.0
1810RP6448EL484000°K - CRI>80on/off59941252951195708.0
1810RP6472EL724000°K - CRI>80on/off79521102951195708.0
1810RP6492EL924000°K - CRI>80on/off110271202951195708.0
1810RP6412EL1204000°K - CRI>80on/off144351202951195708.0
1810RP6422LD224000°K - CRI>80dali 2 / dali 2 push28341292951195708.0
1810RP6427LD274000°K - CRI>80dali 2 / dali 2 push34461282951195708.0
1810RP6432LD324000°K - CRI>80dali 2 / dali 2 push38461202951195708.0
1810RP6436LD364000°K - CRI>80dali 2 / dali 2 push42391182951195708.0
1810RP6438LD384000°K - CRI>80dali 2 / dali 2 push44341172951195708.0
1810RP6442LD424000°K - CRI>80dali 2 / dali 2 push48181152951195708.0
1810RP6448LD484000°K - CRI>80dali 2 / dali 2 push59941252951195708.0
1810RP6472LD724000°K - CRI>80dali 2 / dali 2 push79521102951195708.0
1810RP6492LD924000°K - CRI>80dali 2 / dali 2 push110271202951195708.0
1810RP6412LD1204000°K - CRI>80dali 2 / dali 2 push144351202951195708.0
