QUADRA IP/NH5

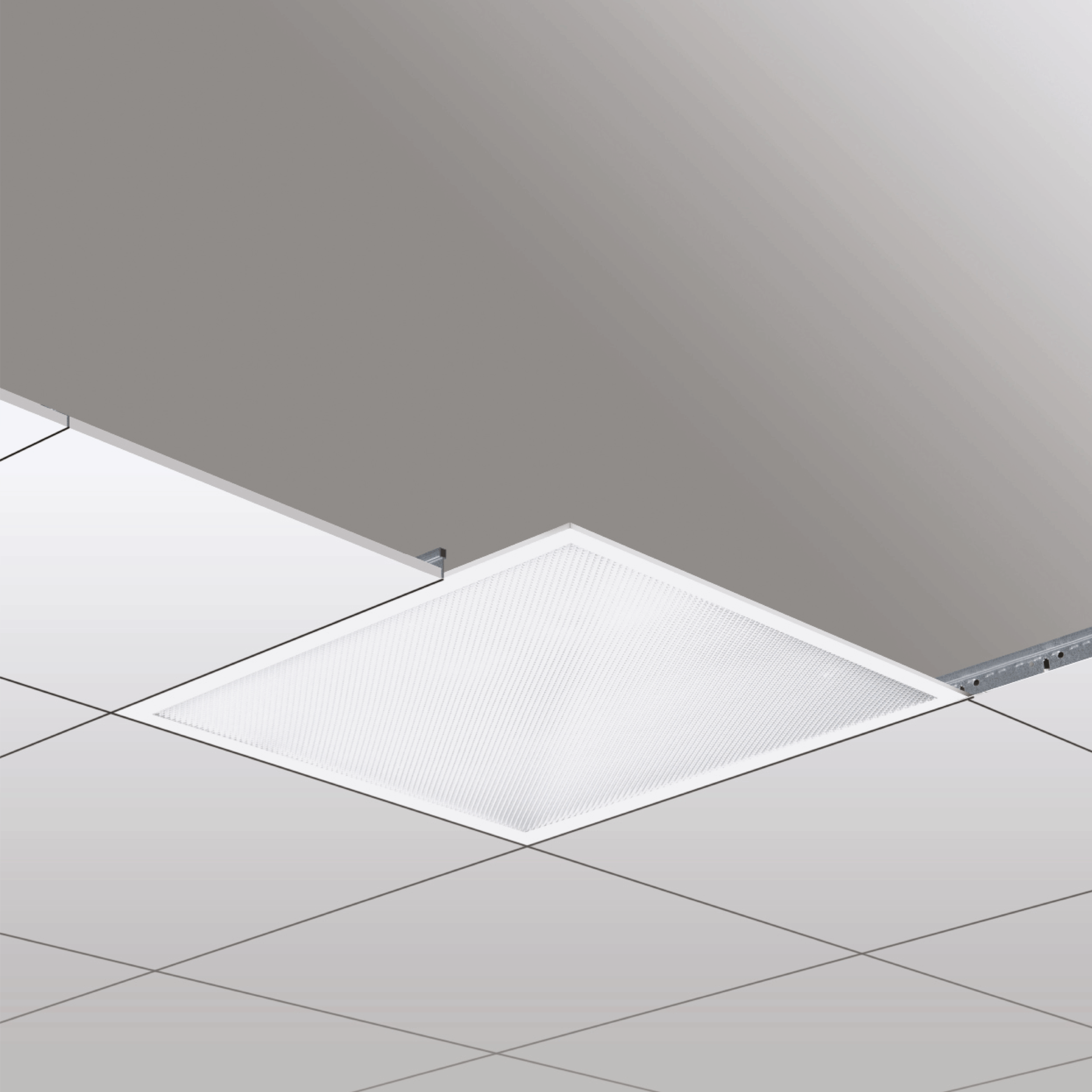

BACKLIGHT led panel for countertop installation recessed in false ceiling with hidden structure. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Places of Care, art. 1814 Quadra IP
Models: 60
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1814NH54= 4000°K (CRI >80)24EL= on/off
9= 4000°K (CRI >90)27LD= dali 2 / dali 2 push
32D1= dali 2 + em.1h
36E1= em. 1h
42E3= em. 3h
48

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1814NH5424EL244000°K - CRI>80on/off3223134595595352.5
1814NH5427EL274000°K - CRI>80on/off3555132595595352.5
1814NH5432EL324000°K - CRI>80on/off4158130595595352.5
1814NH5436EL364000°K - CRI>80on/off4642129595595352.5
1814NH5442EL424000°K - CRI>80on/off5113122595595352.5
1814NH5448EL484000°K - CRI>80on/off5795121595595352.5
1814NH5424LD244000°K - CRI>80dali 2 / dali 2 push3223134595595352.5
1814NH5427LD274000°K - CRI>80dali 2 / dali 2 push3555132595595352.5
1814NH5432LD324000°K - CRI>80dali 2 / dali 2 push4158130595595352.5
1814NH5436LD364000°K - CRI>80dali 2 / dali 2 push4642129595595352.5
1814NH5442LD424000°K - CRI>80dali 2 / dali 2 push5113122595595352.5
1814NH5448LD484000°K - CRI>80dali 2 / dali 2 push5795121595595352.5
1814NH5424D1244000°K - CRI>80dali + em. 1h3223134595595352.5
1814NH5427D1274000°K - CRI>80dali + em. 1h3555132595595352.5
1814NH5432D1324000°K - CRI>80dali + em. 1h4158130595595352.5
1814NH5436D1364000°K - CRI>80dali + em. 1h4642129595595352.5
1814NH5442D1424000°K - CRI>80dali + em. 1h5113122595595352.5
1814NH5448D1484000°K - CRI>80dali + em. 1h5795121595595352.5
1814NH5424E1244000°K - CRI>80em. 1h3223134595595352.5
1814NH5427E1274000°K - CRI>80em. 1h3555132595595352.5
