VERA/IR

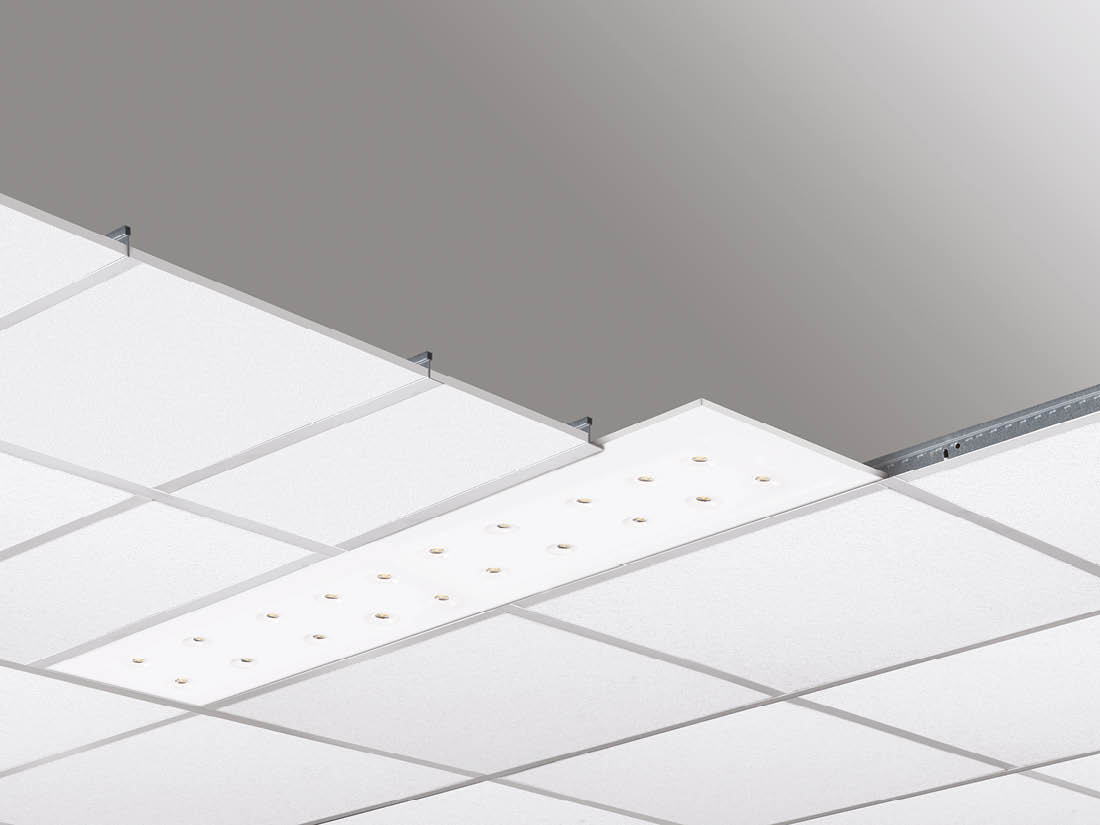

Multi-installation DIRECT BACKLIGHT led panel, suitable for recessed installation in false ceiling with visible structure 15/24 mm, surface mounting or suspended installation (dedicated kit needed). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Office, art. 1820 Vera
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1820IR03= 3000°K (CRI >80)18EL= on/off
04= 4000°K (CRI >80)26LD = dali 2 / dali 2 push
94= 4000°K (CRI >90)29D1= dali 2 + em.1h
32E1= em. 1h
36E3= em. 3h
37CS= casambi

Models

W tot.
°K - CRI
Options

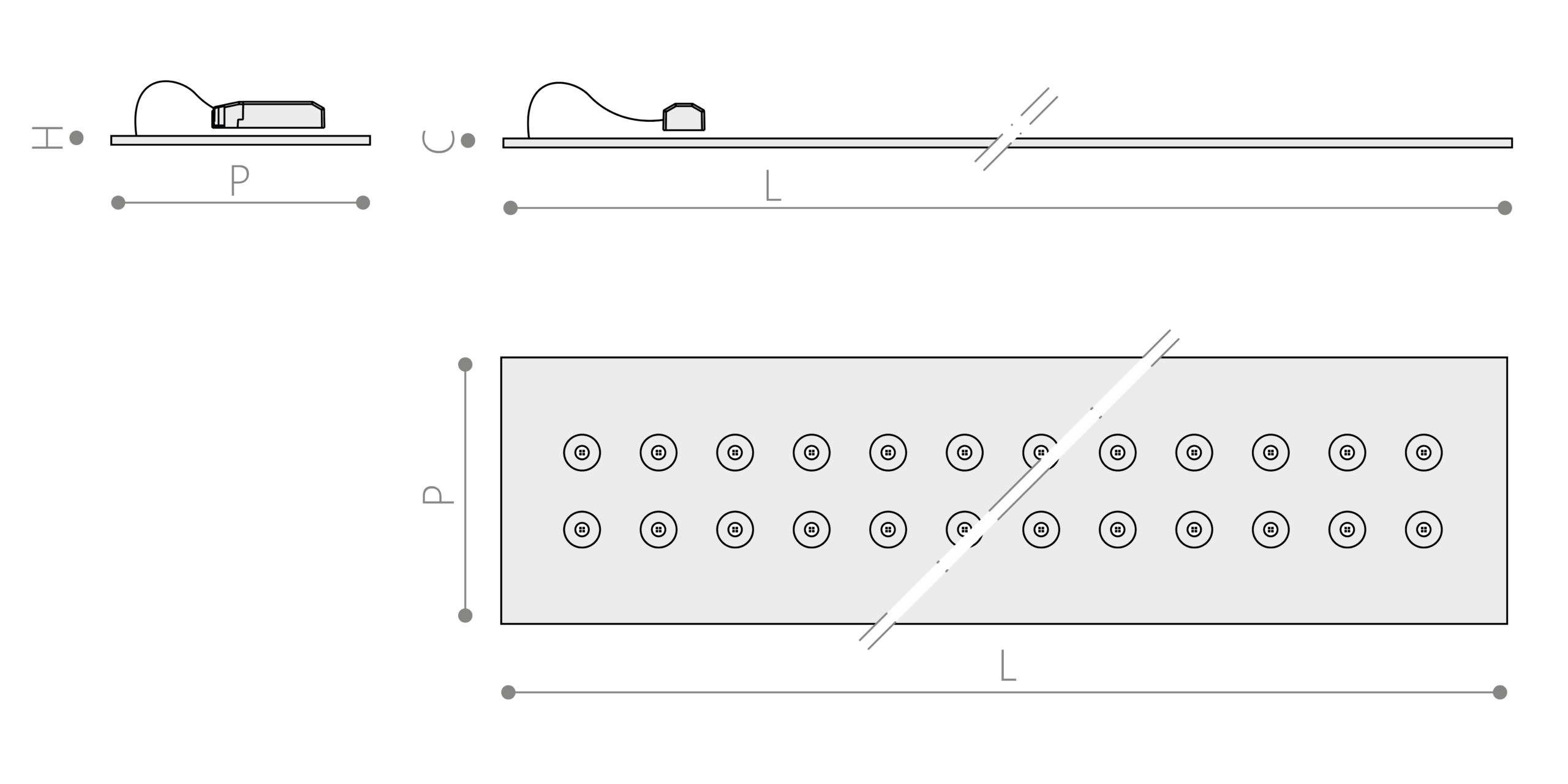

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1820IR0418EL184000°K - CRI>80on/off2660148295595103.0
1820IR0426EL264000°K - CRI>80on/off38371482951195104.2
1820IR0429EL294000°K - CRI>80on/off46581612951195104.2
1820IR0432EL324000°K - CRI>80on/off48171512951195104.2
1820IR0436EL364000°K - CRI>80on/off57381592951195104.2
1820IR0437EL374000°K - CRI>80on/off53221442951195104.2
1820IR0418LD184000°K - CRI>80dali 2 / dali 2 push2660148295595103.0
1820IR0426LD264000°K - CRI>80dali 2 / dali 2 push38371482951195104.2
1820IR0429LD294000°K - CRI>80dali 2 / dali 2 push46581612951195104.2
1820IR0432LD324000°K - CRI>80dali 2 / dali 2 push48171512951195104.2
1820IR0436LD364000°K - CRI>80dali 2 / dali 2 push57381592951195104.2
1820IR0437LD374000°K - CRI>80dali 2 / dali 2 push53221442951195104.2
1820IR0418D1184000°K - CRI>80dali + em. 1h2660148295595103.0
1820IR0426D1264000°K - CRI>80dali + em. 1h38371482951195104.2
1820IR0429D1294000°K - CRI>80dali + em. 1h46581612951195104.2
1820IR0432D1324000°K - CRI>80dali + em. 1h48171512951195104.2
1820IR0436D1364000°K - CRI>80dali + em. 1h57381592951195104.2
1820IR0437D1374000°K - CRI>80dali + em. 1h53221442951195104.2
1820IR0418E1184000°K - CRI>80em. 1h2660148295595103.0
1820IR0426E1264000°K - CRI>80em. 1h38371482951195104.2

Accessories
