BRERA 2/LP

Led recessed fixture without frame for plasterboard false ceiling. Extruded aluminum body painted with white epoxy-polyester anti-yellowing with fine embossed finish, electronic ballast 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Indoor, art. 2004 Brera 2

Models: 12

Color: Matt white

Catalogue abstract

Installation instructions

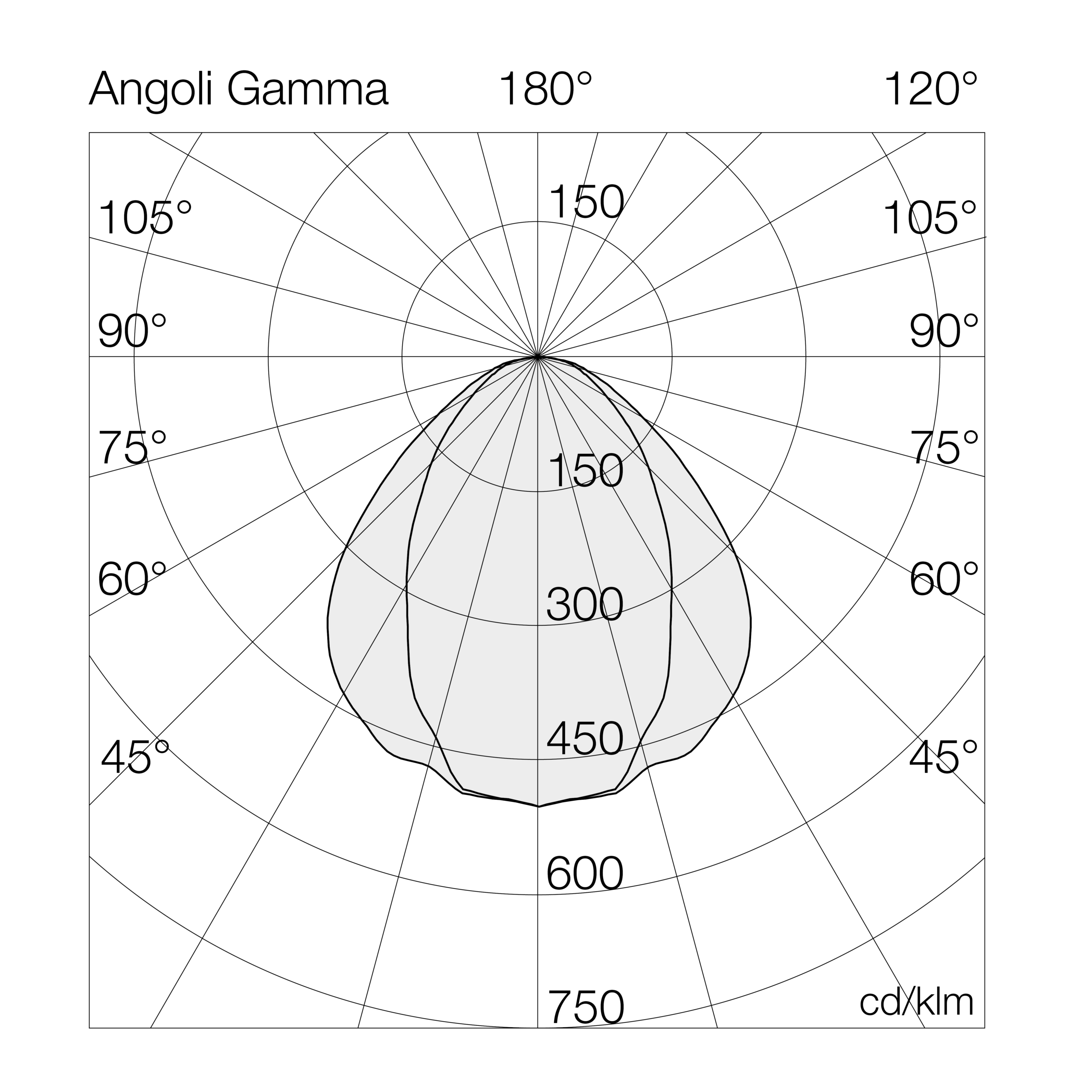

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2004	LP	30	= 3000°K (CRI >80)	24	EL	= on/off	L = 56 mm
		40	= 4000°K (CRI >80)	48	ES	= on/off	L = 31 mm
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2004LP4024EL	24	920	4000°K - CRI>80	on/off (L=56 mm)	2590	108	56	90	600	600	1.6
2004LP4048EL	48	1840	4000°K - CRI>80	on/off (L=56 mm)	5180	108	56	90	1160	1160	2.7
2004LP4024ES	24	920	4000°K - CRI>80	on/off (L=31 mm)	2590	108	31	90	600	600	1.1
2004LP4048ES	48	1840	4000°K - CRI>80	on/off (L=31 mm)	5180	108	31	90	1160	1160	1.8
2004LP3024EL	24	920	3000°K - CRI>80	on/off (L=56 mm)	2457	102	56	90	600	600	1.6
2004LP3048EL	48	1840	3000°K - CRI>80	on/off (L=56 mm)	4913	102	56	90	1160	1160	2.7
2004LP3024ES	24	920	3000°K - CRI>80	on/off (L=31 mm)	2457	102	31	90	600	600	1.1
2004LP3048ES	48	1840	3000°K - CRI>80	on/off (L=31 mm)	4913	102	31	90	1160	1160	1.8
2004LP9424EL	24	920	4000°K - CRI>90	on/off (L=56 mm)	2199	92	56	90	600	600	1.6
2004LP9448EL	48	1840	4000°K - CRI>90	on/off (L=56 mm)	4399	92	56	90	1160	1160	2.7
2004LP9424ES	24	920	4000°K - CRI>90	on/off (L=31 mm)	2199	92	31	90	600	600	1.1
2004LP9448ES	48	1840	4000°K - CRI>90	on/off (L=31 mm)	4399	92	31	90	1160	1160	1.8
