AGAPE/RP

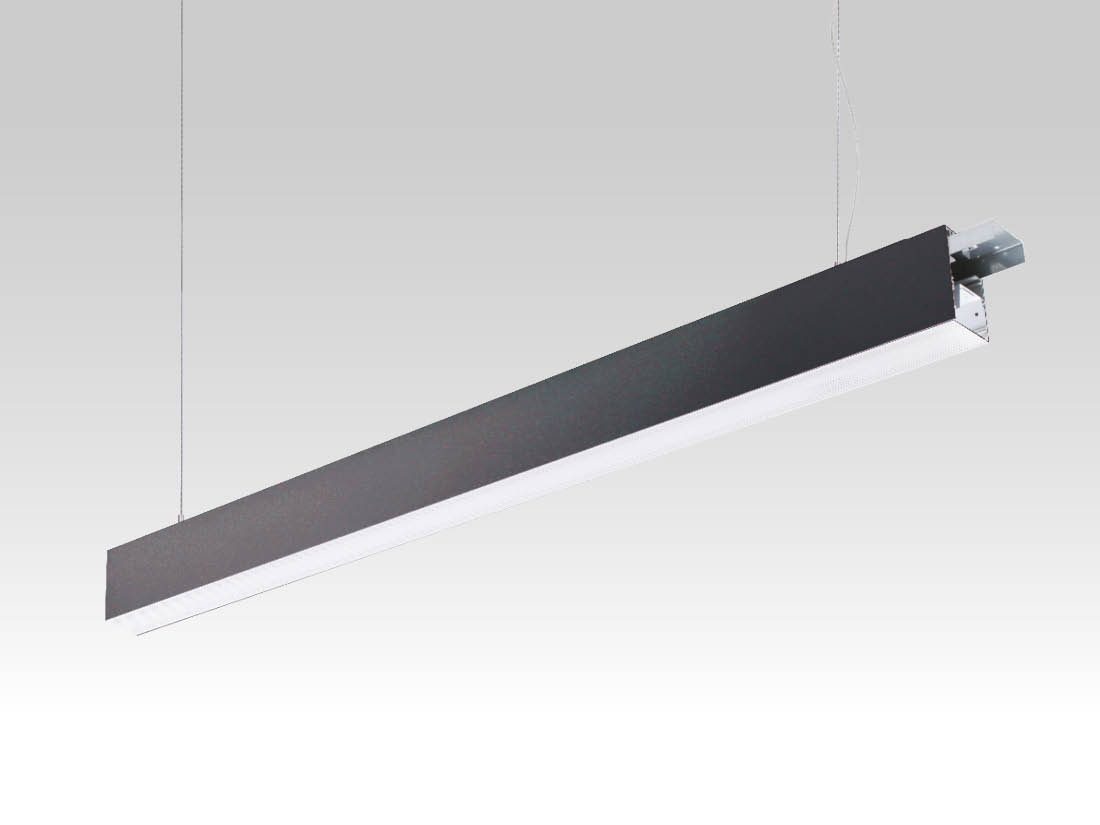

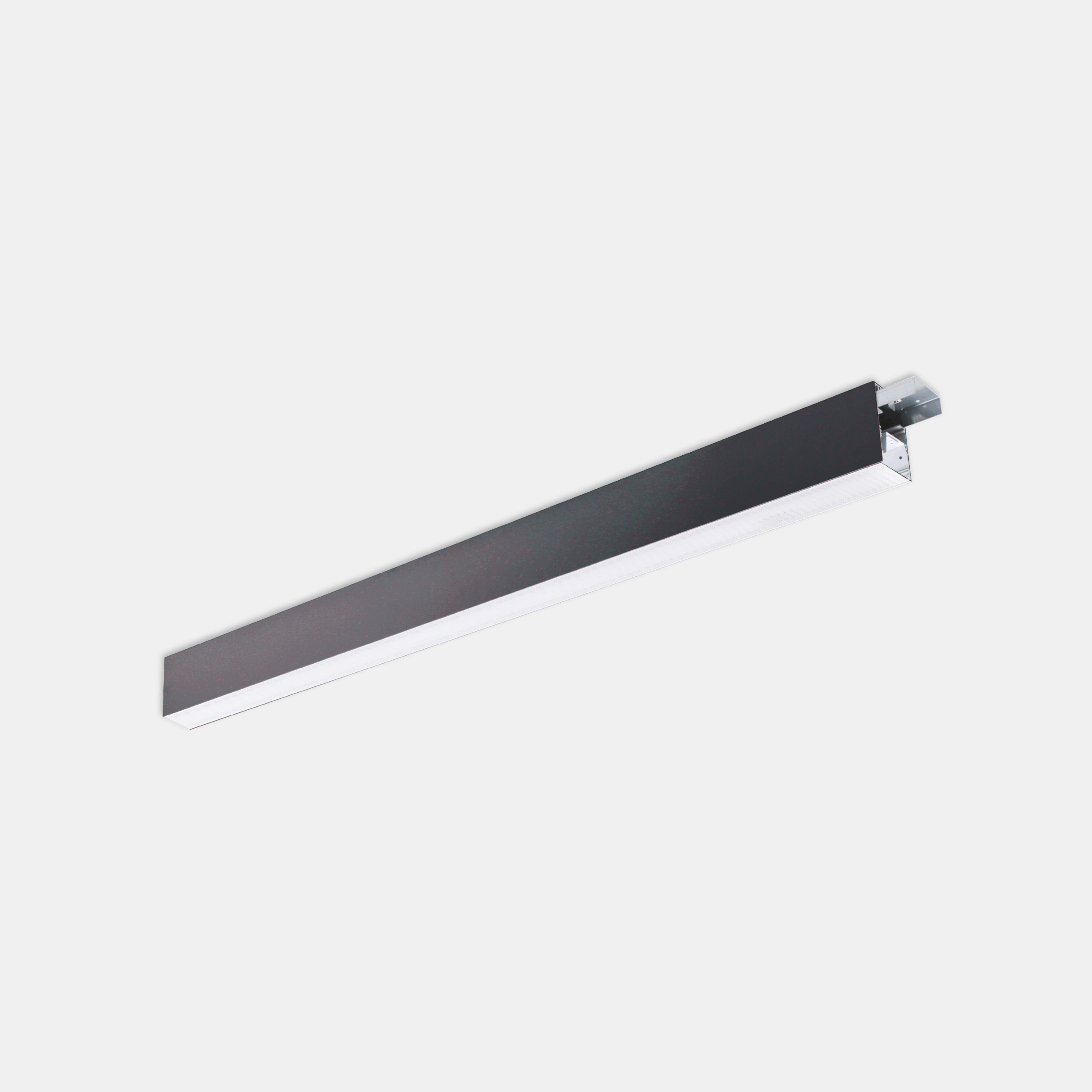

Led linear surface mounted or suspended fitting. Extruded aluminum body, painted with embossed matt black anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Indoor, art. 2006 Agape

Models: 207

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2006	RP	30	= 3000°K (CRI >80)	11	44	NL	= on/off
		40	= 4000°K (CRI >80)	16	48	ND	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	22	49	N7	= dali 2 / dali 2 push (6P+T)
				24	60	1N	= dali 2 + em. 1h (6P+T)
				28	64	N1	= em. 1h
				32	72	N3	= em. 3h
				34	96	CN	= casambi
				40

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2006RP4011NL	11	250	4000°K - CRI>80	on/off	1475	134	56	90	565	265	1.4
2006RP4022NL	22	250	4000°K - CRI>80	on/off	2951	134	56	90	1125	825	2.8
2006RP4028NL	28	250	4000°K - CRI>80	on/off	3689	132	56	90	1405	1105	3.5
2006RP4034NL	34	250	4000°K - CRI>80	on/off	4427	130	56	90	1685	1380	4.2
2006RP4016NL	16	350	4000°K - CRI>80	on/off	2024	127	56	90	565	265	1.4
2006RP4032NL	32	350	4000°K - CRI>80	on/off	4049	127	56	90	1125	825	2.8
2006RP4040NL	40	350	4000°K - CRI>80	on/off	5061	127	56	90	1405	1105	3.5
2006RP4049NL	49	350	4000°K - CRI>80	on/off	6073	127	56	90	1685	1380	4.2
2006RP4024NL	24	500	4000°K - CRI>80	on/off	2807	117	56	90	565	265	1.4
2006RP4048NL	48	500	4000°K - CRI>80	on/off	5613	117	56	90	1125	825	2.8
2006RP4060NL	60	500	4000°K - CRI>80	on/off	7017	117	56	90	1405	1105	3.5
2006RP4072NL	72	500	4000°K - CRI>80	on/off	8420	117	56	90	1685	1380	4.2
2006RP4044NL	44	250	4000°K - CRI>80	on/off	5903	134	56	90	2250	1950	5.6
2006RP4064NL	64	350	4000°K - CRI>80	on/off	8097	127	56	90	2250	1950	5.6
2006RP4096NL	96	500	4000°K - CRI>80	on/off	11227	117	56	90	2250	1950	5.6
2006RP4011ND	11	250	4000°K - CRI>80	dali 2 / dali 2 push	1475	134	56	90	565	265	1.4
2006RP4022ND	22	250	4000°K - CRI>80	dali 2 / dali 2 push	2951	134	56	90	1125	825	2.8
2006RP4028ND	28	250	4000°K - CRI>80	dali 2 / dali 2 push	3689	132	56	90	1405	1105	3.5
2006RP4034ND	34	250	4000°K - CRI>80	dali 2 / dali 2 push	4427	130	56	90	1685	1380	4.2
2006RP4016ND	16	350	4000°K - CRI>80	dali 2 / dali 2 push	2024	127	56	90	565	265	1.4
