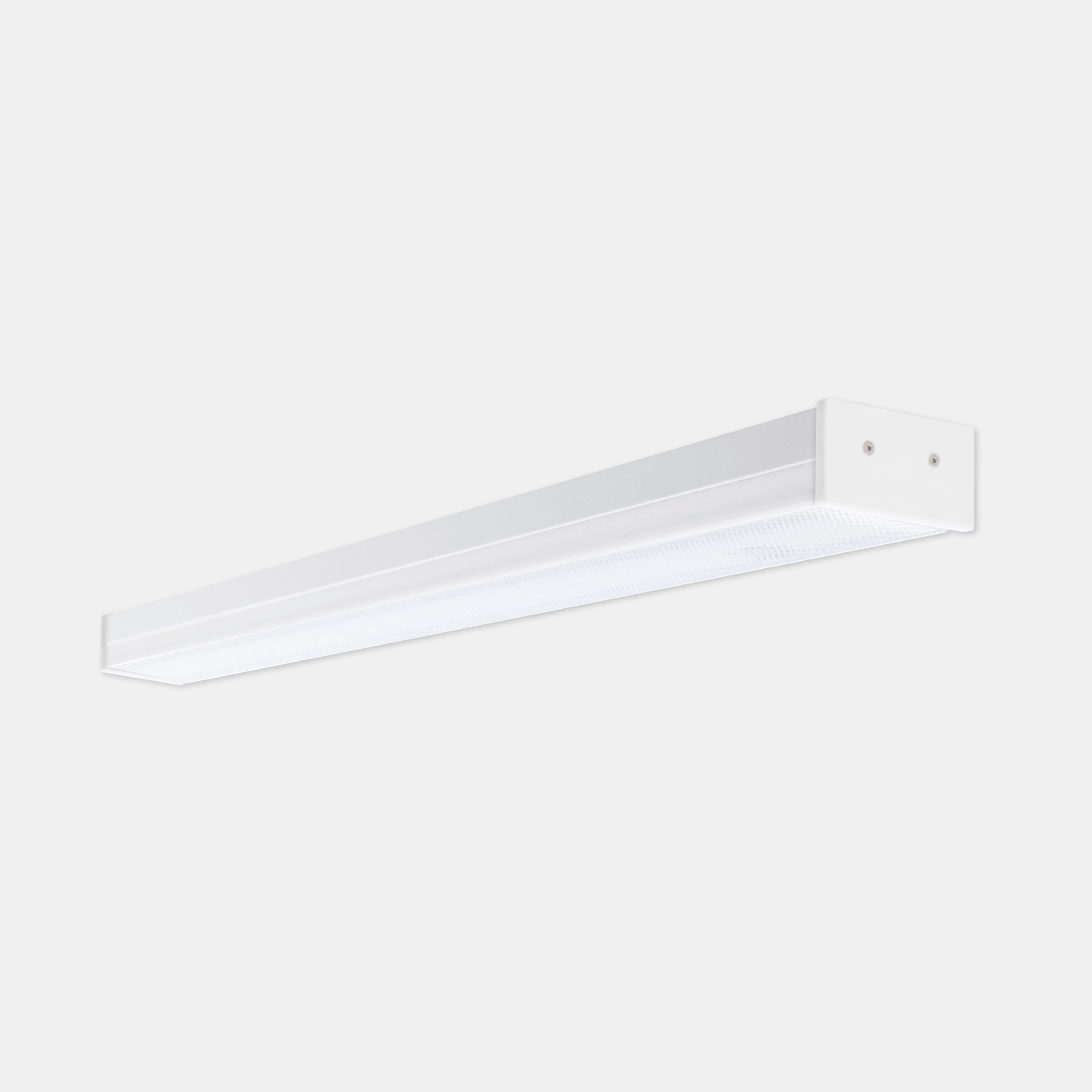

DAFNE/LP

Led DIRECT BACKLIGHT fixture with diffused light to increase the luminosity of vertical surfaces, suitable for ceiling or suspended installation. Steel sheet body painted with white anti-yellowing epoxy-polyester powders with a fine embossed finish. Diffuser built in extruded self-extinguishing V2 polycarbonate, component holder reflector in white pre-painted sheet metal, closing caps in satin finish polycarbonate. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Office, art. 2046 Dafne

Models: 378

Color: Matt white

Catalogue abstract

Installation instructions

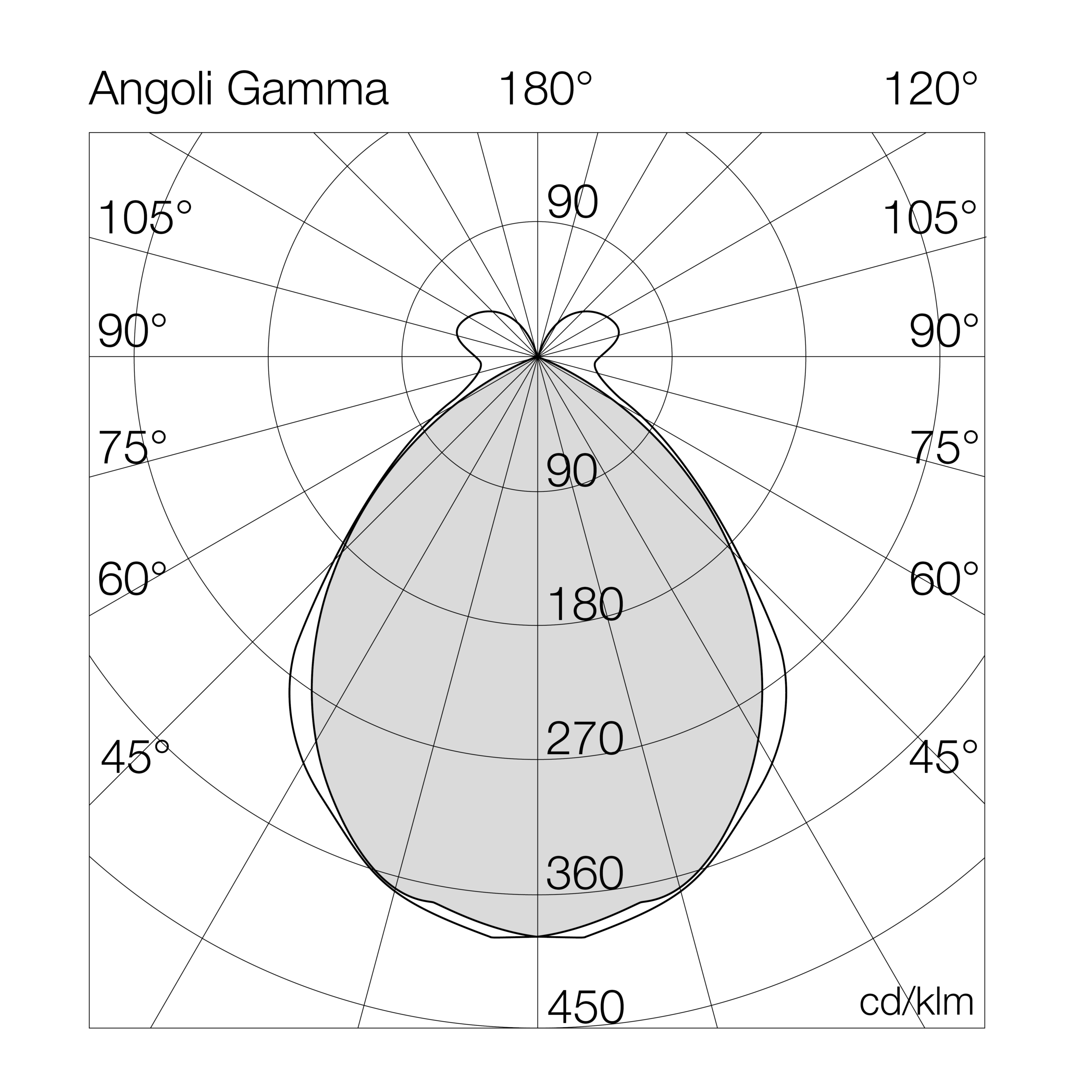

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2046	LP	30	= 3000°K (CRI >80)	12	38	EL	= on/off
		40	= 4000°K (CRI >80)	16	39	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	19	40	D1	= dali 2 + em.1h
				20	46	E1	= em. 1h
				23	49	E3	= em. 3h
				28	50	FC	= continuous row
				29	54	CS	= casambi
				32	57
				36	60

Models

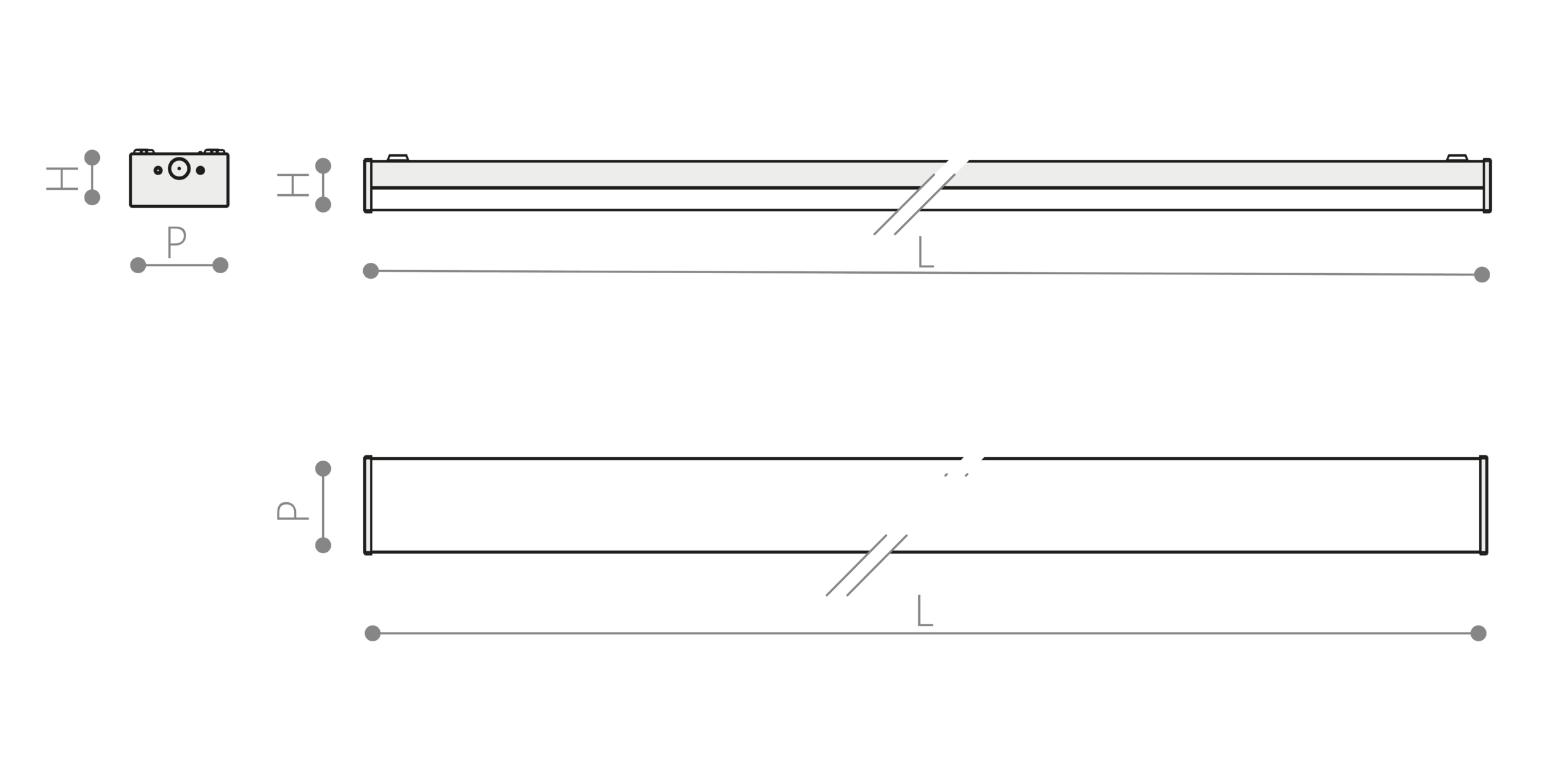

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
2046LP4012EL	12	4000°K - CRI>80	on/off	1505	125	111	600	65	1.7
2046LP4016EL	16	4000°K - CRI>80	on/off	2137	134	111	600	65	1.7
2046LP4019EL	19	4000°K - CRI>80	on/off	2425	128	111	600	65	1.7
2046LP4020EL	20	4000°K - CRI>80	on/off	2568	128	111	1160	65	2.3
2046LP4023EL	23	4000°K - CRI>80	on/off	3010	131	111	1160	65	2.3
2046LP4028EL	28	4000°K - CRI>80	on/off	3568	127	111	1160	65	2.3
2046LP4029EL	29	4000°K - CRI>80	on/off	3925	135	111	1440	65	2.6
2046LP4032EL	32	4000°K - CRI>80	on/off	4275	134	111	1160	65	2.3
2046LP4036EL	36	4000°K - CRI>80	on/off	4622	128	111	1160	65	2.3
2046LP4038EL	38	4000°K - CRI>80	on/off	4979	131	111	1440	65	2.6
2046LP4039EL	39	4000°K - CRI>80	on/off	5124	131	111	1160	65	2.3
2046LP4040EL	40	4000°K - CRI>80	on/off	5517	138	111	1440	65	2.6
2046LP4046EL	46	4000°K - CRI>80	on/off	6063	132	111	1440	65	2.6
2046LP4049EL	49	4000°K - CRI>80	on/off	6406	131	111	1440	65	2.6
2046LP4050EL	50	4000°K - CRI>80	on/off	6527	131	111	1160	65	2.3
2046LP4054EL	54	4000°K - CRI>80	on/off	6773	125	111	1440	65	2.6
2046LP4057EL	57	4000°K - CRI>80	on/off	7618	134	111	1440	65	2.6
2046LP4060EL	60	4000°K - CRI>80	on/off	7471	125	111	1440	65	2.6
2046LP4012LD	12	4000°K - CRI>80	dali 2 / dali 2 push	1505	125	111	600	65	1.7
2046LP4016LD	16	4000°K - CRI>80	dali 2 / dali 2 push	2137	134	111	600	65	1.7
