DEA HP/LC

Led IP66 ceiling or wall mounted or suspended fixture. Extruded V2 autoextinguishing polycarbonate body, with led support in prepainted white steel and polycarbonate caps, sealed with inspection door, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Industrial, art. 2156 Dea HP

Models: 160

Color: Grey

Catalogue abstract

Installation instructions

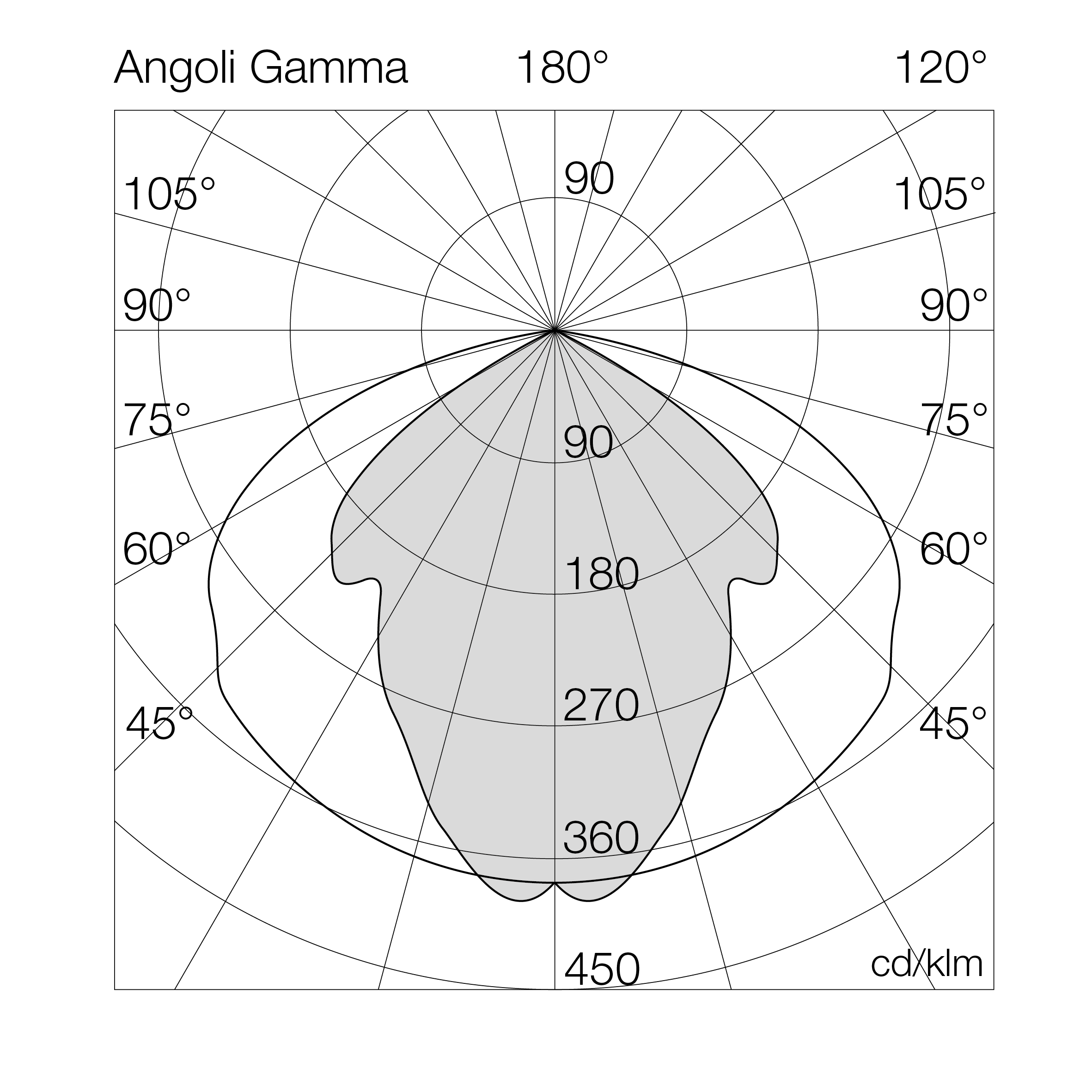

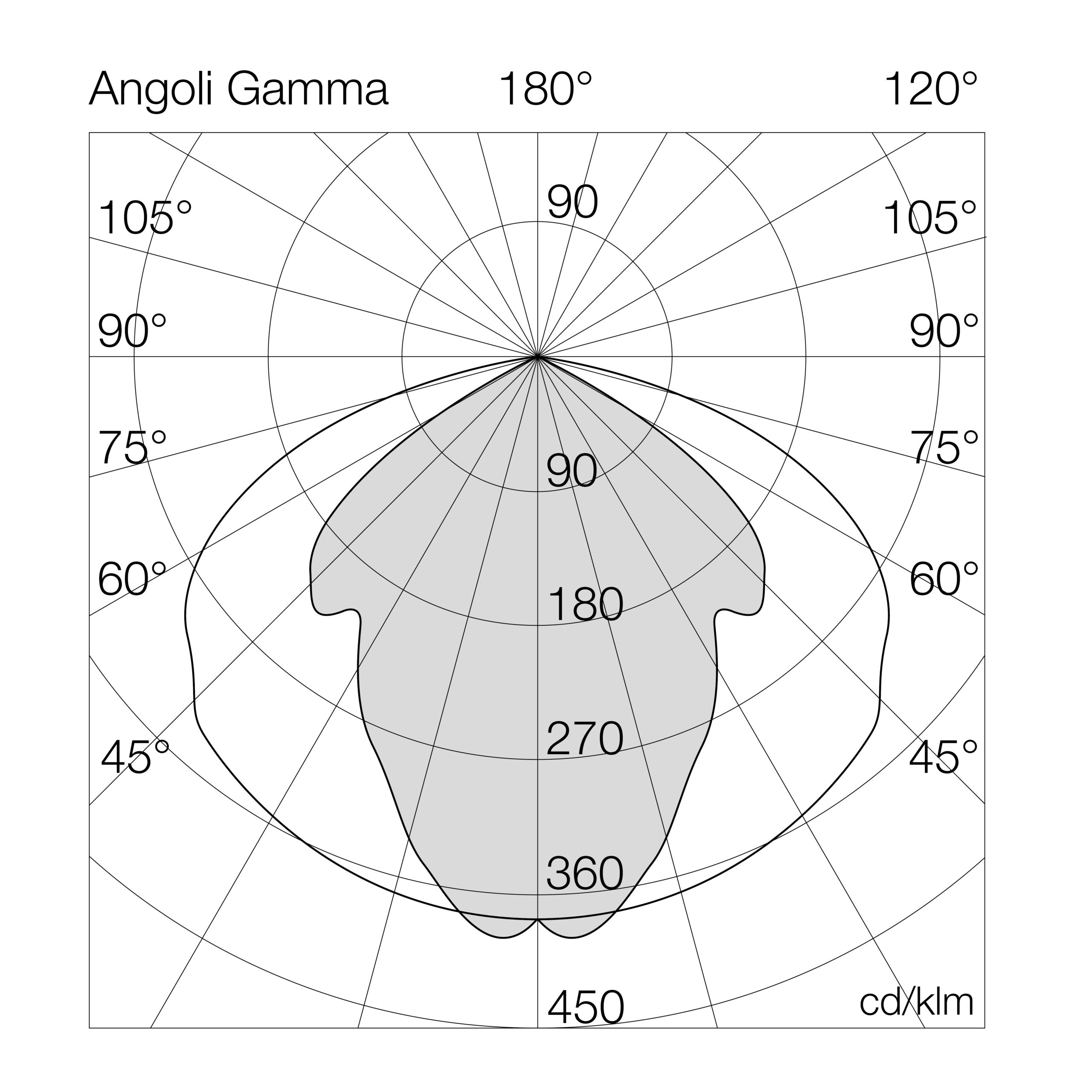

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2156	LC	3	= 3000°K (CRI >80)	70	EL	= on/off
		4	= 4000°K (CRI >80)	80	LD	= dali 2 / dali 2 push
		5	= 5000°K (CRI >80)	100	D1	= dali 2 + em. 1h
		6	= 6500°K (CRI >80)	120	E1	= em. 1h
		9	= 4000°K (CRI >90)		E3	= em. 3h
					FC	= continuous row
					IC	= ice -30°C
					CS	= casambi

Models

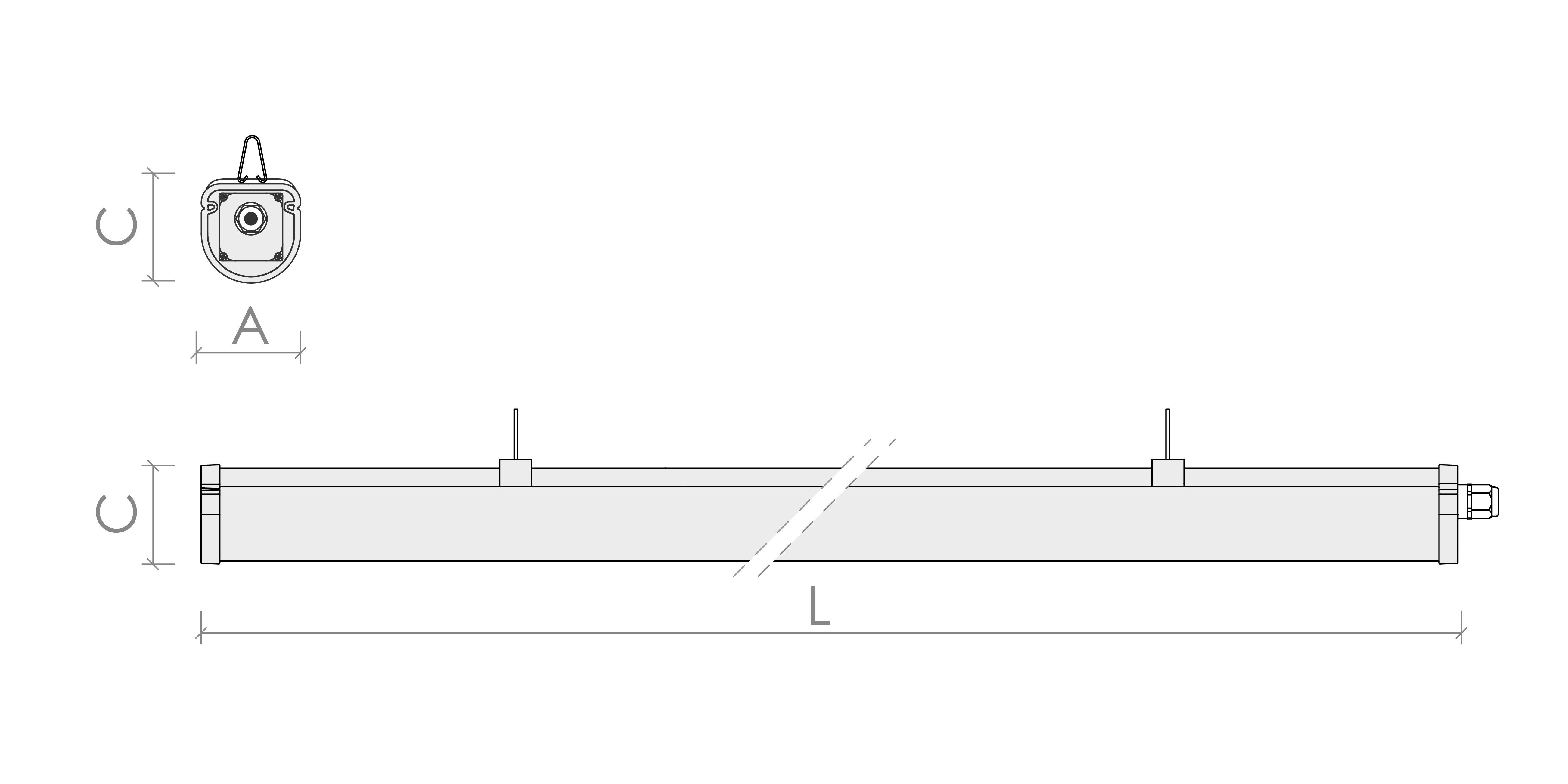

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
2156LC4070EL	70	4000°K - CRI>80	on/off	10680	153	92	1455	92	2.5
2156LC4080EL	80	4000°K - CRI>80	on/off	12710	159	92	1455	92	2.5
2156LC4100EL	100	4000°K - CRI>80	on/off	15358	154	92	1455	92	2.5
2156LC4120EL	120	4000°K - CRI>80	on/off	17941	150	92	1455	92	2.5
2156LC4070LD	70	4000°K - CRI>80	dali 2 / dali 2 push	10680	153	92	1455	92	2.5
2156LC4080LD	80	4000°K - CRI>80	dali 2 / dali 2 push	12710	159	92	1455	92	2.5
2156LC4100LD	100	4000°K - CRI>80	dali 2 / dali 2 push	15358	154	92	1455	92	2.5
2156LC4120LD	120	4000°K - CRI>80	dali 2 / dali 2 push	17941	150	92	1455	92	2.5
2156LC4070D1	70	4000°K - CRI>80	dali 2 + em. 1h	10680	153	92	1455	92	2.5
2156LC4080D1	80	4000°K - CRI>80	dali 2 + em. 1h	12710	159	92	1455	92	2.5
2156LC4100D1	100	4000°K - CRI>80	dali 2 + em. 1h	15358	154	92	1455	92	2.5
2156LC4120D1	120	4000°K - CRI>80	dali 2 + em. 1h	17941	150	92	1455	92	2.5
2156LC4070E1	70	4000°K - CRI>80	em. 1h	10680	153	92	1455	92	2.5
2156LC4080E1	80	4000°K - CRI>80	em. 1h	12710	159	92	1455	92	2.5
2156LC4100E1	100	4000°K - CRI>80	em. 1h	15358	154	92	1455	92	2.5
2156LC4120E1	120	4000°K - CRI>80	em. 1h	17941	150	92	1455	92	2.5
2156LC4070E3	70	4000°K - CRI>80	em. 3h	10680	153	92	1455	92	2.5
2156LC4080E3	80	4000°K - CRI>80	em. 3h	12710	159	92	1455	92	2.5
2156LC4100E3	100	4000°K - CRI>80	em. 3h	15358	154	92	1455	92	2.5
2156LC4120E3	120	4000°K - CRI>80	em. 3h	17941	150	92	1455	92	2.5
