art.-2300-soleil-0s-bianco

SOLEIL/0S

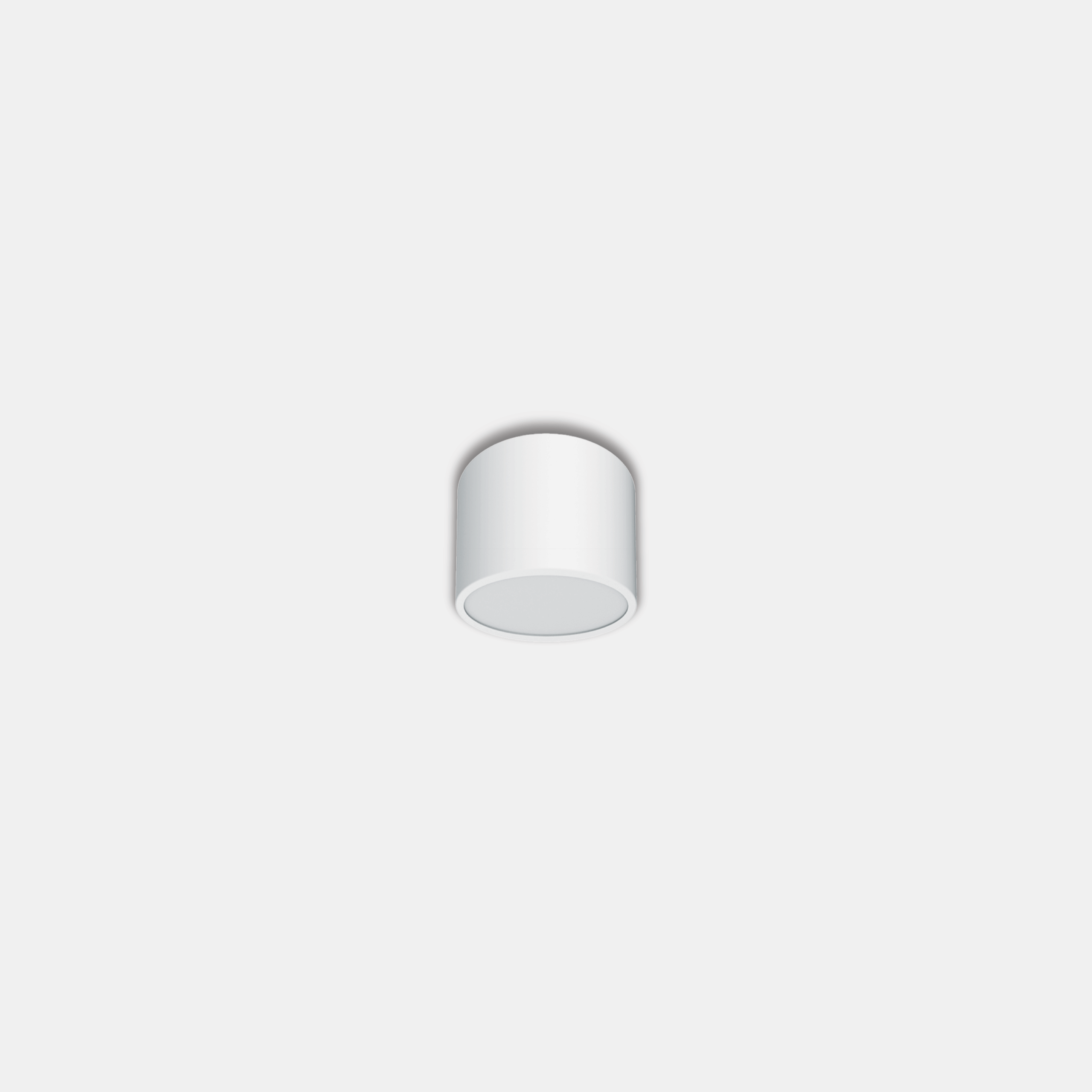

Led indoor light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.

Categories: Led, Architectural Indoor, art. 2300 Soleil

Models: 3

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
2300		0S		27	= 2700°K (CRI >80)		07		BL	= on/off
				30	= 3000°K (CRI >80)				BD	= dali 2 / dali 2 push
				40	= 4000°K (CRI >80)				BC	= casambi

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	23000S4007BL			4000°K - CRI>80	on/off	861	123	100		78		0.50
	23000S3007BL			3000°K - CRI>80	on/off	817	117	100		78		0.50
	23000S2707BL			2700°K - CRI>80	on/off	791	113	100		78		0.50
