art.-2300-soleil-0s-nero

SOLEIL/0S

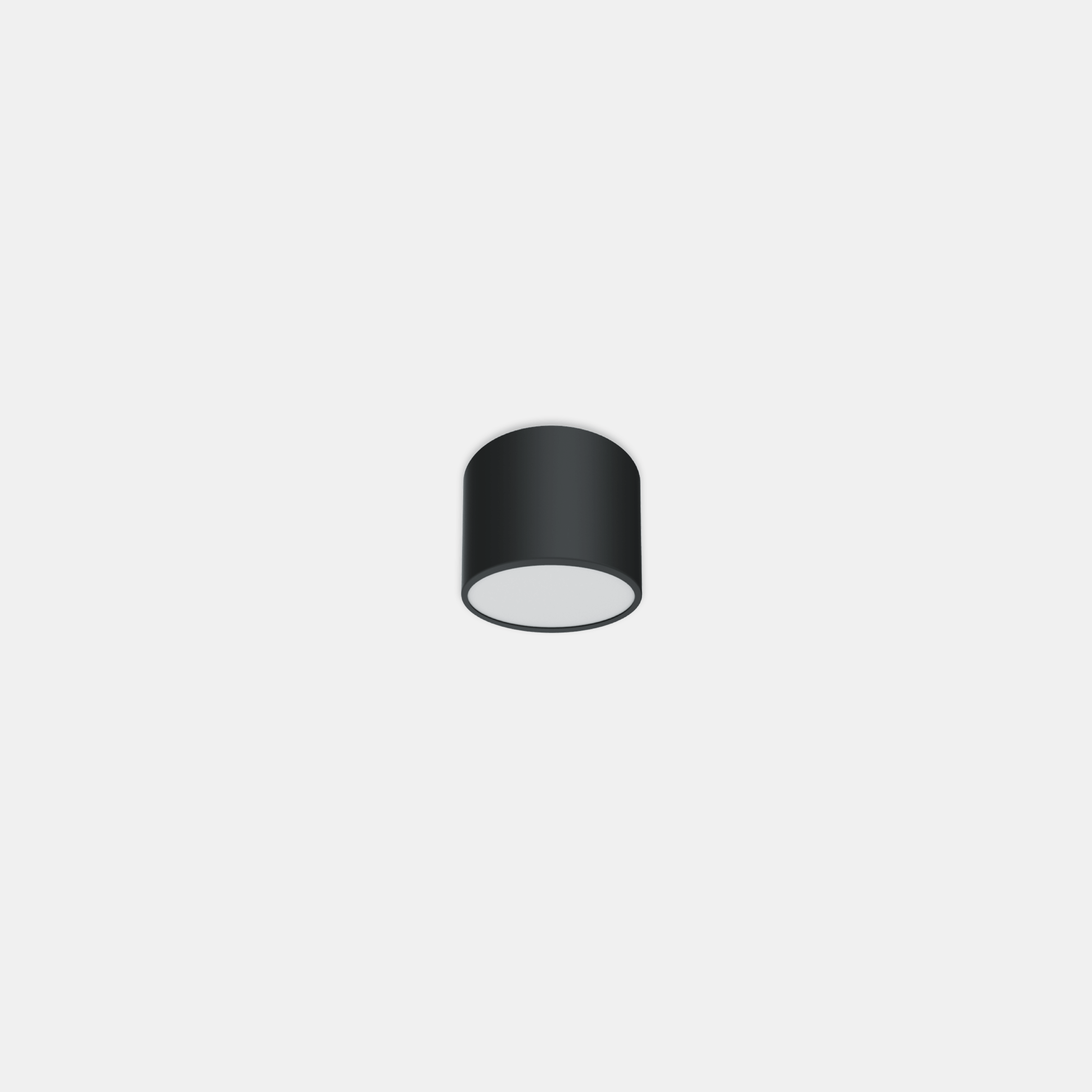

Led indoor light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220 240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.

Categories: Led, Architectural Indoor, art. 2300 Soleil

Models: 3

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
2300		0S		27	= 2700°K (CRI >80)		07		NL	= on/off
				30	= 3000°K (CRI >80)				ND	= dali 2 / dali 2 push
				40	= 4000°K (CRI >80)				NC	= casambi

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	23000S4007NL			4000°K - CRI>80	on/off	861	123	100		78		0.50
	23000S3007NL			3000°K - CRI>80	on/off	817	117	100		78		0.50
	23000S2707NL			2700°K - CRI>80	on/off	791	113	100		78		0.50
