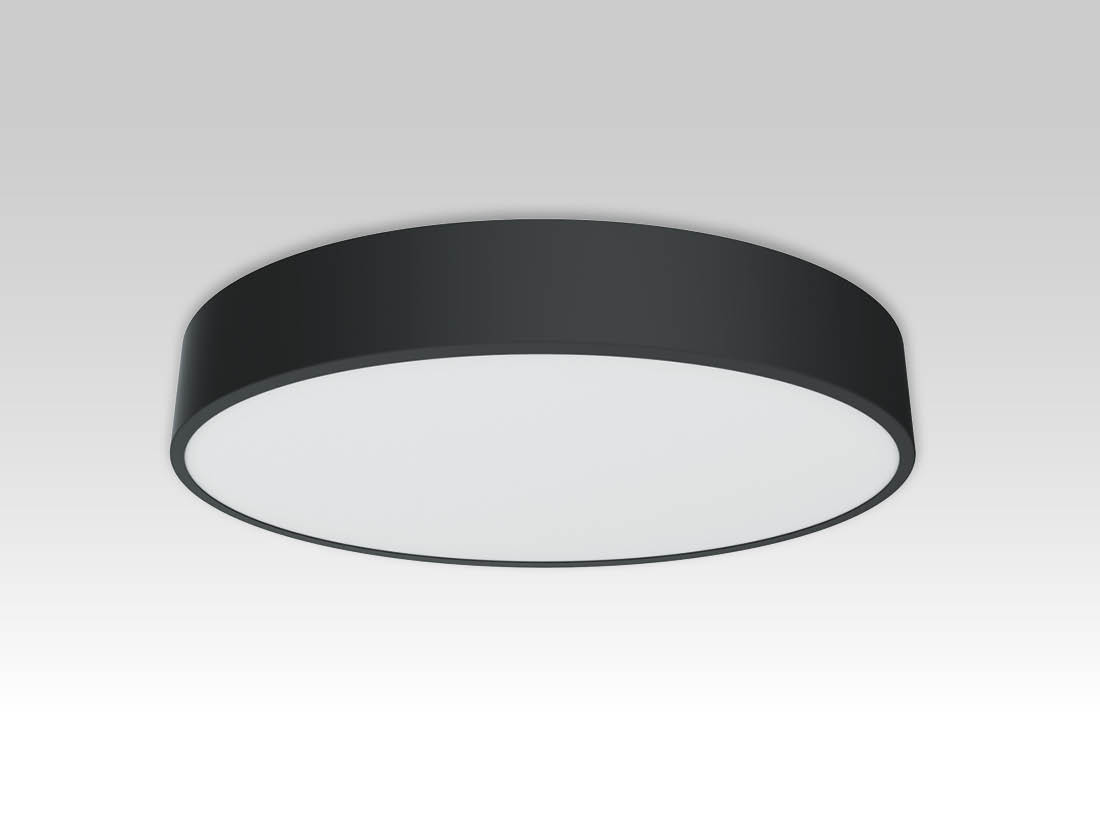

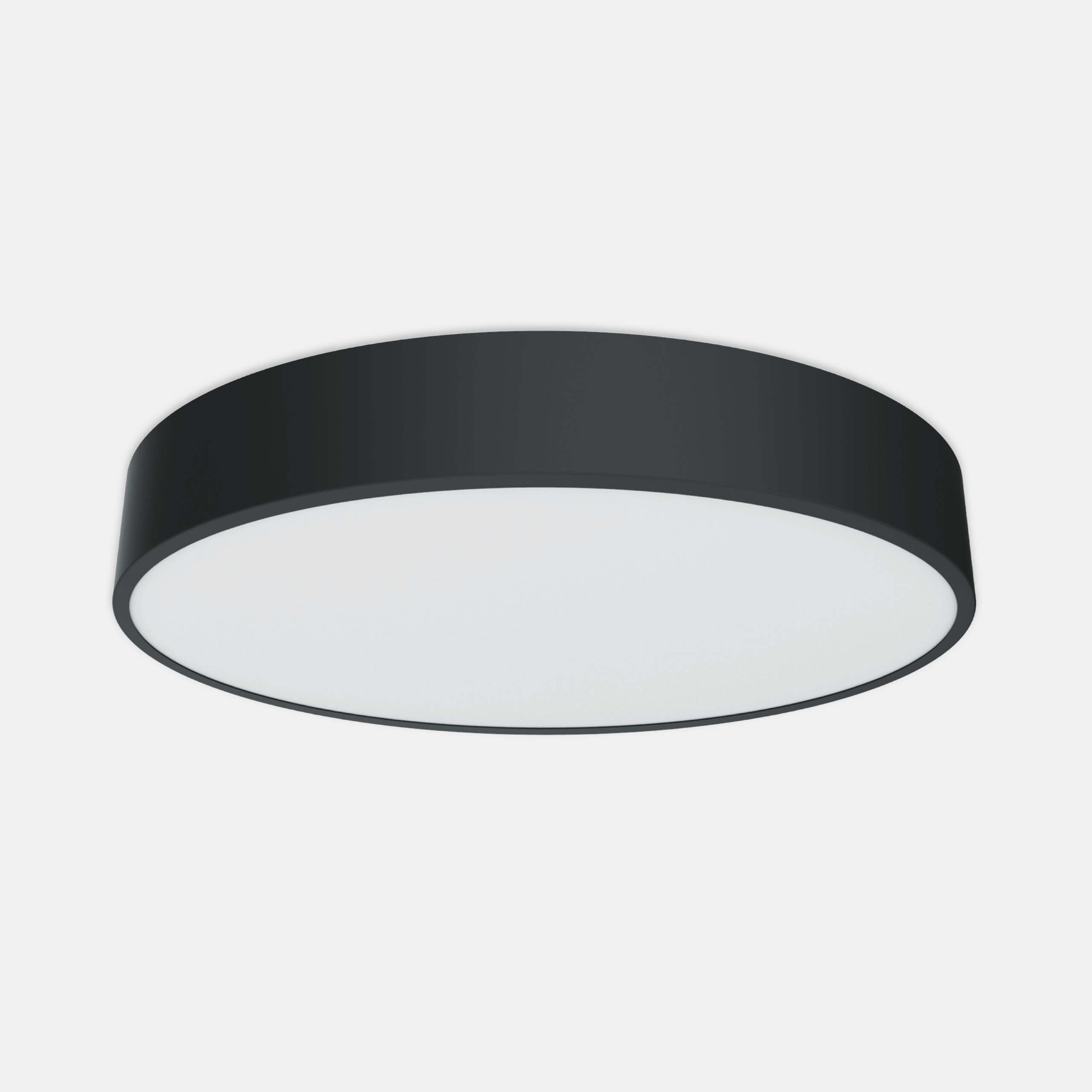

SOLEIL/5S

Led indoor light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220 240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.

Categories: Led, Architectural Indoor, art. 2300 Soleil

Models: 27

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2300	5S	27	= 2700°K (CRI >80)	30	NL	= on/off
		30	= 3000°K (CRI >80)	38	ND	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	50	NC	= casambi

Models

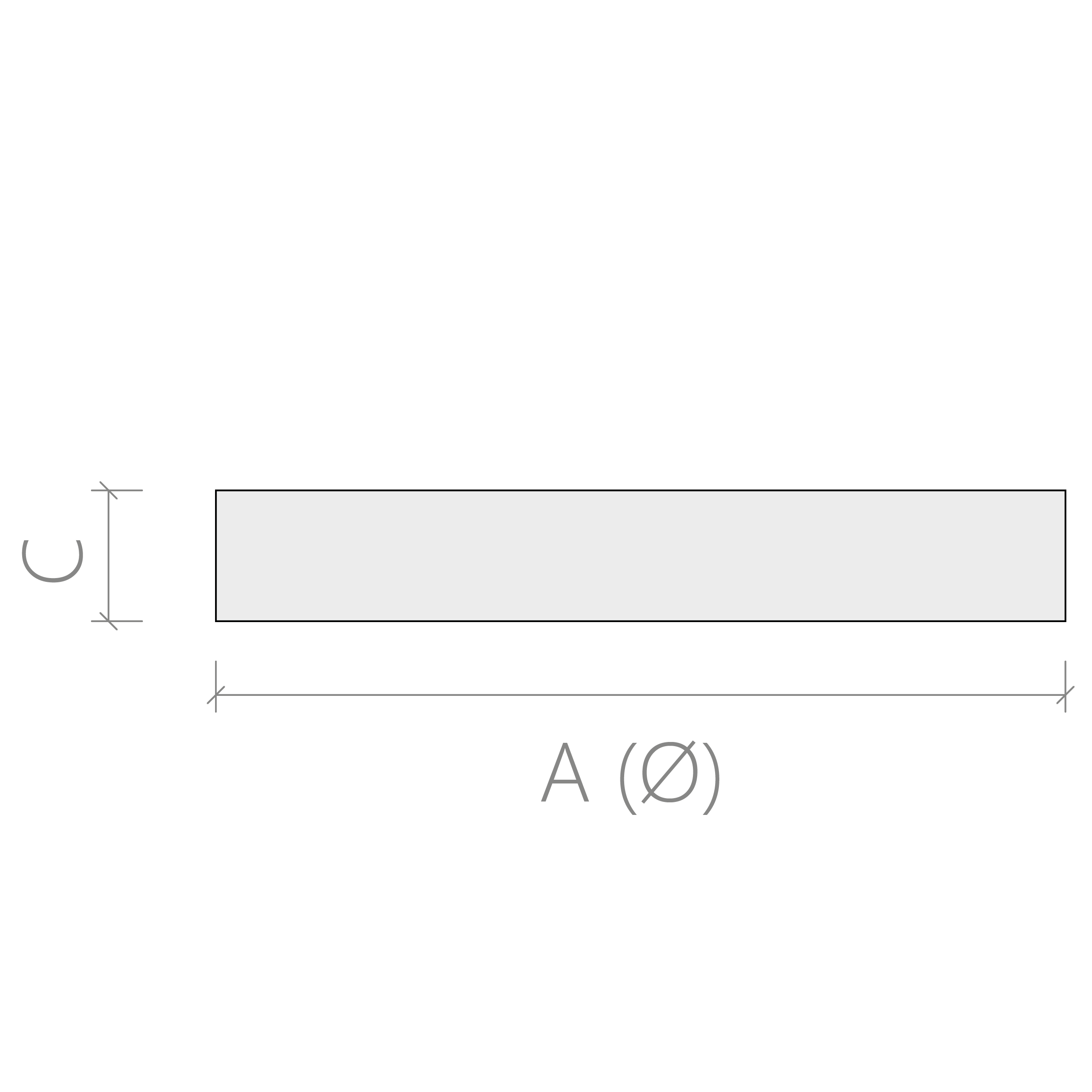

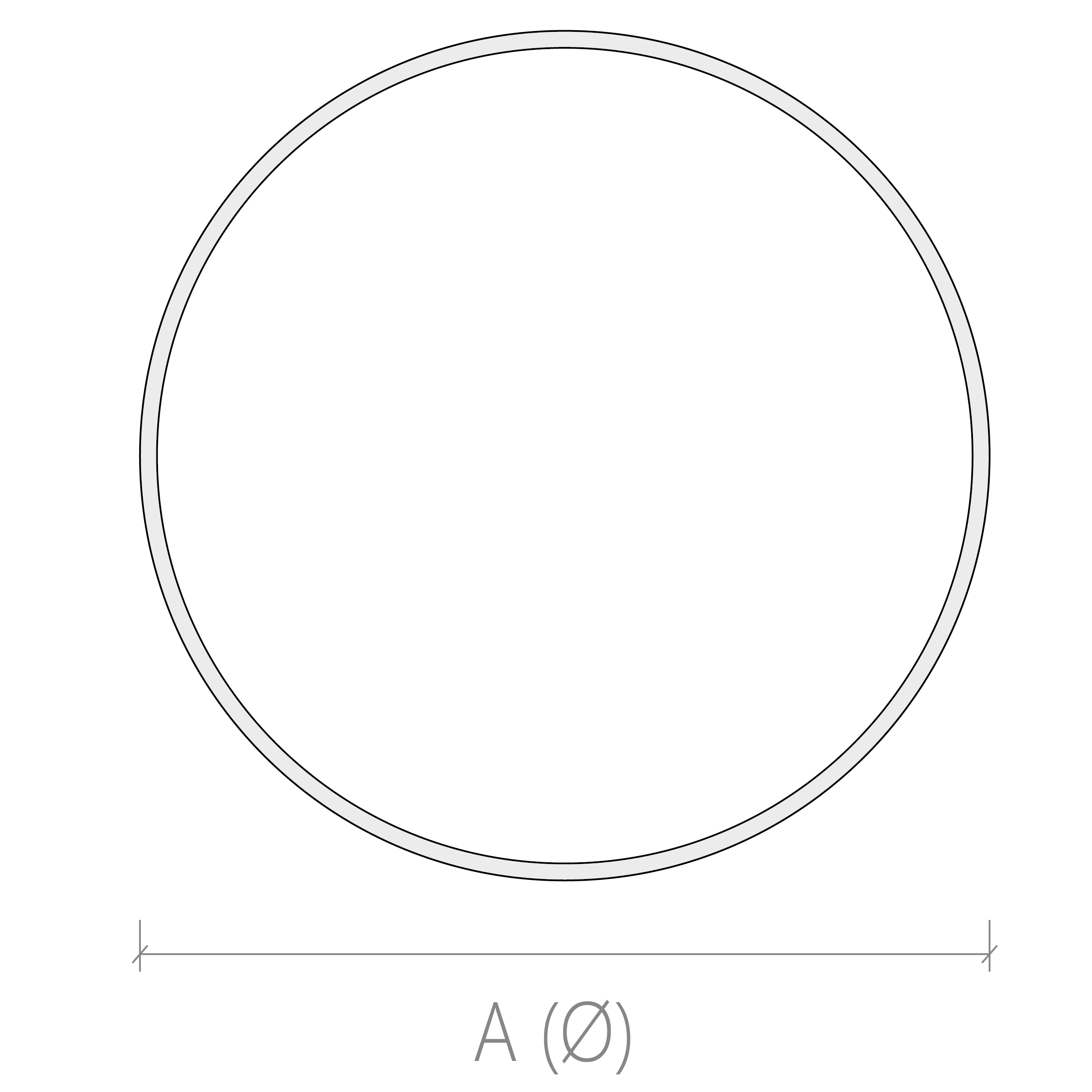

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
23005S4030NL	30	4000°K - CRI>80	on/off	3238	108	500	78	4.2
23005S4038NL	38	4000°K - CRI>80	on/off	4053	107	500	78	4.2
23005S4050NL	50	4000°K - CRI>80	on/off	5313	106	500	78	4.2
23005S4030ND	30	4000°K - CRI>80	dali 2 / dali 2 push	3238	108	500	78	4.2
23005S4038ND	38	4000°K - CRI>80	dali 2 / dali 2 push	4053	107	500	78	4.2
23005S4050ND	50	4000°K - CRI>80	dali 2 / dali 2 push	5313	106	500	78	4.2
23005S4030NC	30	4000°K - CRI>80	casambi	3238	108	500	78	4.2
23005S4038NC	38	4000°K - CRI>80	casambi	4053	107	500	78	4.2
23005S4050NC	50	4000°K - CRI>80	casambi	5313	106	500	78	4.2
23005S3030NL	30	3000°K - CRI>80	on/off	3071	102	500	78	4.2
23005S3038NL	38	3000°K - CRI>80	on/off	3844	101	500	78	4.2
23005S3050NL	50	3000°K - CRI>80	on/off	5039	101	500	78	4.2
23005S3030ND	30	3000°K - CRI>80	dali 2 / dali 2 push	3071	102	500	78	4.2
23005S3038ND	38	3000°K - CRI>80	dali 2 / dali 2 push	3844	101	500	78	4.2
23005S3050ND	50	3000°K - CRI>80	dali 2 / dali 2 push	5039	101	500	78	4.2
23005S3030NC	30	3000°K - CRI>80	casambi	3071	102	500	78	4.2
23005S3038NC	38	3000°K - CRI>80	casambi	3844	101	500	78	4.2
23005S3050NC	50	3000°K - CRI>80	casambi	5039	101	500	78	4.2
23005S2730NL	30	2700°K - CRI>80	on/off	2976	99	500	78	4.2
23005S2738NL	38	2700°K - CRI>80	on/off	3725	98	500	78	4.2
