art.-2300-delia-l3-grigio

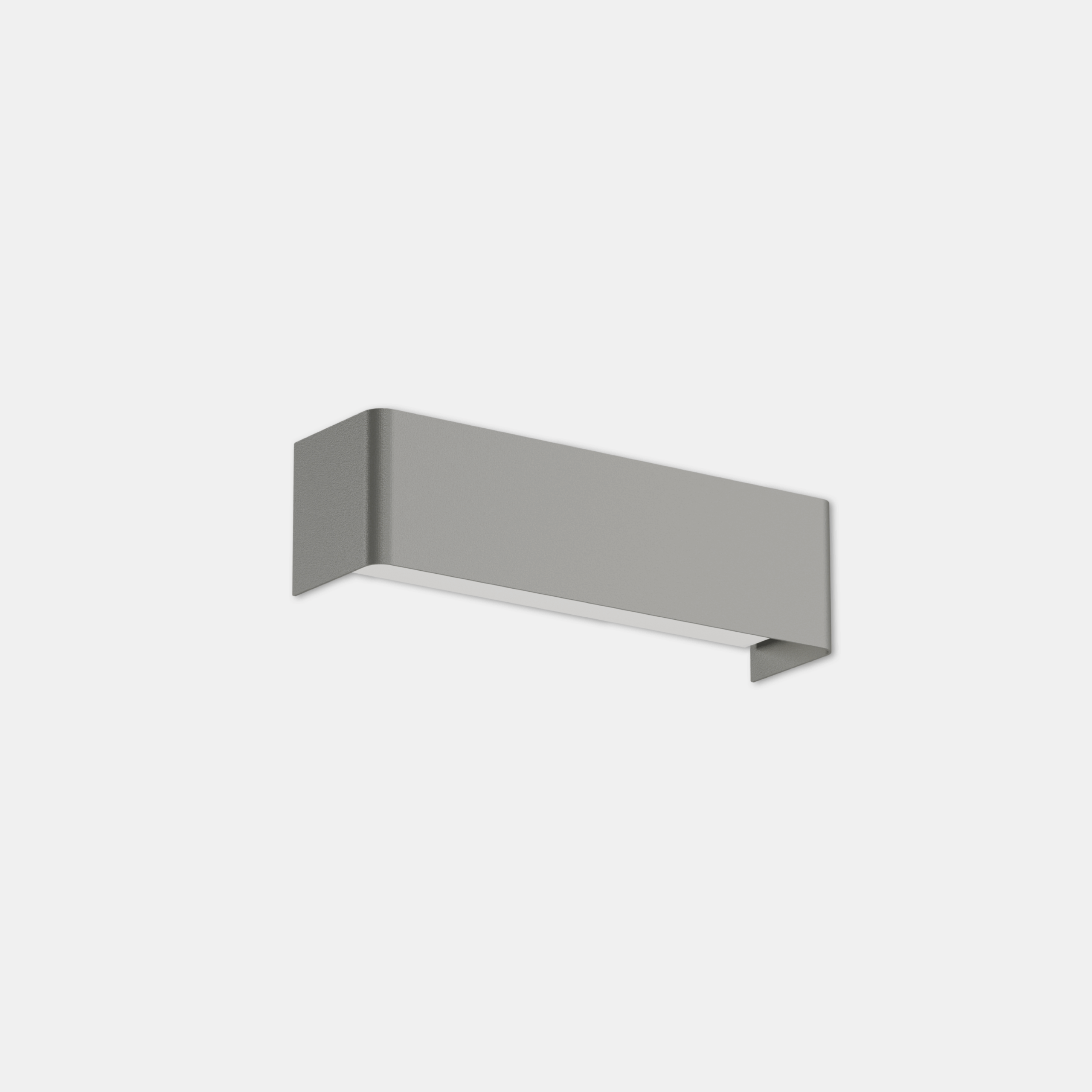

DELIA/L3

Led indoor light for wall installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.
Categories: Led, Architectural Indoor, art. 2310 Delia
Models: 8
Color: Matt grey
Catalogue abstract
Installation instructions

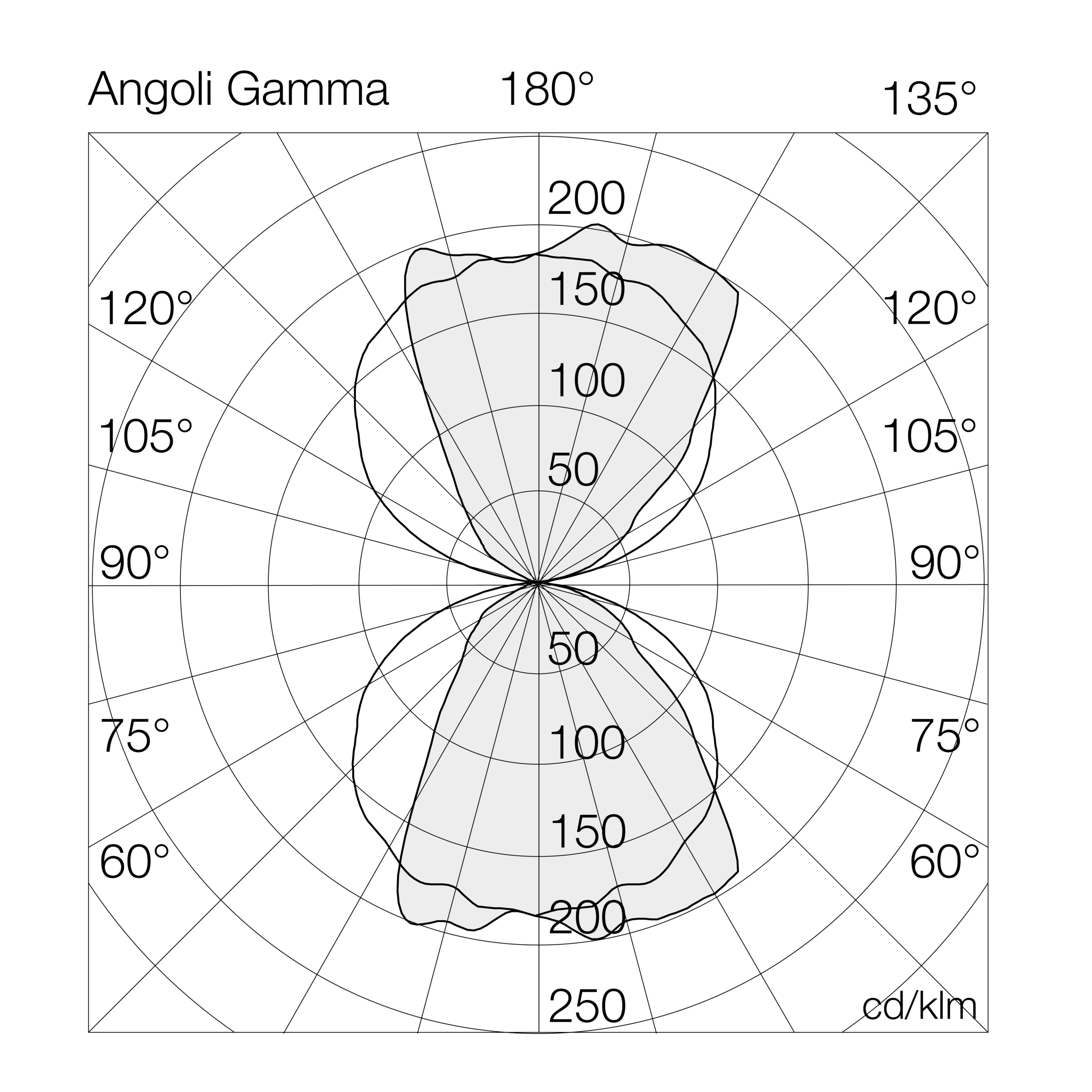

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L327= 2700°K (CRI >80)14GL= on/off
30= 3000°K (CRI >80)GD= dali 2 / dali 2 push
40= 4000°K (CRI >80)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

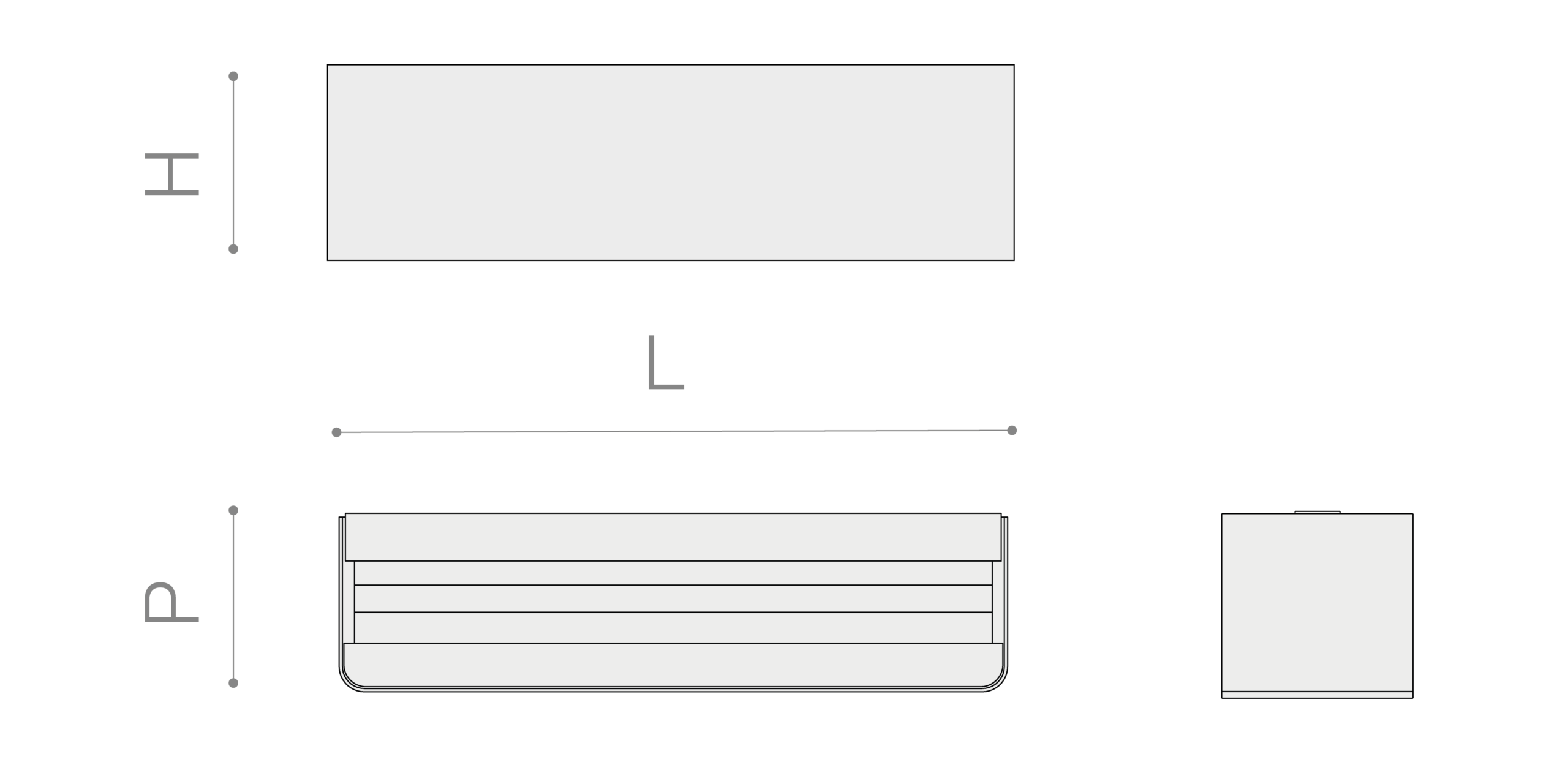

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2310L34014GL144000°K - CRI>80on/off163311730080851.3
2310L34014GD144000°K - CRI>80dali 2 / dali 2 push163311730080851.3
2310L33014GL143000°K - CRI>80on/off154911130080851.3
2310L33014GD143000°K - CRI>80dali 2 / dali 2 push154911130080851.3
2310L39414GL144000°K - CRI>90on/off13879930080851.3
2310L39414GD144000°K - CRI>90dali 2 / dali 2 push13879930080851.3
2310L32714GL142700°K - CRI>80on/off150110730080851.3
2310L32714GD142700°K - CRI>80dali 2 / dali 2 push150110730080851.3
