GIOTTO RGBW/W3

Outdoor RGB+White led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Outdoor, art. 3002 Giotto RGBW

Models: 5

Color: Silver

Catalogue abstract

Installation instructions

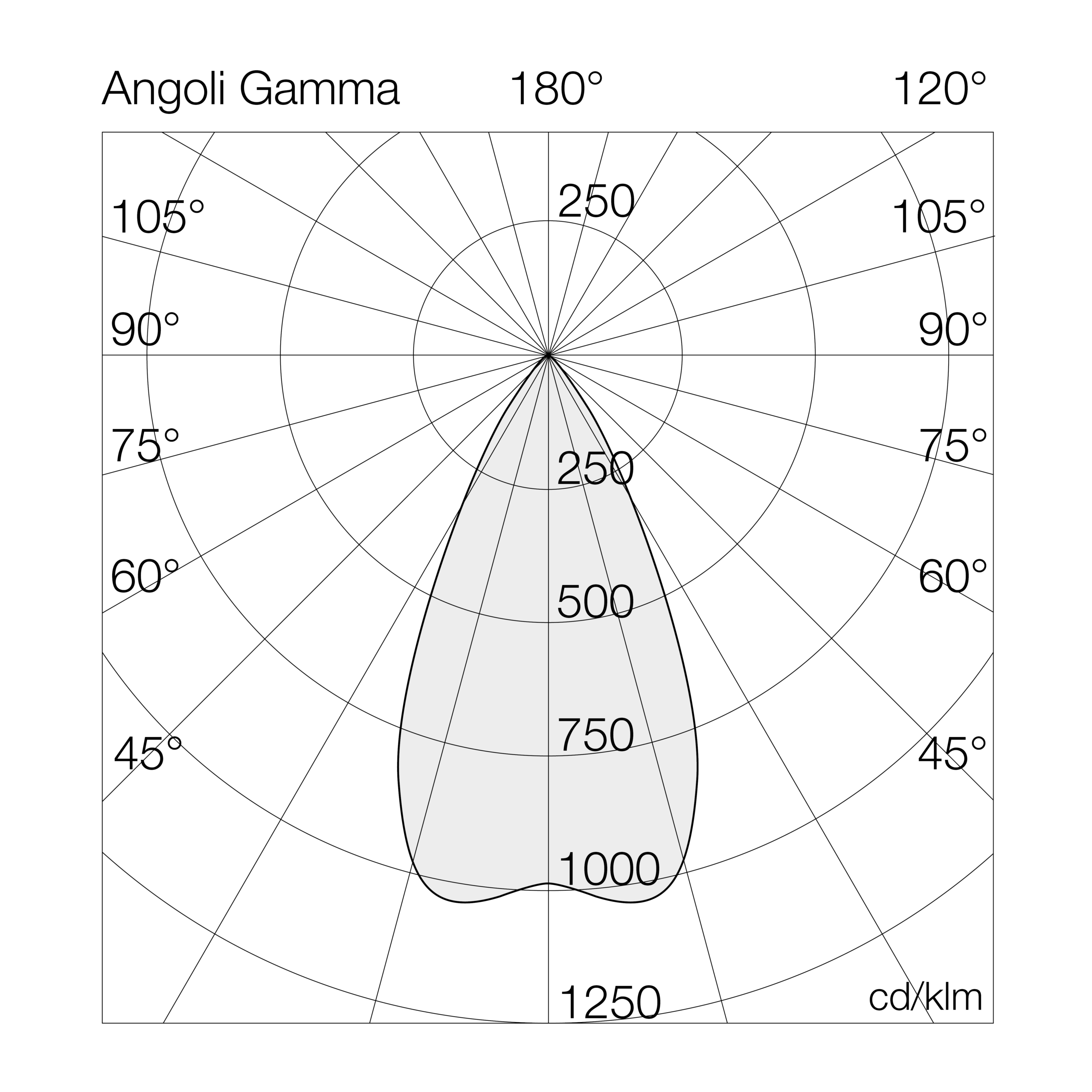

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
3002		W3		RW	= RGB+W		12		GL	= on/off
							25
							38
							50
							60

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	3002W3RW12GL	12		RGB+W	on/off	534	45	110	70	400		1.9
	3002W3RW25GL	25		RGB+W	on/off	1068	43	110	70	680		3.2
	3002W3RW38GL	38		RGB+W	on/off	1603	42	110	70	960		4.2
	3002W3RW50GL	50		RGB+W	on/off	2137	43	110	70	1240		5.2
	3002W3RW60GL	60		RGB+W	on/off	2671	45	110	70	1520		5.9

Accessories
