art.-3020-isa-rsc-nero

ISA/RSC

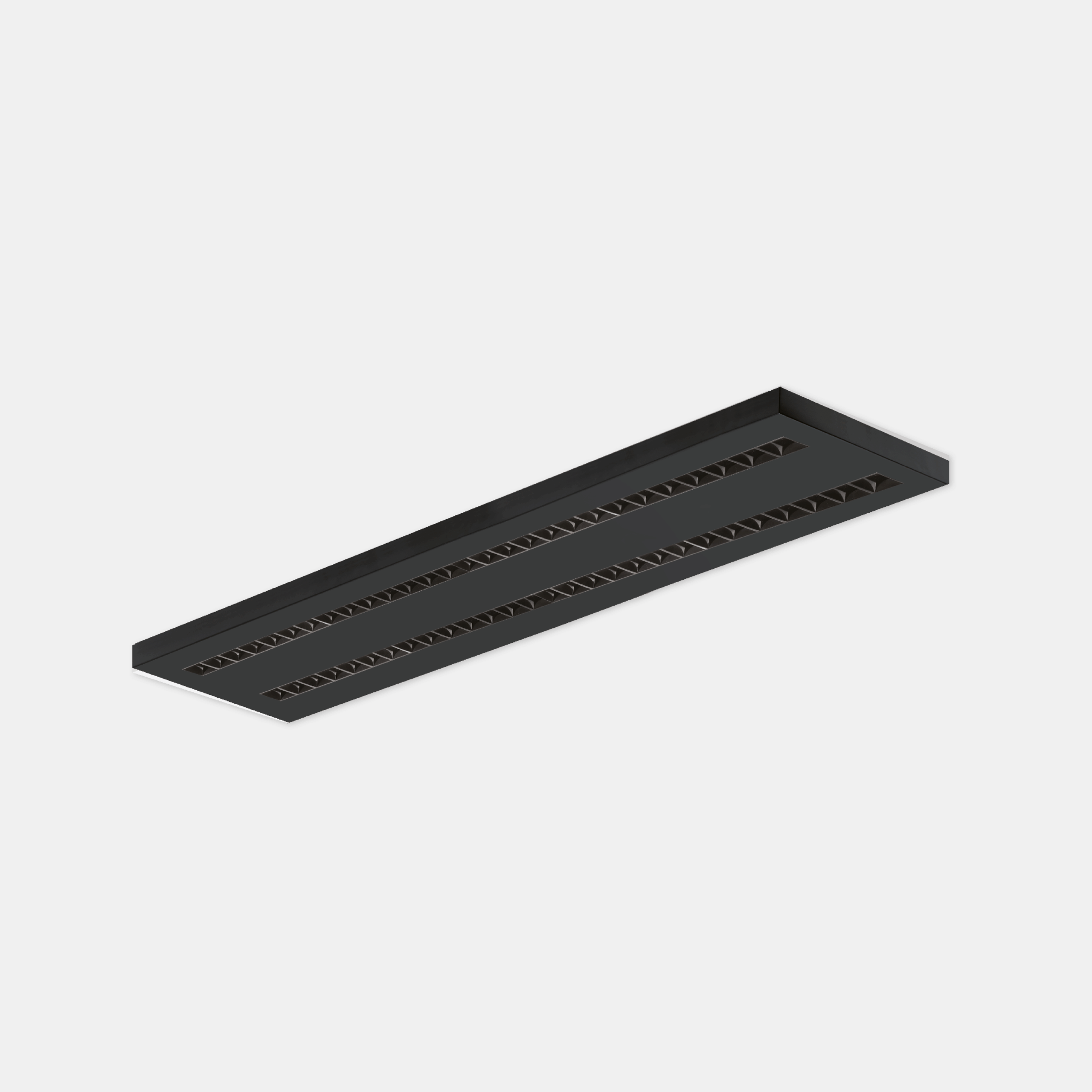

Multi-installation DIRECT BACKLIGHT led panel, suitable for recessed installation in false ceiling with visible structure 15/24 mm, surface mounting or suspended installation (dedicated kit needed). Steel sheet body, painted with embossed black anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Office, art. 3020 Isa
Models: 72
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3020RSC3= 3000°K (CRI >80)18NL= on/off
4= 4000°K (CRI >80)26ND= dali 2 / dali 2 push
9= 4000°K (CRI >90)321N= dali 2 + em.1h
42N1= em. 1h
N3= em. 3h
CN= casambi

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3020RSC418NL184000°K - CRI>80on/off27301522951195354.5
3020RSC426NL264000°K - CRI>80on/off34261322951195354.5
3020RSC432NL324000°K - CRI>80on/off42291322951195354.5
3020RSC442NL424000°K - CRI>80on/off52481252951195354.5
3020RSC418ND184000°K - CRI>80dali 2 / dali 2 push27301522951195354.5
3020RSC426ND264000°K - CRI>80dali 2 / dali 2 push34261322951195354.5
3020RSC432ND324000°K - CRI>80dali 2 / dali 2 push42291322951195354.5
3020RSC442ND424000°K - CRI>80dali 2 / dali 2 push52481252951195354.5
3020RSC4181N184000°K - CRI>80dali 2 + em. 1h27301522951195354.5
3020RSC4261N264000°K - CRI>80dali 2 + em. 1h34261322951195354.5
3020RSC4321N324000°K - CRI>80dali 2 + em. 1h42291322951195354.5
3020RSC4421N424000°K - CRI>80dali 2 + em. 1h52481252951195354.5
3020RSC418N1184000°K - CRI>80em. 1h27301522951195354.5
3020RSC426N1264000°K - CRI>80em. 1h34261322951195354.5
3020RSC432N1324000°K - CRI>80em. 1h42291322951195354.5
3020RSC442N1424000°K - CRI>80em. 1h52481252951195354.5
3020RSC418N3184000°K - CRI>80em. 3h27301522951195354.5
3020RSC426N3264000°K - CRI>80em. 3h34261322951195354.5
3020RSC432N3324000°K - CRI>80em. 3h42291322951195354.5
3020RSC442N3424000°K - CRI>80em. 3h52481252951195354.5

Accessories
