STELLA/12

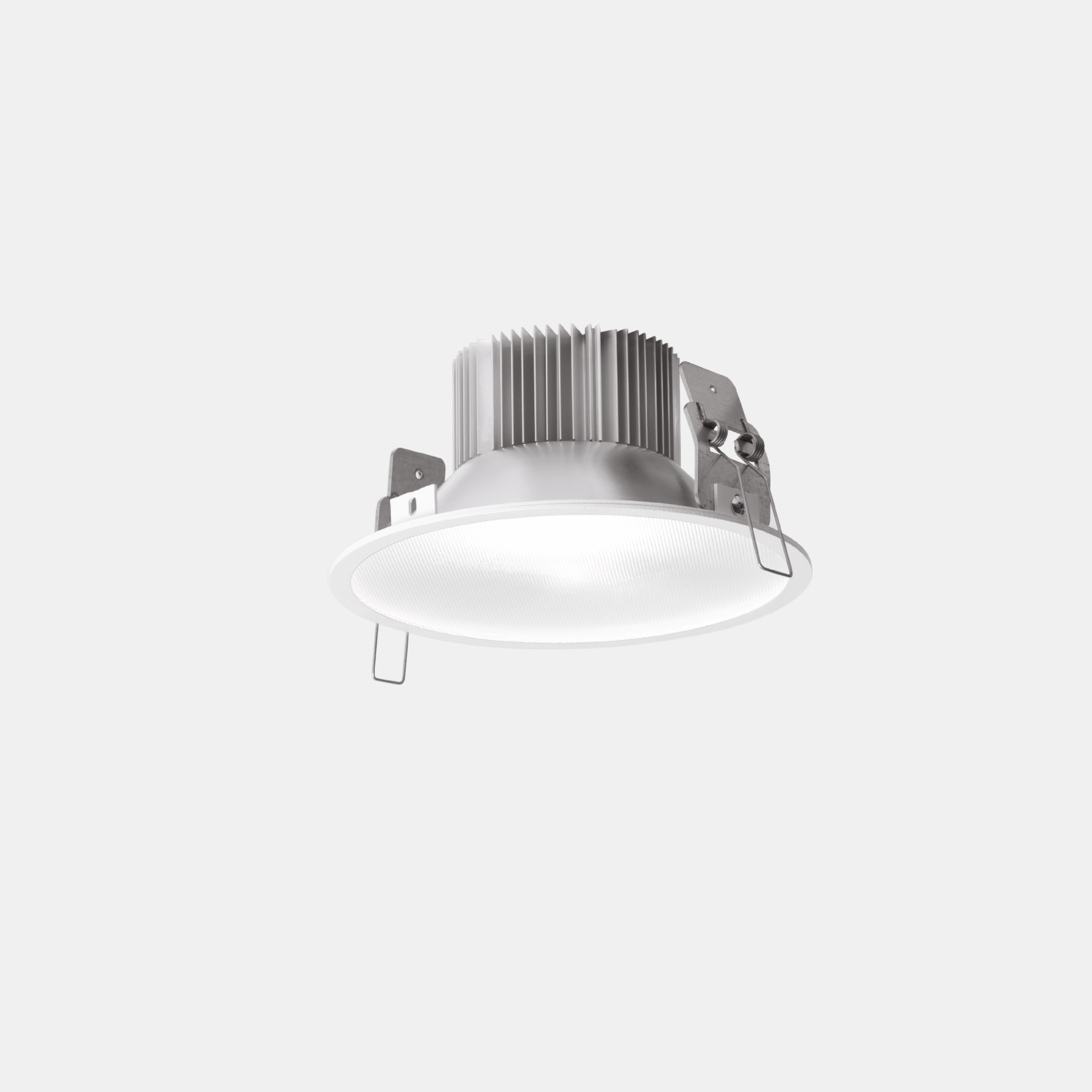

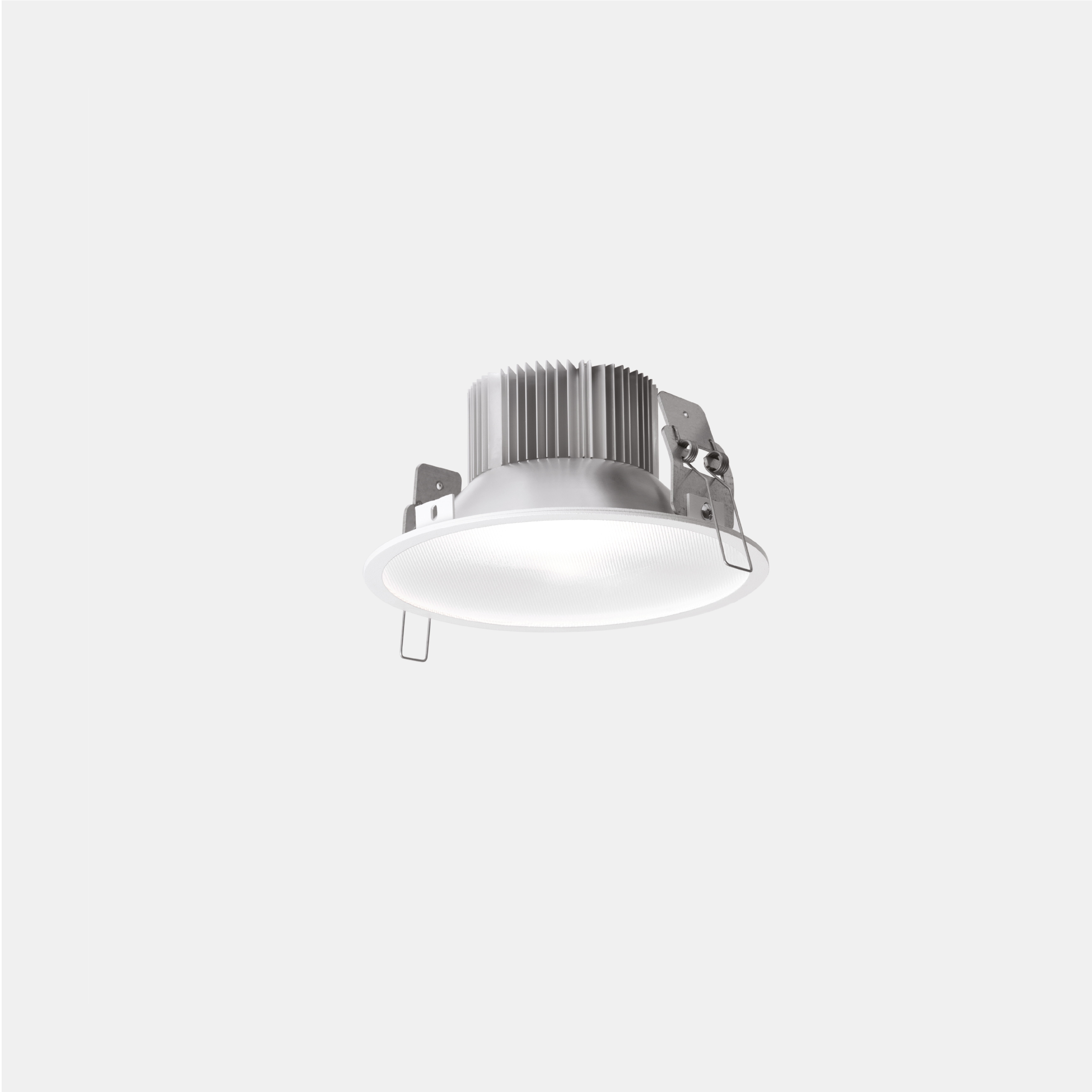

Led downlight suitable for all false ceiling types. Steel sheet ring, painted with embossed matt white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz class II. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Retail, art. 6001 Stella

Models: 175

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6001	12	27	= 2700°K (CRI >80)	11	EL	= on/off
		03	= 3000°K (CRI >80)	13	LD	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)	18	D1	= dali 2 + em. 1h
		93	= 3000°K (CRI >90)	20	E1	= em. 1h
		94	= 4000°K (CRI >90)	26	E3	= em. 3h
				30
				40

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
6001120411EL	11	4000°K - CRI>80	on/off	1388	126	120	50	0.50
6001120413EL	13	4000°K - CRI>80	on/off	1659	128	120	50	0.50
6001120418EL	18	4000°K - CRI>80	on/off	2343	130	120	60	0.60
6001120420EL	20	4000°K - CRI>80	on/off	2416	121	120	60	0.60
6001120426EL	26	4000°K - CRI>80	on/off	3226	124	120	60	0.60
6001120430EL	30	4000°K - CRI>80	on/off	2976	99	120	60	0.60
6001120440EL	40	4000°K - CRI>80	on/off	4692	117	120	90	0.60
6001120411LD	11	4000°K - CRI>80	dali 2 / dali 2 push	1388	126	120	50	0.50
6001120413LD	13	4000°K - CRI>80	dali 2 / dali 2 push	1659	128	120	50	0.50
6001120418LD	18	4000°K - CRI>80	dali 2 / dali 2 push	2343	130	120	60	0.60
6001120420LD	20	4000°K - CRI>80	dali 2 / dali 2 push	2416	121	120	60	0.60
6001120426LD	26	4000°K - CRI>80	dali 2 / dali 2 push	3226	124	120	60	0.60
6001120430LD	30	4000°K - CRI>80	dali 2 / dali 2 push	2976	99	120	60	0.60
6001120440LD	40	4000°K - CRI>80	dali 2 / dali 2 push	4692	117	120	90	0.60
6001120411D1	11	4000°K - CRI>80	dali 2 + em. 1h	1388	126	120	50	0.50
6001120413D1	13	4000°K - CRI>80	dali 2 + em. 1h	1659	128	120	50	0.50
6001120418D1	18	4000°K - CRI>80	dali 2 + em. 1h	2343	130	120	60	0.60
6001120420D1	20	4000°K - CRI>80	dali 2 + em. 1h	2416	121	120	60	0.60
6001120426D1	26	4000°K - CRI>80	dali 2 + em. 1h	3226	124	120	60	0.60
6001120430D1	30	4000°K - CRI>80	dali 2 + em. 1h	2976	99	120	60	0.60
