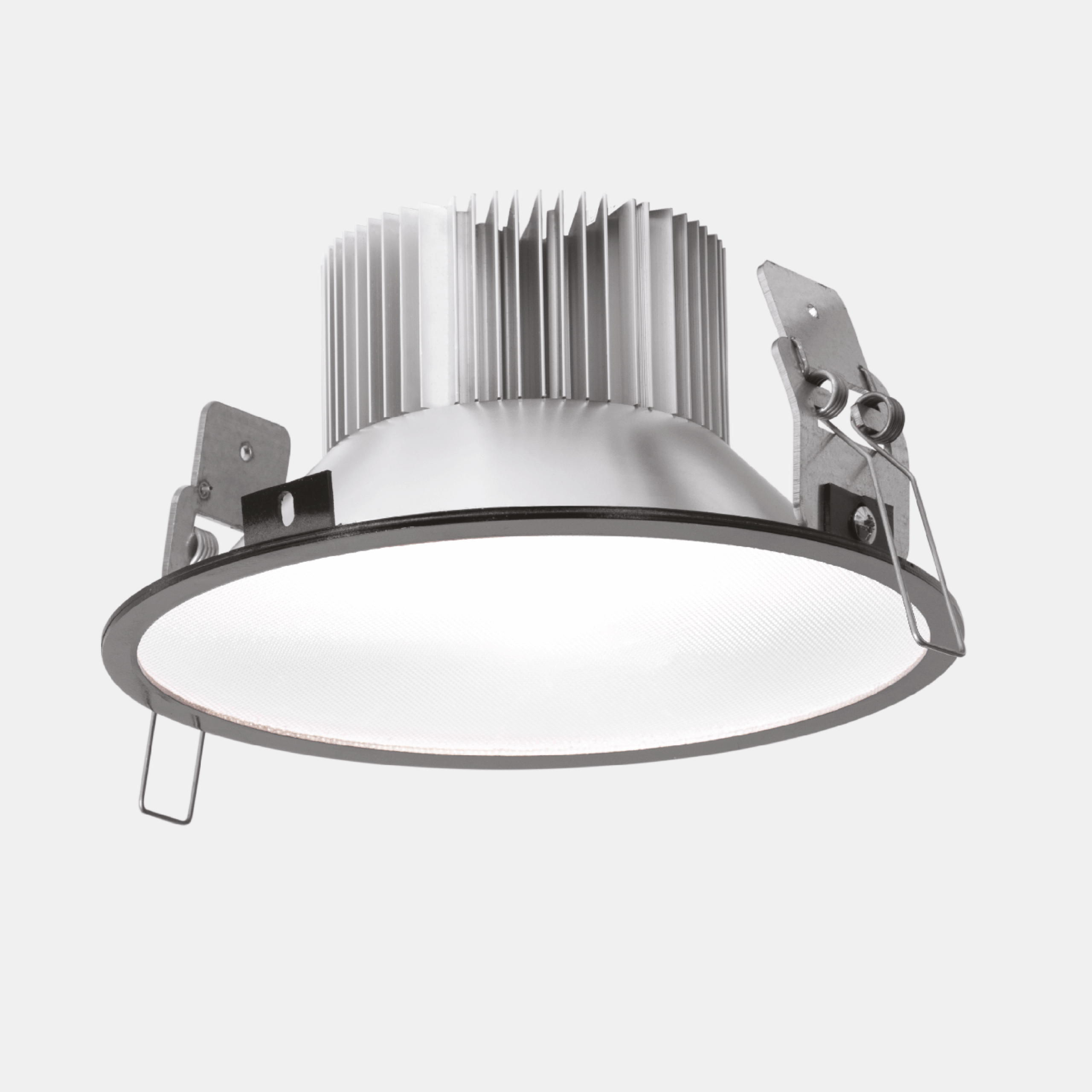

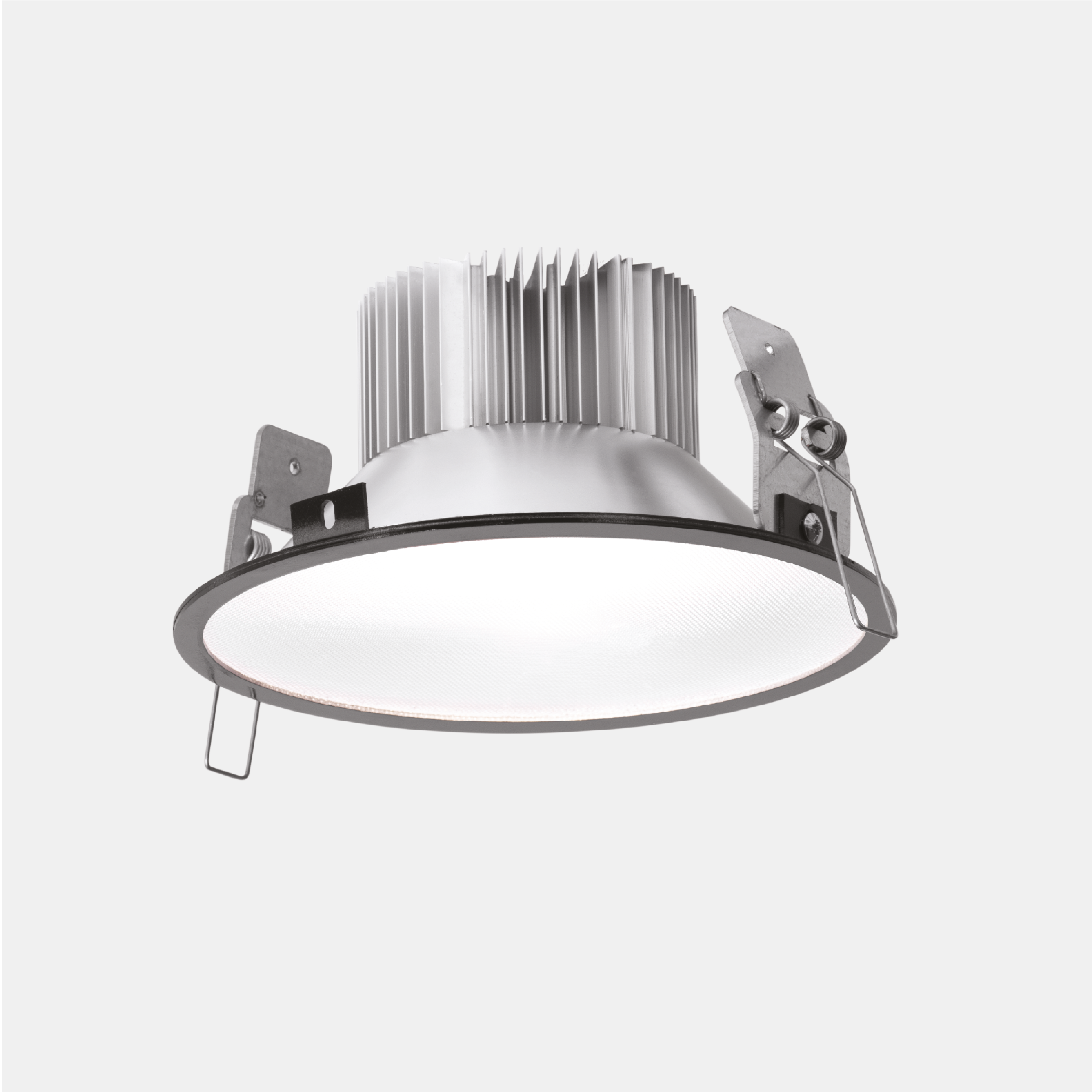

STELLA/24

Led downlight suitable for all false ceiling types. Steel sheet ring, painted with embossed matt black anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz class II. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Retail, art. 6001 Stella

Models: 180

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6001	24	27	= 2700°K (CRI >80)	11	NL	= on/off
		03	= 3000°K (CRI >80)	13	ND	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)	18	1N	= dali 2 + em. 1h
		93	= 3000°K (CRI >90)	20	N1	= em. 1h
		94	= 4000°K (CRI >90)	26	N3	= em. 3h
				30
				40
				55
				75

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
6001240411NL	11	4000°K - CRI>80	on/off	1388	126	240	50	0.70
6001240413NL	13	4000°K - CRI>80	on/off	1659	128	240	50	0.70
6001240418NL	18	4000°K - CRI>80	on/off	2343	130	240	60	0.80
6001240420NL	20	4000°K - CRI>80	on/off	2416	121	240	60	0.80
6001240426NL	26	4000°K - CRI>80	on/off	3226	124	240	60	0.80
6001240430NL	30	4000°K - CRI>80	on/off	2976	99	240	60	0.80
6001240440NL	40	4000°K - CRI>80	on/off	4692	117	240	90	0.80
6001240455NL	55	4000°K - CRI>80	on/off	6061	110	240	90	0.80
6001240475NL	75	4000°K - CRI>80	on/off	7852	105	240	90	0.80
6001240411ND	11	4000°K - CRI>80	dali 2 / dali 2 push	1388	126	240	50	0.70
6001240413ND	13	4000°K - CRI>80	dali 2 / dali 2 push	1659	128	240	50	0.70
6001240418ND	18	4000°K - CRI>80	dali 2 / dali 2 push	2343	130	240	60	0.80
6001240420ND	20	4000°K - CRI>80	dali 2 / dali 2 push	2416	121	240	60	0.80
6001240426ND	26	4000°K - CRI>80	dali 2 / dali 2 push	3226	124	240	60	0.80
6001240430ND	30	4000°K - CRI>80	dali 2 / dali 2 push	2976	99	240	60	0.80
6001240440ND	40	4000°K - CRI>80	dali 2 / dali 2 push	4692	117	240	90	0.80
6001240455ND	55	4000°K - CRI>80	dali 2 / dali 2 push	6061	110	240	90	0.80
6001240475ND	75	4000°K - CRI>80	dali 2 / dali 2 push	7852	105	240	90	0.80
6001240411N1	11	4000°K - CRI>80	em. 1h	1388	126	240	50	0.70
6001240413N1	13	4000°K - CRI>80	em. 1h	1659	128	240	50	0.70
