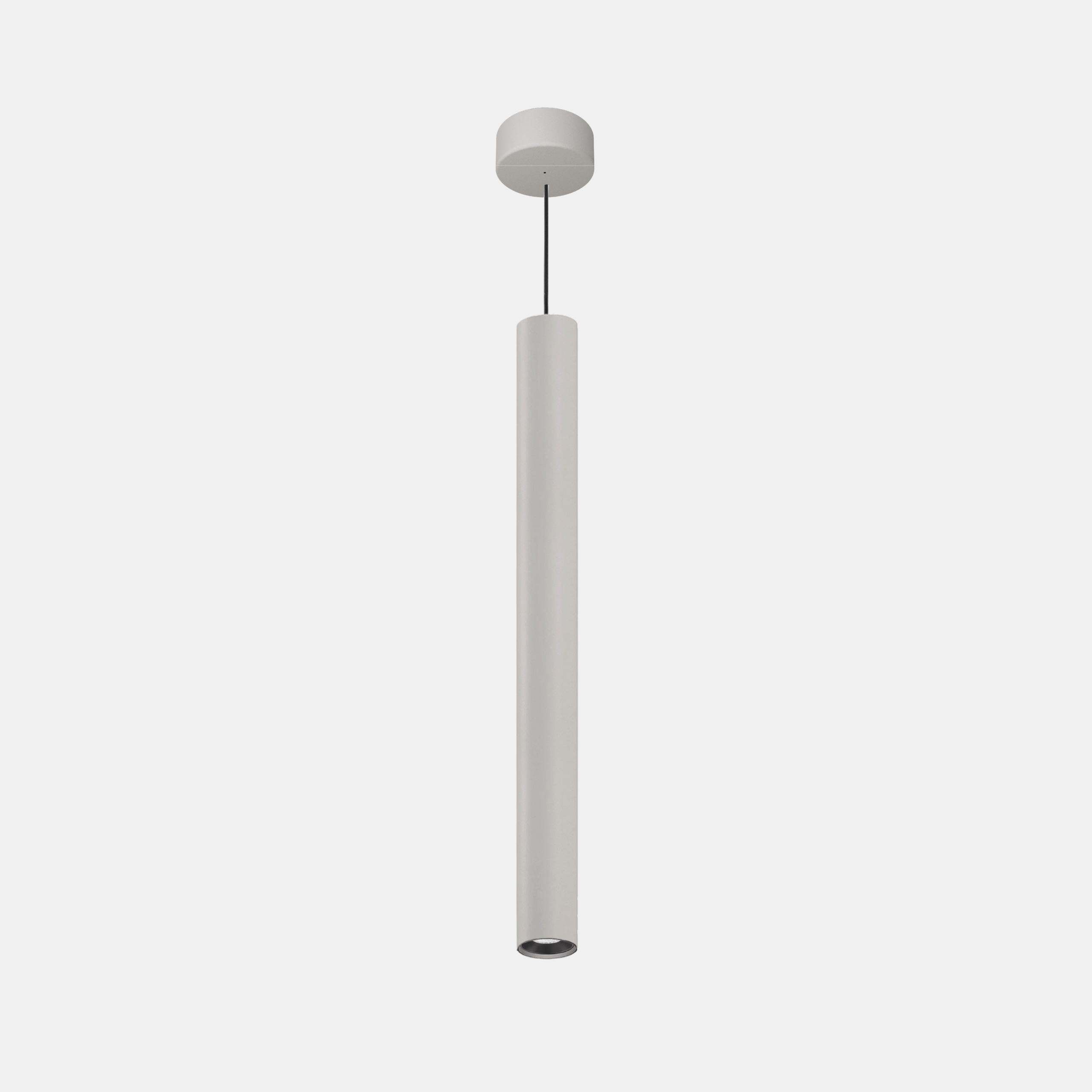

TOGO/35

Led indoor light for suspended installation. Extruded aluminium body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.

Categories: Led, Architectural Indoor, art. 6015 Togo

Models: 24

Color: Matt grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6015	35	27	= 2700°K (CRI >80)	03	G3	= 350 mm
		30	= 3000°K (CRI >80)	05	G5	= 550 mm
		40	= 4000°K (CRI >80)
		97	= 2700°K (CRI >90)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
6015354003G3	4000°K - CRI>80	350 mm	394	131	35	55	350	0.60
6015354005G3	4000°K - CRI>80	350 mm	534	107	35	55	350	0.60
6015354003G5	4000°K - CRI>80	550 mm	394	131	35	55	550	0.70
6015354005G5	4000°K - CRI>80	550 mm	534	107	35	55	350	0.60
6015353003G3	3000°K - CRI>80	350 mm	382	127	35	55	350	0.60
6015353005G3	3000°K - CRI>80	350 mm	518	104	35	55	350	0.60
6015353003G5	3000°K - CRI>80	550 mm	382	127	35	55	550	0.70
6015353005G5	3000°K - CRI>80	550 mm	518	104	35	55	350	0.60
6015352703G3	2700°K - CRI>80	350 mm	364	121	35	55	350	0.60
6015352705G3	2700°K - CRI>80	350 mm	493	99	35	55	350	0.60
6015352703G5	2700°K - CRI>80	550 mm	364	121	35	55	550	0.70
6015352705G5	2700°K - CRI>80	550 mm	493	99	35	55	350	0.60
6015359303G3	3000°K - CRI>90	350 mm	322	107	35	55	350	0.60
6015359305G3	3000°K - CRI>90	350 mm	437	87	35	55	350	0.60
6015359303G5	3000°K - CRI>90	550 mm	322	107	35	55	550	0.70
6015359305G5	3000°K - CRI>90	550 mm	437	87	35	55	350	0.60
6015359703G3	2700°K - CRI>90	350 mm	306	102	35	55	350	0.60
6015359705G3	2700°K - CRI>90	350 mm	414	83	35	55	350	0.60
6015359703G5	2700°K - CRI>90	550 mm	306	102	35	55	550	0.70
6015359705G5	2700°K - CRI>90	550 mm	414	83	35	55	350	0.60
