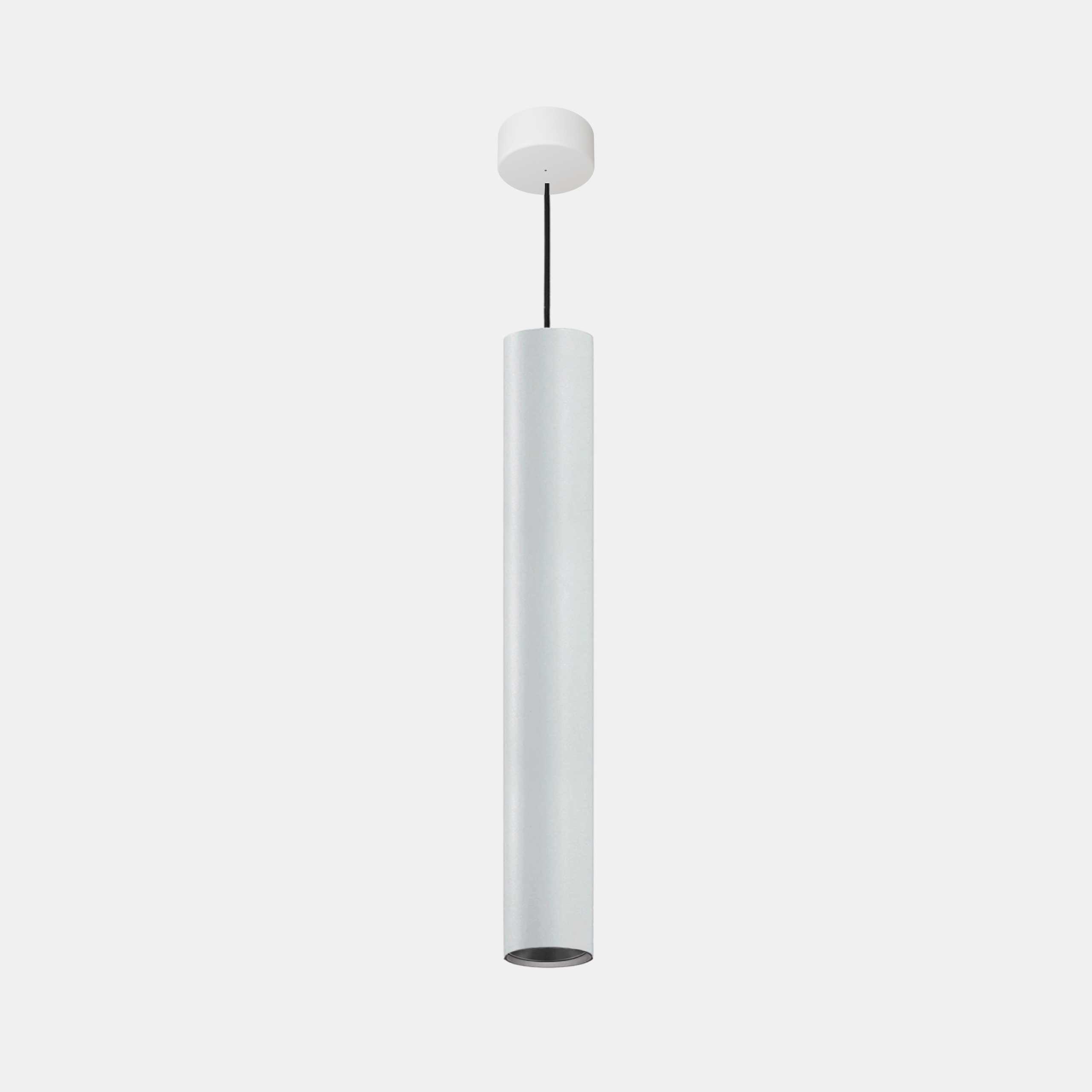

TOGO/55

Led indoor light for suspended installation. Extruded aluminium body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.

Categories: Led, Architectural Indoor, art. 6015 Togo

Models: 24

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6015	55	27	= 2700°K (CRI >80)	07	B3	= 350 mm
		30	= 3000°K (CRI >80)	10	B5	= 550 mm
		40	= 4000°K (CRI >80)
		97	= 2700°K (CRI >90)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
6015554007B3		4000°K - CRI>80	350 mm	832	119	55	55	350	0.80
6015554010B3	10	4000°K - CRI>80	350 mm	1033	103	55	55	350	0.80
6015554007B5		4000°K - CRI>80	550 mm	832	119	55	55	550	0.90
6015554010B5	10	4000°K - CRI>80	550 mm	1033	103	55	55	350	0.80
6015553007B3		3000°K - CRI>80	350 mm	807	115	55	55	350	0.80
6015553010B3	10	3000°K - CRI>80	350 mm	1002	100	55	55	350	0.80
6015553007B5		3000°K - CRI>80	550 mm	807	115	55	55	550	0.90
6015553010B5	10	3000°K - CRI>80	550 mm	1002	100	55	55	350	0.80
6015552707B3		2700°K - CRI>80	350 mm	768	110	55	55	350	0.80
6015552710B3	10	2700°K - CRI>80	350 mm	954	95	55	55	350	0.80
6015552707B5		2700°K - CRI>80	550 mm	768	110	55	55	550	0.90
6015552710B5	10	2700°K - CRI>80	550 mm	954	95	55	55	350	0.80
6015559307B3		3000°K - CRI>90	350 mm	680	97	55	55	350	0.80
6015559310B3	10	3000°K - CRI>90	350 mm	844	84	55	55	350	0.80
6015559307B5		3000°K - CRI>90	550 mm	680	97	55	55	550	0.90
6015559310B5	10	3000°K - CRI>90	550 mm	844	84	55	55	350	0.80
6015559707B3		2700°K - CRI>90	350 mm	645	92	55	55	350	0.80
6015559710B3	10	2700°K - CRI>90	350 mm	801	80	55	55	350	0.80
6015559707B5		2700°K - CRI>90	550 mm	645	92	55	55	550	0.90
6015559710B5	10	2700°K - CRI>90	550 mm	801	80	55	55	350	0.80
