NORA/RF

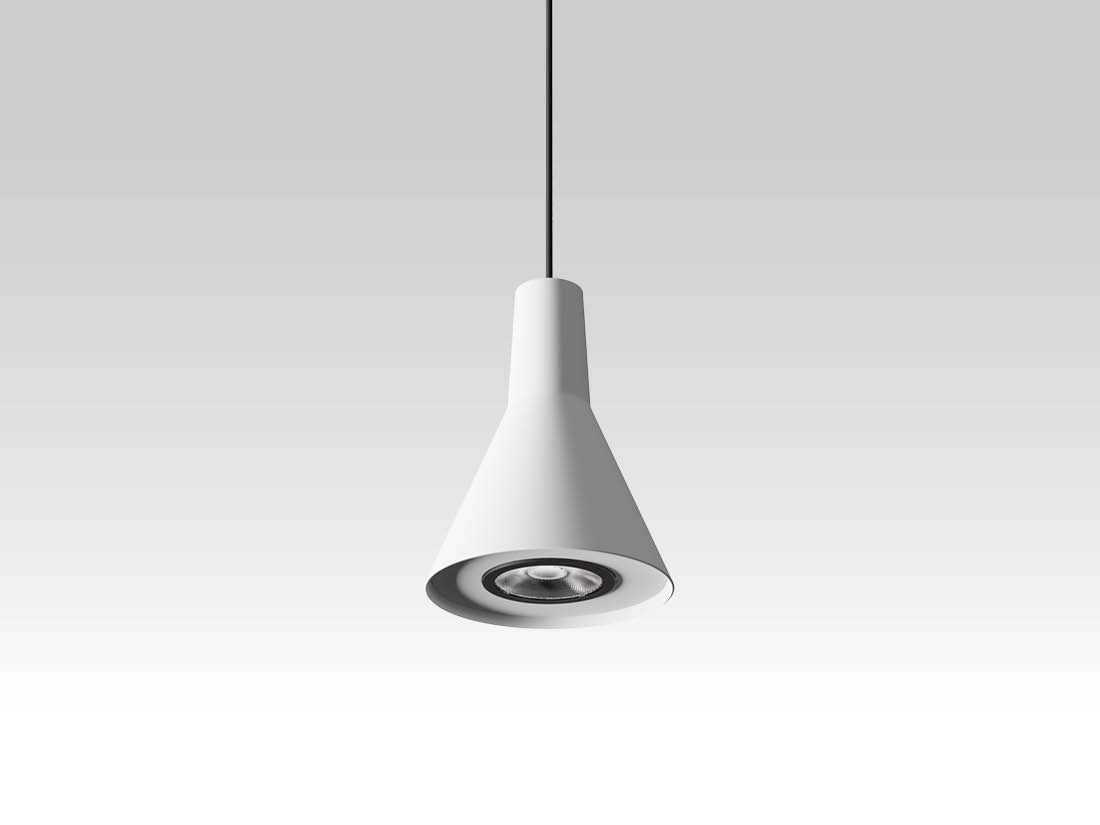

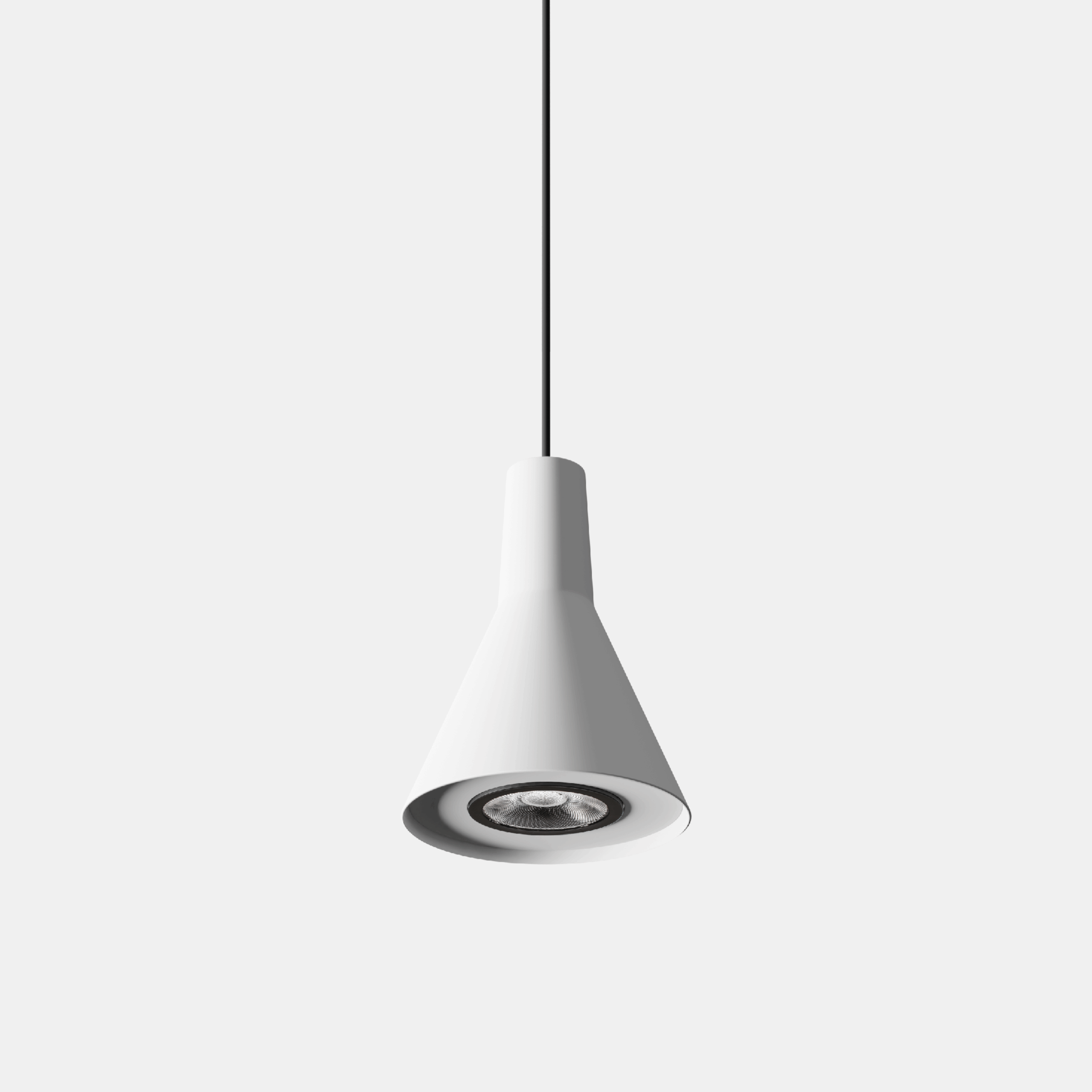

Indoor led light for ceiling installation. Aluminum body, painted with embossed epoxy-polyester powder. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.
Categories: Led, Architectural Indoor, art. 6017 Nora
Models: 12
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6017RF27= 2700°K (CRI >80)06BL= on/off
30= 3000°K (CRI >80)14
40= 4000°K (CRI >80)
97= 2700°K (CRI >90)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6017RF4006BL4000°K - CRI>80on/off7521251401900.60
6017RF4014BL144000°K - CRI>80on/off16991211401900.60
6017RF3006BL3000°K - CRI>80on/off7291221401900.60
6017RF3014BL143000°K - CRI>80on/off16481181401900.60
6017RF2706BL2700°K - CRI>80on/off6951161401900.60
6017RF2714BL142700°K - CRI>80on/off15691121401900.60
6017RF9306BL3000°K - CRI>90on/off6151031401900.60
6017RF9314BL143000°K - CRI>90on/off1389991401900.60
6017RF9706BL2700°K - CRI>90on/off583971401900.60
6017RF9714BL142700°K - CRI>90on/off1318941401900.60
6017RF9406BL4000°K - CRI>90on/off6441071401900.60
6017RF9414BL144000°K - CRI>90on/off14561041401900.60
