art.-6020-nobu-rs-rf-bianco

NOBU/RS

Led indoor spotlight for recessed installation. Ring in steel sheet painted with white epoxy-polyester powders, anti-yellowing with fine embossed finish and body in sheared turned aluminum painted with black epoxy-polyester powders (pre-treatment of phosphating and degreasing). Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Indoor, art. 6020 Nobu
Models: 66
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6020RS27= 2700°K (CRI >80)02BL= on/off
30= 3000°K (CRI >80)04BD= dali 2 / dali 2 push
40= 4000°K (CRI >80)06BC= casambi
97= 2700°K (CRI >90)08
93= 3000°K (CRI >90)15
94= 4000°K (CRI >90)25
40

Models

W tot.
°K - CRI
Options

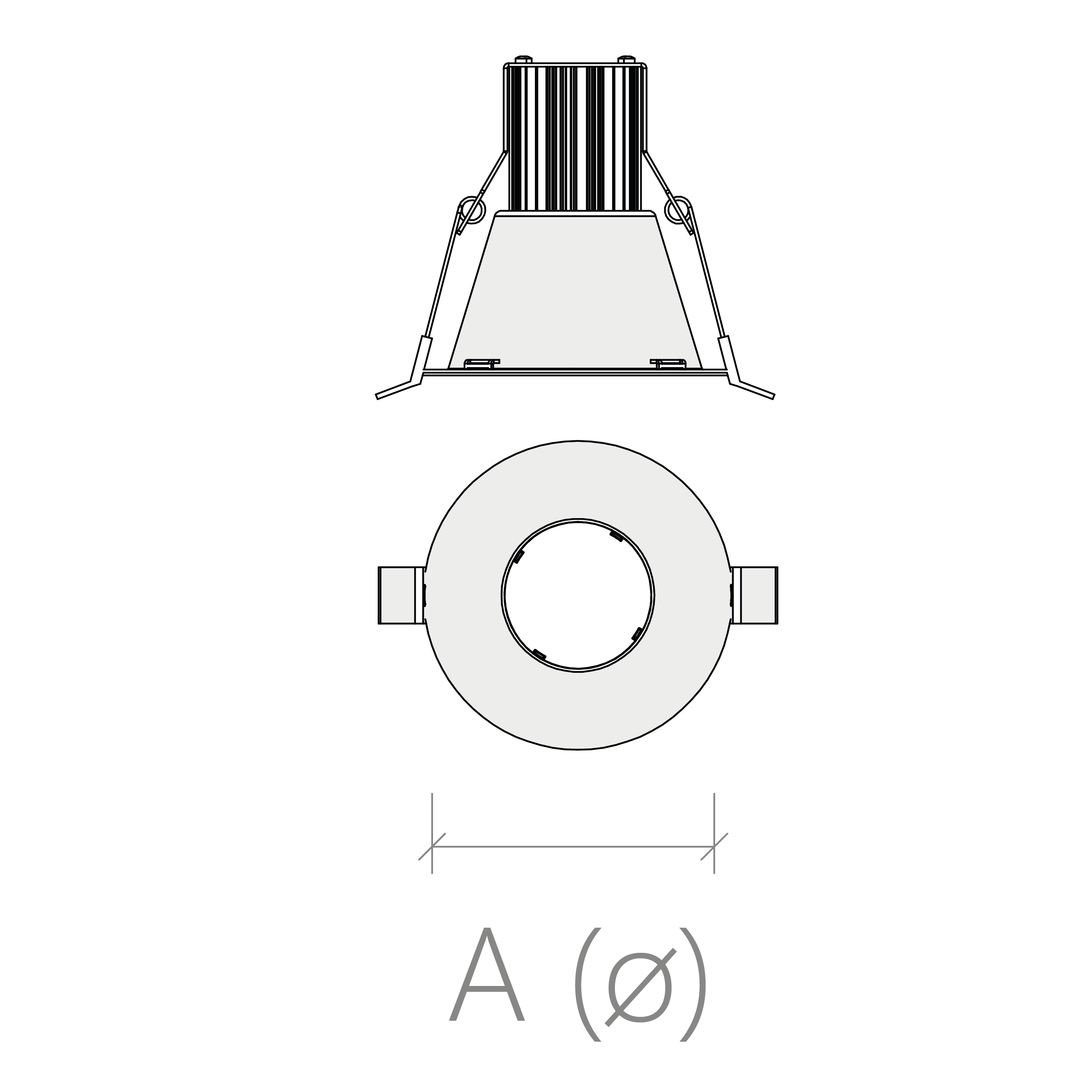

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6020RS4002BL4000°K - CRI>80on/off156784040600.10
6020RS4004BL4000°K - CRI>80on/off313784040600.10
6020RS4006BL4000°K - CRI>80on/off508855555770.20
6020RS4008BL4000°K - CRI>80on/off8191027575800.25
6020RS4015BL154000°K - CRI>80on/off15741051051051100.40
6020RS4025BL254000°K - CRI>80on/off2425971351351050.50
6020RS4040BL404000°K - CRI>80on/off3894971351351350.80
6020RS4008BD4000°K - CRI>80dali 2 / dali 2 push8191027575800.25
6020RS4015BD154000°K - CRI>80dali 2 / dali 2 push15741051051051100.40
6020RS4025BD254000°K - CRI>80dali 2 / dali 2 push2425971351351050.50
6020RS4040BD404000°K - CRI>80dali 2 / dali 2 push3894971351351350.80
6020RS3002BL3000°K - CRI>80on/off151764040600.10
6020RS3004BL3000°K - CRI>80on/off304764040600.10
6020RS3006BL3000°K - CRI>80on/off493825555770.20
6020RS3008BL3000°K - CRI>80on/off794997575800.25
6020RS3015BL153000°K - CRI>80on/off15261021051051100.40
6020RS3025BL253000°K - CRI>80on/off2352941351351050.50
6020RS3040BL403000°K - CRI>80on/off3776941351351350.80
6020RS3008BD3000°K - CRI>80dali 2 / dali 2 push794997575800.25
6020RS3015BD153000°K - CRI>80dali 2 / dali 2 push15261021051051100.40
