| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6021 | QF | 27 | = 2700°K (CRI >80) | 06 | NL | = on/off | ||||
| 30 | = 3000°K (CRI >80) | 10 | ND | = dali 2 / dali 2 push | ||||||
| 40 | = 4000°K (CRI >80) | 15 | NC | = casambi | ||||||
| 97 | = 2700°K (CRI >80) | 25 | ||||||||
| 93 | = 3000°K (CRI >80) | 40 | ||||||||
| 94 | = 4000°K (CRI >80) |

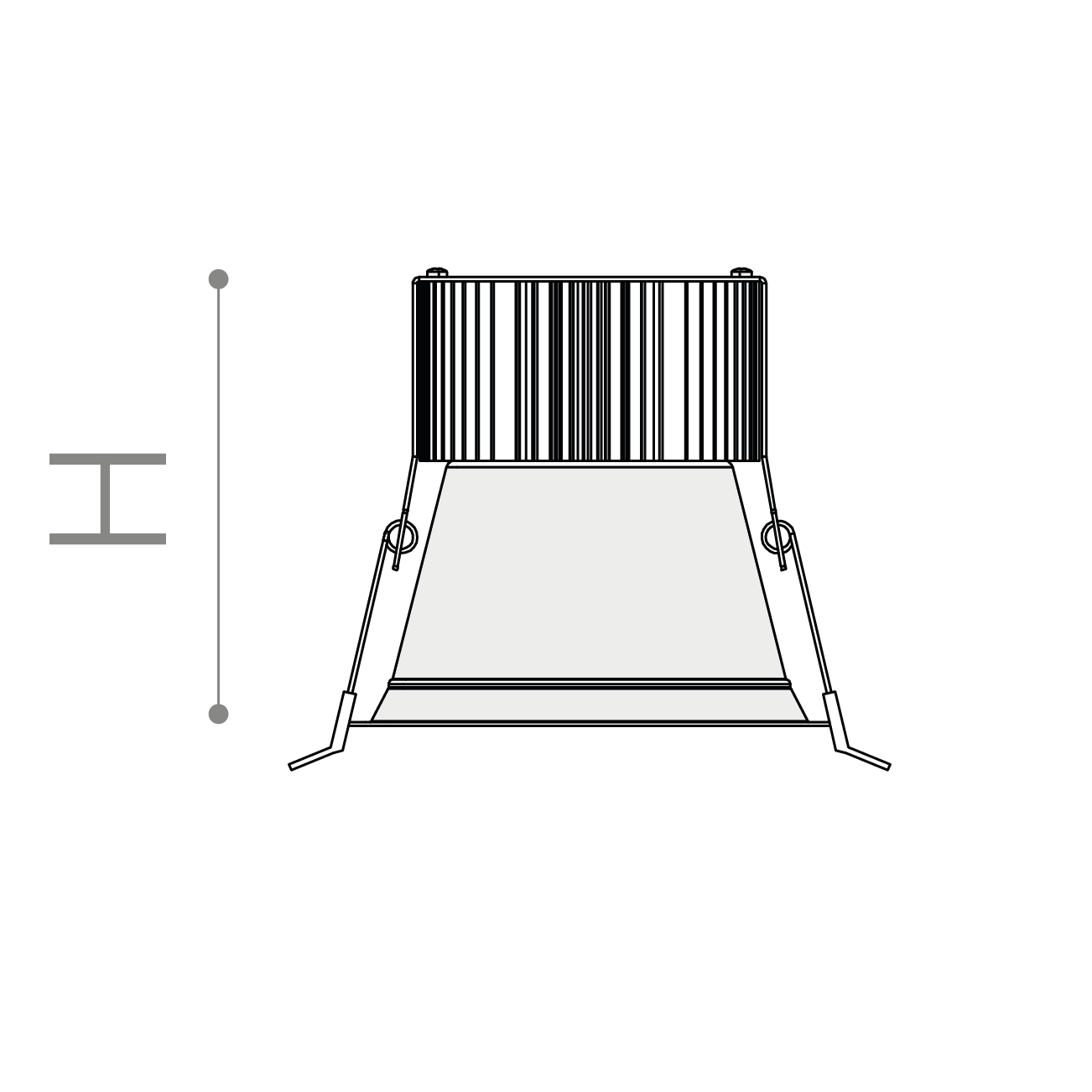

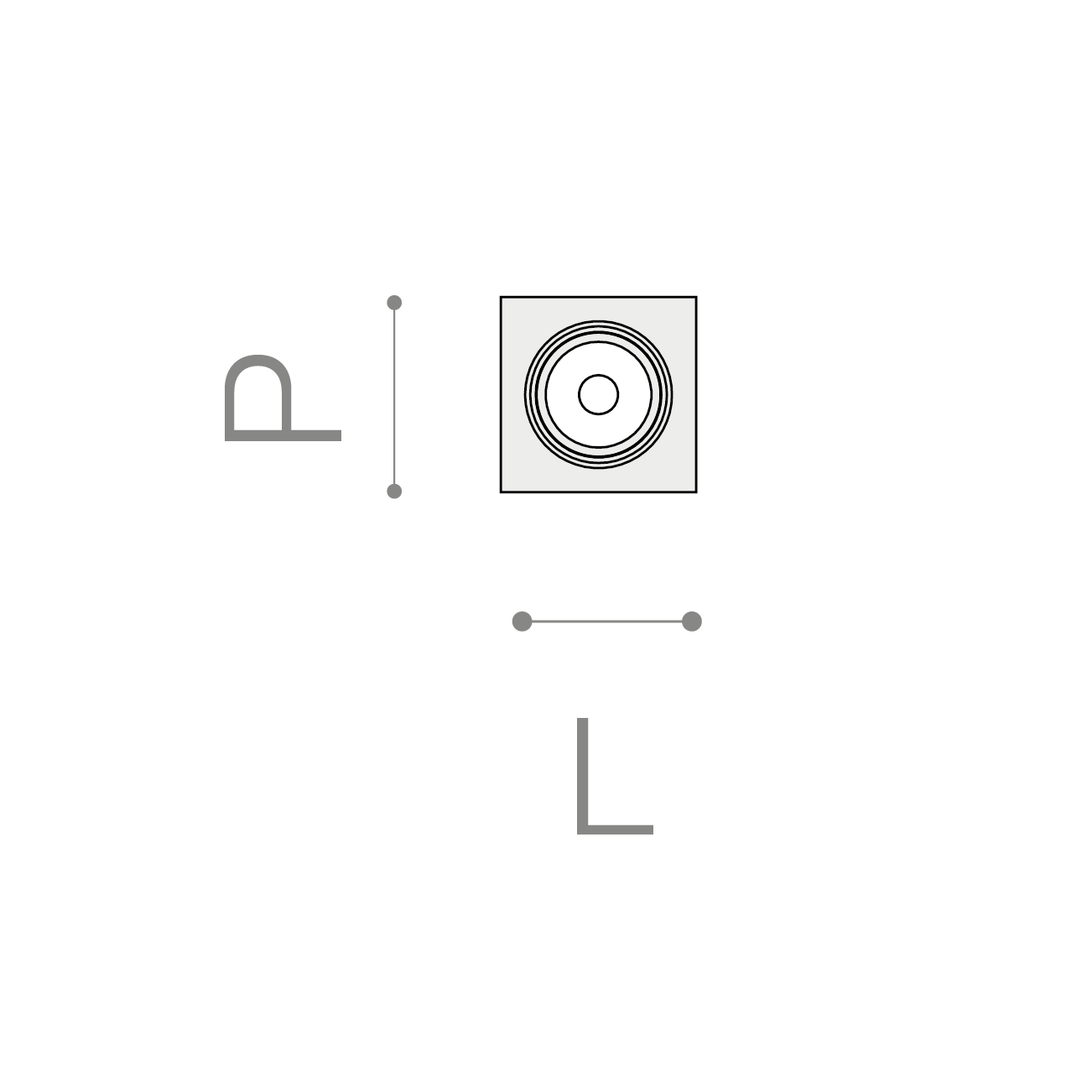

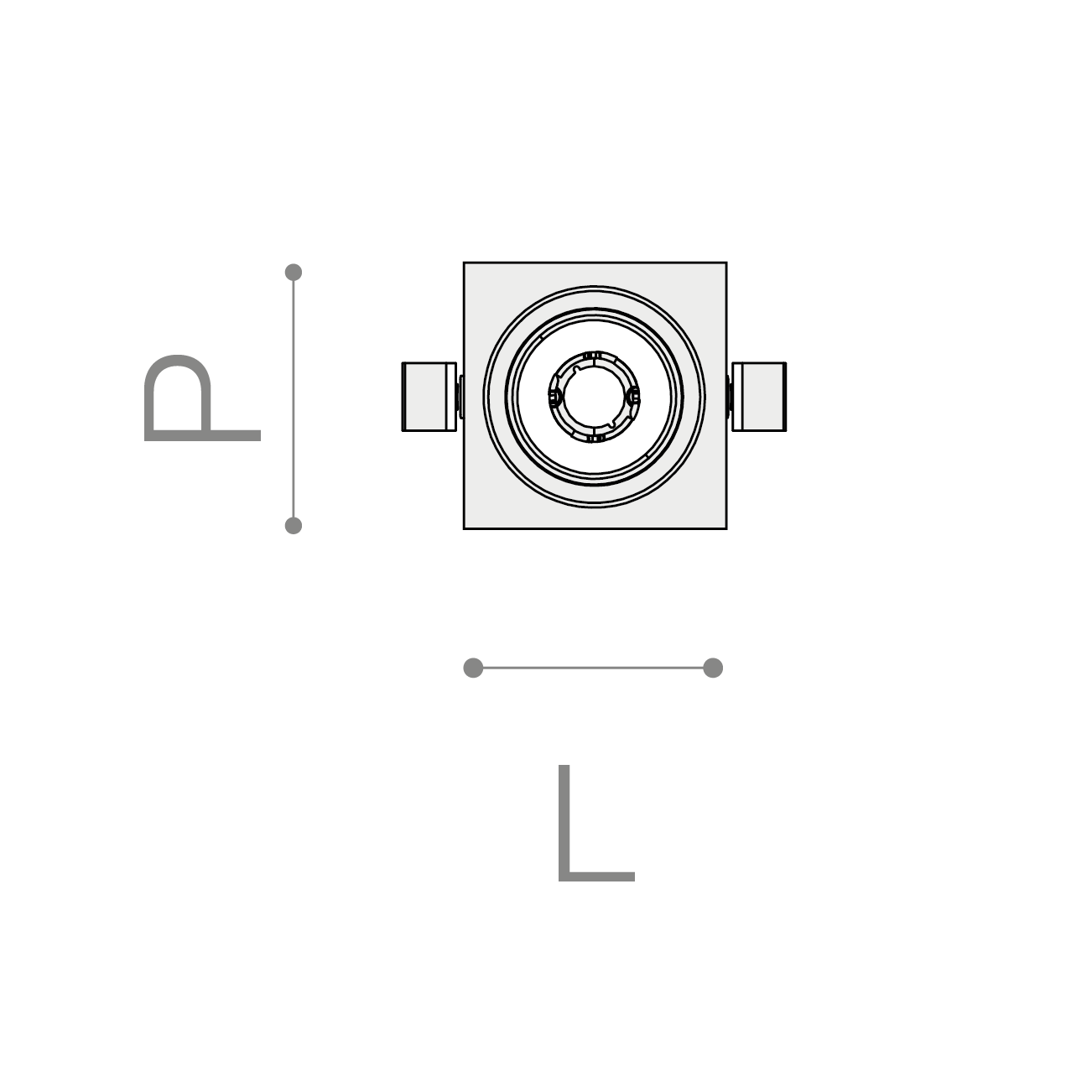

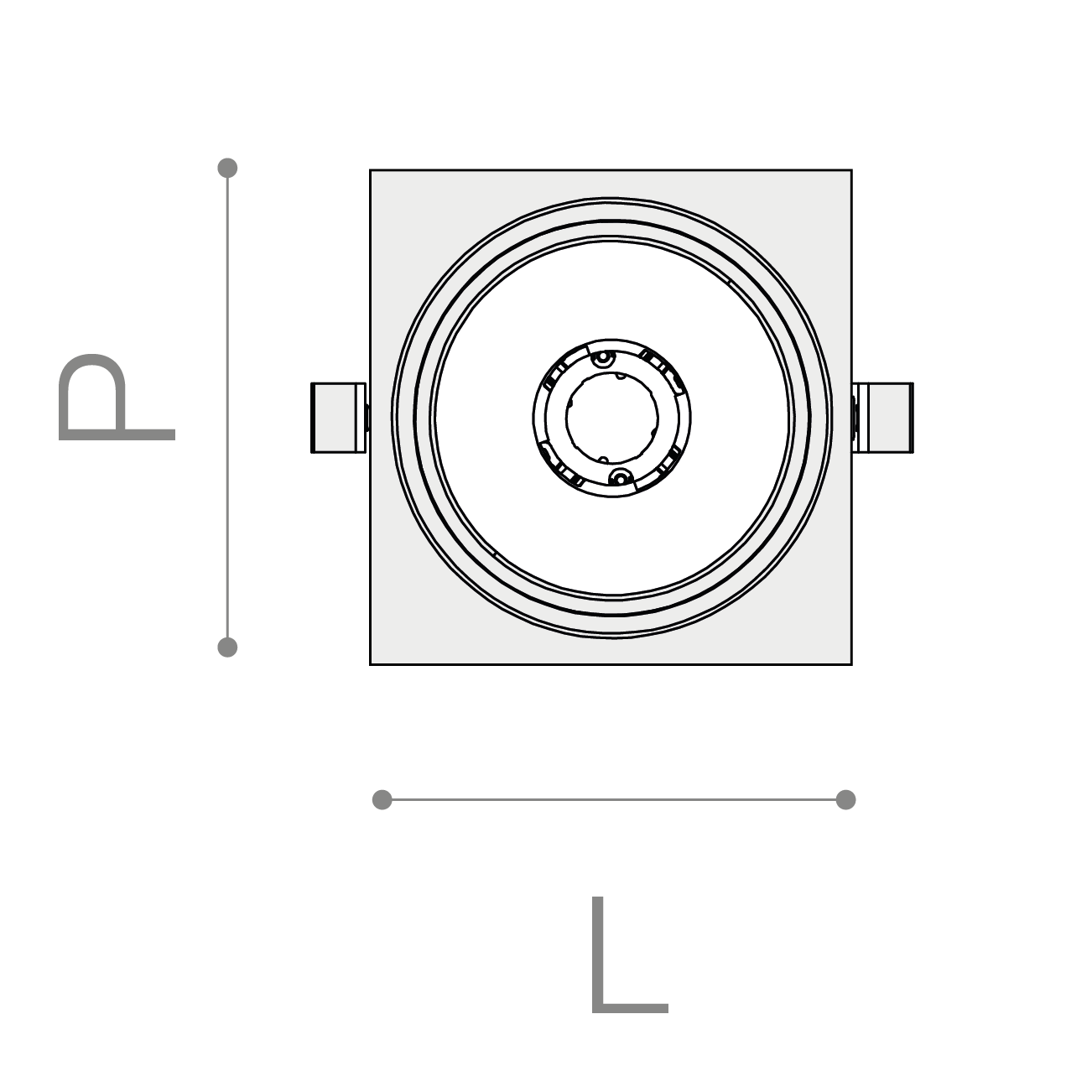

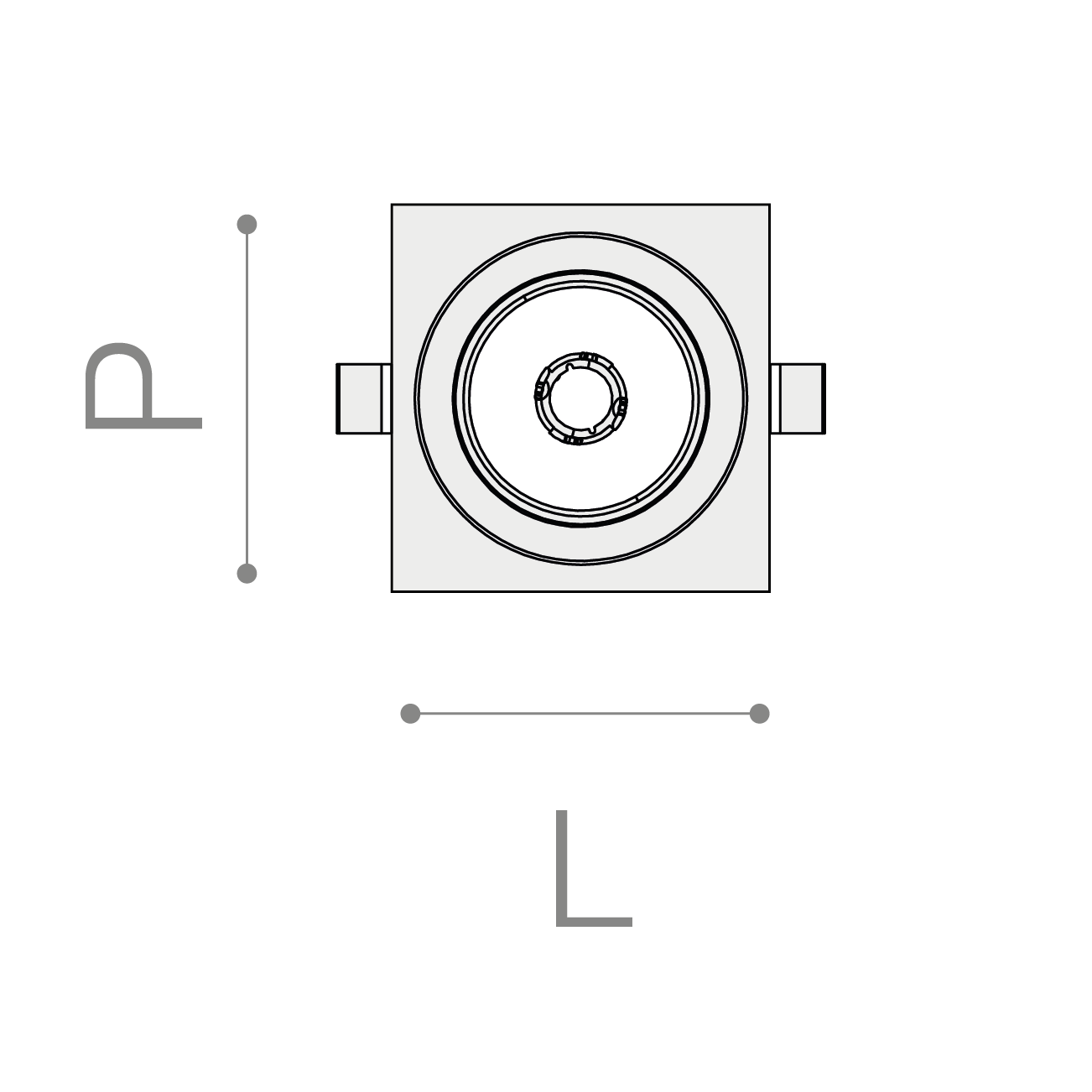

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6021QF4006NL | 4000°K - CRI>80 | on/off | 598 | 100 | 55 | 55 | 70 | 0.20 | ||||
| 6021QF4010NL | 10 | 4000°K - CRI>80 | on/off | 1193 | 119 | 75 | 75 | 70 | 0.25 | |||
| 6021QF4015NL | 15 | 4000°K - CRI>80 | on/off | 1851 | 123 | 105 | 105 | 110 | 0.40 | |||
| 6021QF4025NL | 25 | 4000°K - CRI>80 | on/off | 2852 | 114 | 135 | 135 | 100 | 0.50 | |||
| 6021QF4040NL | 40 | 4000°K - CRI>80 | on/off | 4580 | 114 | 135 | 135 | 130 | 0.80 | |||
| 6021QF4010ND | 10 | 4000°K - CRI>80 | dali 2 / dali 2 push | 1193 | 119 | 75 | 75 | 70 | 0.25 | |||
| 6021QF4015ND | 15 | 4000°K - CRI>80 | dali 2 / dali 2 push | 1851 | 123 | 105 | 105 | 110 | 0.40 | |||
| 6021QF4025ND | 25 | 4000°K - CRI>80 | dali 2 / dali 2 push | 2852 | 114 | 135 | 135 | 100 | 0.50 | |||
| 6021QF4040ND | 40 | 4000°K - CRI>80 | dali 2 / dali 2 push | 4580 | 114 | 135 | 135 | 130 | 0.80 | |||
| 6021QF3006NL | 3000°K - CRI>80 | on/off | 580 | 97 | 55 | 55 | 70 | 0.20 | ||||
| 6021QF3010NL | 10 | 3000°K - CRI>80 | on/off | 1157 | 116 | 75 | 75 | 70 | 0.25 | |||
| 6021QF3015NL | 15 | 3000°K - CRI>80 | on/off | 1795 | 120 | 105 | 105 | 110 | 0.40 | |||
| 6021QF3025NL | 25 | 3000°K - CRI>80 | on/off | 2766 | 111 | 135 | 135 | 100 | 0.50 | |||
| 6021QF3040NL | 40 | 3000°K - CRI>80 | on/off | 4442 | 111 | 135 | 135 | 130 | 0.80 | |||
| 6021QF3010ND | 10 | 3000°K - CRI>80 | dali 2 / dali 2 push | 1157 | 116 | 75 | 75 | 70 | 0.25 | |||
| 6021QF3015ND | 15 | 3000°K - CRI>80 | dali 2 / dali 2 push | 1795 | 120 | 105 | 105 | 110 | 0.40 | |||
| 6021QF3025ND | 25 | 3000°K - CRI>80 | dali 2 / dali 2 push | 2766 | 111 | 135 | 135 | 100 | 0.50 | |||
| 6021QF3040ND | 40 | 3000°K - CRI>80 | dali 2 / dali 2 push | 4442 | 111 | 135 | 135 | 130 | 0.80 | |||
| 6021QF2706NL | 2700°K - CRI>80 | on/off | 552 | 92 | 55 | 55 | 70 | 0.20 | ||||
| 6021QF2710NL | 10 | 2700°K - CRI>80 | on/off | 1102 | 110 | 75 | 75 | 70 | 0.25 |
TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
