RING/RF

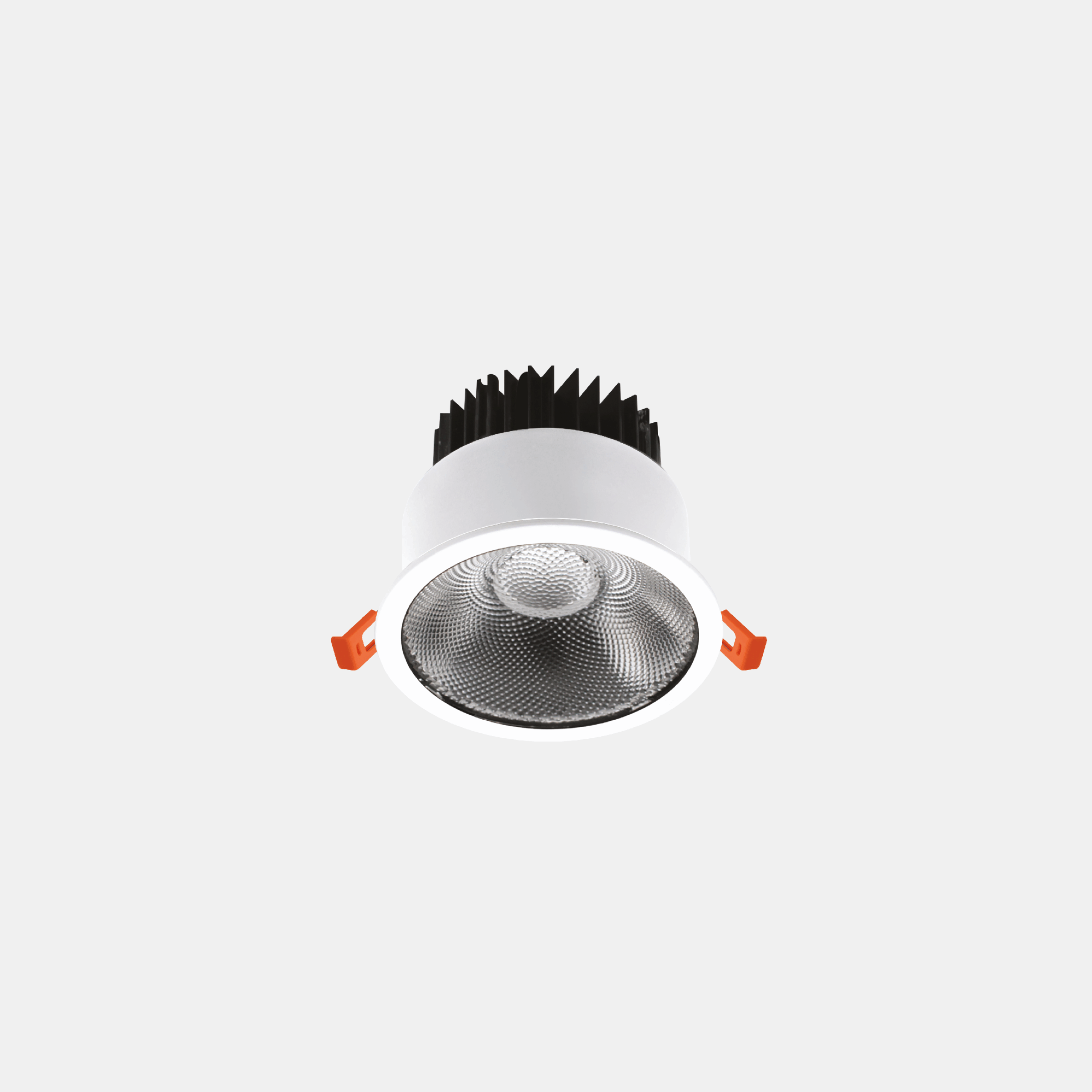

Led indoor spotlight for recessed installation. Ring in steel sheet painted with white epoxy-polyester powders, anti-yellowing with fine embossed finish and body in sheared turned aluminum painted with black epoxy-polyester powders (pre-treatment of phosphating and degreasing). Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Indoor, art. 6024 Ring
Models: 48
Color: Matt white
Catalogue abstract
Installation instructions

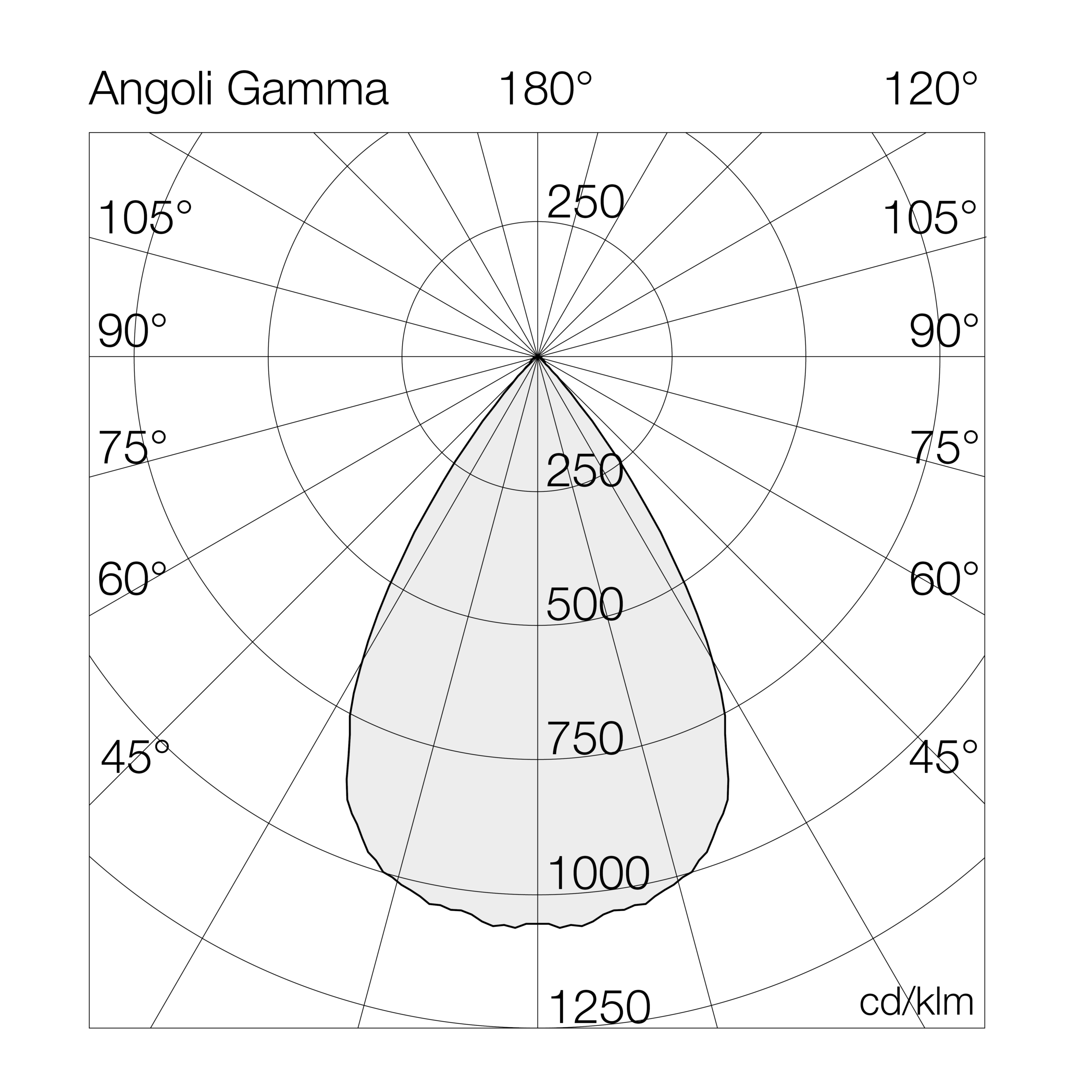

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6024RF27= 2700°K (CRI >80)06BL= on/off
30= 3000°K (CRI >80)10BD= dali 2 / dali 2 push
40= 4000°K (CRI >80)15BC= casambi
97= 2700°K (CRI >80)25
93= 3000°K (CRI >80)
94= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options

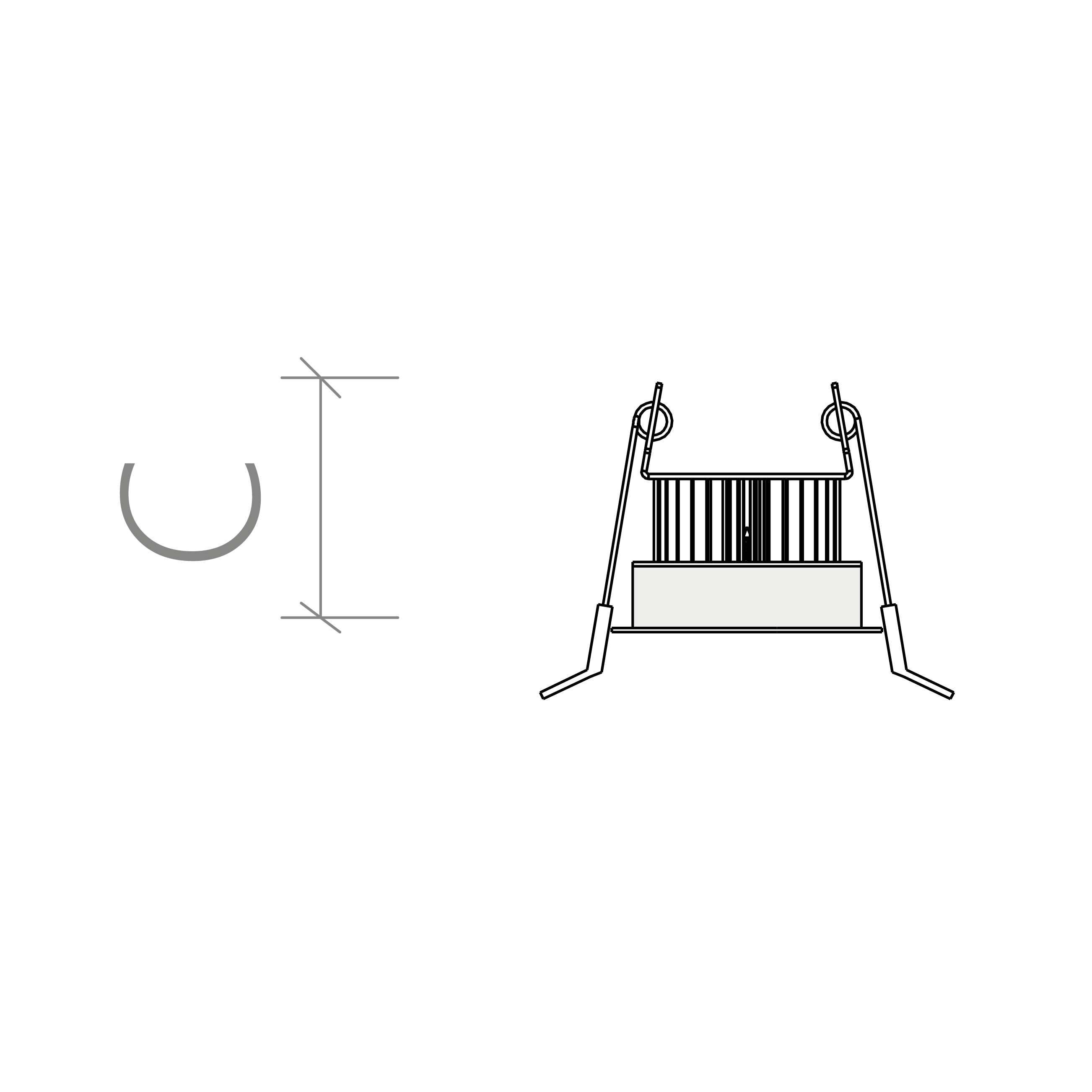

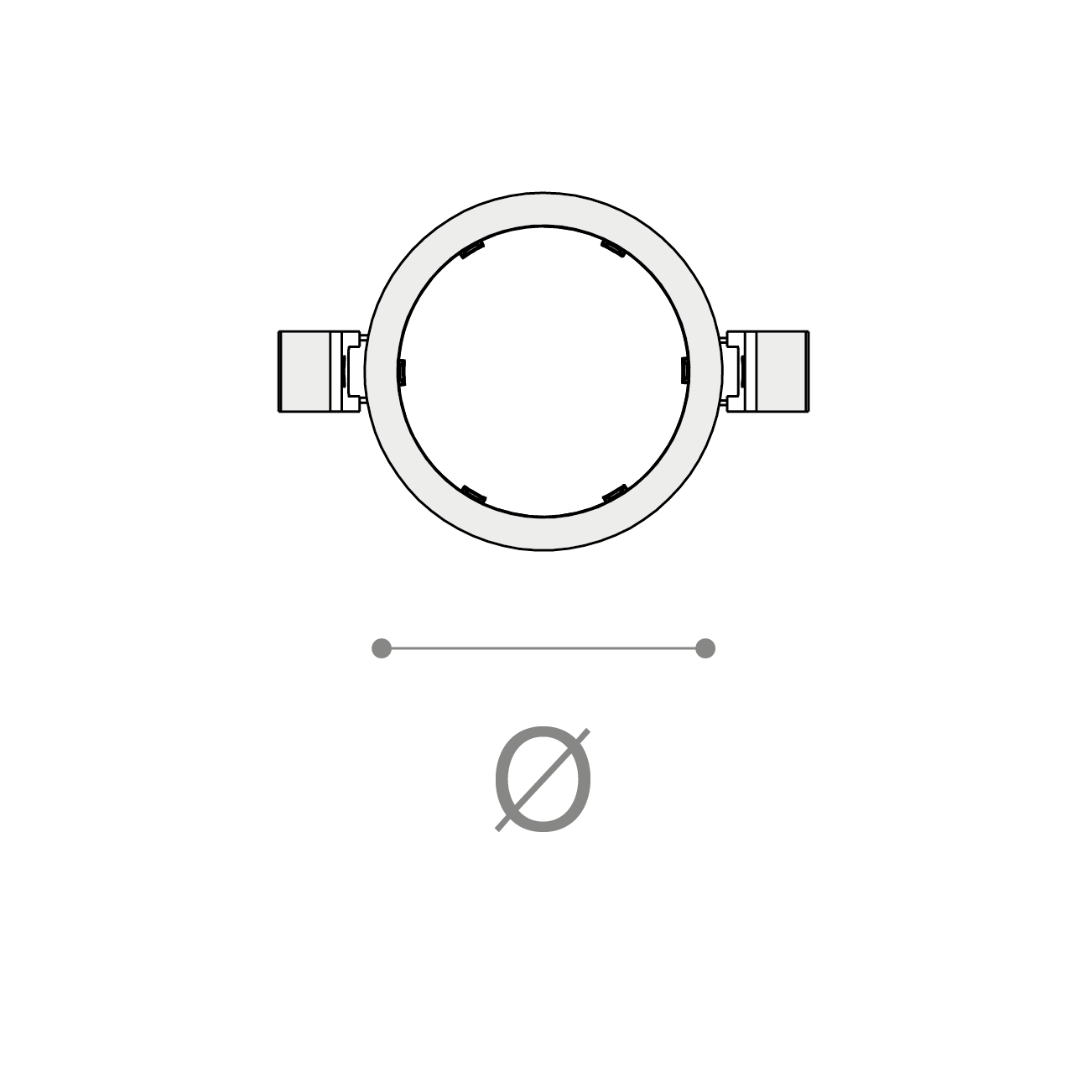

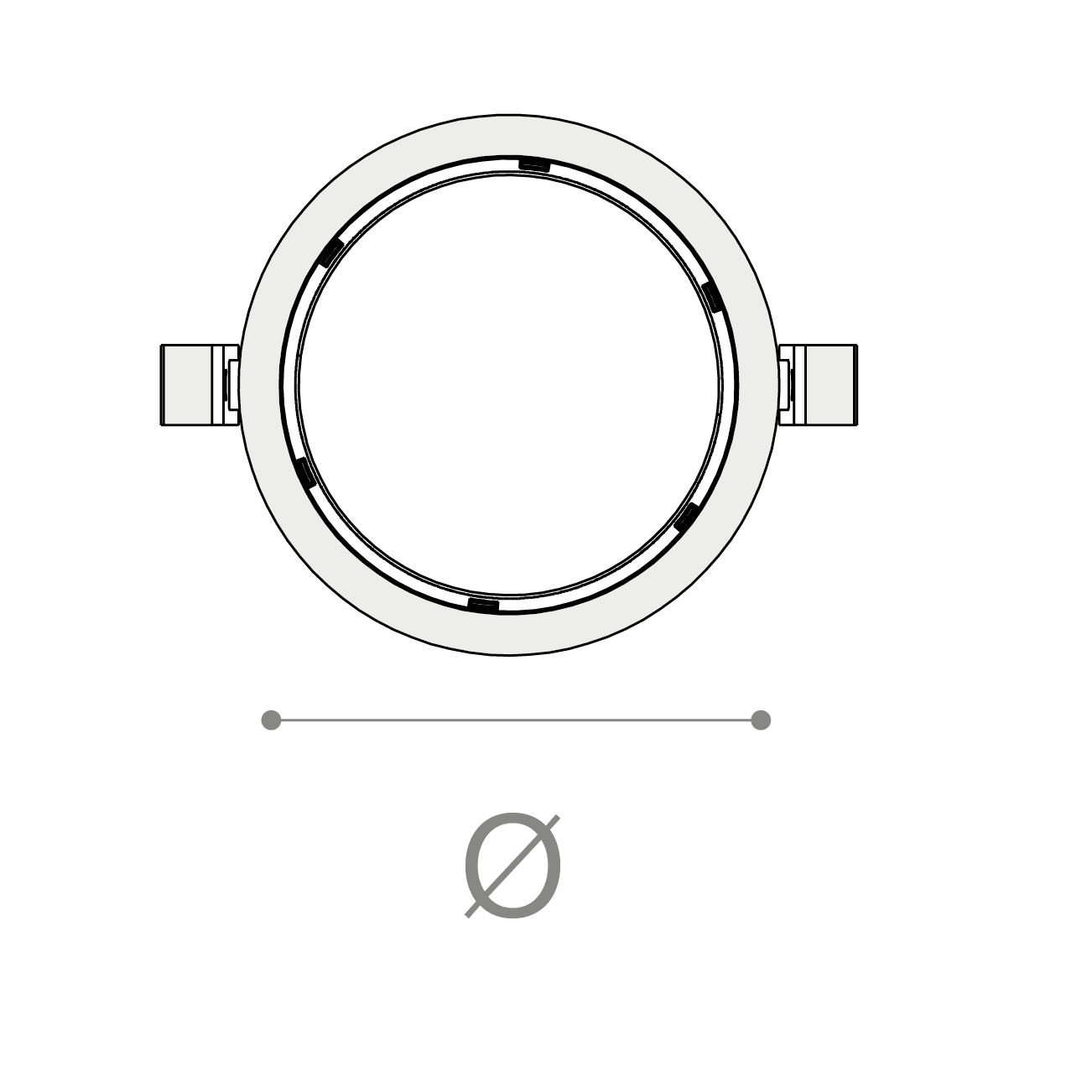

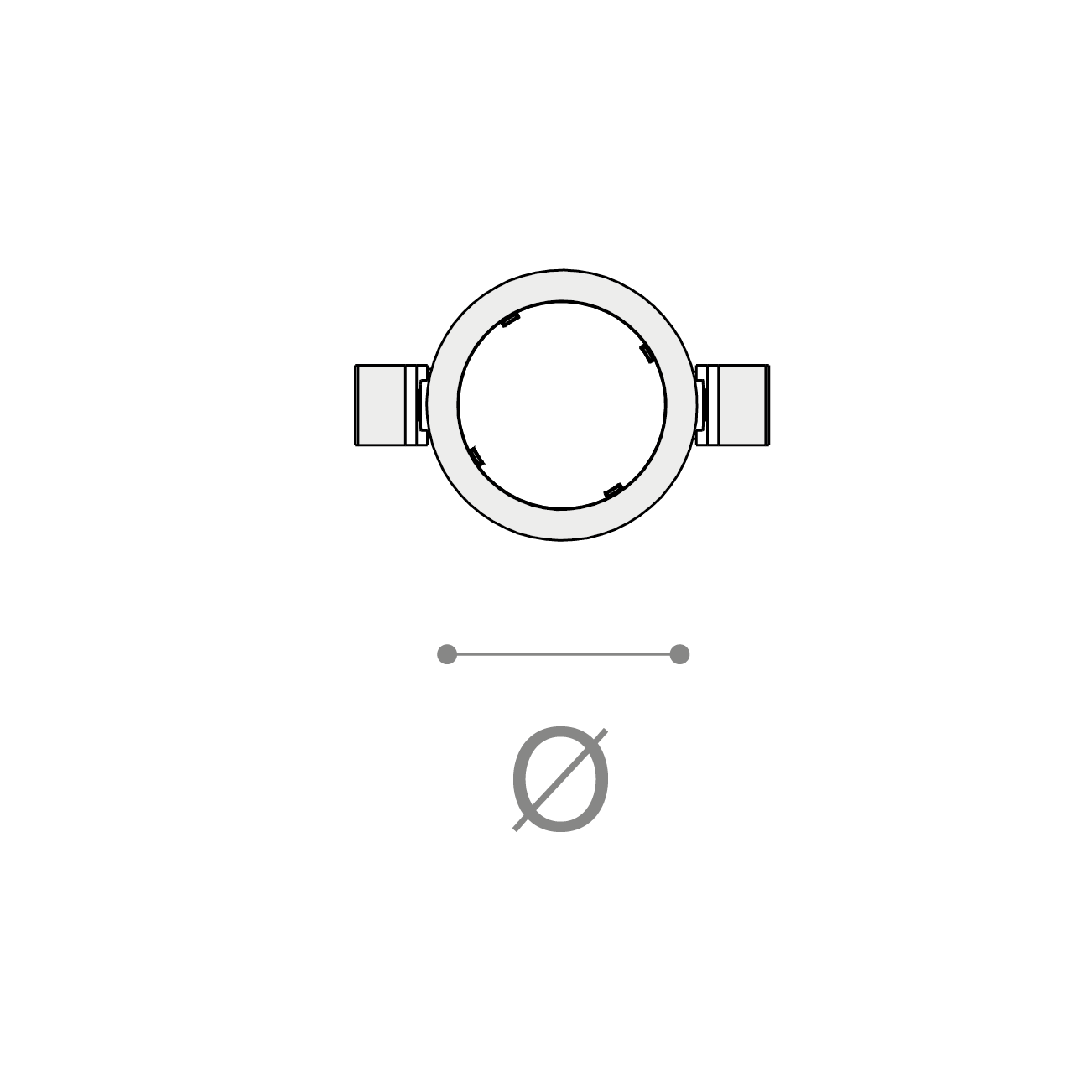

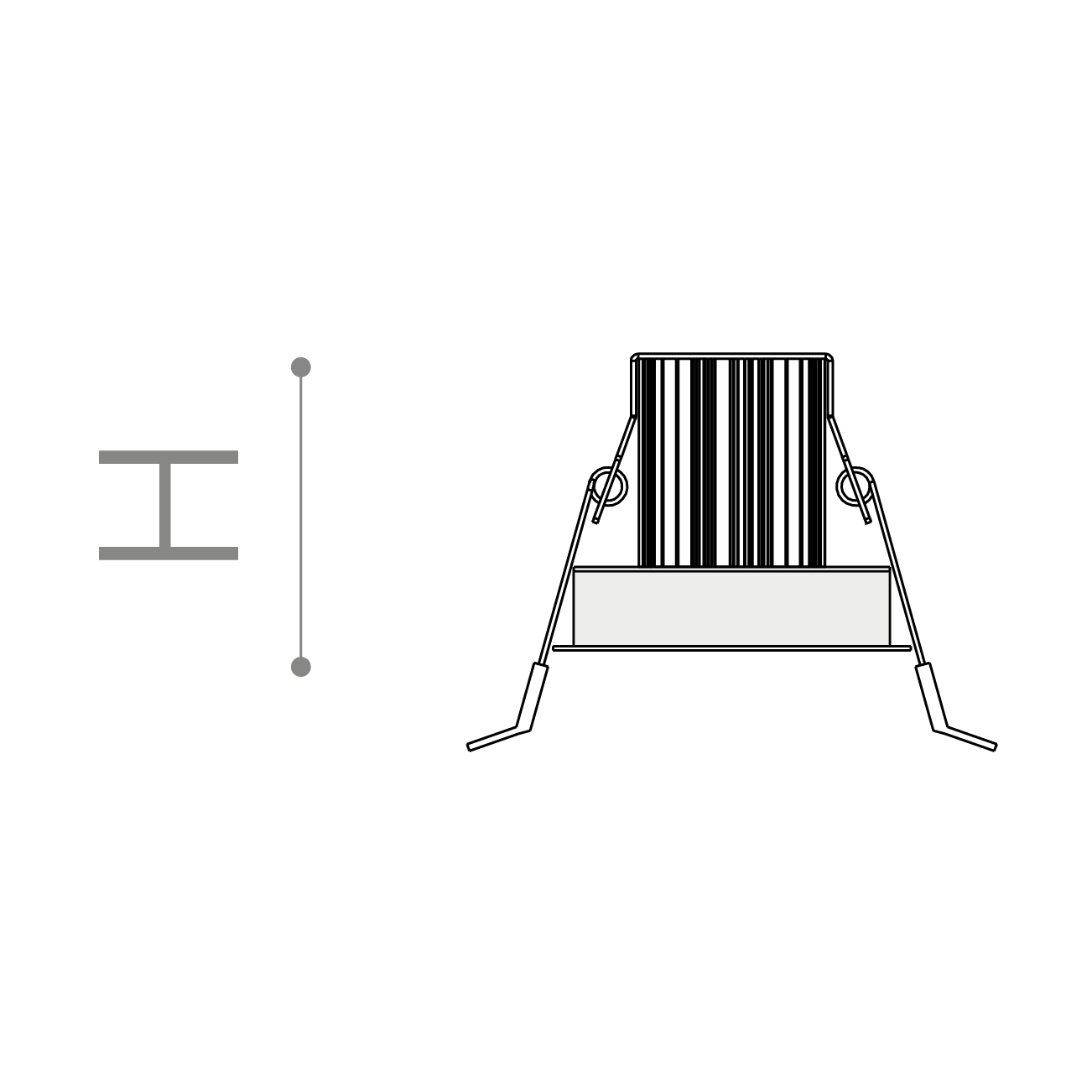

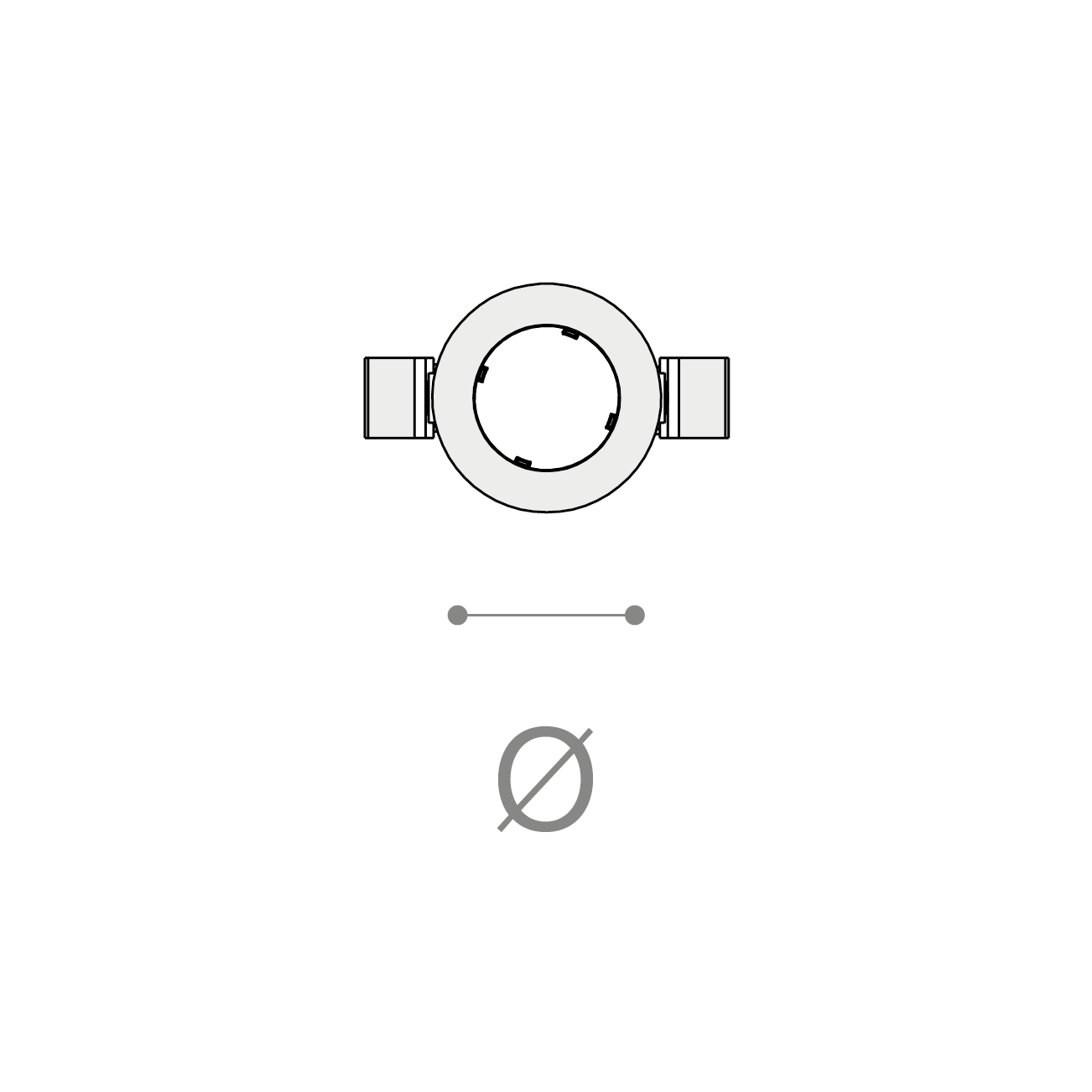

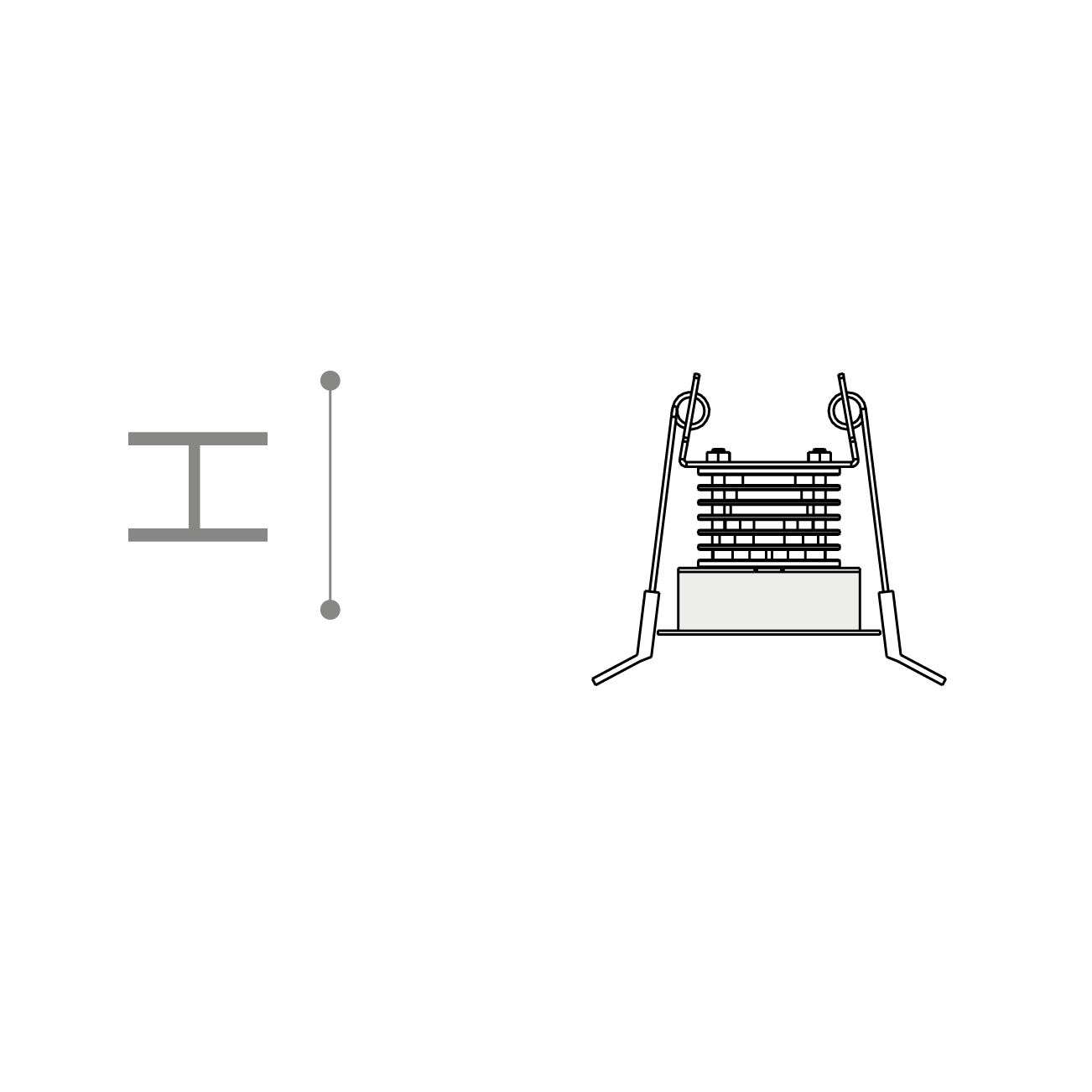

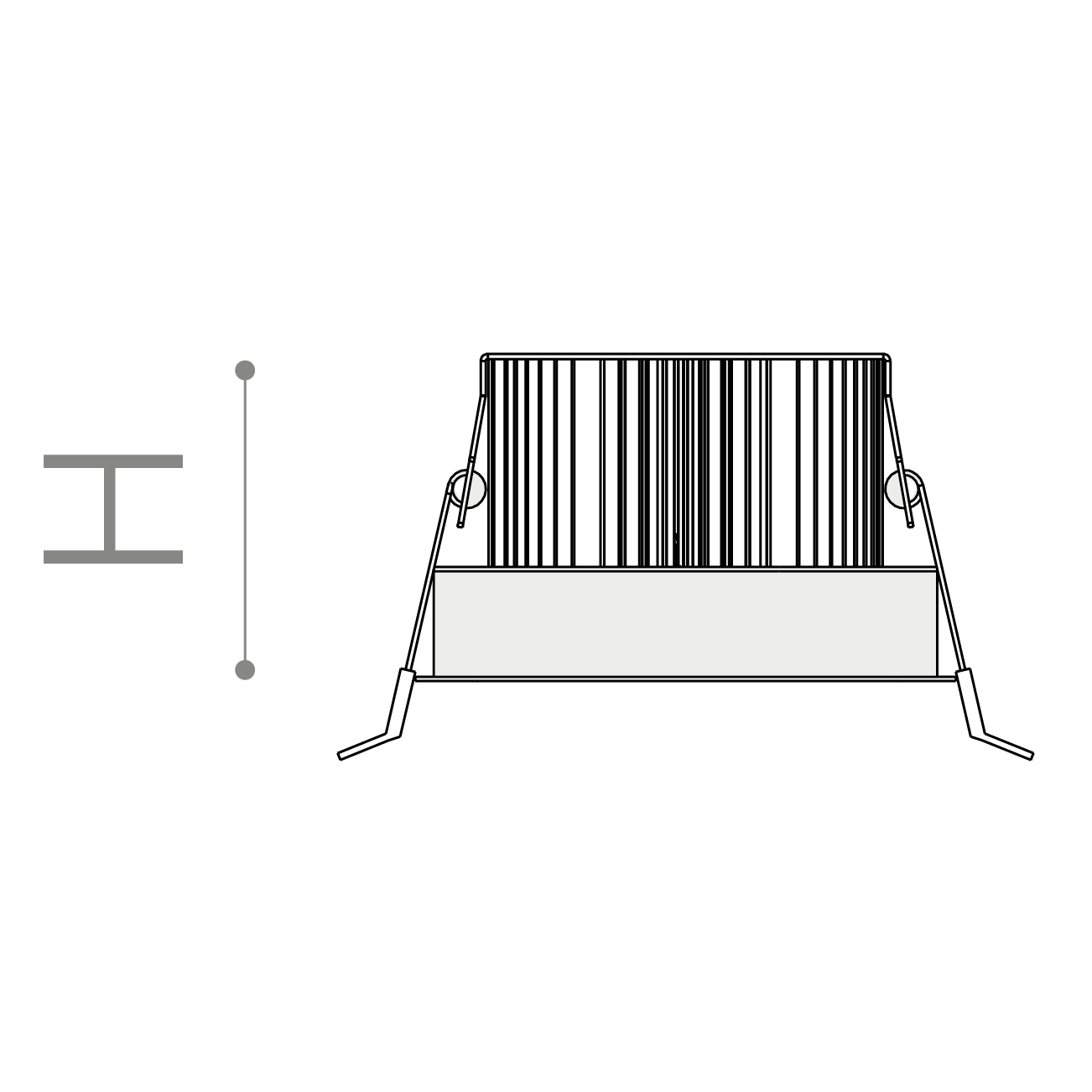

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6024RF4006BL4000°K - CRI>80on/off5288855650.20
6024RF4010BL104000°K - CRI>80on/off105510565600.30
6024RF4015BL154000°K - CRI>80on/off163710986700.40
6024RF4025BL254000°K - CRI>80on/off2522101130800.80
6024RF4006BD4000°K - CRI>80dali 2 / dali 2 push5288855650.20
6024RF4010BD104000°K - CRI>80dali 2 / dali 2 push105510565600.30
6024RF4015BD154000°K - CRI>80dali 2 / dali 2 push163710986700.40
6024RF4025BD254000°K - CRI>80dali 2 / dali 2 push2522101130800.80
6024RF2706BL2700°K - CRI>80on/off4888155650.20
6024RF2710BL102700°K - CRI>80on/off9749765600.30
6024RF2715BL152700°K - CRI>80on/off151210186700.40
6024RF2725BL252700°K - CRI>80on/off232993130800.80
6024RF2706BD2700°K - CRI>80dali 2 / dali 2 push4888155650.20
6024RF2710BD102700°K - CRI>80dali 2 / dali 2 push9749765600.30
6024RF2715BD152700°K - CRI>80dali 2 / dali 2 push151210186700.40
6024RF2725BD252700°K - CRI>80dali 2 / dali 2 push232993130800.80
6024RF3006BL3000°K - CRI>80on/off5128555650.20
6024RF3010BL103000°K - CRI>80on/off102310265600.30
6024RF3015BL153000°K - CRI>80on/off158810686700.40
6024RF3025BL253000°K - CRI>80on/off244698130800.80
