RING/RS

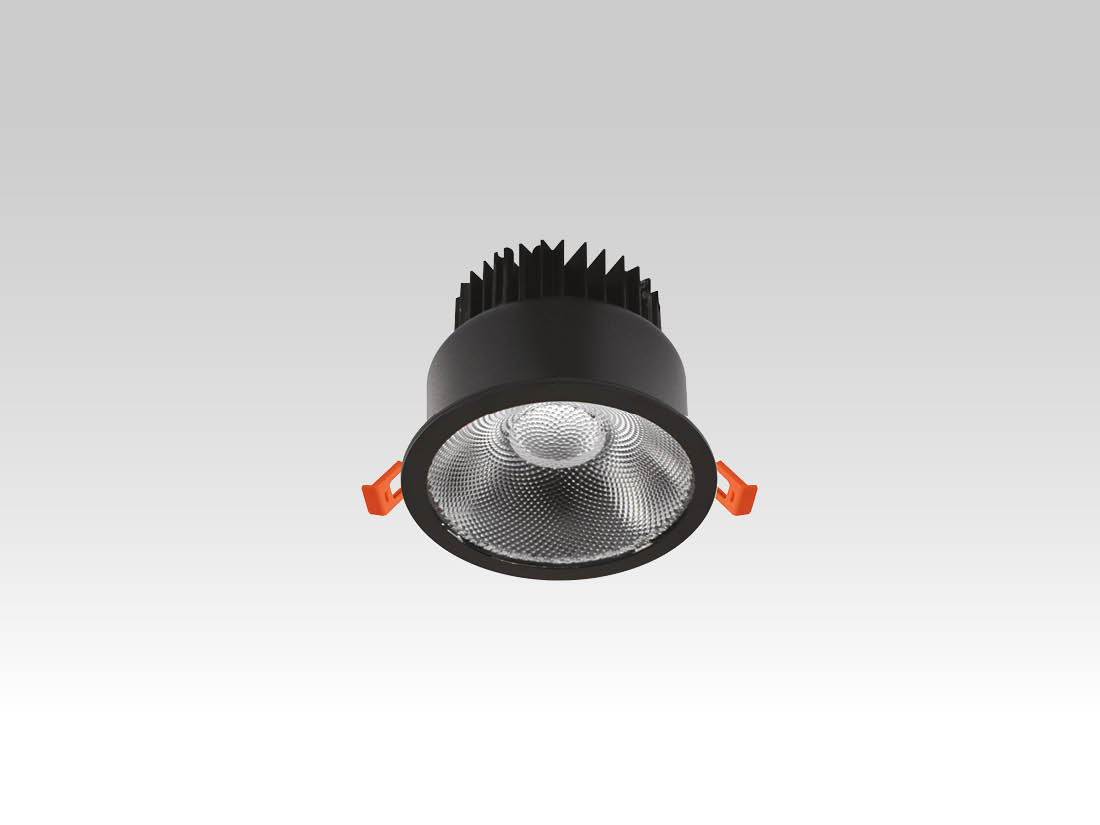

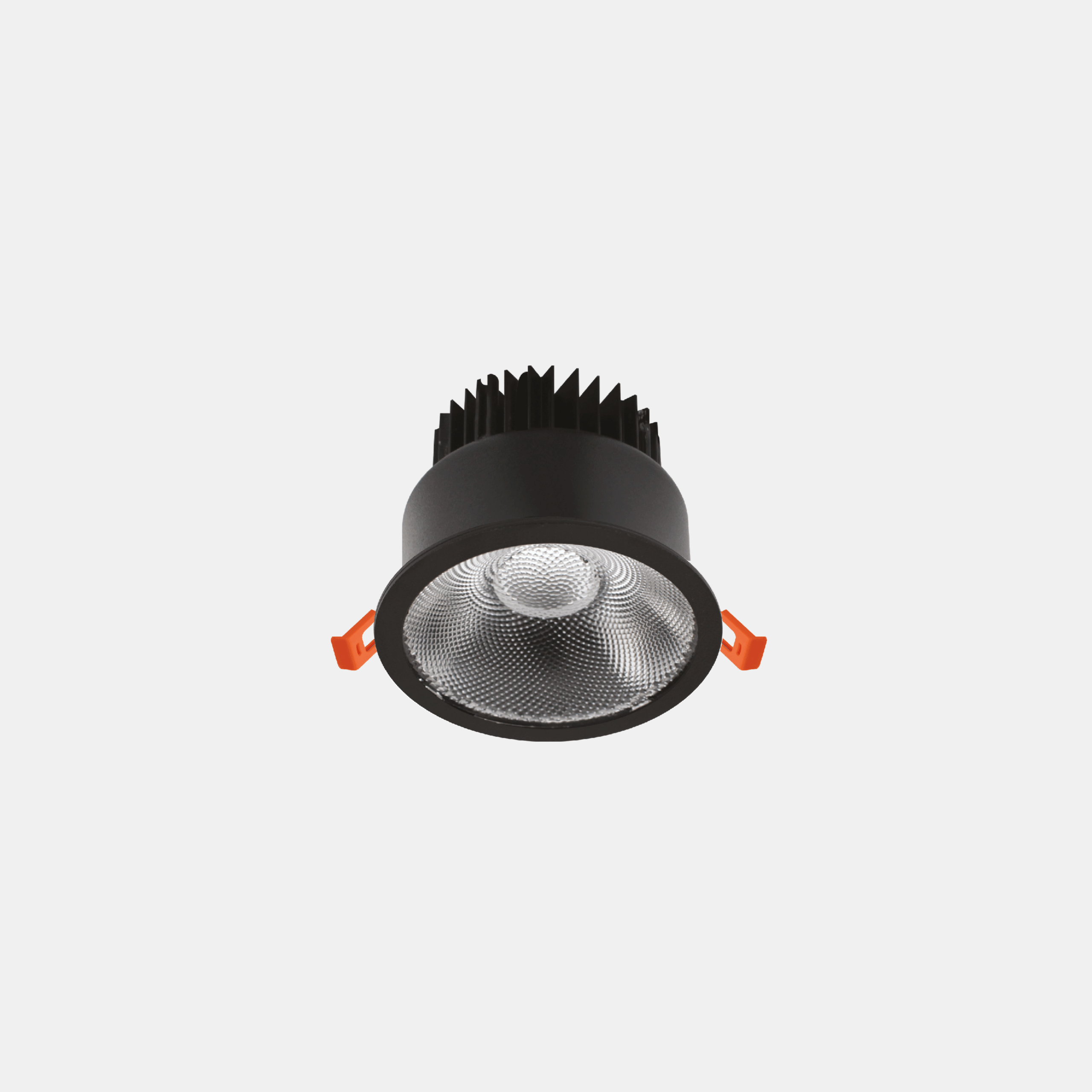

Led indoor spotlight for recessed installation. Ring in steel sheet painted with black epoxy-polyester powders, anti-yellowing with fine embossed finish and body in sheared turned aluminum painted with black epoxy-polyester powders (pre-treatment of phosphating and degreasing). Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Indoor, art. 6024 Ring
Models: 48
Color: Matt black
Catalogue abstract
Installation instructions

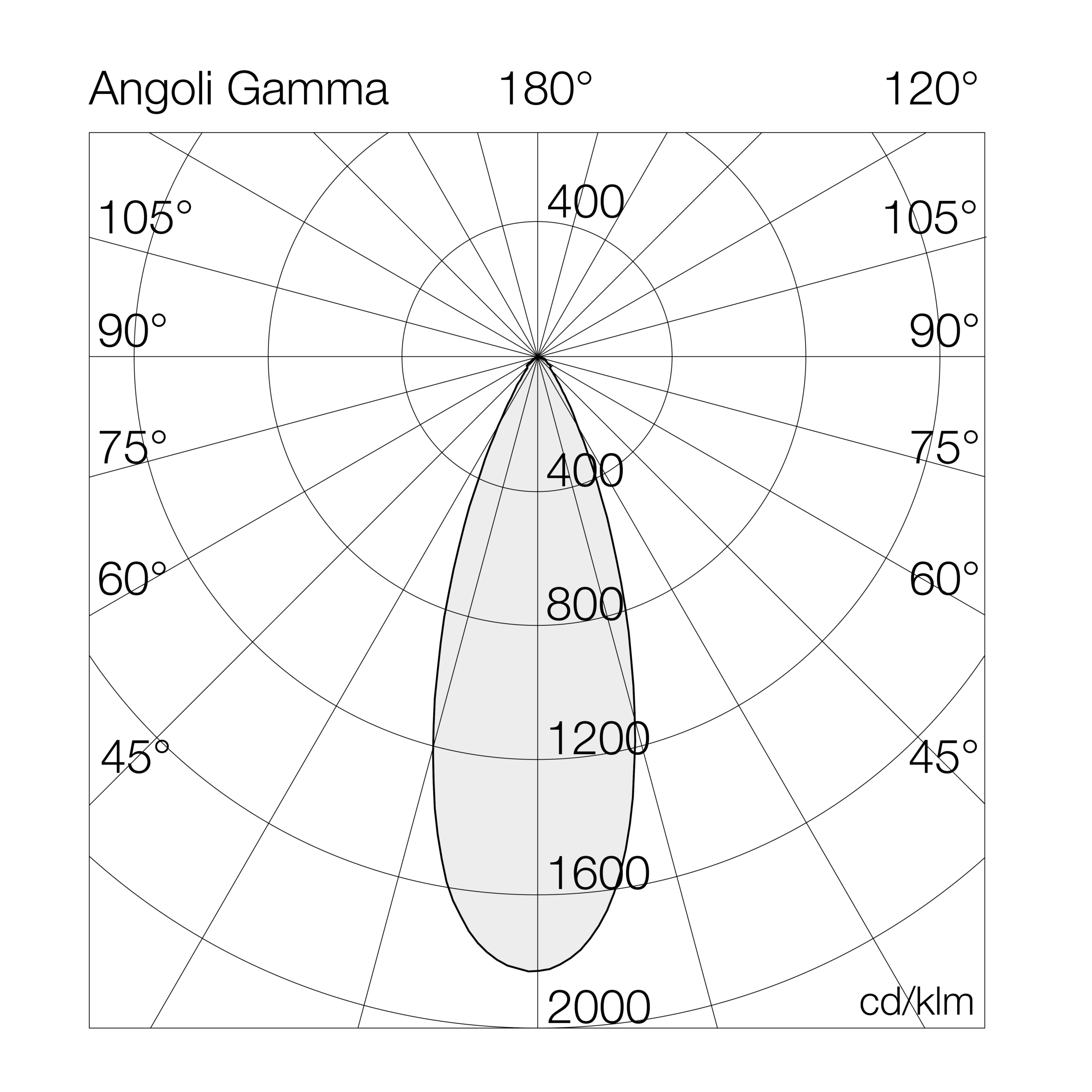

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6024RS27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)10ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)15NC= casambi
97= 2700°K (CRI >80)25
93= 3000°K (CRI >80)
94= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6024RS4006NL4000°K - CRI>80on/off5539255650.20
6024RS4010NL104000°K - CRI>80on/off110411065600.30
6024RS4015NL154000°K - CRI>80on/off171311486700.40
6024RS4025NL254000°K - CRI>80on/off2638106130800.80
6024RS4006ND4000°K - CRI>80dali 2 / dali 2 push5539255650.20
6024RS4010ND104000°K - CRI>80dali 2 / dali 2 push110411065600.30
6024RS4015ND154000°K - CRI>80dali 2 / dali 2 push171311486700.40
6024RS4025ND254000°K - CRI>80dali 2 / dali 2 push2638106130800.80
6024RS2706NL2700°K - CRI>80on/off5118555650.20
6024RS2710NL102700°K - CRI>80on/off102010265600.30
6024RS2715NL152700°K - CRI>80on/off158210586700.40
6024RS2725NL252700°K - CRI>80on/off243697130800.80
6024RS2706ND2700°K - CRI>80dali 2 / dali 2 push5118555650.20
6024RS2710ND102700°K - CRI>80dali 2 / dali 2 push102010265600.30
6024RS2715ND152700°K - CRI>80dali 2 / dali 2 push158210586700.40
6024RS2725ND252700°K - CRI>80dali 2 / dali 2 push243697130800.80
6024RS3006NL3000°K - CRI>80on/off5368955650.20
6024RS3010NL103000°K - CRI>80on/off107110765600.30
6024RS3015NL153000°K - CRI>80on/off166111186700.40
6024RS3025NL253000°K - CRI>80on/off2558102130800.80
