art.-6025-edu-rs-rf-nero

EDU/RS

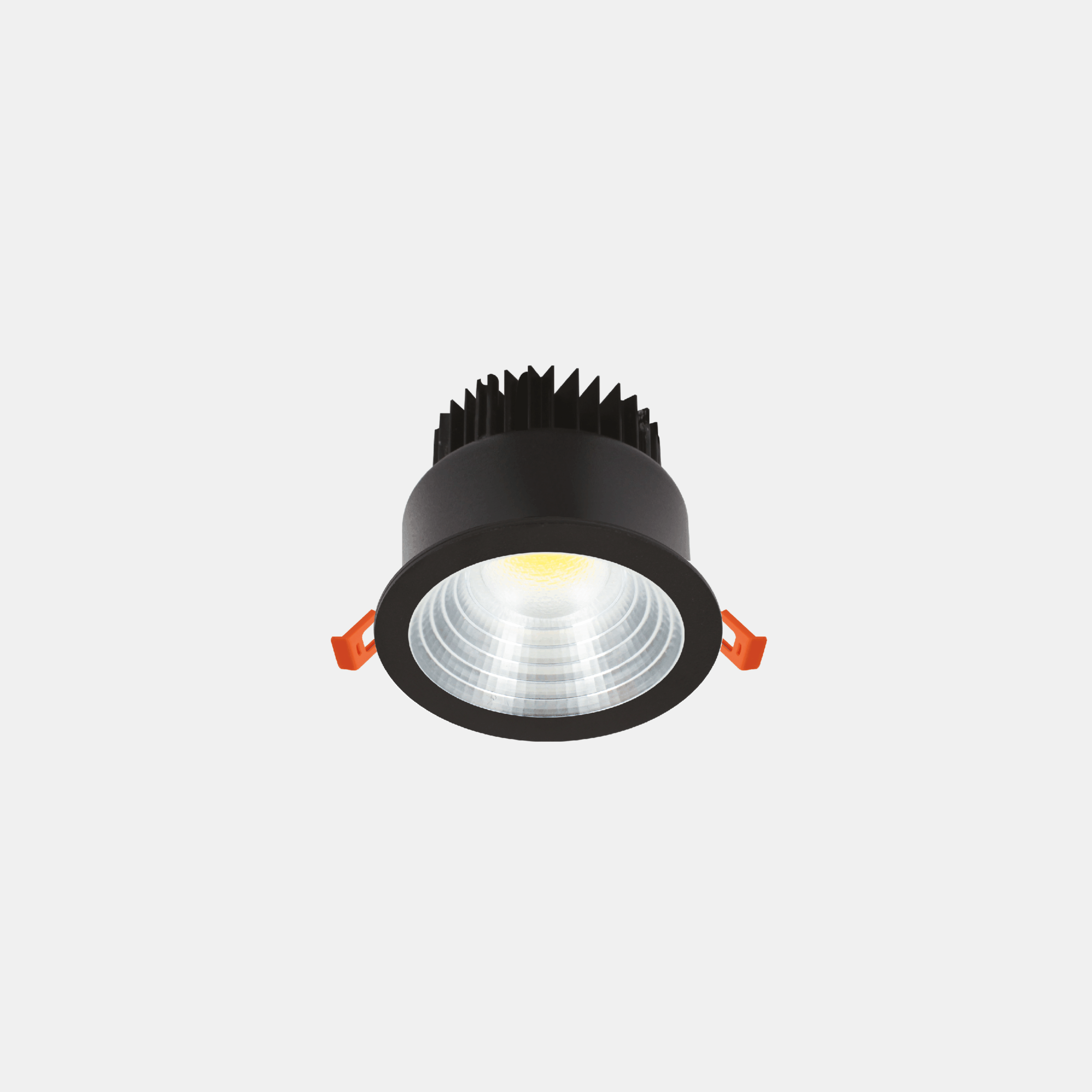

Led indoor spotlight for recessed installation. Ring in steel sheet painted with black epoxy-polyester powders, anti-yellowing with fine embossed finish and body in sheared turned aluminum painted with black epoxy-polyester powders (pre-treatment of phosphating and degreasing). Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Indoor, art. 6025 Edu
Models: 36
Color: Matt black
Catalogue abstract
Installation instructions

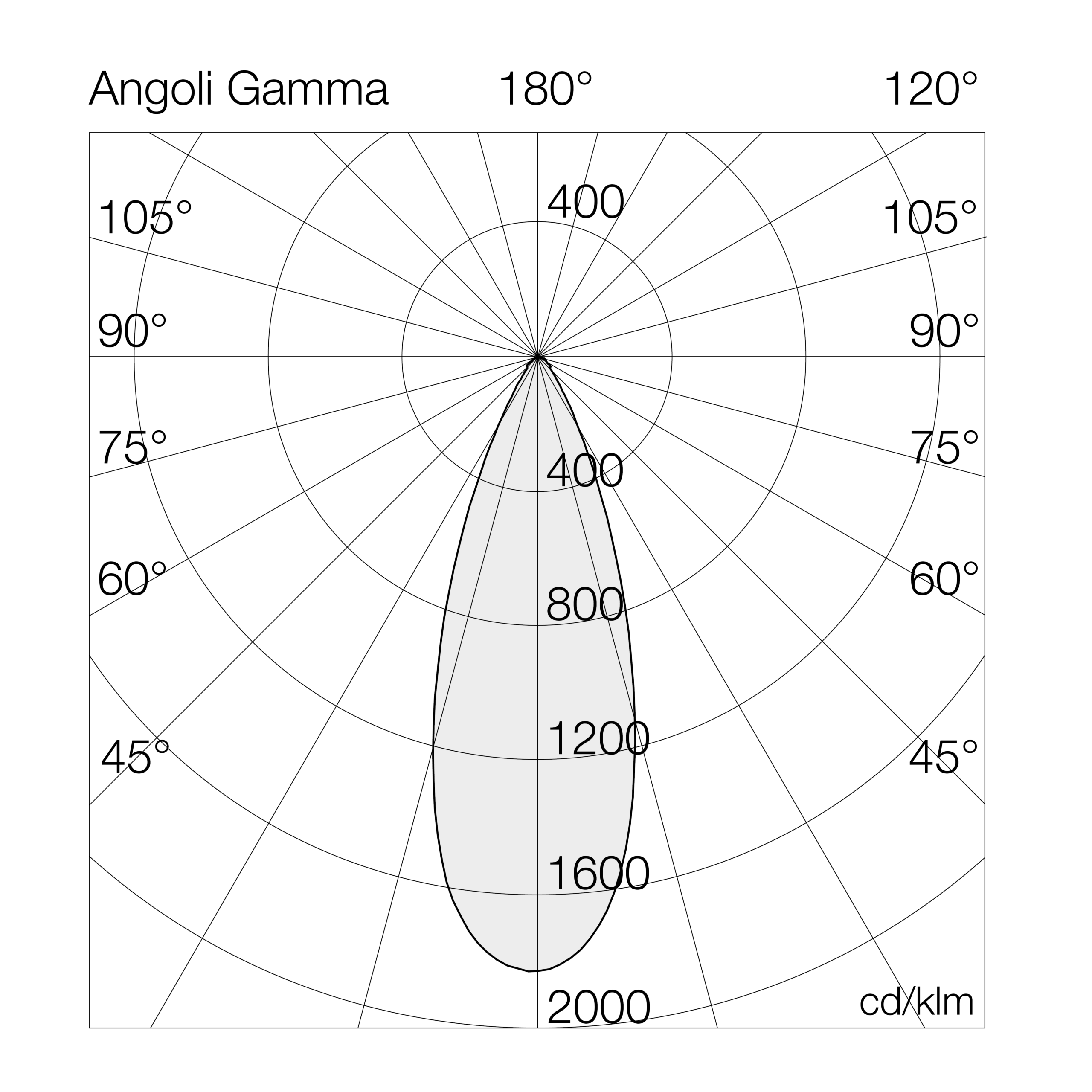

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6025RS27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)10ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)NC= casambi
97= 2700°K (CRI >80)
93= 3000°K (CRI >80)
94= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6025RS4006NL4000°K - CRI>80on/off72312175730.20
6025RS4010NL104000°K - CRI>80on/off126612775730.20
6025RS4006ND4000°K - CRI>80dali 2 / dali 2 push72312175730.20
6025RS4010ND104000°K - CRI>80dali 2 / dali 2 push126612775730.20
6025RS4006NC4000°K - CRI>80casambi72312175730.20
6025RS4010NC104000°K - CRI>80casambi126612775730.20
6025RS3006NL3000°K - CRI>80on/off70111775730.20
6025RS3010NL103000°K - CRI>80on/off122812375730.20
6025RS3006ND3000°K - CRI>80dali 2 / dali 2 push70111775730.20
6025RS3010ND103000°K - CRI>80dali 2 / dali 2 push122812375730.20
6025RS3006NC3000°K - CRI>80casambi70111775730.20
6025RS3010NC103000°K - CRI>80casambi122812375730.20
6025RS2706NL2700°K - CRI>80on/off66811175730.20
6025RS2710NL102700°K - CRI>80on/off116911775730.20
6025RS2706ND2700°K - CRI>80dali 2 / dali 2 push66811175730.20
6025RS2710ND102700°K - CRI>80dali 2 / dali 2 push116911775730.20
6025RS2706NC2700°K - CRI>80casambi66811175730.20
6025RS2710NC102700°K - CRI>80casambi116911775730.20
6025RS9406NL4000°K - CRI>90on/off62010375730.20
6025RS9410NL104000°K - CRI>90on/off108510975730.20
