TALO/Z1

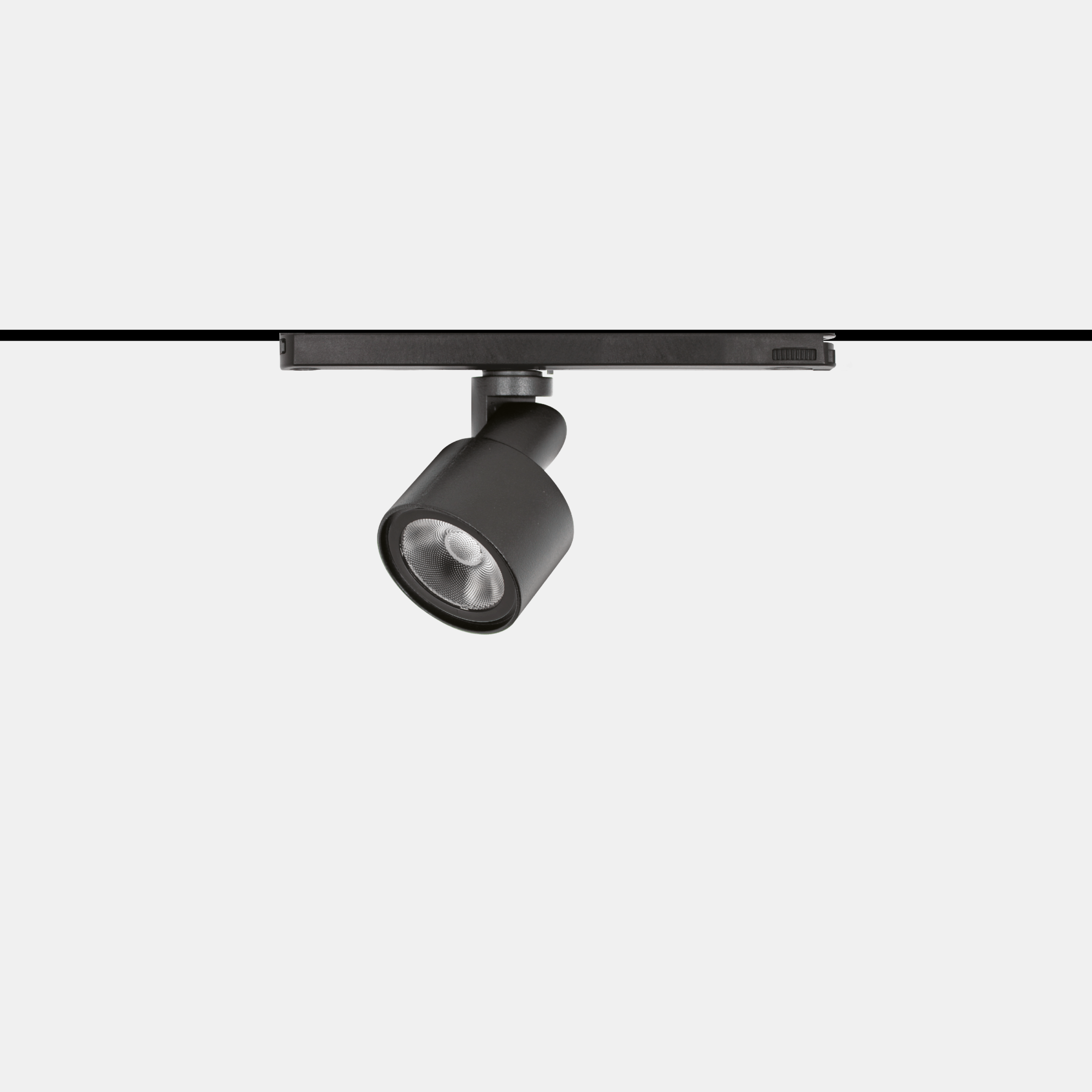

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt black anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Retail, art. 6101 Talo

Models: 256

Color: Matt black

Catalogue abstract

Installation instructions

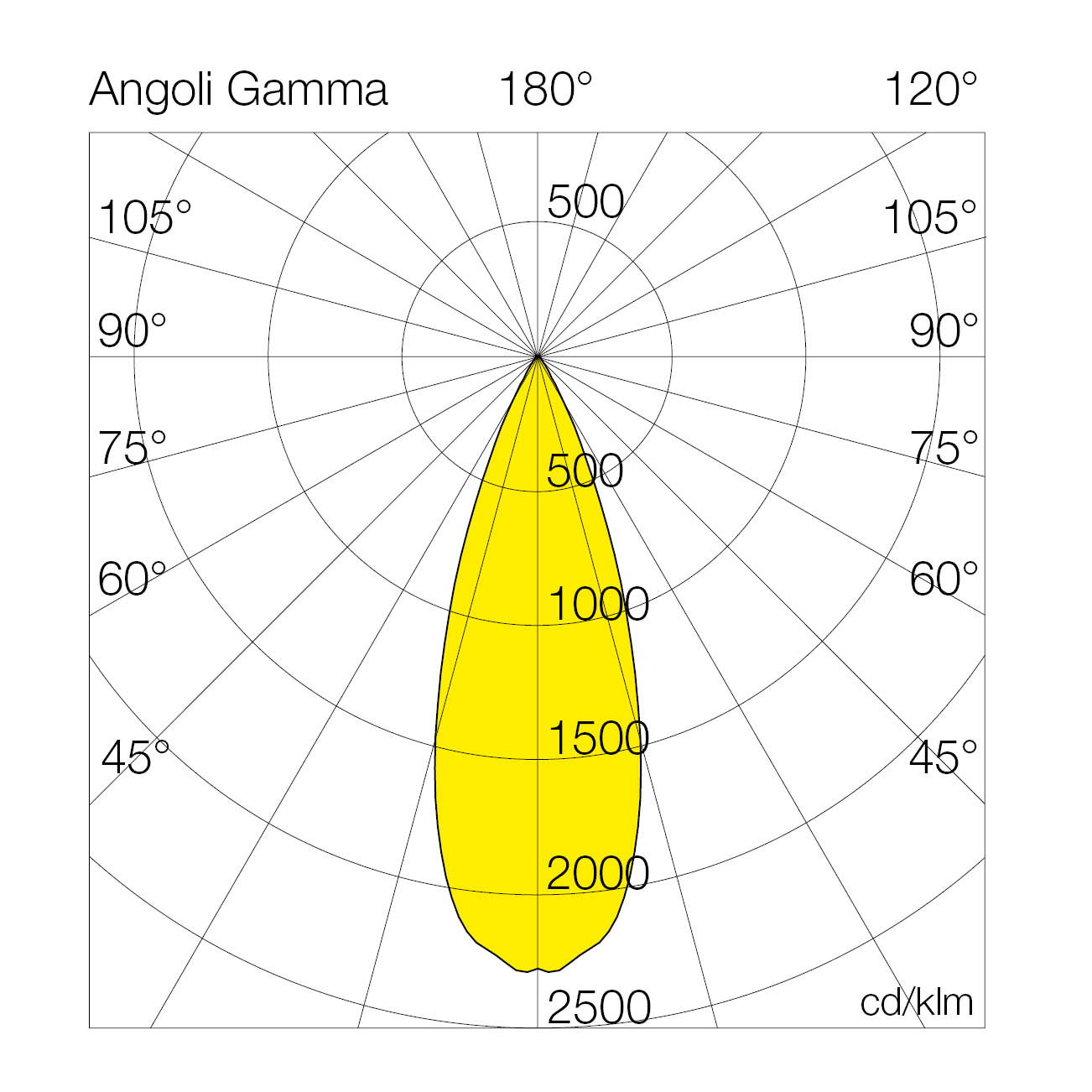

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6101	Z1	27	= 2700°K (CRI >80)	12	NL	= on/off
		30	= 3000°K (CRI >80)	15	ND	= dali
		40	= 4000°K (CRI >80)	18	N4	= on/off - 48Vdc
		93	= 3000°K (CRI >90)	22	L4	= dali - 48Vdc
		94	= 4000°K (CRI >90)	26
		M0	= Meat	32
		V0	= Vegetables	36
		FW	= Fashion White	40

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
6101Z14012NL	12	4000°K - CRI>80	on/off	1614	135	65	65	100	0.45
6101Z14015NL	15	4000°K - CRI>80	on/off	1942	129	65	65	100	0.45
6101Z14018NL	18	4000°K - CRI>80	on/off	2263	126	65	65	100	0.45
6101Z14022NL	22	4000°K - CRI>80	on/off	2680	122	65	65	100	0.45
6101Z14026NL	26	4000°K - CRI>80	on/off	3085	119	65	65	100	0.45
6101Z14032NL	32	4000°K - CRI>80	on/off	3670	115	65	65	100	0.45
6101Z14036NL	36	4000°K - CRI>80	on/off	4045	112	65	65	100	0.45
6101Z14040NL	40	4000°K - CRI>80	on/off	4410	110	65	65	100	0.45
6101Z14012ND	12	4000°K - CRI>80	dali	1614	135	65	65	100	0.45
6101Z14015ND	15	4000°K - CRI>80	dali	1942	129	65	65	100	0.45
6101Z14018ND	18	4000°K - CRI>80	dali	2263	126	65	65	100	0.45
6101Z14022ND	22	4000°K - CRI>80	dali	2680	122	65	65	100	0.45
6101Z14026ND	26	4000°K - CRI>80	dali	3085	119	65	65	100	0.45
6101Z14032ND	32	4000°K - CRI>80	dali	3670	115	65	65	100	0.45
6101Z14036ND	36	4000°K - CRI>80	dali	4045	112	65	65	100	0.45
6101Z14040ND	40	4000°K - CRI>80	dali	4410	110	65	65	100	0.45
6101Z14012N4	12	4000°K - CRI>80	on/off (48Vdc)	1614	135	65	65	100	0.45
6101Z14015N4	15	4000°K - CRI>80	on/off (48Vdc)	1942	129	65	65	100	0.45
6101Z14018N4	18	4000°K - CRI>80	on/off (48Vdc)	2263	126	65	65	100	0.45
6101Z14022N4	22	4000°K - CRI>80	on/off (48Vdc)	2680	122	65	65	100	0.45
