art.-6200-cleo-q1-q3-q6-bianco

CLEO/Q1

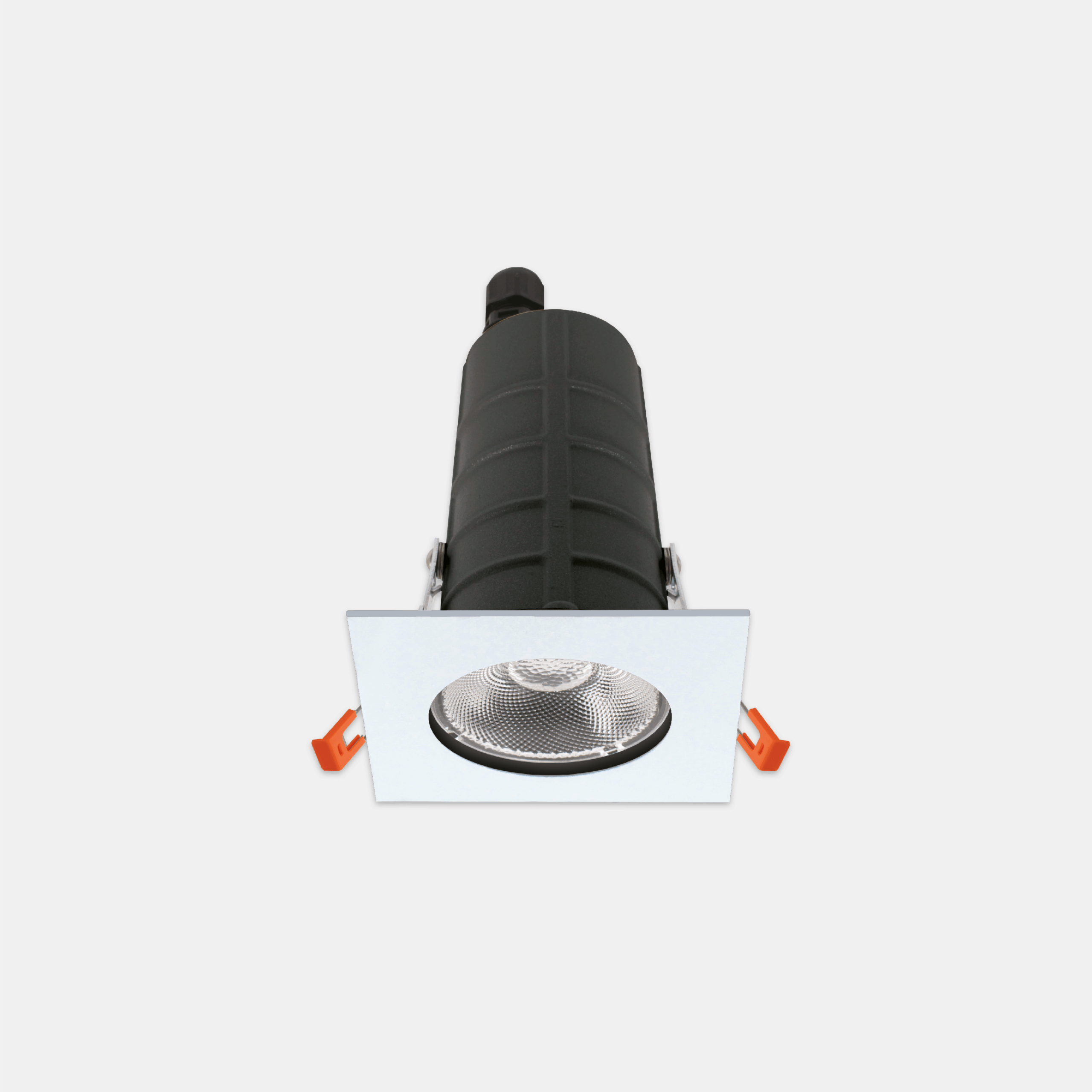

Led recessed downlight for indoor and outdoor use. Body in anti-corrosion die-cast aluminum painted with black epoxy powders. Ring in steel sheet painted with matt white epoxy powders with fine embossed finish, 220-240V 50 / 60Hz remote electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Outdoor, art. 6200 Cleo
Models: 24
Color: Matt white
Catalogue abstract
Installation instructions

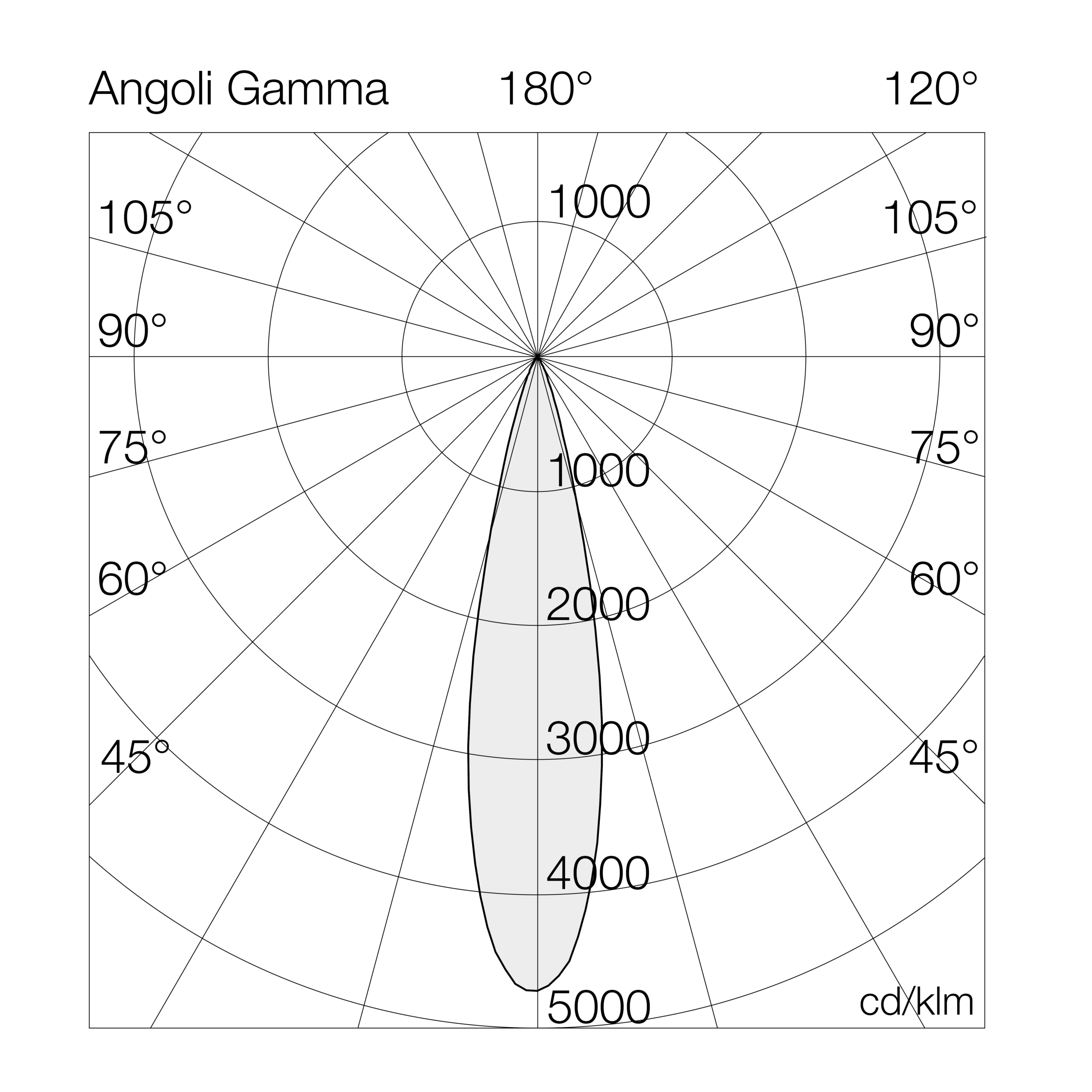

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6200Q127= 2700°K (CRI >80)08BL= on/off
30= 3000°K (CRI >80)12BD= dali
40= 4000°K (CRI >80)18
26

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6200Q14008BL4000°K - CRI>80on/off10591321101101580.60
6200Q14012BL124000°K - CRI>80on/off14661221101101580.60
6200Q14018BL184000°K - CRI>80on/off20541141101101580.60
6200Q14026BL264000°K - CRI>80on/off28231091101101580.60
6200Q14008BD4000°K - CRI>80dali10591321101101580.60
6200Q14012BD124000°K - CRI>80dali14661221101101580.60
6200Q14018BD184000°K - CRI>80dali20541141101101580.60
6200Q14026BD264000°K - CRI>80dali28231091101101580.60
6200Q13008BL3000°K - CRI>80on/off10271281101101580.60
6200Q13012BL123000°K - CRI>80on/off14221191101101580.60
6200Q13018BL183000°K - CRI>80on/off19921111101101580.60
6200Q13026BL263000°K - CRI>80on/off27381051101101580.60
6200Q13008BD3000°K - CRI>80dali10271281101101580.60
6200Q13012BD123000°K - CRI>80dali14221191101101580.60
6200Q13018BD183000°K - CRI>80dali19921111101101580.60
6200Q13026BD263000°K - CRI>80dali27381051101101580.60
6200Q12708BL2700°K - CRI>80on/off9781221101101580.60
6200Q12712BL122700°K - CRI>80on/off13541131101101580.60
6200Q12718BL182700°K - CRI>80on/off18971051101101580.60
6200Q12726BL262700°K - CRI>80on/off26071001101101580.60
