art.-7012-zoe-n3

ZOE RS/N3

Indoor and outdoor led fitting for ceiling or wall installation. Body in selfextinguishing matt black polycarbonate, silicone gasket with quick closure. Led boards powered directly at 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 6059 8-1.
Categories: Led, Architectural Outdoor, art. 7013 Zoe RS
Models: 9
Color: Matt black
Catalogue abstract
Installation instructions

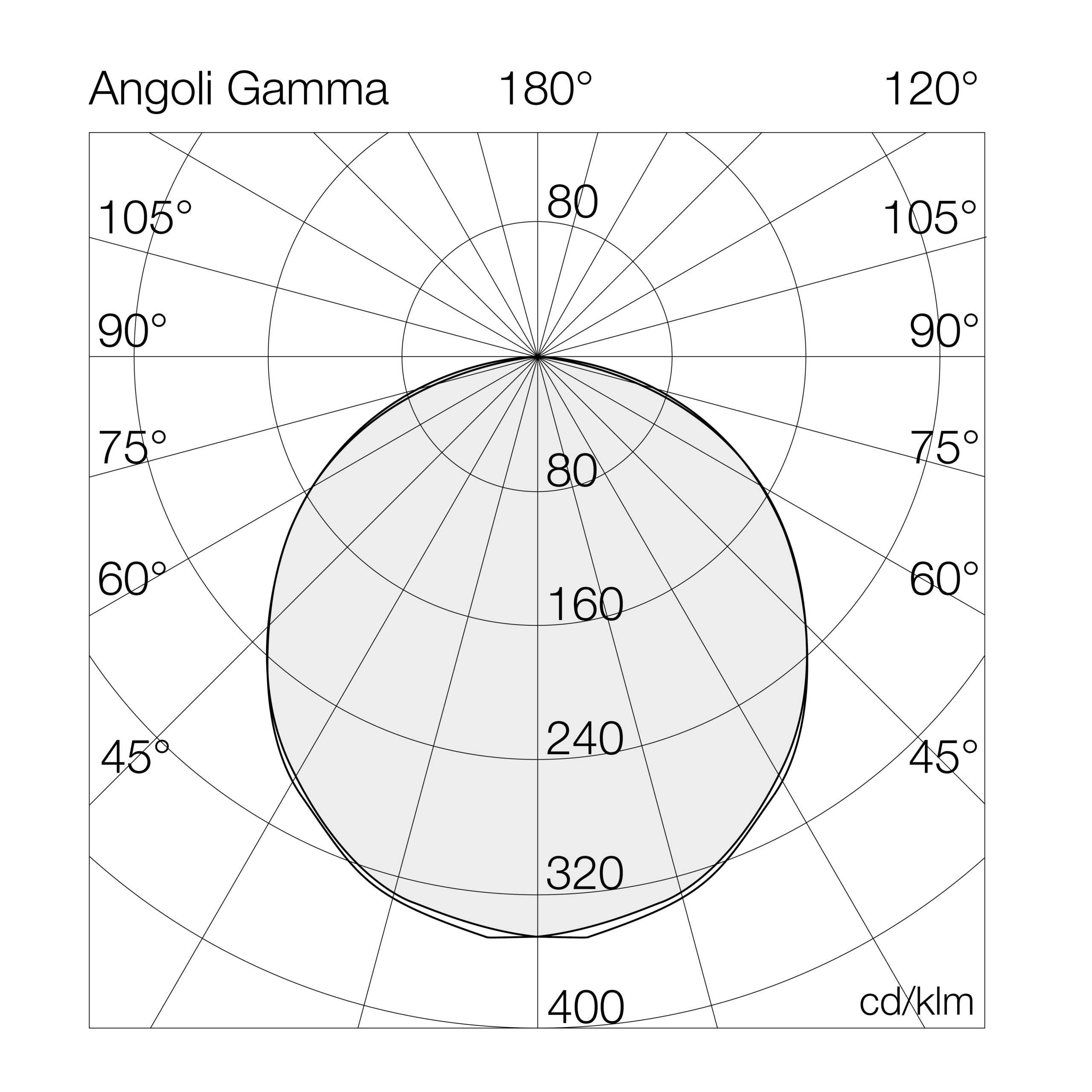

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7013N327= 2700°K (CRI >80)15EL= radar sensor
30= 3000°K (CRI >80)20
40= 4000°K (CRI >80)24

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7013N34015EL154000°K - CRI>80on/off14409628055620.90
7013N34020EL204000°K - CRI>80on/off19209628055620.90
7013N34024EL244000°K - CRI>80on/off23049628055620.90
7013N33015EL153000°K - CRI>80on/off13669128055620.90
7013N33020EL203000°K - CRI>80on/off18219128055620.90
7013N33024EL243000°K - CRI>80on/off21859128055620.90
7013N32715EL152700°K - CRI>80on/off13058728055620.90
7013N32720EL202700°K - CRI>80on/off17408728055620.90
7013N32724EL242700°K - CRI>80on/off20888728055620.90

Accessories
