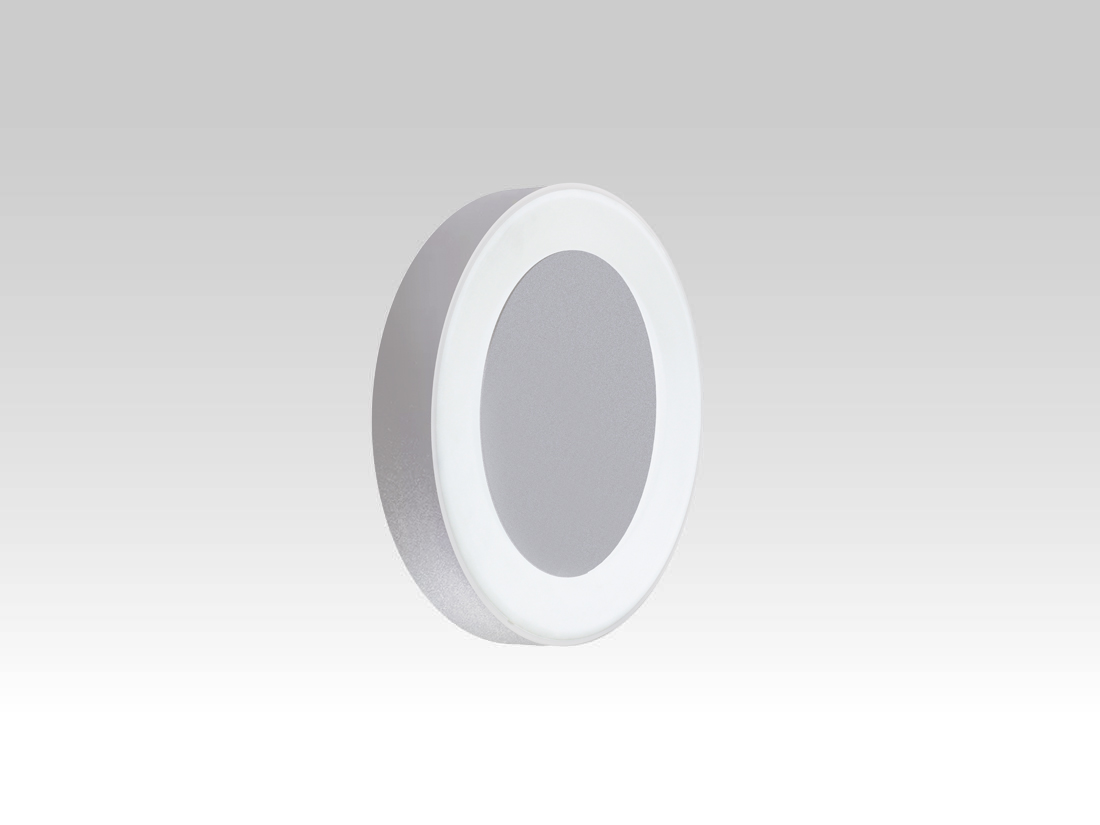

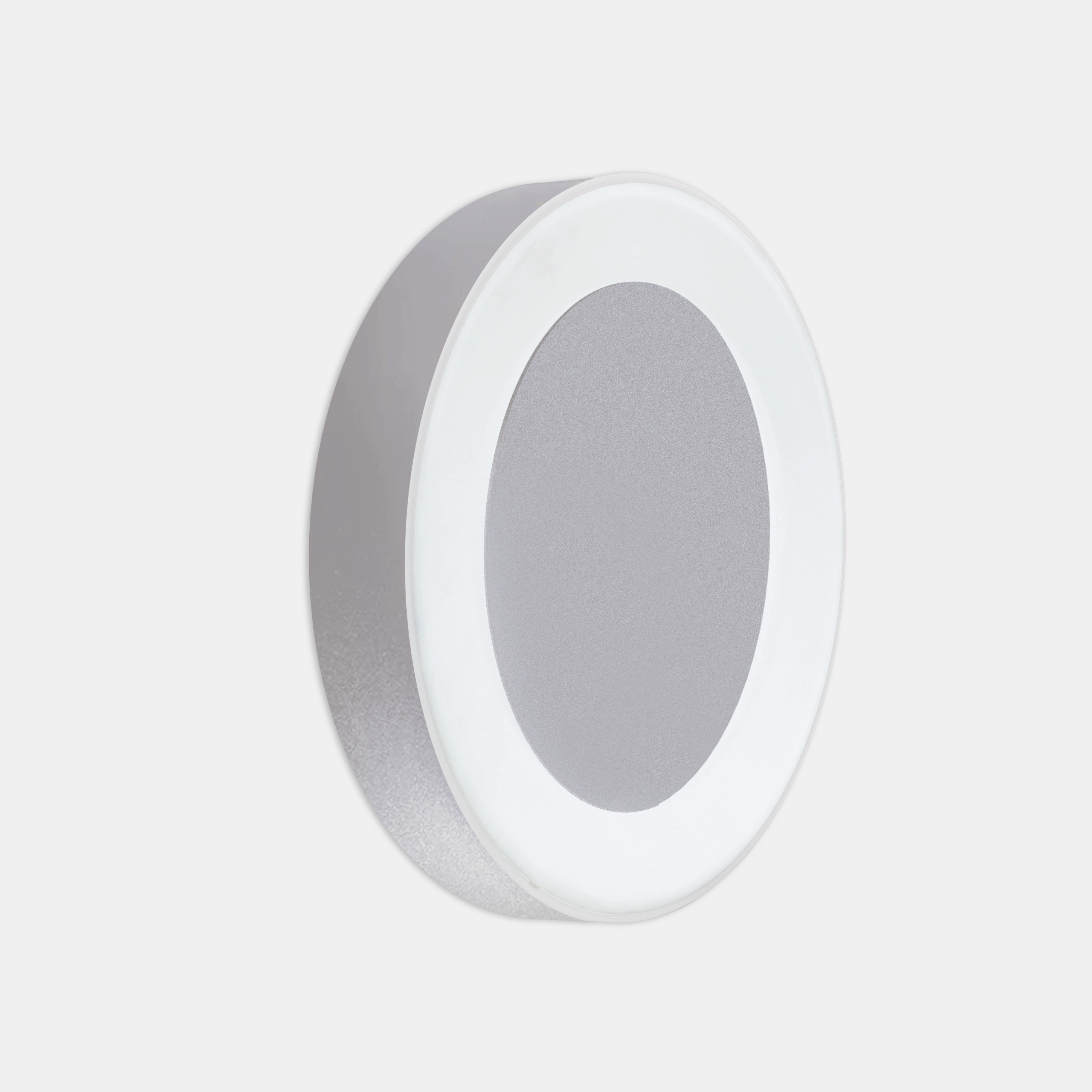

CRIO/G3

Indoor and outdoor led fitting for ceiling or wall installation. Body in selfextinguishing matt grey polycarbonate, silicone gasket with quick closure. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Outdoor, art. 7014 Crio

Models: 24

Color: Matt grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7014	G3	27	= 2700°K (CRI >80)	24	EL	= on/off (dip-switch)
		30	= 3000°K (CRI >80)	28	LD	= dali 2 (dip-switch)
		40	= 4000°K (CRI >80)		RS	= radar sensor (dip-switch)
					E3	= em. 3h (dip-switch)

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	D (mm)	Kg
7014G34010EL	10	4000°K - CRI>80	on/off	1469	147	280	55	62	0.90
7014G34016EL	16	4000°K - CRI>80	on/off	2214	138	280	55	62	0.90
7014G34022EL	22	4000°K - CRI>80	on/off	2815	128	280	55	62	0.90
7014G34028EL	28	4000°K - CRI>80	on/off	3418	122	280	55	62	0.90
7014G34010LD	10	4000°K - CRI>80	dali 2	1469	147	280	55	62	0.90
7014G34016LD	16	4000°K - CRI>80	dali 2	2214	138	280	55	62	0.90
7014G34022LD	22	4000°K - CRI>80	dali 2	2815	128	280	55	62	0.90
7014G34028LD	28	4000°K - CRI>80	dali 2	3418	122	280	55	62	0.90
7014G33010EL	10	3000°K - CRI>80	on/off	1393	139	280	55	62	0.90
7014G33016EL	16	3000°K - CRI>80	on/off	2100	131	280	55	62	0.90
7014G33022EL	22	3000°K - CRI>80	on/off	2670	121	280	55	62	0.90
7014G33028EL	28	3000°K - CRI>80	on/off	3242	116	280	55	62	0.90
7014G33010LD	10	3000°K - CRI>80	dali 2	1393	139	280	55	62	0.90
7014G33016LD	16	3000°K - CRI>80	dali 2	2100	131	280	55	62	0.90
7014G33022LD	22	3000°K - CRI>80	dali 2	2670	121	280	55	62	0.90
7014G33028LD	28	3000°K - CRI>80	dali 2	3242	116	280	55	62	0.90
7014G32710EL	10	2700°K - CRI>80	on/off	1350	135	280	55	62	0.90
7014G32716EL	16	2700°K - CRI>80	on/off	2035	127	280	55	62	0.90
7014G32722EL	22	2700°K - CRI>80	on/off	2587	118	280	55	62	0.90
7014G32728EL	28	2700°K - CRI>80	on/off	3141	112	280	55	62	0.90
