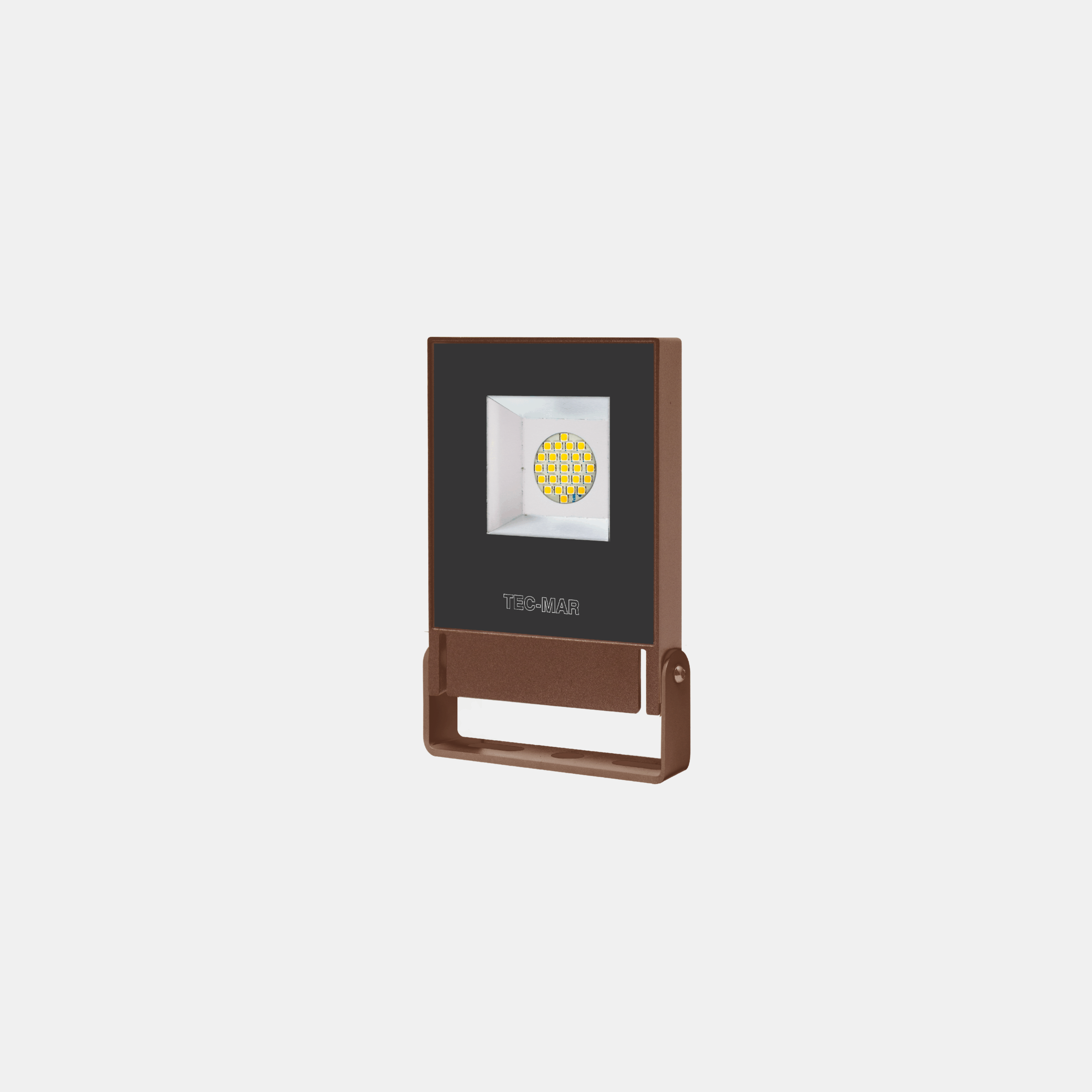

POLAR 0/P9

Indoor and outdoor led floodlight. Die cast aluminium body, painted with epoxypolyester powders, corten, main voltage 220- 240V, 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR, Floodlights, art. 7025 Polar 0

Models: 3

Color: Corten

Catalogue abstract

Installation instructions

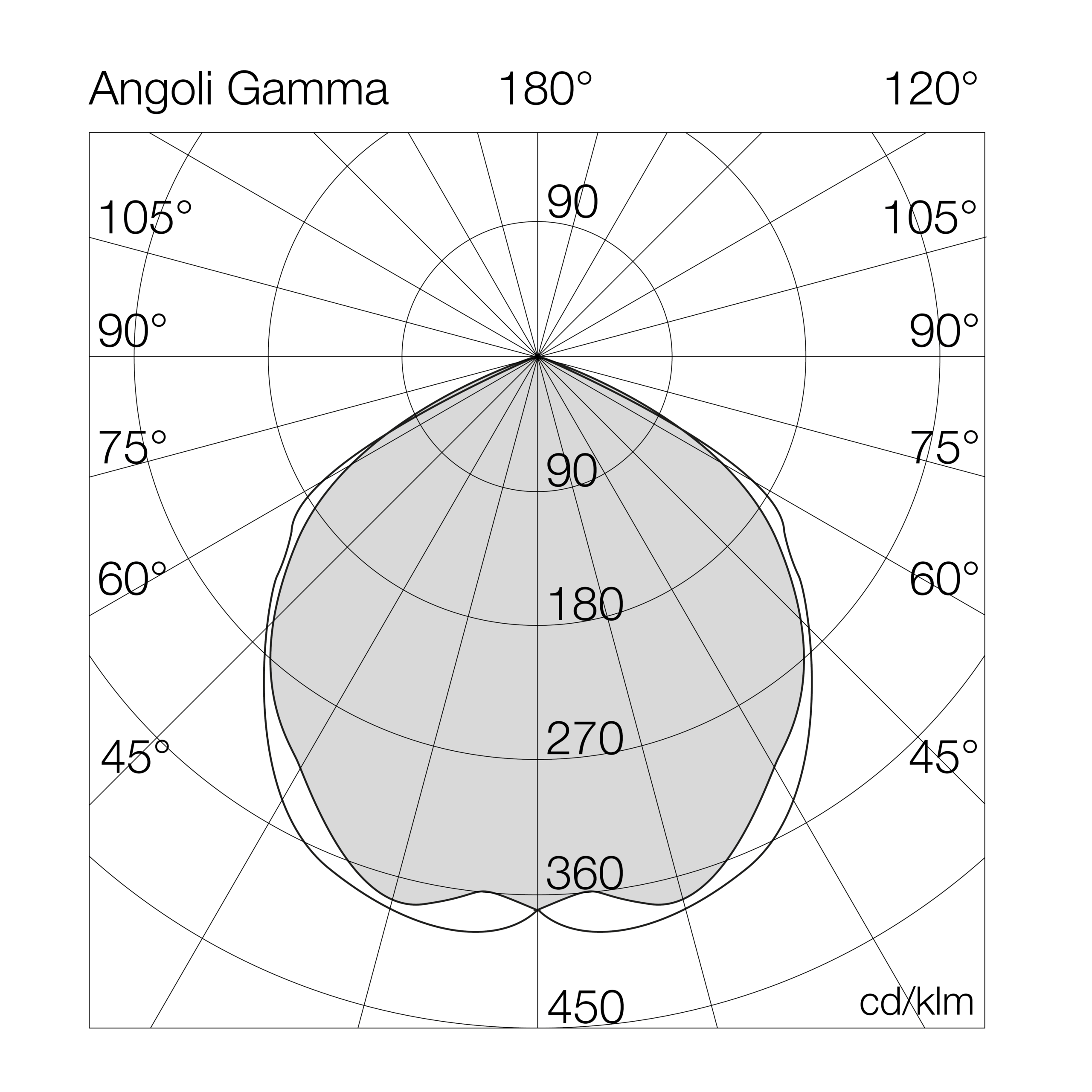

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
7025		P9		30	= 3000°K (CRI >80)		30		CL	= input 230Vac
				40	= 4000°K (CRI >80)
				50	= 5000°K (CRI >80)

Models

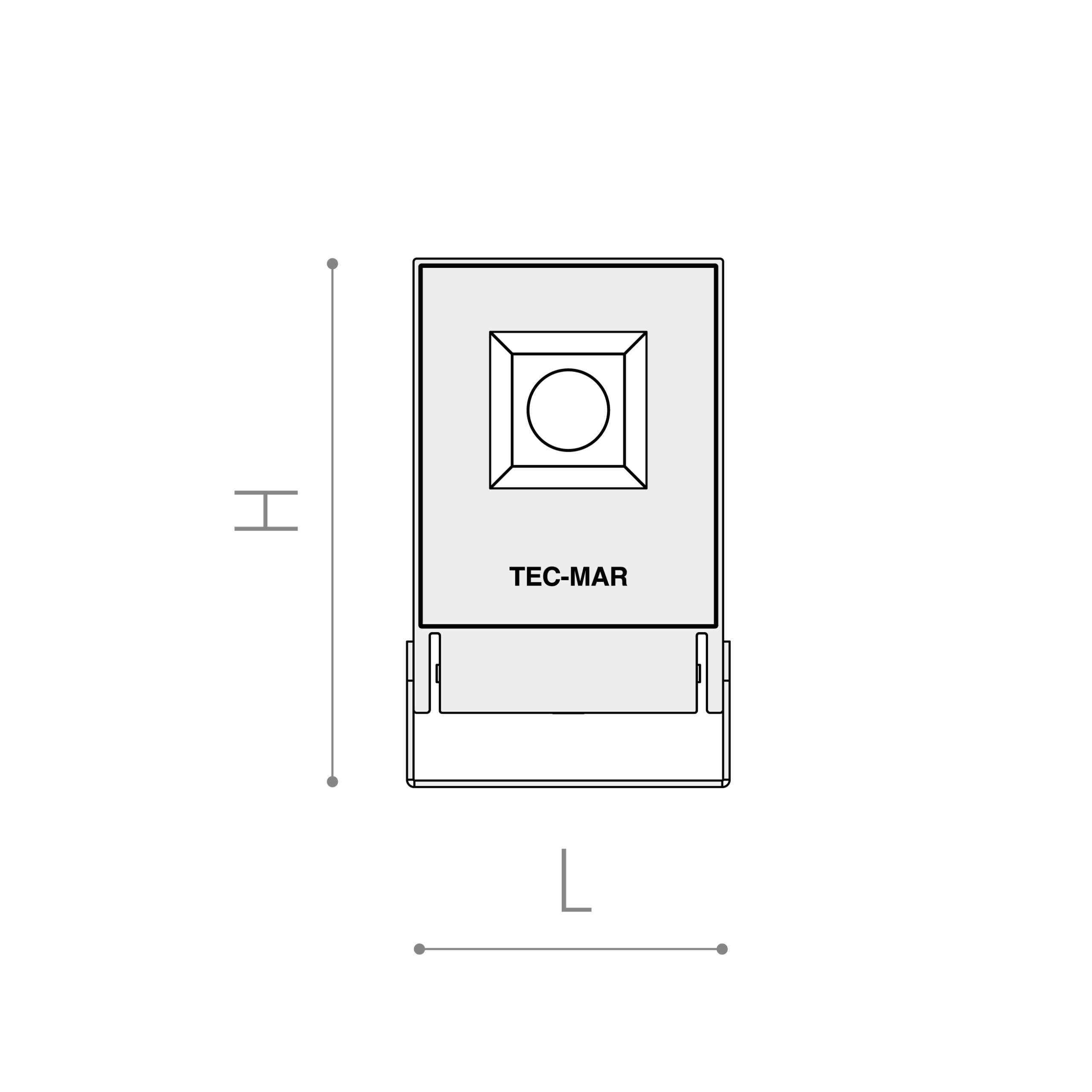

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	7025P94030CL	30		4000°K - CRI>80	on/off	3870	129	100	25	160		0.60
	7025P93030CL	30		3000°K - CRI>80	on/off	3839	128	100	25	160		0.60
	7025P95030CL	30		5000°K - CRI>80	on/off	3889	130	100	25	160		0.60
