art.-7027-tod-1-t2-me-cp-silver

TOD 1/CP

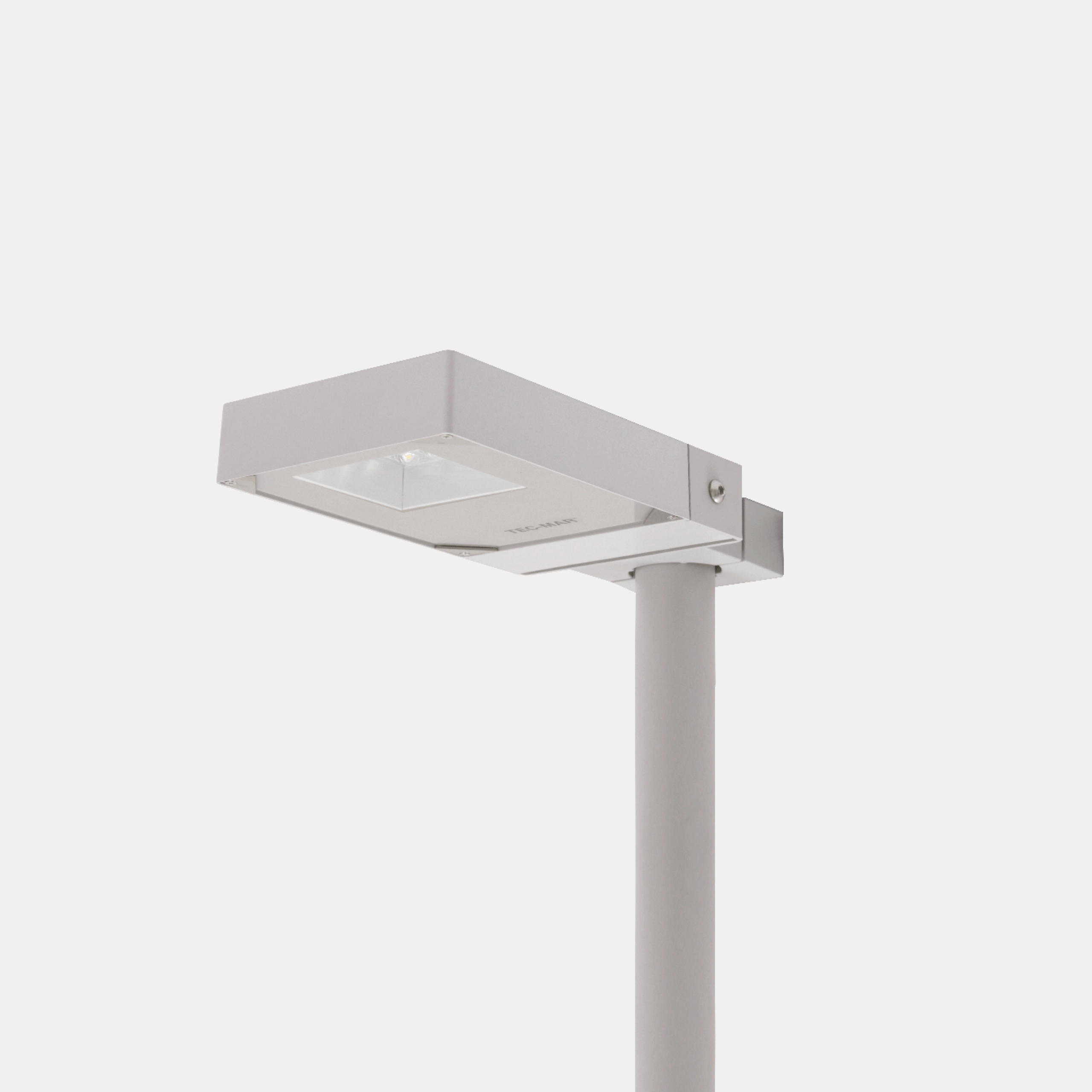

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Street lighting, art. 7027 Tod 1
Models: 96
Color: Silver
Catalogue abstract

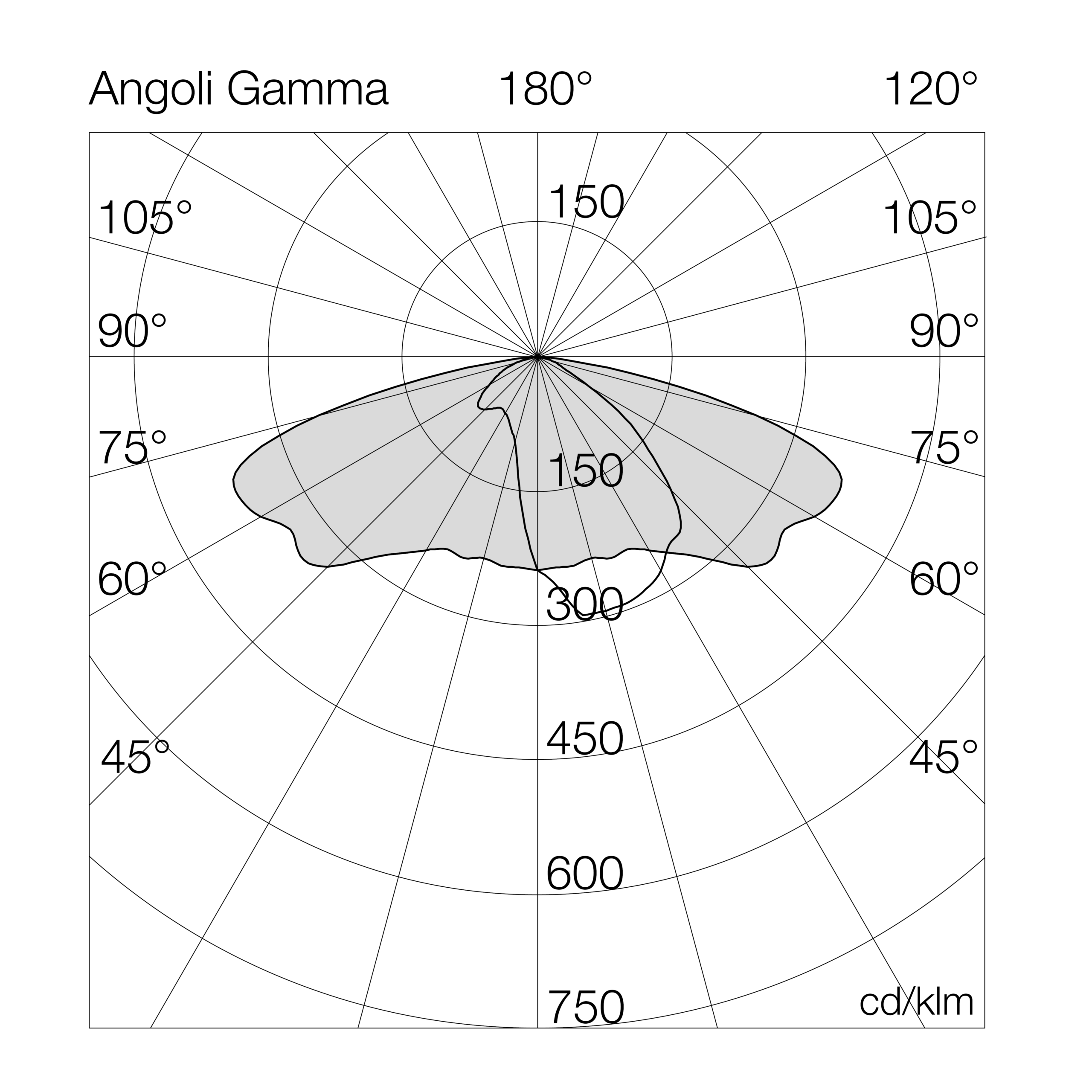

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027CP22= ambra (CRI >70) 08GL= on/off
30= 3000°K (CRI >70)12GD= dali 2
40= 4000°K (CRI >70)16MG= virtual midnight
50= 5000°K (CRI >70)17
24
27
34
54

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7027CP4008GL4000°K - CRI>70on/off1404176205554155.5
7027CP4016GL164000°K - CRI>70on/off2809176205554155.5
7027CP4012GL124000°K - CRI>70on/off1969164205554155.5
7027CP4024GL244000°K - CRI>70on/off3939164205554155.5
7027CP4017GL174000°K - CRI>70on/off2687158205554155.5
7027CP4034GL344000°K - CRI>70on/off5375158205554155.5
7027CP4027GL274000°K - CRI>70on/off3841142205554155.5
7027CP4054GL544000°K - CRI>70on/off7682142205554155.5
7027CP4008GD4000°K - CRI>70dali 21404176205554155.5
7027CP4016GD164000°K - CRI>70dali 22809176205554155.5
7027CP4012GD124000°K - CRI>70dali 21969164205554155.5
7027CP4024GD244000°K - CRI>70dali 23939164205554155.5
7027CP4017GD174000°K - CRI>70dali 22687158205554155.5
7027CP4034GD344000°K - CRI>70dali 25375158205554155.5
7027CP4027GD274000°K - CRI>70dali 23841142205554155.5
7027CP4054GD544000°K - CRI>70dali 27682142205554155.5
7027CP4008MG4000°K - CRI>70virtual midnight1404176205554155.5
7027CP4016MG164000°K - CRI>70virtual midnight2809176205554155.5
7027CP4012MG124000°K - CRI>70virtual midnight1969164205554155.5
7027CP4024MG244000°K - CRI>70virtual midnight3939164205554155.5

Accessories
