art.-7031-polar-he-pr-silver

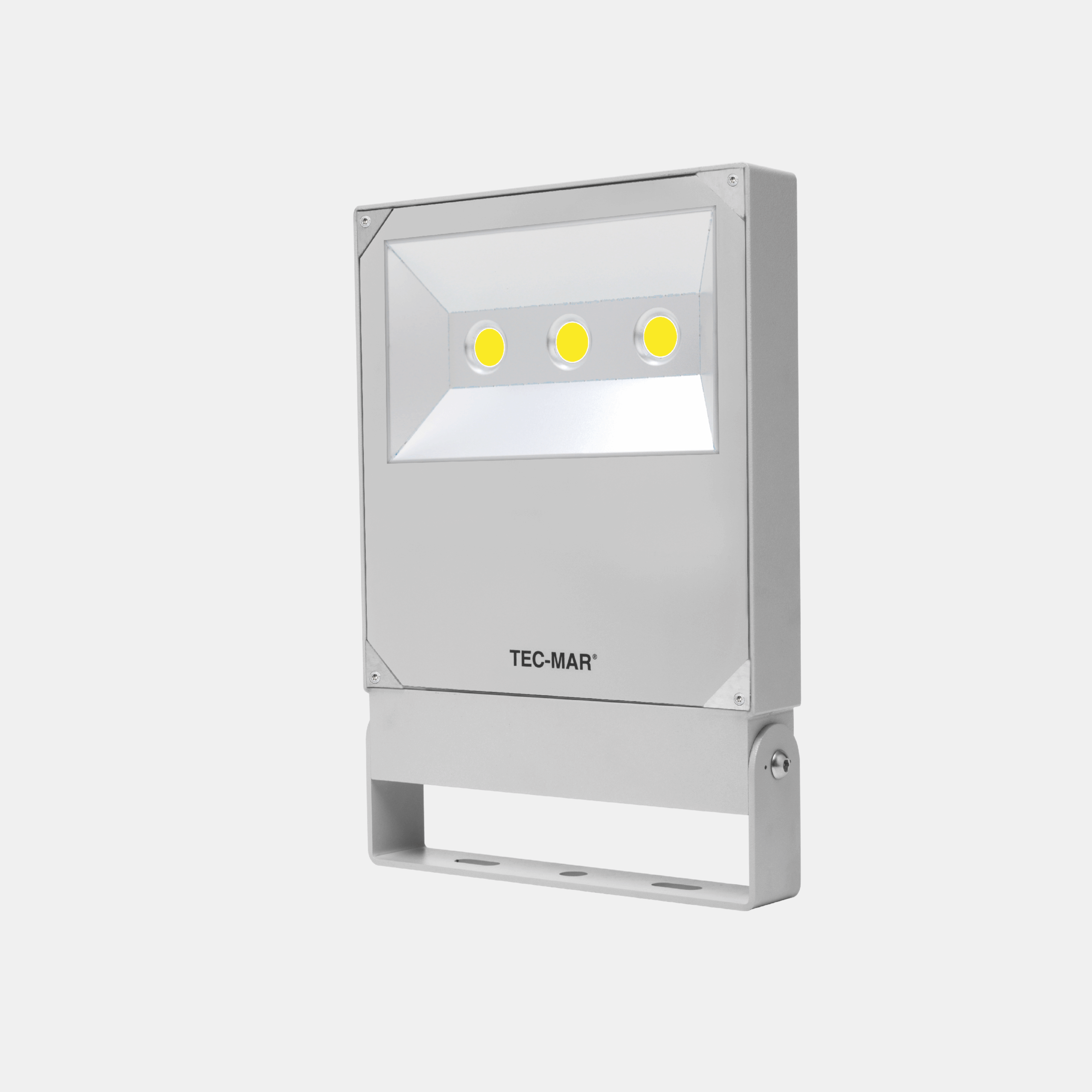

POLAR HE/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7031 Polar HE
Models: 288
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031PR2= ambra (CRI >80) 040GL= on/off
3= 3000°K (CRI >80)050GD= dali
4= 4000°K (CRI >80)060GA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7031PR4040GL404000°K - CRI>80on/off7299182295554255.6
7031PR4050GL504000°K - CRI>80on/off9170183295554255.6
7031PR4060GL604000°K - CRI>80on/off11007183295554255.6
7031PR4070GL704000°K - CRI>80on/off12800183295554255.6
7031PR4080GL804000°K - CRI>80on/off14564182295554255.6
7031PR4090GL904000°K - CRI>80on/off15796176295554255.6
7031PR4100GL1004000°K - CRI>80on/off17010170295554255.6
7031PR4120GL1204000°K - CRI>80on/off20872174295554255.6
7031PR4130GL1304000°K - CRI>80on/off22065170295554255.6
7031PR4150GL1504000°K - CRI>80on/off23818159295554255.6
7031PR4175GL1754000°K - CRI>80on/off28391162295554255.6
7031PR4190GL1904000°K - CRI>80on/off30025158295554255.6
7031PR4040GD404000°K - CRI>80dali7299182295554255.6
7031PR4050GD504000°K - CRI>80dali9170183295554255.6
7031PR4060GD604000°K - CRI>80dali11007183295554255.6
7031PR4070GD704000°K - CRI>80dali12800183295554255.6
7031PR4080GD804000°K - CRI>80dali14564182295554255.6
7031PR4090GD904000°K - CRI>80dali15796176295554255.6
7031PR4100GD1004000°K - CRI>80dali17010170295554255.6
7031PR4120GD1204000°K - CRI>80dali20872174295554255.6

Accessories
