art.-7031-polar-he-rr-silver

POLAR HE/RR

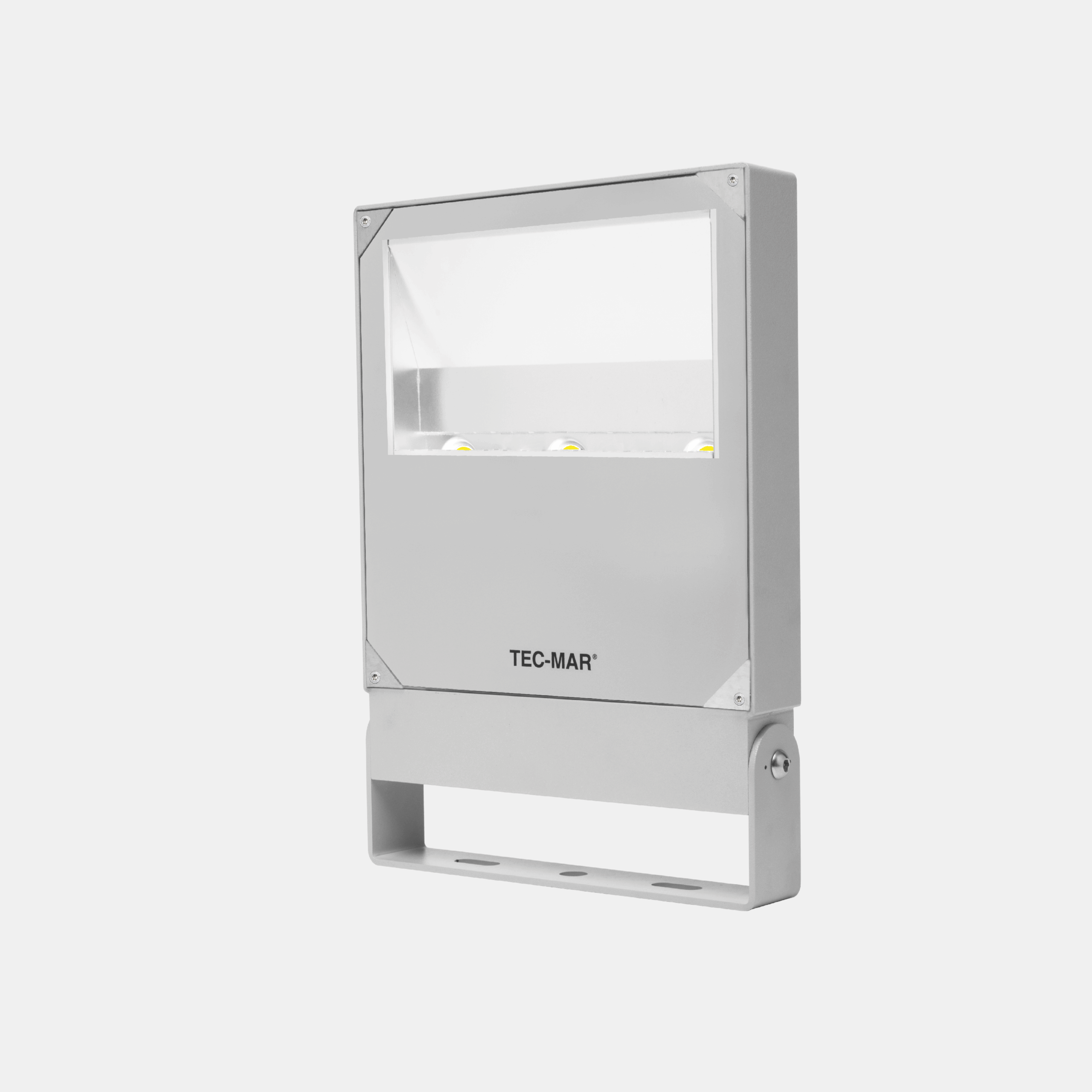

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7031 Polar HE
Models: 288
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031RR2= ambra (CRI >80) 040GL= on/off
3= 3000°K (CRI >80)050GD= dali
4= 4000°K (CRI >80)060GA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7031RR4040GL404000°K - CRI>80on/off6592165295554255.6
7031RR4050GL504000°K - CRI>80on/off8282166295554255.6
7031RR4060GL604000°K - CRI>80on/off9941166295554255.6
7031RR4070GL704000°K - CRI>80on/off11560165295554255.6
7031RR4080GL804000°K - CRI>80on/off13154164295554255.6
7031RR4090GL904000°K - CRI>80on/off14266159295554255.6
7031RR4100GL1004000°K - CRI>80on/off15363154295554255.6
7031RR4120GL1204000°K - CRI>80on/off18851157295554255.6
7031RR4130GL1304000°K - CRI>80on/off19928153295554255.6
7031RR4150GL1504000°K - CRI>80on/off21512143295554255.6
7031RR4175GL1754000°K - CRI>80on/off25641147295554255.6
7031RR4190GL1904000°K - CRI>80on/off27117143295554255.6
7031RR4040GD404000°K - CRI>80dali6592165295554255.6
7031RR4050GD504000°K - CRI>80dali8282166295554255.6
7031RR4060GD604000°K - CRI>80dali9941166295554255.6
7031RR4070GD704000°K - CRI>80dali11560165295554255.6
7031RR4080GD804000°K - CRI>80dali13154164295554255.6
7031RR4090GD904000°K - CRI>80dali14266159295554255.6
7031RR4100GD1004000°K - CRI>80dali15363154295554255.6
7031RR4120GD1204000°K - CRI>80dali18851157295554255.6
