art.-7050-rod-m3-m6-bianco

ROD/M6

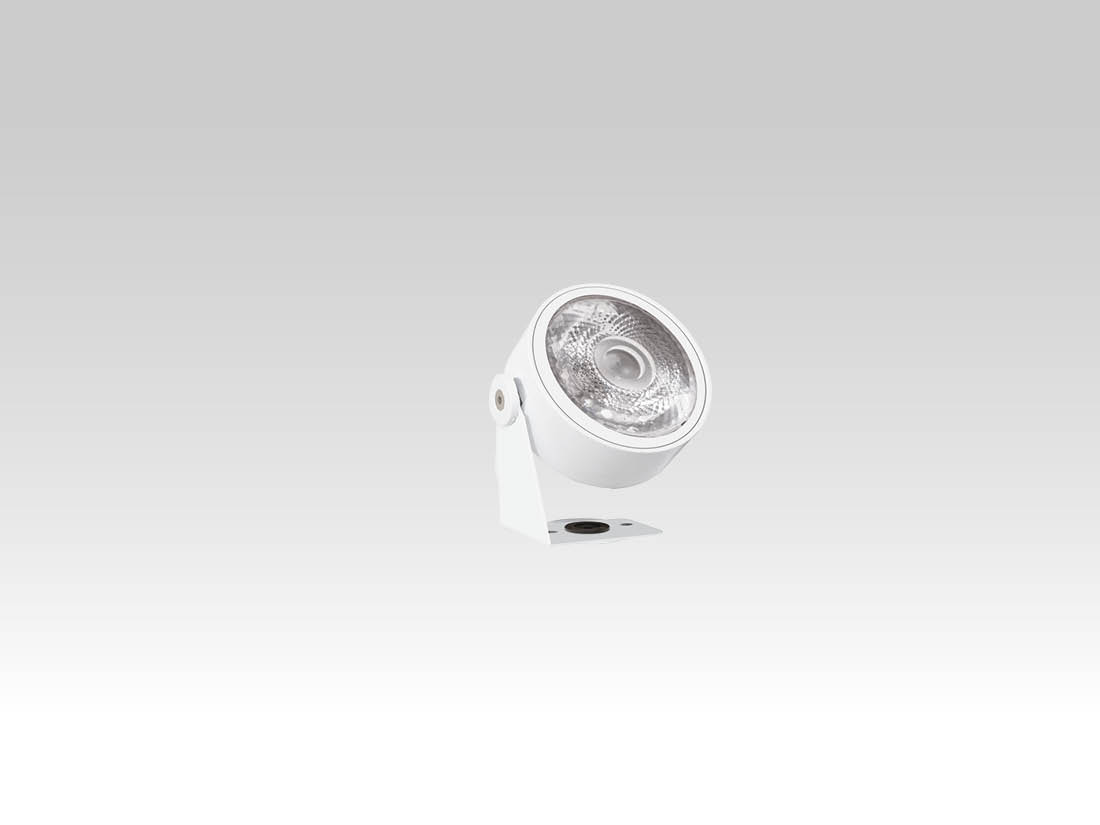

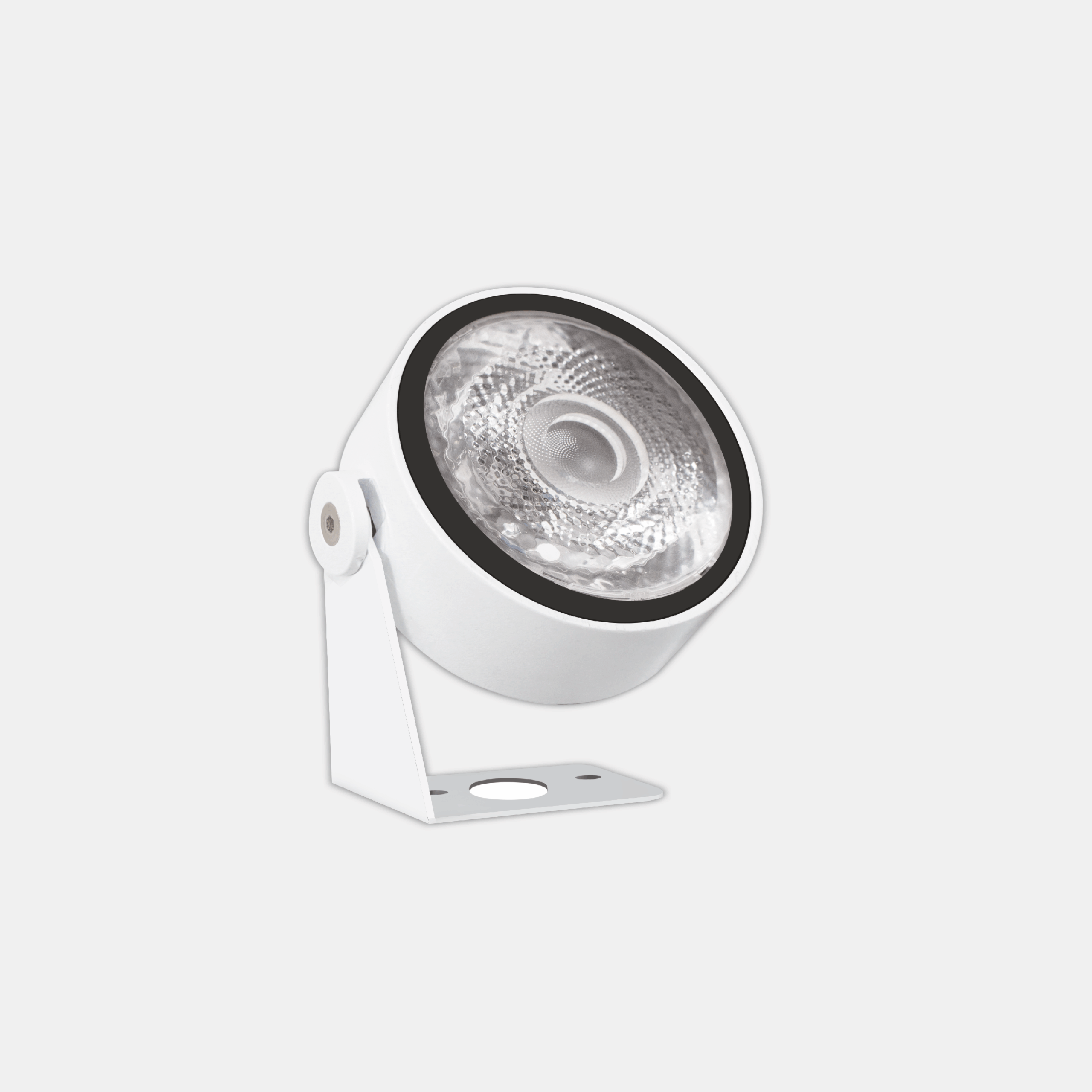

Indoor and outdoor led floodlight. Die-cast aluminum body painted with matt white epoxy powders. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Outdoor, art. 7050 Rod
Models: 9
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7050M627= 2700°K (CRI >80)05BL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7050M64005BL4000°K - CRI>80on/off4198494110600.35
7050M64010BL104000°K - CRI>80on/off8398494110600.35
7050M64015BL154000°K - CRI>80on/off12588494110600.35
7050M63005BL3000°K - CRI>80on/off3927894110600.35
7050M63010BL103000°K - CRI>80on/off7847894110600.35
7050M63015BL153000°K - CRI>80on/off11767894110600.35
7050M62705BL2700°K - CRI>80on/off3797694110600.35
7050M62710BL102700°K - CRI>80on/off7597694110600.35
7050M62715BL152700°K - CRI>80on/off11387694110600.35

Accessories
