art.-7052-elos-m3-m6-antracite

ELOS/M6

Led outdoor and indoor fitting. Die cast aluminium body, painted with epoxypolyester powders, anthracite. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Outdoor, art. 7052 Elos

Models: 6

Color: Anthracite

Catalogue abstract

Installation instructions

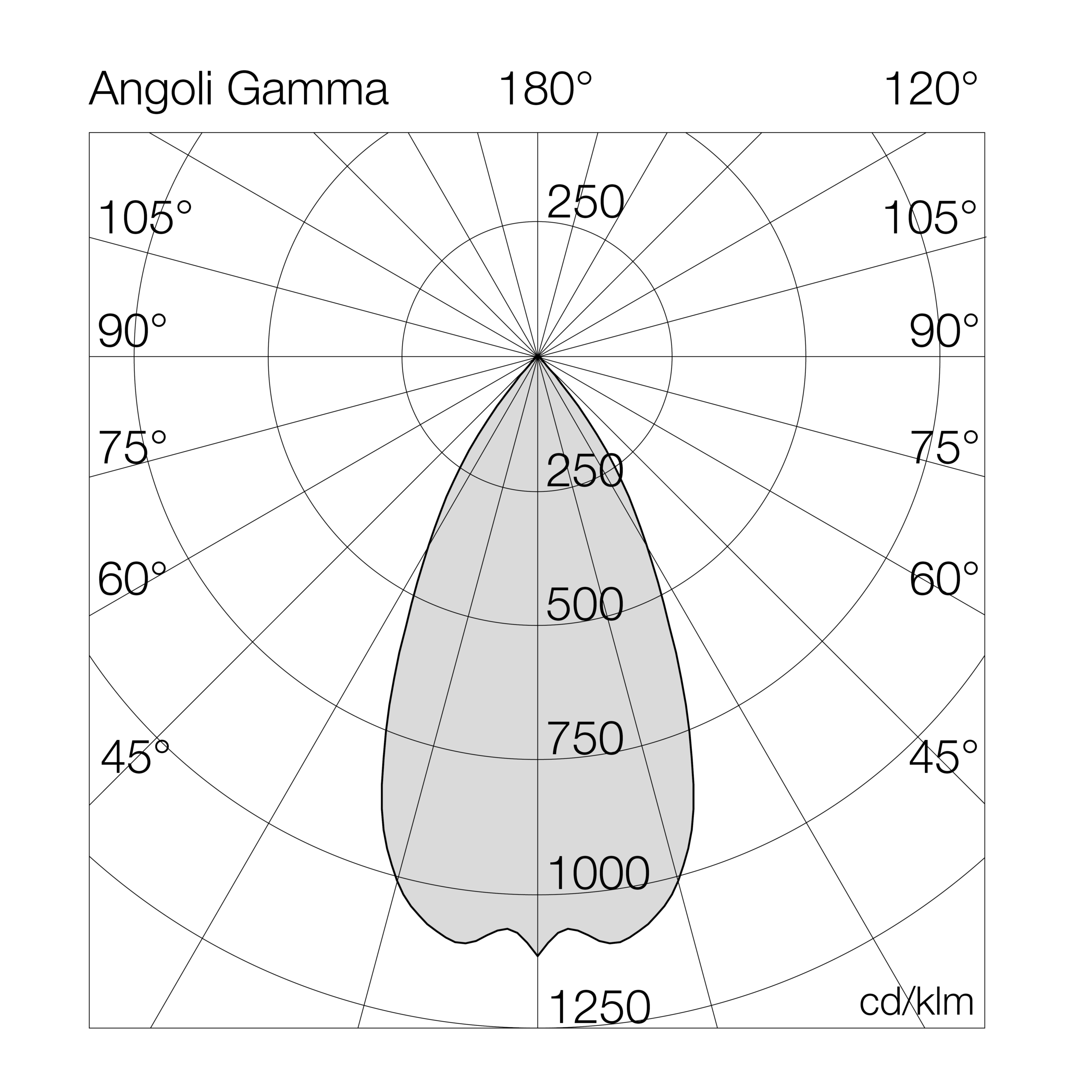

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
7052		M6		27	= 2700°K (CRI >80)		05		NL	= on/off
				30	= 3000°K (CRI >80)		10
				40	= 4000°K (CRI >80)

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	7052M64005NL			4000°K - CRI>80	on/off	513	103	109		78		0.50
	7052M64010NL	10		4000°K - CRI>80	on/off	1027	103	109		78		0.50
	7052M63005NL			3000°K - CRI>80	on/off	480	96	109		78		0.50
	7052M63010NL	10		3000°K - CRI>80	on/off	960	96	109		78		0.50
	7052M62705NL			2700°K - CRI>80	on/off	464	93	109		78		0.50
	7052M62710NL	10		2700°K - CRI>80	on/off	929	93	109		78		0.50

Accessories
