art.-7056-lapis-p3-p6-marrone

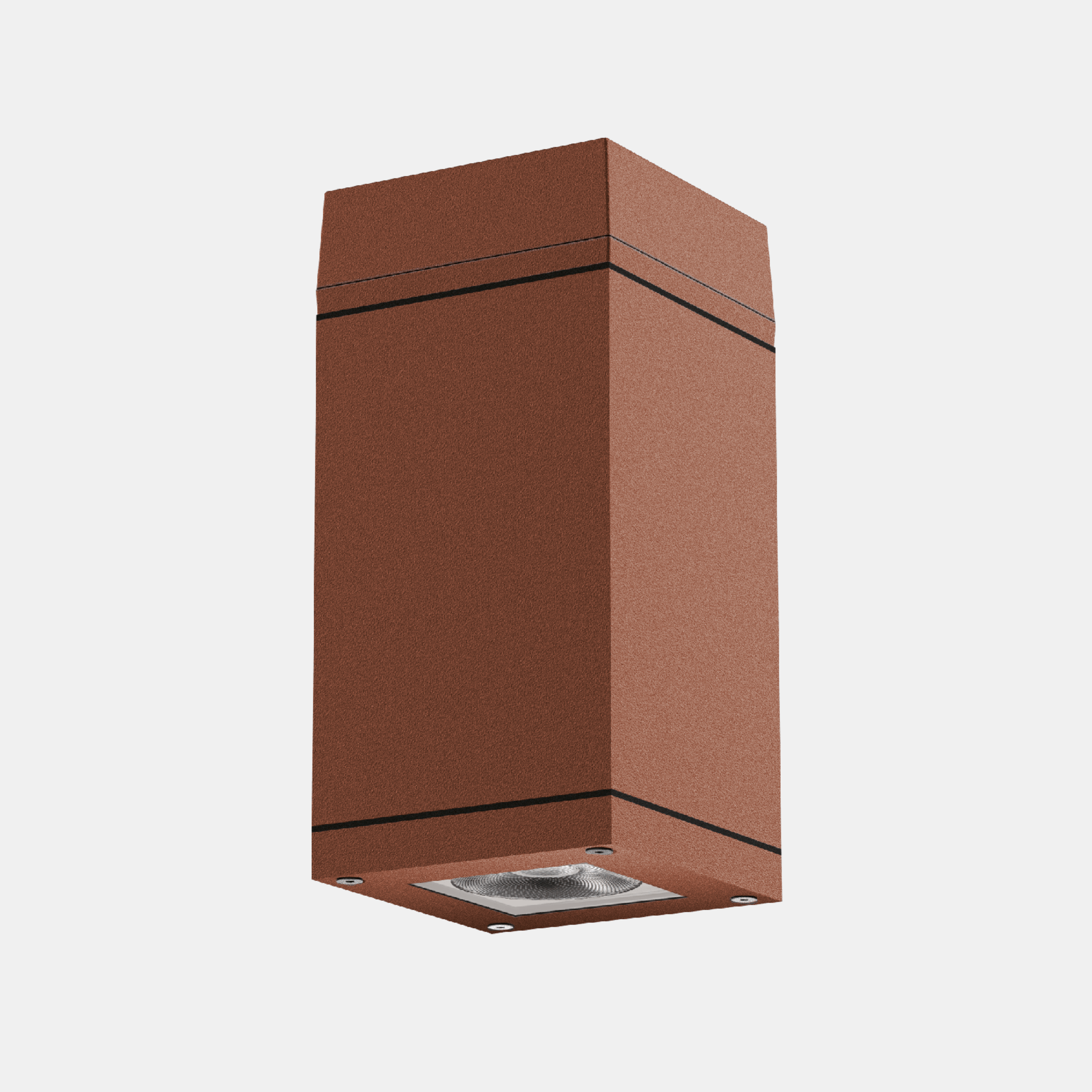

LAPIS/P6

Outdoor and indoor led fitting for wall installation. Die cast aluminium body painted with corten epoxypolyester powder. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Outdoor, art. 7056 Lapis
Models: 12
Color: Corten
Catalogue abstract
Installation instructions

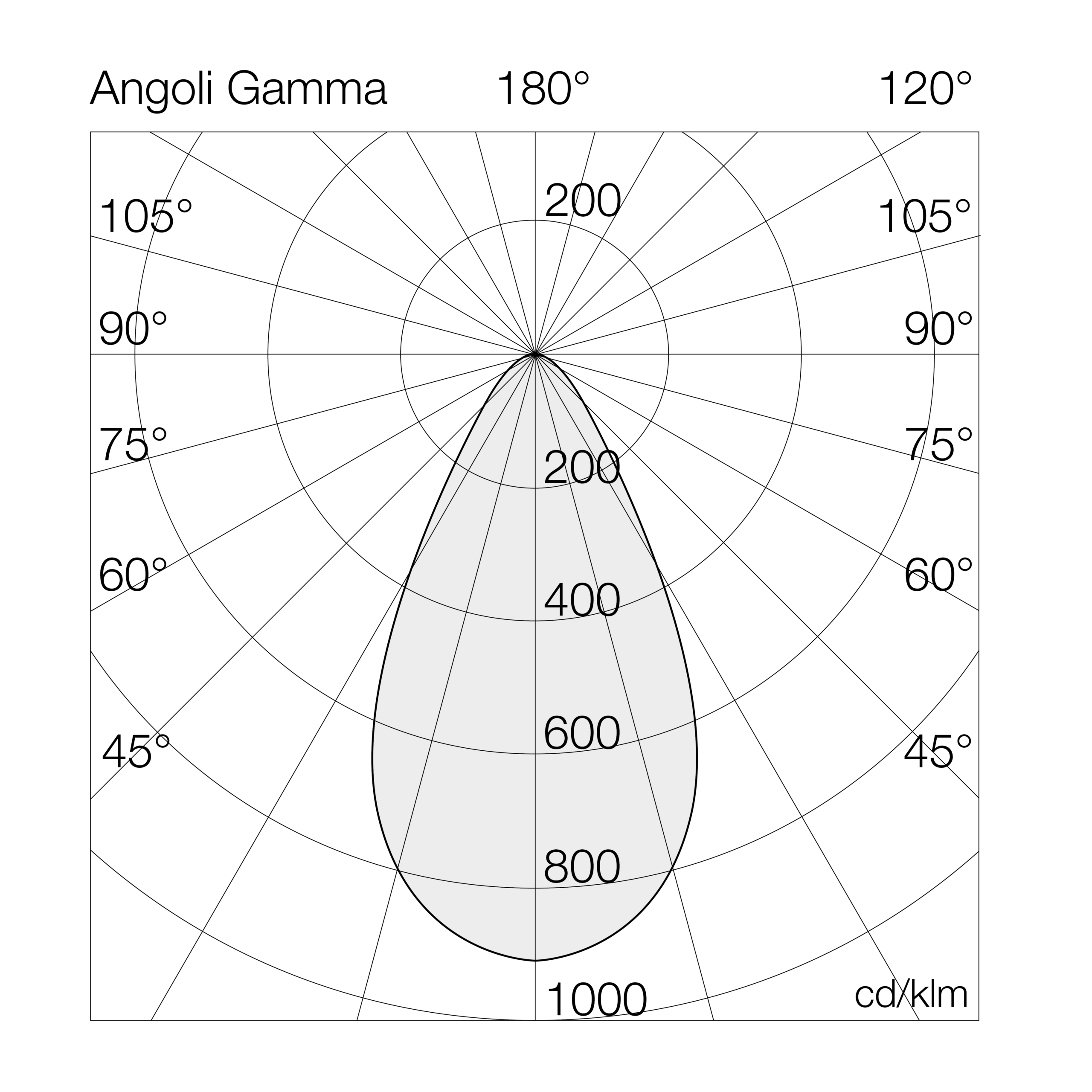

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7056P627= 2700°K (CRI >80)06CL= on/off
30= 3000°K (CRI >80)14CD= dali 2
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options

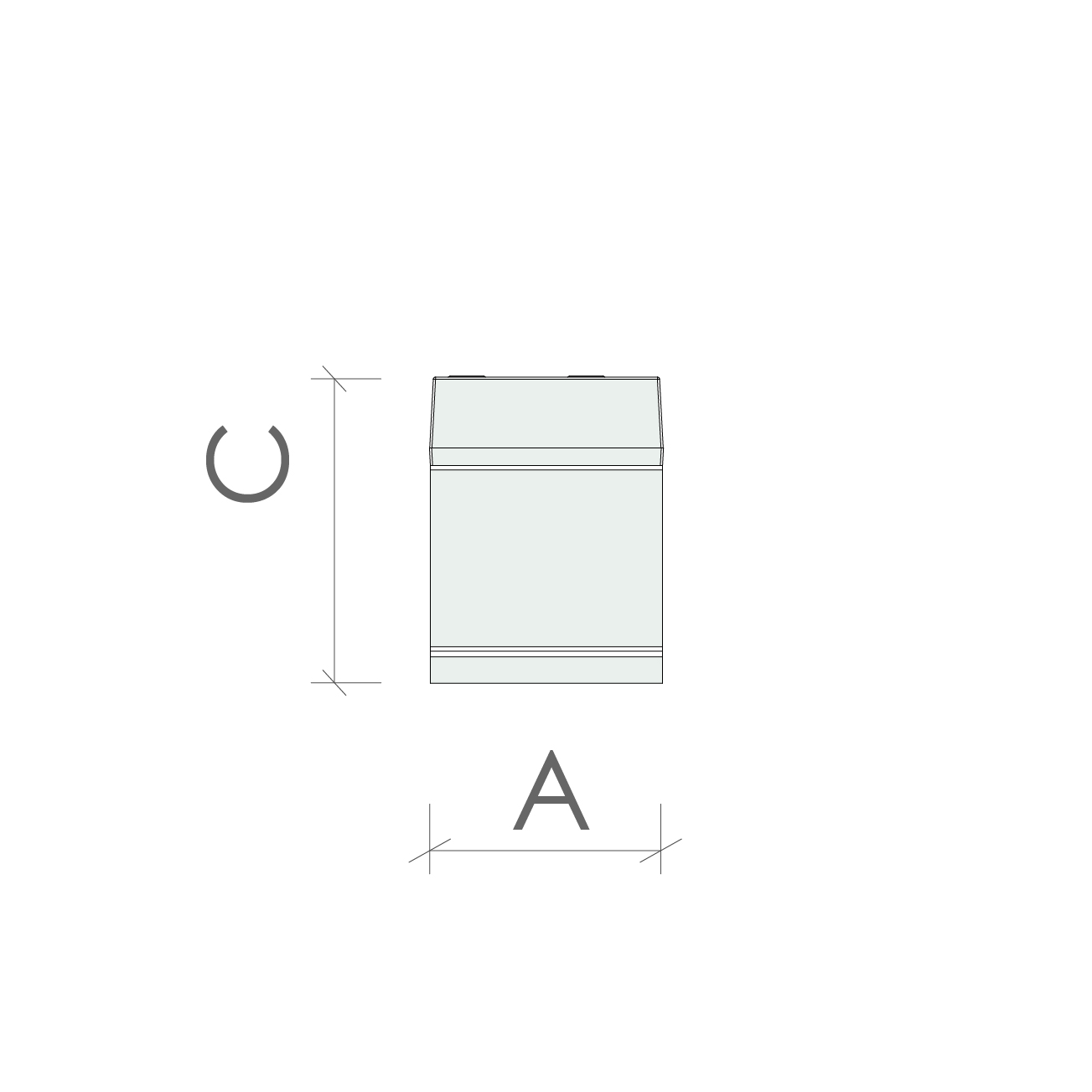

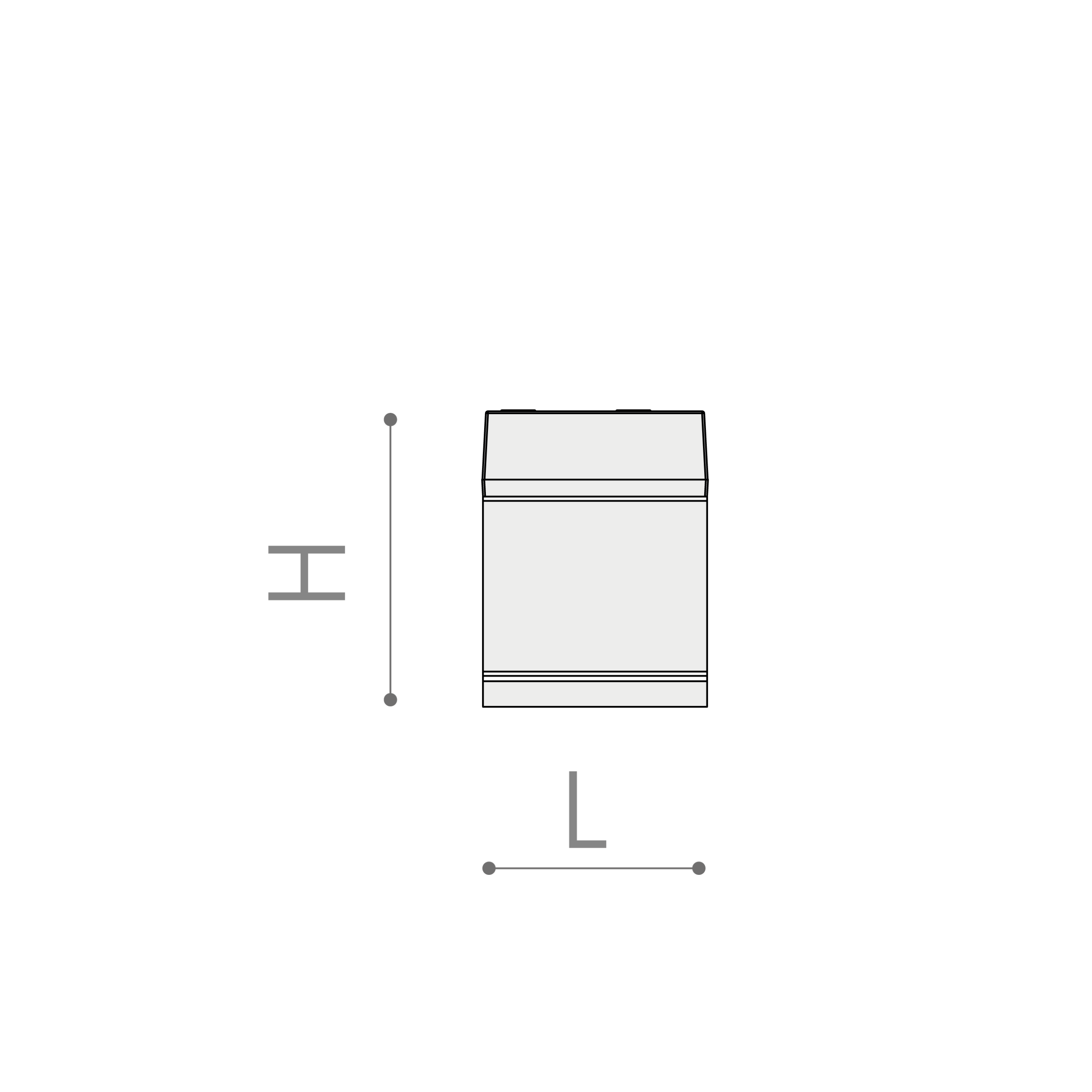

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7056P64006CL4000°K - CRI>80on/off6591101051051401.1
7056P64014CL144000°K - CRI>80on/off15151081051051401.1
7056P64006CD4000°K - CRI>80dali 2 / dali 2 push6591101051051401.1
7056P64014CD144000°K - CRI>80dali 2 / dali 2 push15151081051051401.1
7056P63006CL3000°K - CRI>80on/off6271051051051401.1
7056P63014CL143000°K - CRI>80on/off14431031051051401.1
7056P63006CD3000°K - CRI>80dali 2 / dali 2 push6271051051051401.1
7056P63014CD143000°K - CRI>80dali 2 / dali 2 push14431031051051401.1
7056P62706CL2700°K - CRI>80on/off5971001051051401.1
7056P62714CL142700°K - CRI>80on/off1373981051051401.1
7056P62706CD2700°K - CRI>80dali 2 / dali 2 push5971001051051401.1
7056P62714CD142700°K - CRI>80dali 2 / dali 2 push1373981051051401.1
