art.-7126-fox-1-c1-c2-c3-c5

FOX 1/C1

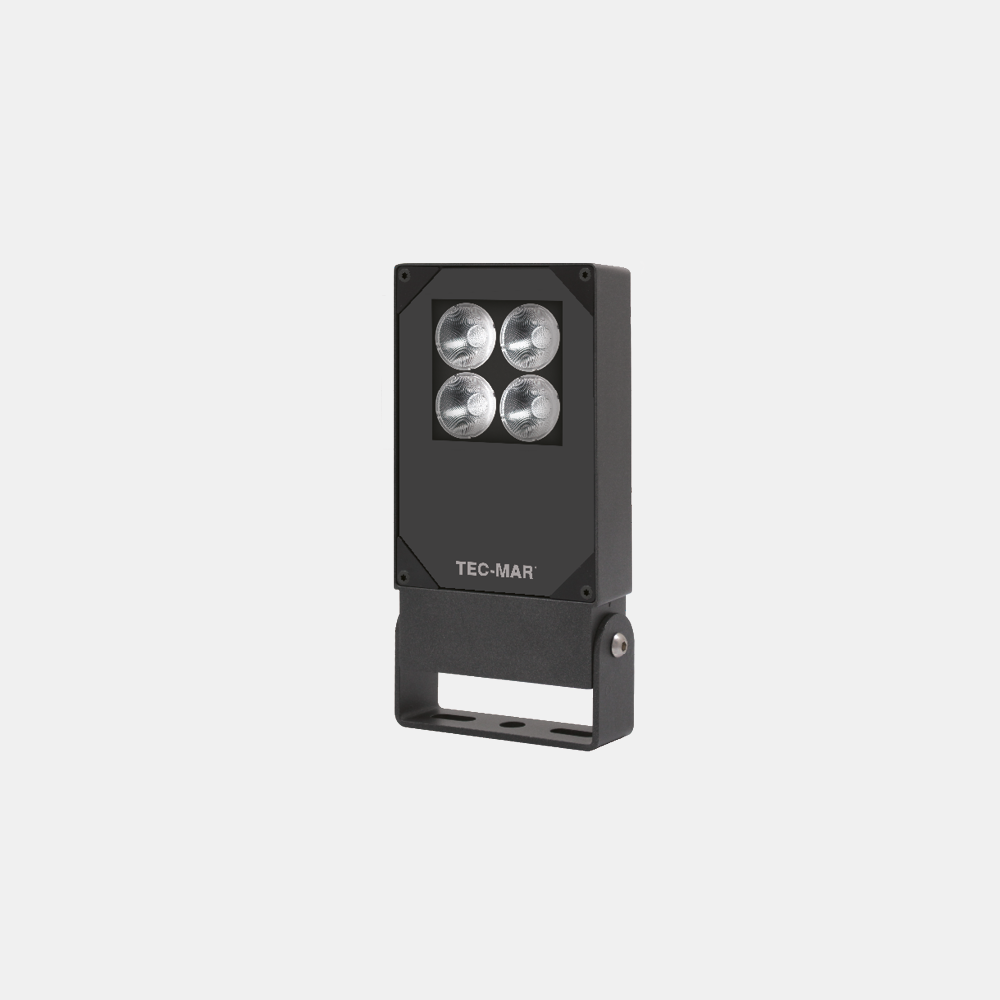

Indoor and outdoor architectural led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, antrachite color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Architectural Outdoor, art. 7126 Fox 1
Models: 36
Color: Anthracite
Catalogue abstract
Installation instructions

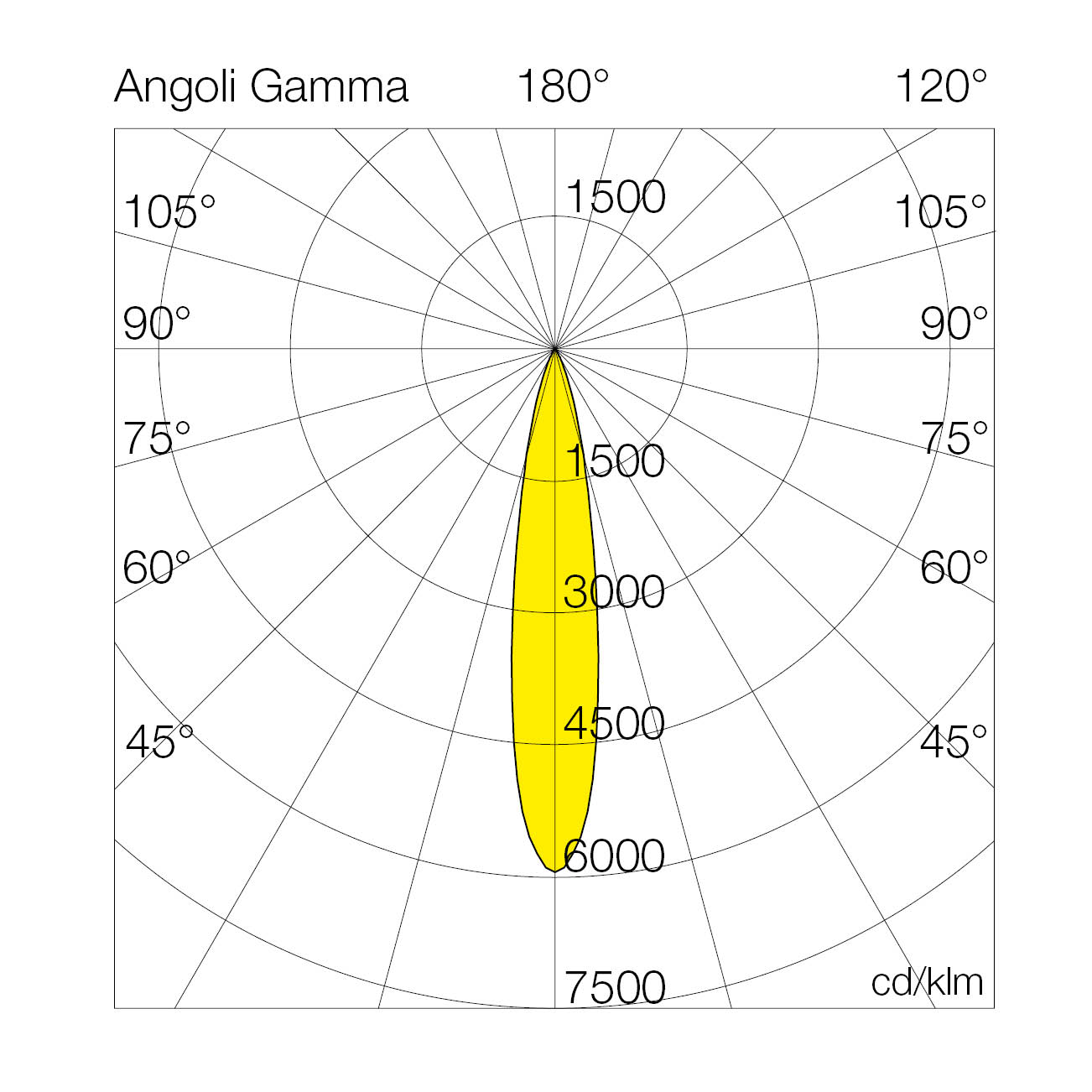

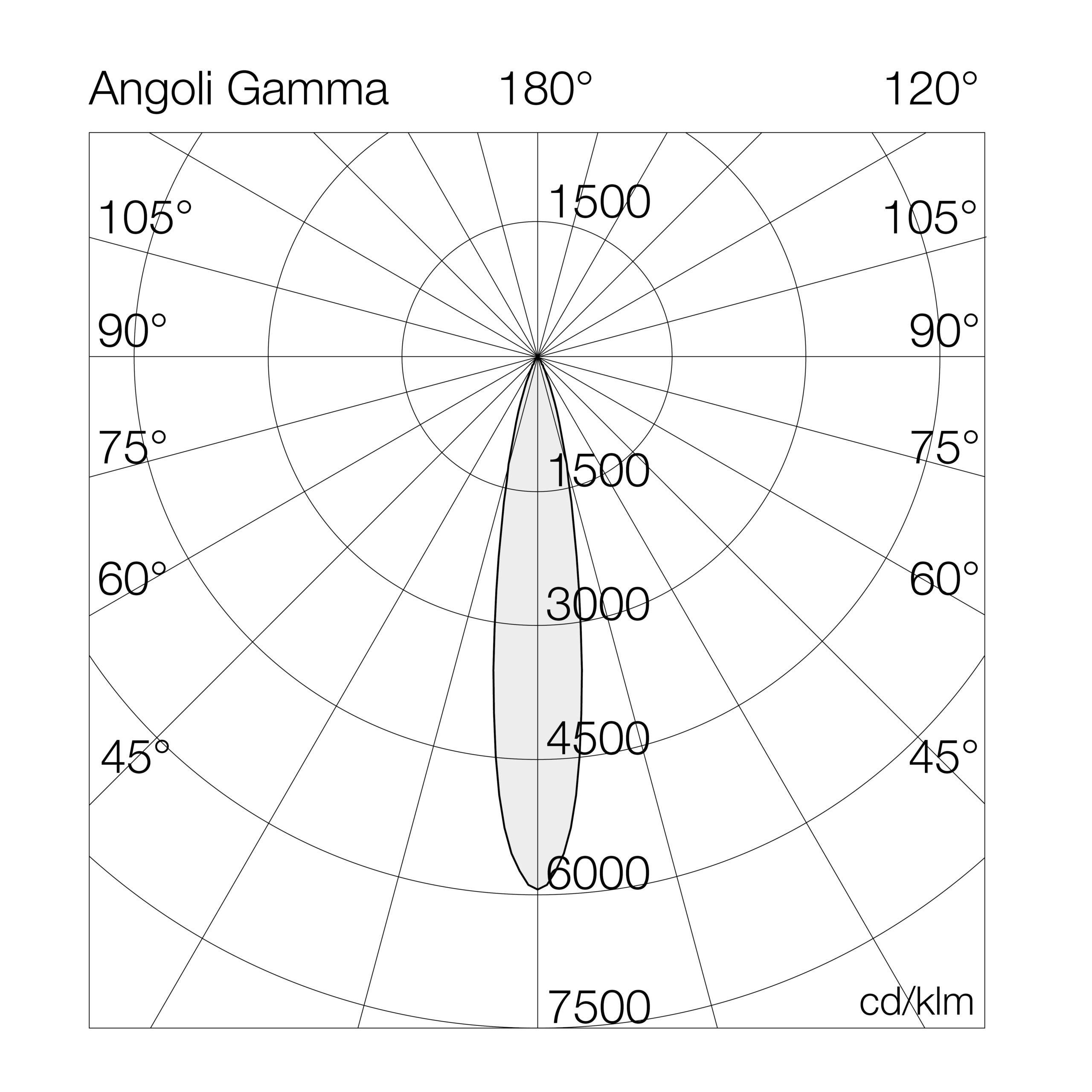

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7126C127= 2700°K (CRI >80)20EL= on/off
30= 3000°K (CRI >80)30LD= dali
40= 4000°K (CRI >80)40
97= 2700°K (CRI >90)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

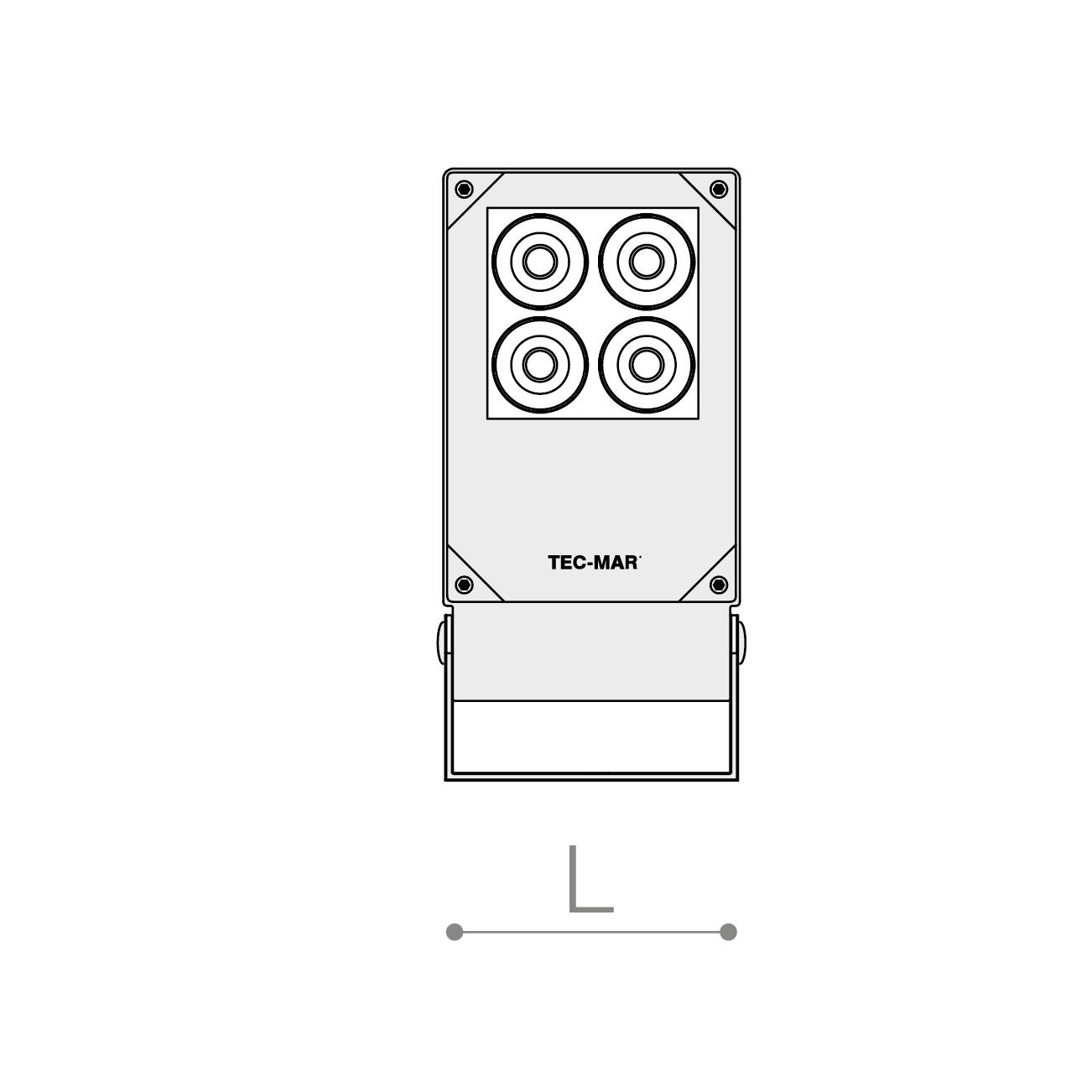

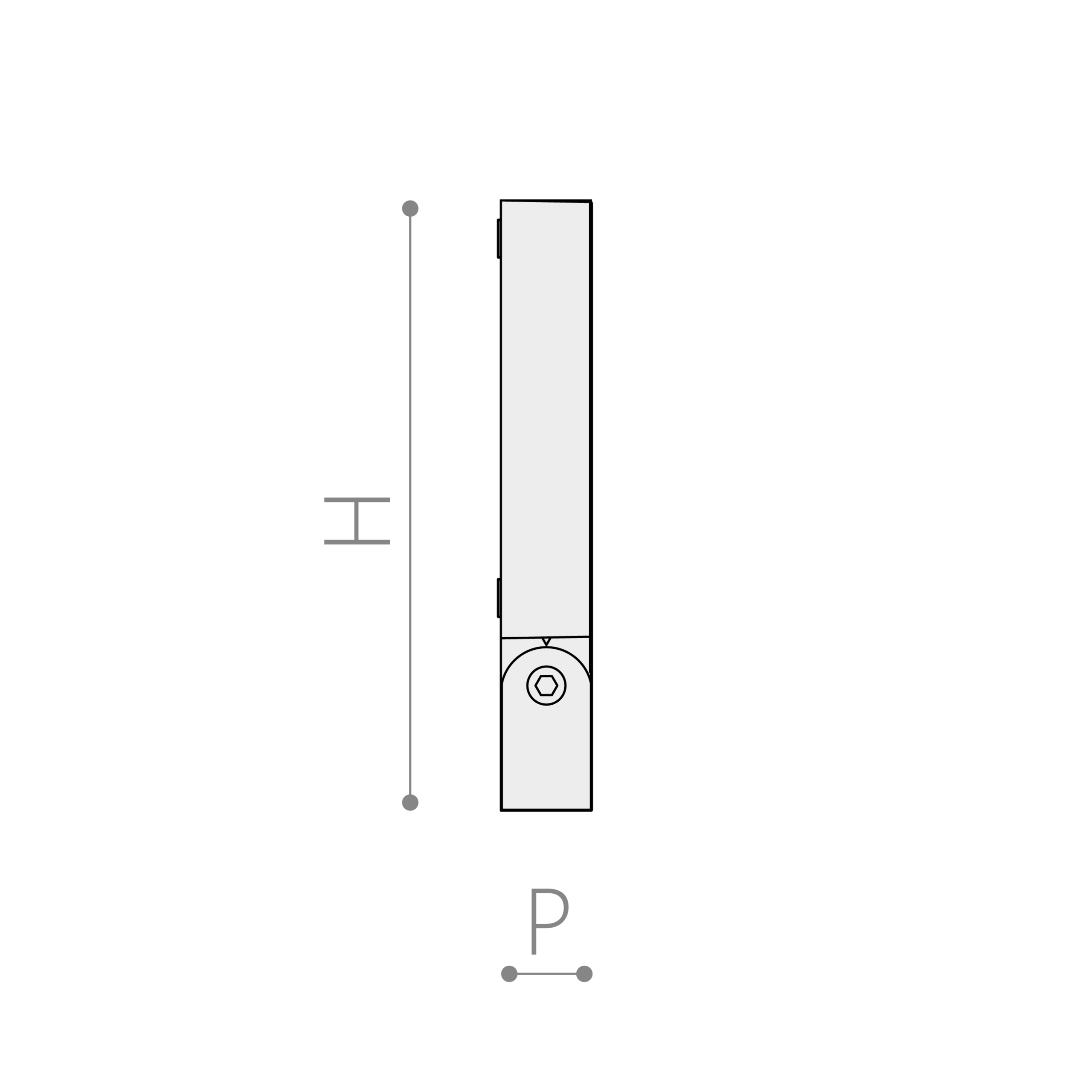

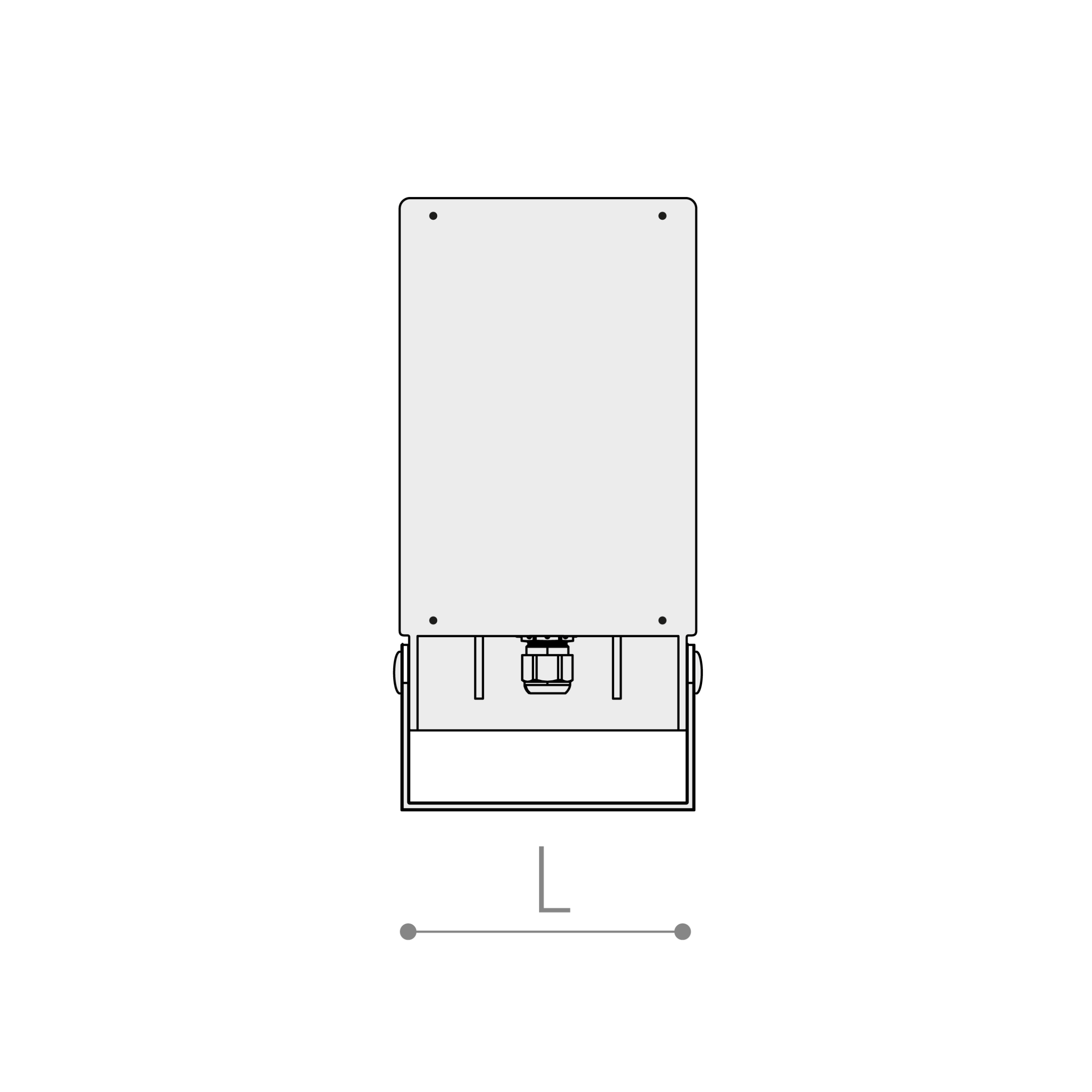

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7126C14020EL204000°K - CRI>80on/off2722136155453252.6
7126C14030EL304000°K - CRI>80on/off3756125155453252.6
7126C14040EL404000°K - CRI>80on/off4838121155453252.6
7126C14020LD204000°K - CRI>80dali2722136155453252.6
7126C14030LD304000°K - CRI>80dali3756125155453252.6
7126C14040LD404000°K - CRI>80dali4838121155453252.6
7126C13020EL203000°K - CRI>80on/off2578129155453252.6
7126C13030EL303000°K - CRI>80on/off3558119155453252.6
7126C13040EL403000°K - CRI>80on/off4583115155453252.6
7126C13020LD203000°K - CRI>80dali2578129155453252.6
7126C13030LD303000°K - CRI>80dali3558119155453252.6
7126C13040LD403000°K - CRI>80dali4583115155453252.6
7126C12720EL202700°K - CRI>80on/off2467123155453252.6
7126C12730EL302700°K - CRI>80on/off3404113155453252.6
7126C12740EL402700°K - CRI>80on/off4385110155453252.6
7126C12720LD202700°K - CRI>80dali2467123155453252.6
7126C12730LD302700°K - CRI>80dali3404113155453252.6
7126C12740LD402700°K - CRI>80dali4385110155453252.6
7126C19320EL203000°K - CRI>90on/off2225111155453252.6
7126C19330EL303000°K - CRI>90on/off3071102155453252.6

Accessories
