LORDINO/CR

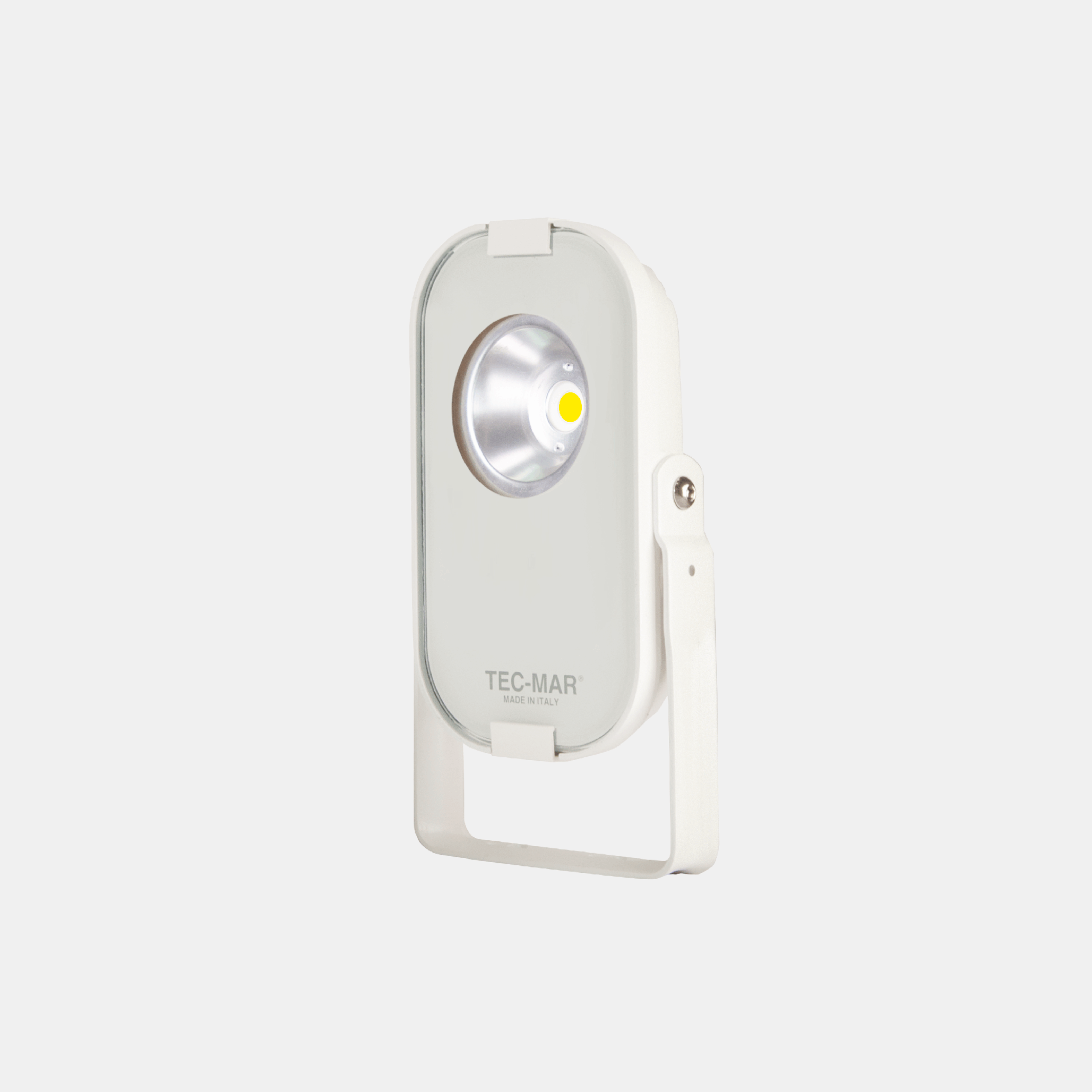

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, white color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Floodlights, art. 8029 Lordino
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8029CR30= 3000°K (CRI >80)20BL= on/off
40= 4000°K (CRI >80)30BD= dali 2
50= 5000°K (CRI >80)40BA= acid-etched glass
65= 6500°K (CRI >80)50
93= 3000°K (CRI >90)68
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8029CR4020BL204000°K - CRI>80on/off2513126180653302.5
8029CR4030BL304000°K - CRI>80on/off3712124180653302.5
8029CR4040BL404000°K - CRI>80on/off5311133180653302.5
8029CR4050BL504000°K - CRI>80on/off5736115180653302.5
8029CR4068BL684000°K - CRI>80on/off7697113180653302.5
8029CR4020BD204000°K - CRI>80dali2513126180653302.5
8029CR4030BD304000°K - CRI>80dali3712124180653302.5
8029CR4040BD404000°K - CRI>80dali5311133180653302.5
8029CR4050BD504000°K - CRI>80dali5736115180653302.5
8029CR4068BD684000°K - CRI>80dali7697113180653302.5
8029CR4020BA204000°K - CRI>80acid-etched glass2513126180653302.5
8029CR4030BA304000°K - CRI>80acid-etched glass3712124180653302.5
8029CR4040BA404000°K - CRI>80acid-etched glass5311133180653302.5
8029CR4050BA504000°K - CRI>80acid-etched glass5736115180653302.5
8029CR4068BA684000°K - CRI>80acid-etched glass7697113180653302.5
8029CR3020BL203000°K - CRI>80on/off2380119180653302.5
8029CR3030BL303000°K - CRI>80on/off3516117180653302.5
8029CR3040BL403000°K - CRI>80on/off5031126180653302.5
8029CR3050BL503000°K - CRI>80on/off5433109180653302.5
8029CR3068BL683000°K - CRI>80on/off7291107180653302.5

Accessories
