| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 8036 | AR | 3 | = 3000°K (CRI >80) | 080 | GL | = on/off | ||||
| 4 | = 4000°K (CRI >80) | 118 | GD | = dali | ||||||
| 5 | = 5000°K (CRI >80) | 130 | G1 | = em. 1h | ||||||
| 6 | = 6500°K (CRI >80) | 150 | GA | = acid-etched glass | ||||||
| 7 | = 5700°K (CRI >90) | 170 | ||||||||
| 185 |

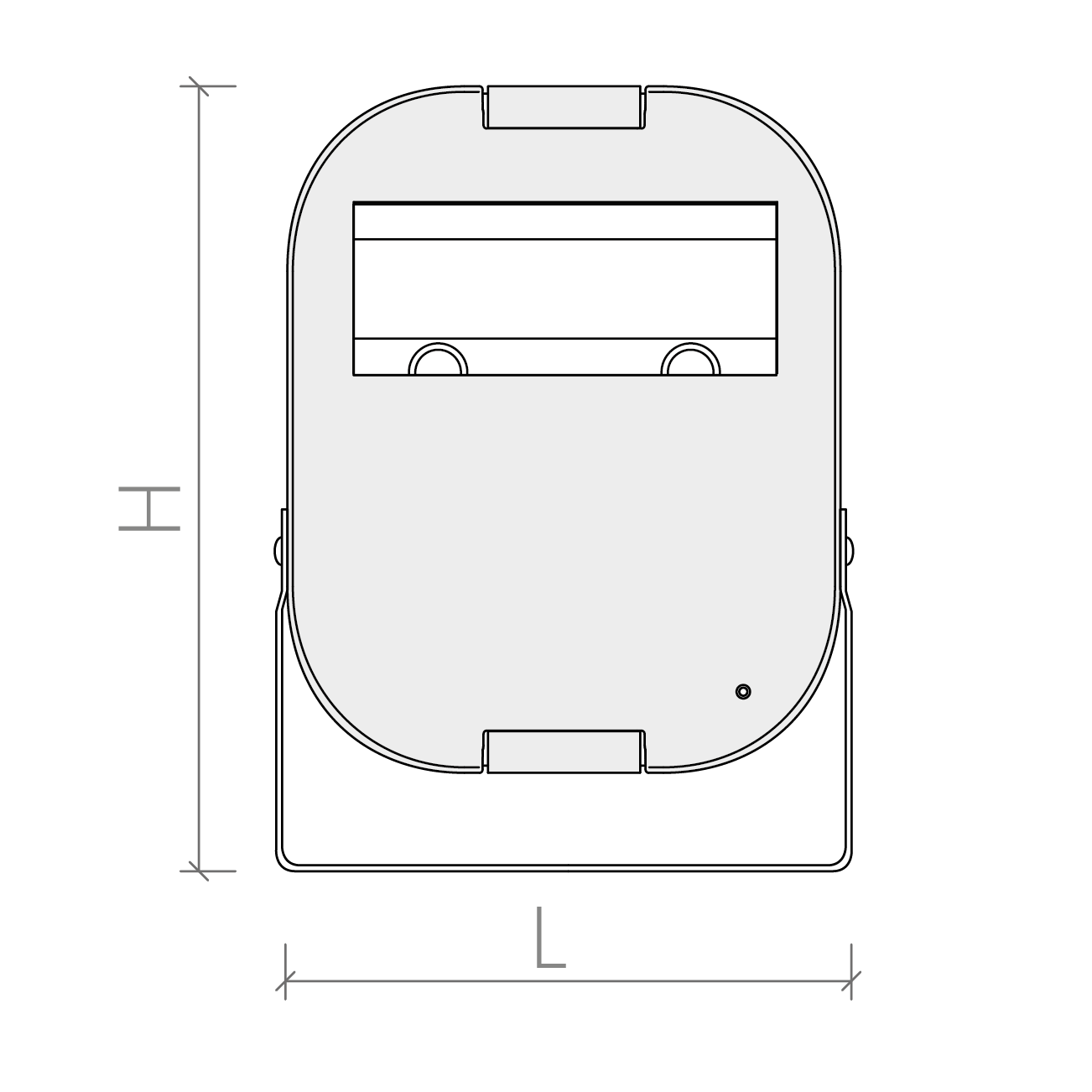

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8036AR4080GL | 80 | 4000°K - CRI>80 | on/off | 10863 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4118GL | 118 | 4000°K - CRI>80 | on/off | 14802 | 125 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4130GL | 130 | 4000°K - CRI>80 | on/off | 16376 | 126 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4150GL | 150 | 4000°K - CRI>80 | on/off | 19402 | 129 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4170GL | 170 | 4000°K - CRI>80 | on/off | 19988 | 118 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4185GL | 185 | 4000°K - CRI>80 | on/off | 21709 | 117 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4080GD | 80 | 4000°K - CRI>80 | dali | 10863 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4118GD | 118 | 4000°K - CRI>80 | dali | 14802 | 125 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4130GD | 130 | 4000°K - CRI>80 | dali | 16376 | 126 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4150GD | 150 | 4000°K - CRI>80 | dali | 19402 | 129 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4170GD | 170 | 4000°K - CRI>80 | dali | 19988 | 118 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4185GD | 185 | 4000°K - CRI>80 | dali | 21709 | 117 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4080G1 | 80 | 4000°K - CRI>80 | em. 1h | 10863 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4118G1 | 118 | 4000°K - CRI>80 | em. 1h | 14802 | 125 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4130G1 | 130 | 4000°K - CRI>80 | em. 1h | 16376 | 126 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4150G1 | 150 | 4000°K - CRI>80 | em. 1h | 19402 | 129 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4170G1 | 170 | 4000°K - CRI>80 | em. 1h | 19988 | 118 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4185G1 | 185 | 4000°K - CRI>80 | em. 1h | 21709 | 117 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4080GA | 80 | 4000°K - CRI>80 | acid-etched glass | 10863 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8036AR4118GA | 118 | 4000°K - CRI>80 | acid-etched glass | 14802 | 125 | 315 | 85 | 445 | 6.5 |
