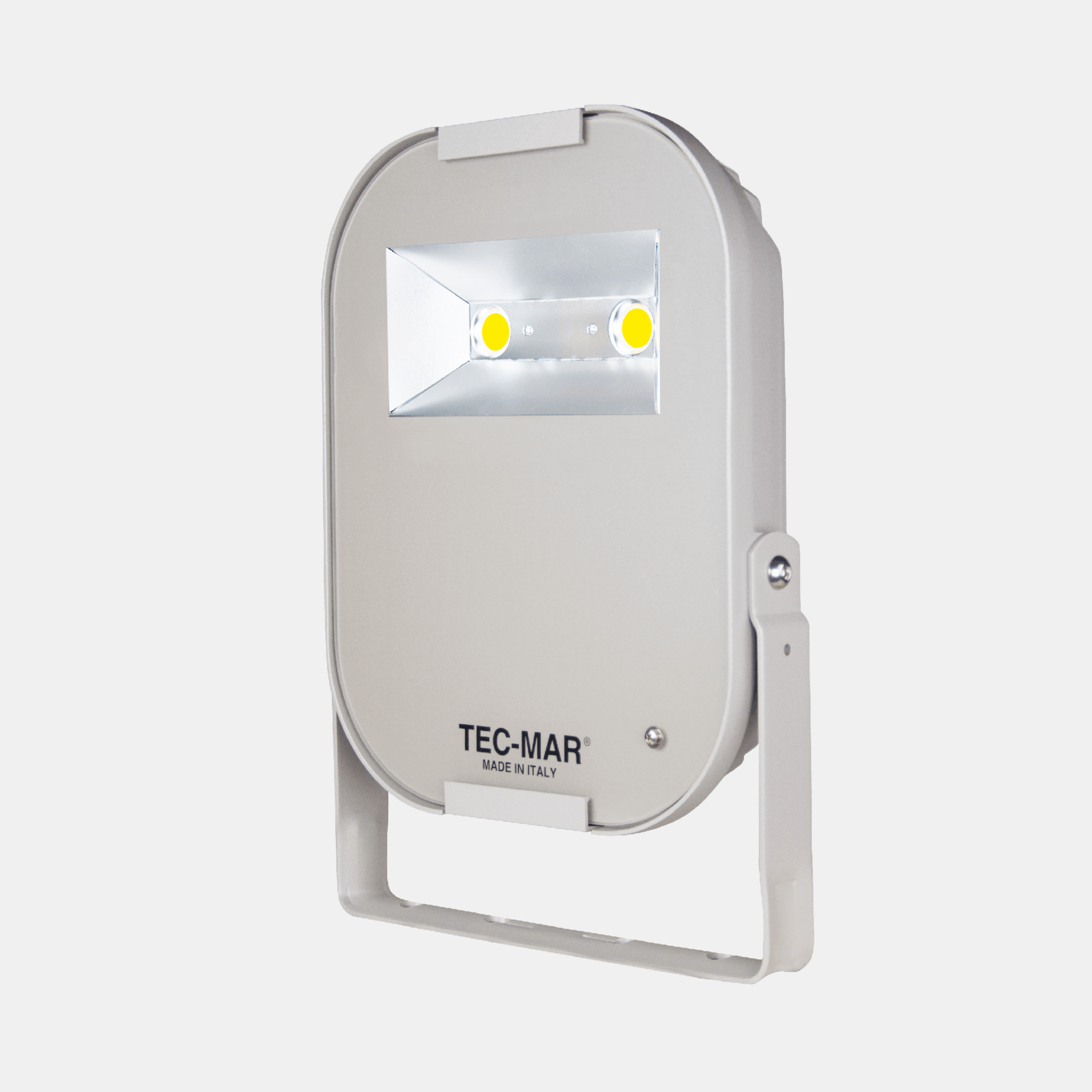

LORD 2/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Floodlights, art. 8036 Lord 2

Models: 120

Color: Silver

Catalogue abstract

Installation instructions

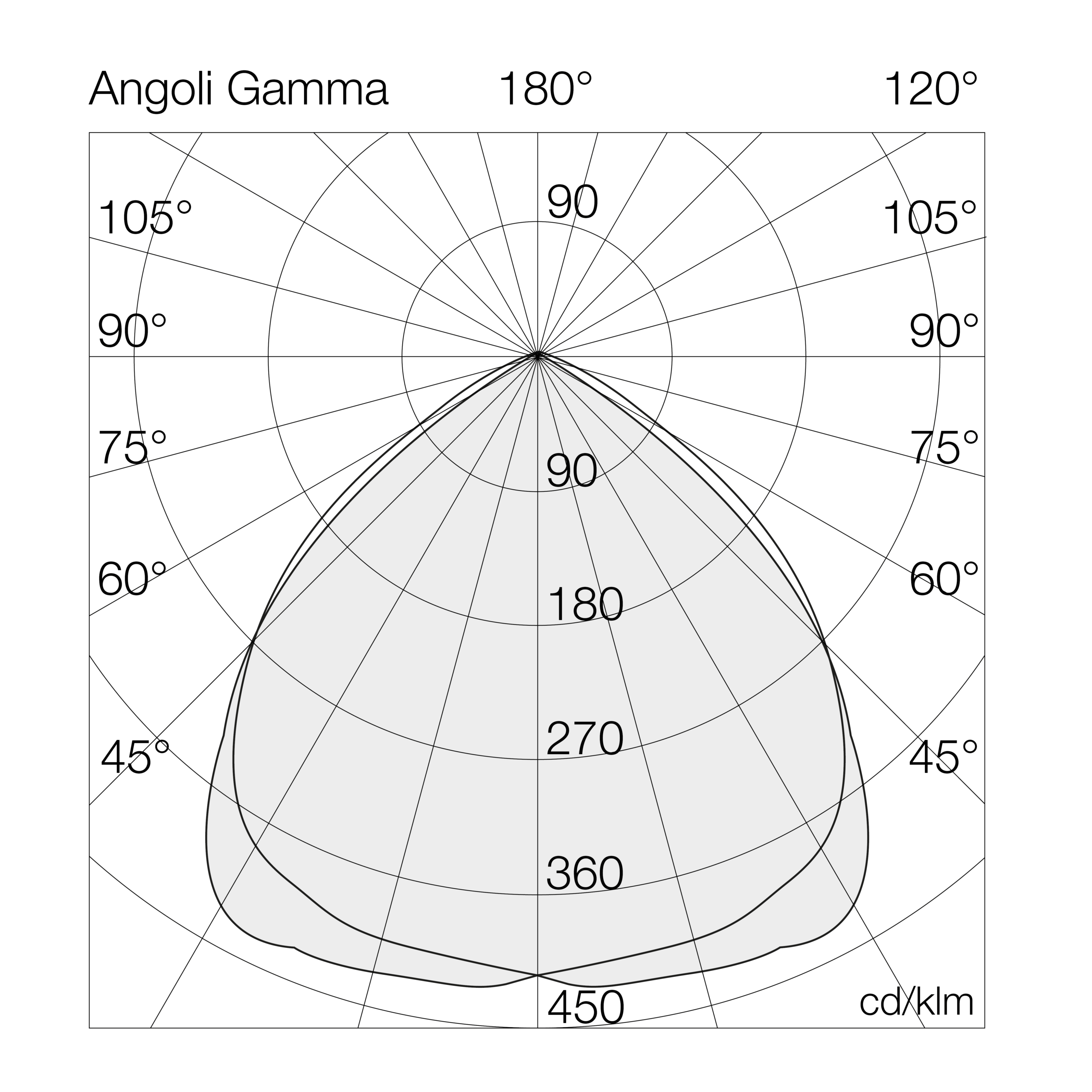

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
8036	PR	3	= 3000°K (CRI >80)	080	GL	= on/off
		4	= 4000°K (CRI >80)	118	GD	= dali
		5	= 5000°K (CRI >80)	130	G1	= em. 1h
		6	= 6500°K (CRI >80)	150	GA	= acid-etched glass
		7	= 5700°K (CRI >90)	170
				185

Models

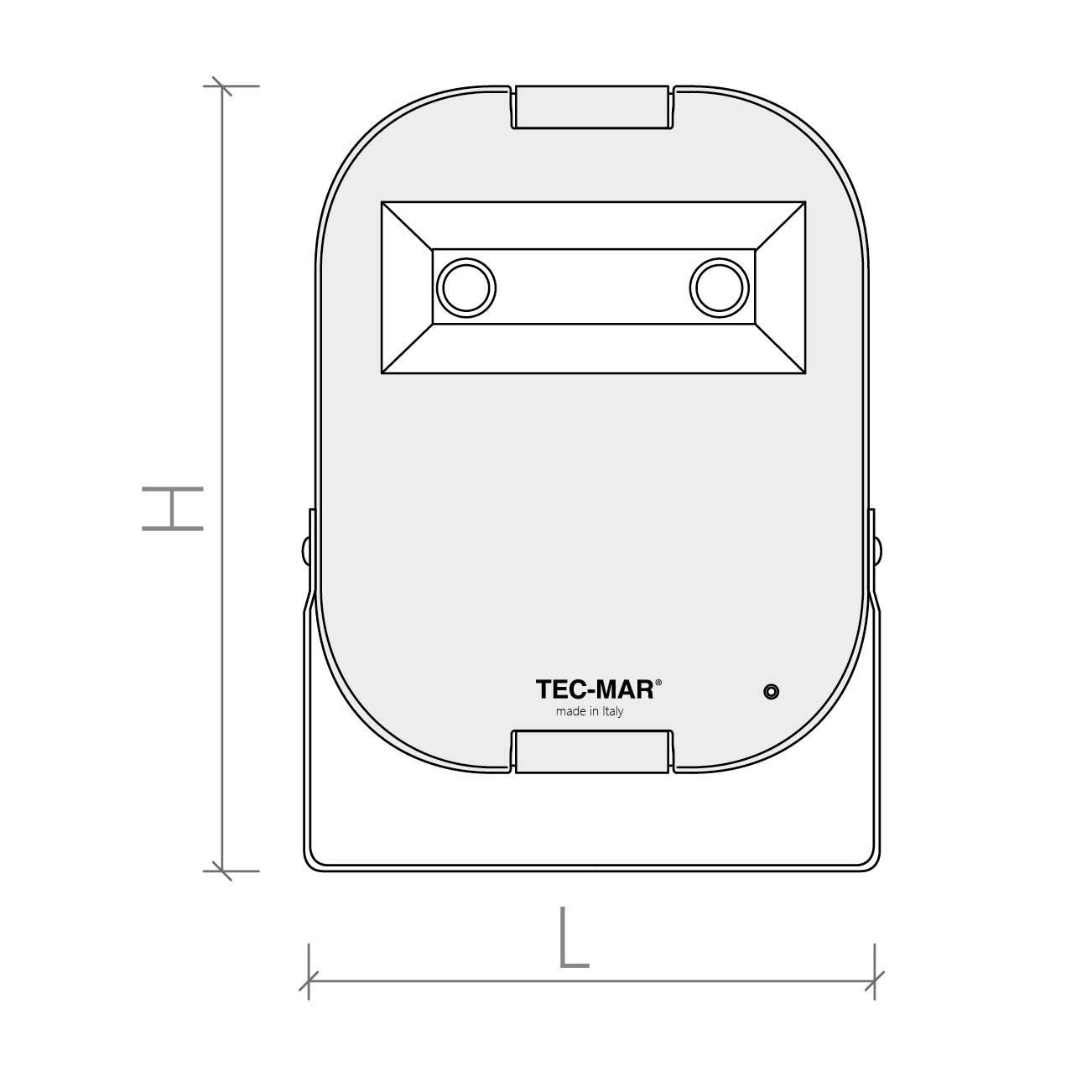

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
8036PR4080GL	80	4000°K - CRI>80	on/off	11978	150	315	85	445	6.5
8036PR4118GL	118	4000°K - CRI>80	on/off	16321	138	315	85	445	6.5
8036PR4130GL	130	4000°K - CRI>80	on/off	18056	139	315	85	445	6.5
8036PR4150GL	150	4000°K - CRI>80	on/off	21392	143	315	85	445	6.5
8036PR4170GL	170	4000°K - CRI>80	on/off	22038	130	315	85	445	6.5
8036PR4185GL	185	4000°K - CRI>80	on/off	23936	129	315	85	445	6.5
8036PR4080GD	80	4000°K - CRI>80	dali	11978	150	315	85	445	6.5
8036PR4118GD	118	4000°K - CRI>80	dali	16321	138	315	85	445	6.5
8036PR4130GD	130	4000°K - CRI>80	dali	18056	139	315	85	445	6.5
8036PR4150GD	150	4000°K - CRI>80	dali	21392	143	315	85	445	6.5
8036PR4170GD	170	4000°K - CRI>80	dali	22038	130	315	85	445	6.5
8036PR4185GD	185	4000°K - CRI>80	dali	23936	129	315	85	445	6.5
8036PR4080G1	80	4000°K - CRI>80	em. 1h	11978	150	315	85	445	6.5
8036PR4118G1	118	4000°K - CRI>80	em. 1h	16321	138	315	85	445	6.5
8036PR4130G1	130	4000°K - CRI>80	em. 1h	18056	139	315	85	445	6.5
8036PR4150G1	150	4000°K - CRI>80	em. 1h	21392	143	315	85	445	6.5
8036PR4170G1	170	4000°K - CRI>80	em. 1h	22038	130	315	85	445	6.5
8036PR4185G1	185	4000°K - CRI>80	em. 1h	23936	129	315	85	445	6.5
8036PR4080GA	80	4000°K - CRI>80	acid-etched glass	11978	150	315	85	445	6.5
8036PR4118GA	118	4000°K - CRI>80	acid-etched glass	16321	138	315	85	445	6.5
