| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 8037 | AR | 3 | = 3000°K (CRI >80) | 080 | GL | = on/off | ||||
| 4 | = 4000°K (CRI >80) | 100 | GD | = dali | ||||||
| 5 | = 5000°K (CRI >80) | 120 | MG | = virtual midnight | ||||||
| 6 | = 6500°K (CRI >80) | 150 | G1 | = em. 1h | ||||||
| 7 | = 5700°K (CRI >90) | 170 | GA | = acid-etched glass | ||||||
| 185 |

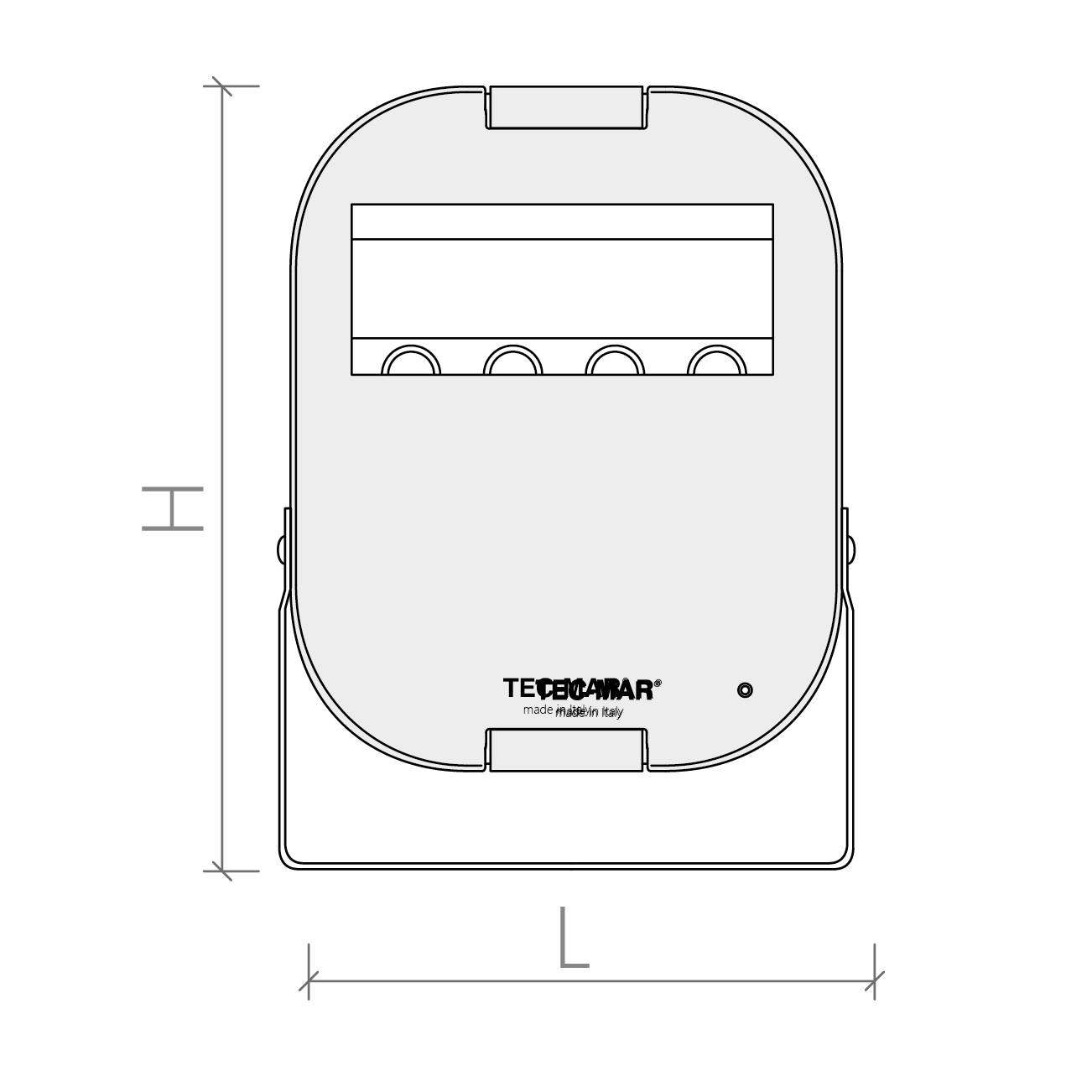

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8037AR4080GL | 80 | 4000°K - CRI>80 | on/off | 11933 | 149 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4100GL | 100 | 4000°K - CRI>80 | on/off | 14656 | 147 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4120GL | 120 | 4000°K - CRI>80 | on/off | 17094 | 142 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4150GL | 150 | 4000°K - CRI>80 | on/off | 20777 | 139 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4170GL | 170 | 4000°K - CRI>80 | on/off | 23073 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4185GL | 185 | 4000°K - CRI>80 | on/off | 25067 | 135 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4080GD | 80 | 4000°K - CRI>80 | dali | 11933 | 149 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4100GD | 100 | 4000°K - CRI>80 | dali | 14656 | 147 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4120GD | 120 | 4000°K - CRI>80 | dali | 17094 | 142 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4150GD | 150 | 4000°K - CRI>80 | dali | 20777 | 139 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4170GD | 170 | 4000°K - CRI>80 | dali | 23073 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4185GD | 185 | 4000°K - CRI>80 | dali | 25067 | 135 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4080MG | 80 | 4000°K - CRI>80 | virtual midnight | 11933 | 149 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4100MG | 100 | 4000°K - CRI>80 | virtual midnight | 14656 | 147 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4120MG | 120 | 4000°K - CRI>80 | virtual midnight | 17094 | 142 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4150MG | 150 | 4000°K - CRI>80 | virtual midnight | 20777 | 139 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4170MG | 170 | 4000°K - CRI>80 | virtual midnight | 23073 | 136 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4185MG | 185 | 4000°K - CRI>80 | virtual midnight | 25067 | 135 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4080G1 | 80 | 4000°K - CRI>80 | em. 1h | 11933 | 149 | 315 | 85 | 445 | 6.5 | |||
| 8037AR4100G1 | 100 | 4000°K - CRI>80 | em. 1h | 14656 | 147 | 315 | 85 | 445 | 6.5 |
