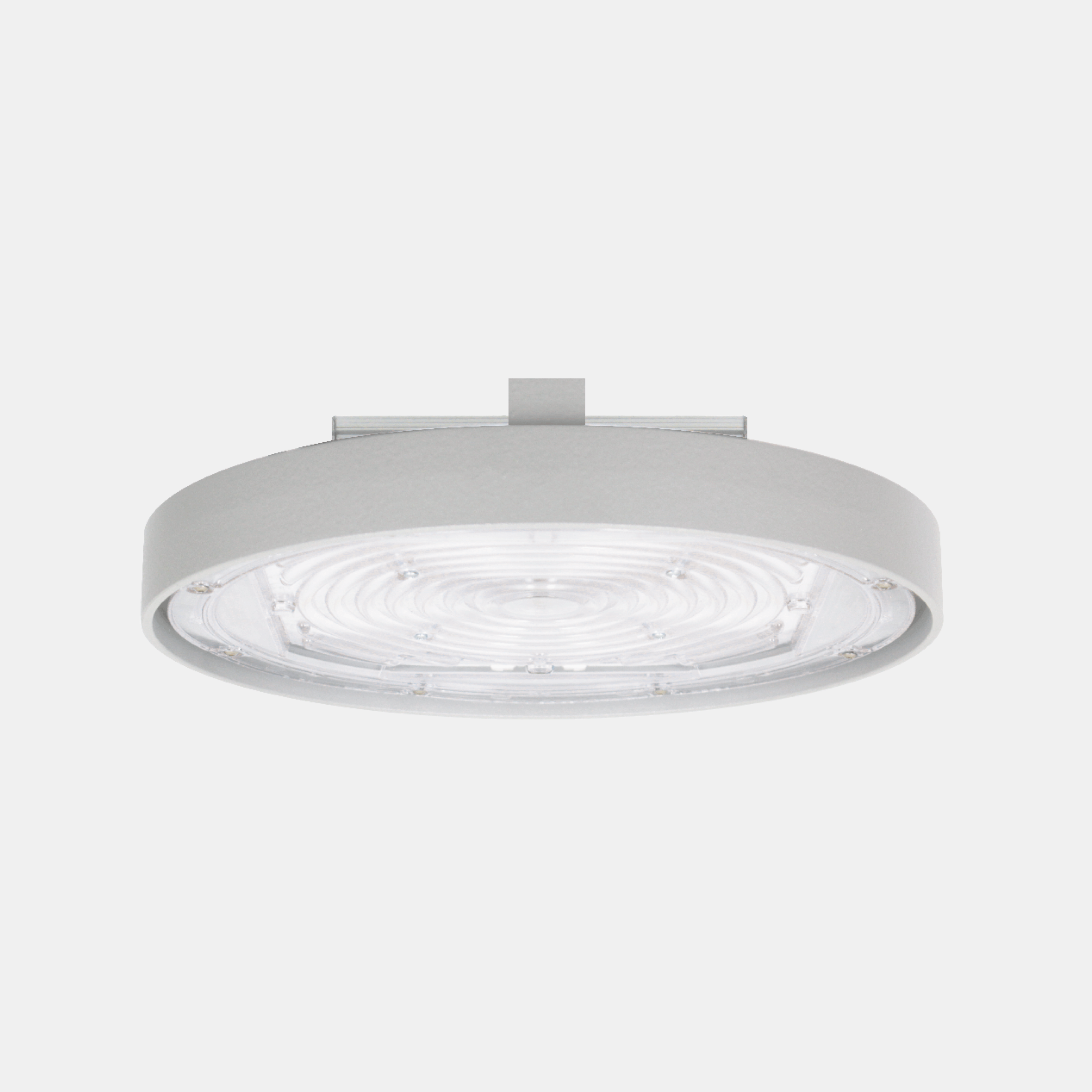

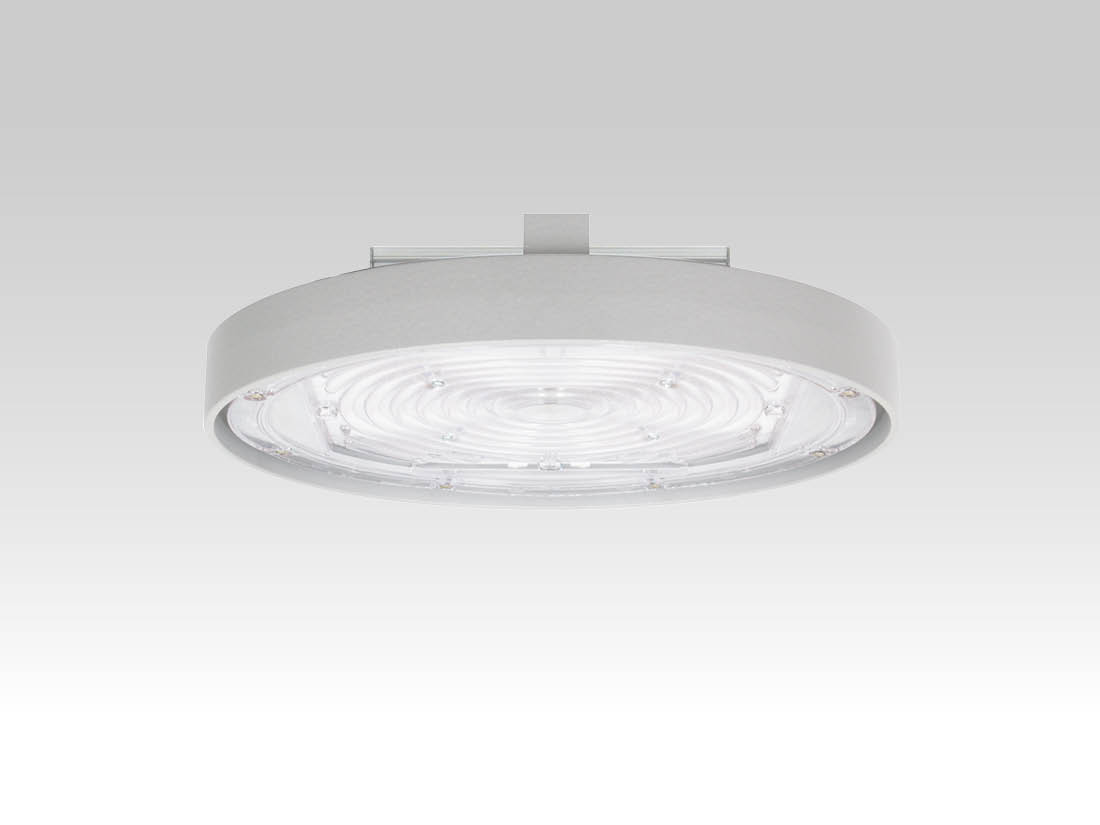

MIR HT/S5

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. Policarbonate lens, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, MIR, Industrial, art. 8151 Mir HT

Models: 120

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
8151	S5	3	= 3000°K (CRI >80)	080	GL	= on/off
		4	= 4000°K (CRI >80)	090	GD	= dali
		5	= 5000°K (CRI >80)	098
		9	= 4000°K (CRI >90)	110
				120
				130
				140
				148
				160
				170
				180
				190
				195
				220
				230

Models

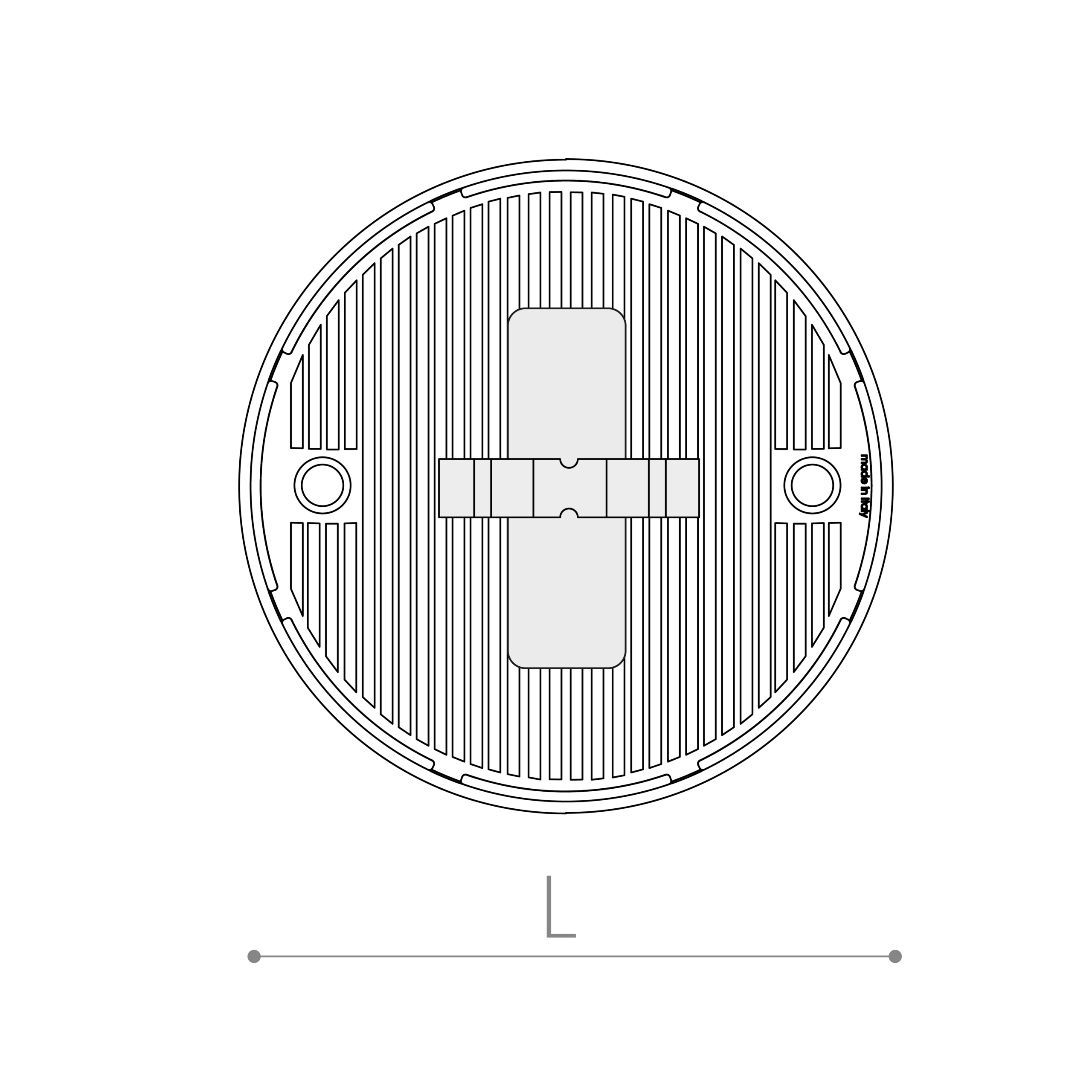

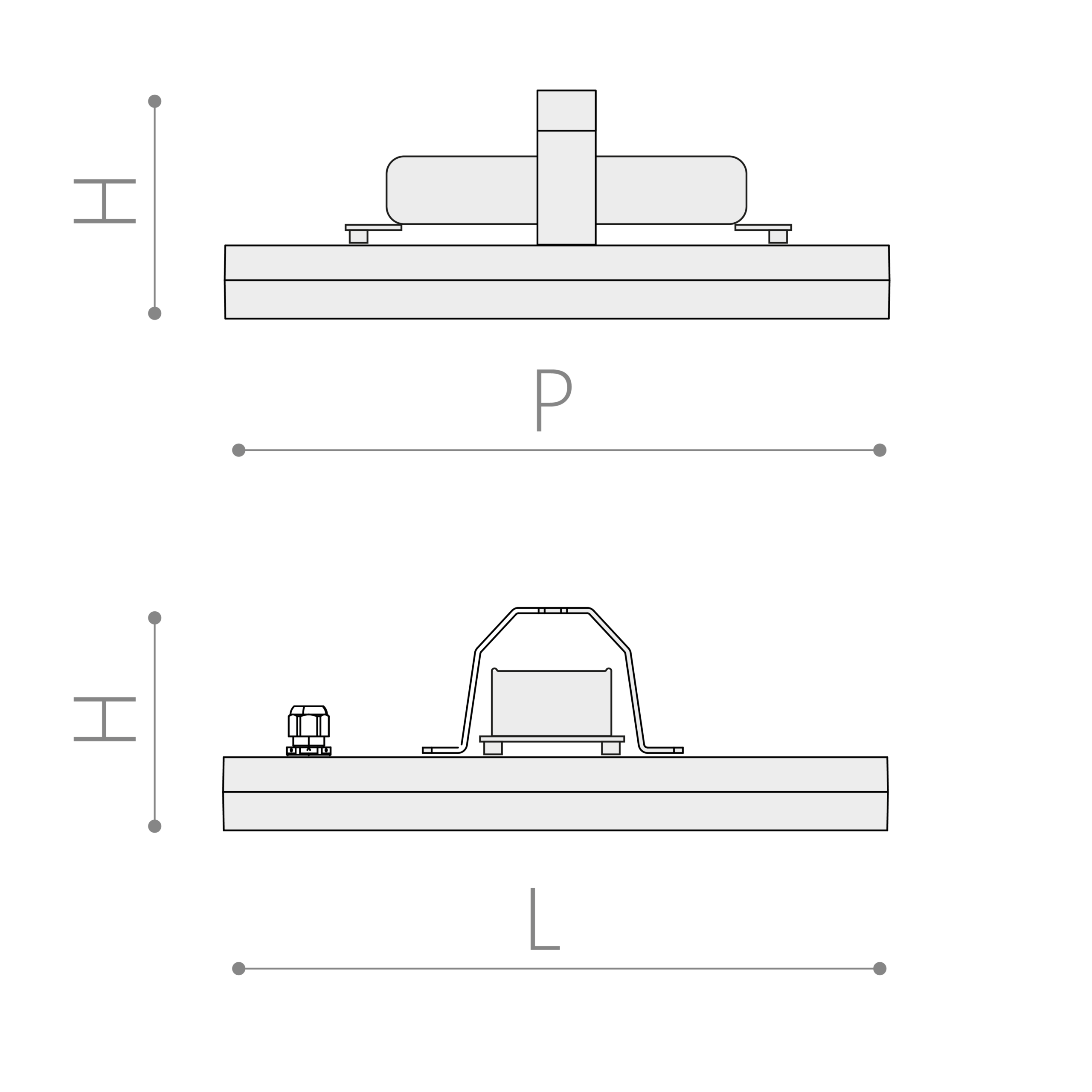

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
8151S54080GL	80	4000°K - CRI>80	on/off	14513	181	365	130	4.8
8151S54090GL	90	4000°K - CRI>80	on/off	16339	182	365	130	4.8
8151S54098GL	98	4000°K - CRI>80	on/off	17590	179	365	130	4.8
8151S54110GL	110	4000°K - CRI>80	on/off	18973	172	365	130	4.8
8151S54120GL	120	4000°K - CRI>80	on/off	20348	170	365	130	4.8
8151S54130GL	130	4000°K - CRI>80	on/off	22166	171	365	130	4.8
8151S54140GL	140	4000°K - CRI>80	on/off	24487	175	365	130	4.8
8151S54148GL	148	4000°K - CRI>80	on/off	24936	168	365	130	4.8
8151S54160GL	160	4000°K - CRI>80	on/off	26652	167	365	130	4.8
8151S54170GL	170	4000°K - CRI>80	on/off	28423	167	365	130	4.8
8151S54180GL	180	4000°K - CRI>80	on/off	30182	168	365	130	4.8
8151S54190GL	190	4000°K - CRI>80	on/off	31493	166	365	130	4.8
8151S54195GL	195	4000°K - CRI>80	on/off	33704	164	365	130	4.8
8151S54220GL	220	4000°K - CRI>80	on/off	35817	163	365	130	5.6
8151S54230GL	230	4000°K - CRI>80	on/off	37527	163	365	130	5.6
8151S54080GD	80	4000°K - CRI>80	dali	14513	181	365	130	4.8
8151S54090GD	90	4000°K - CRI>80	dali	16339	182	365	130	4.8
8151S54098GD	98	4000°K - CRI>80	dali	17590	179	365	130	4.8
8151S54110GD	110	4000°K - CRI>80	dali	18973	172	365	130	4.8
8151S54120GD	120	4000°K - CRI>80	dali	20348	170	365	130	4.8
