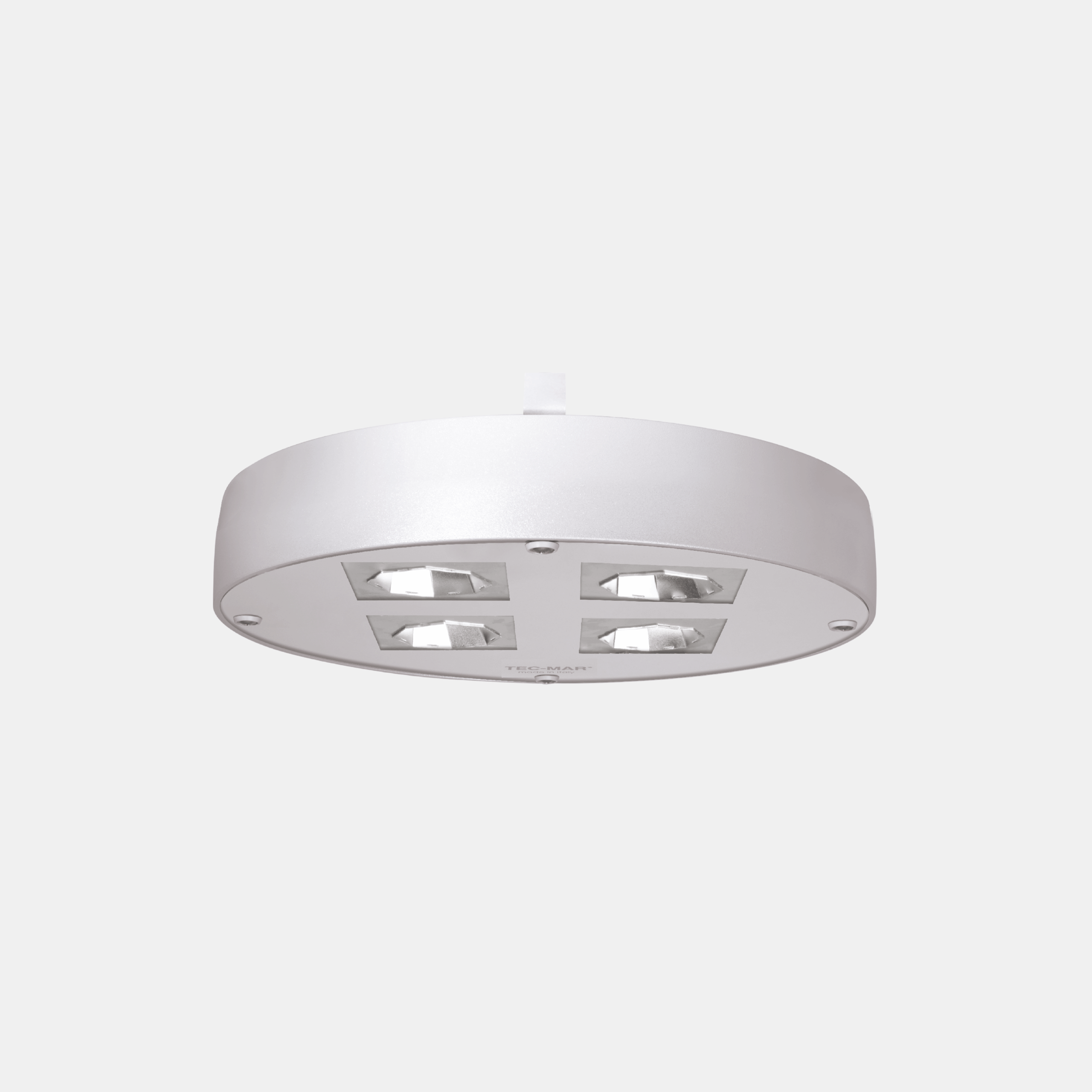

PIER HT/CU

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Industrial, art. 8408 Pier HT

Models: 120

Color: Silver

Catalogue abstract

Installation instructions

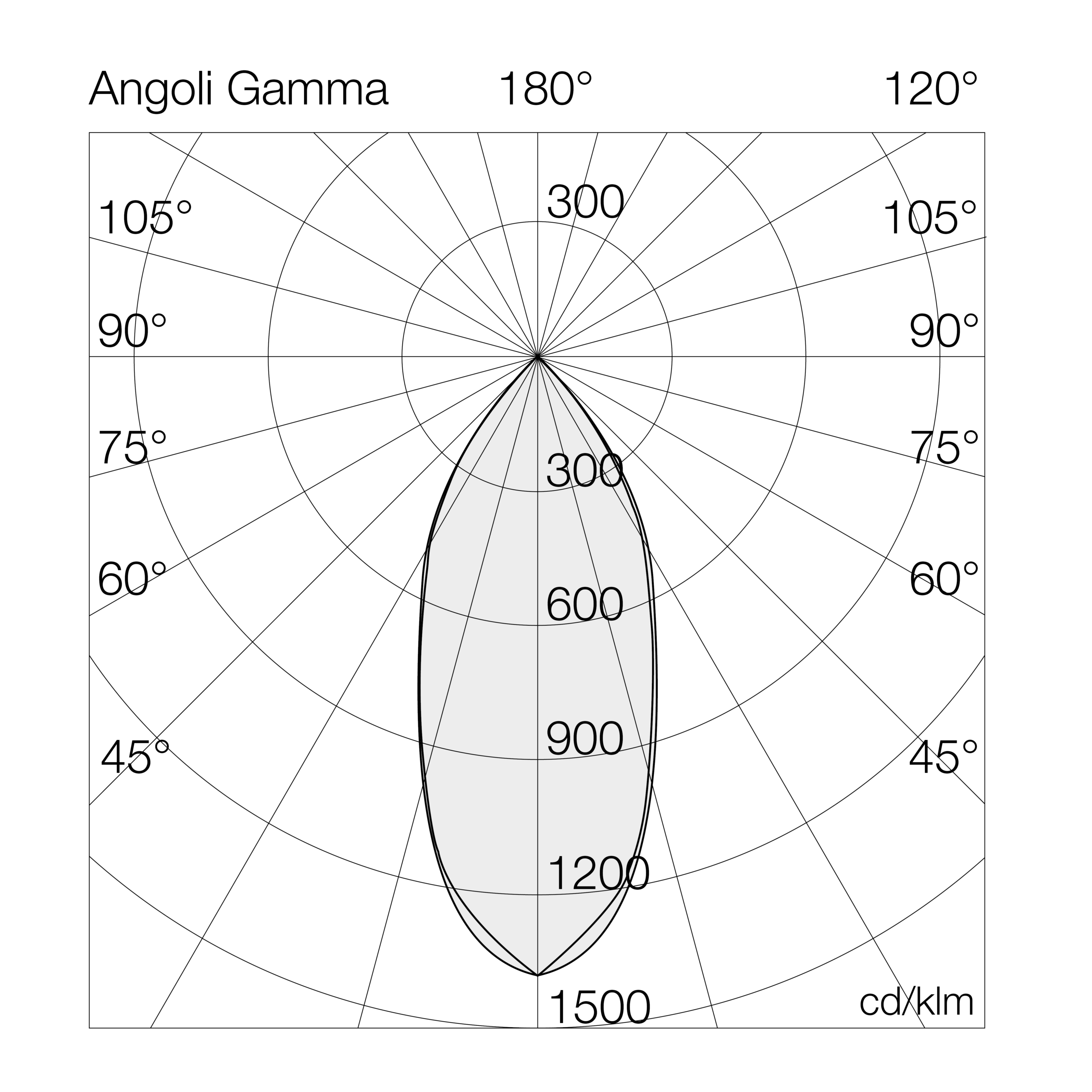

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
8408	CU	3	= 3000°K (CRI >80)	080	GL	= on/off
		4	= 4000°K (CRI >80)	090	GD	= dali
		5	= 5000°K (CRI >80)	100	VA	= acid-etched glass
		9	= 4000°K (CRI >90)	120
				130
				140
				150
				170
				190
				230

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
8408CU4080GL	80	4000°K - CRI>80	on/off	13275	166	365	150	5.8
8408CU4090GL	90	4000°K - CRI>80	on/off	14805	165	365	150	5.8
8408CU4100GL	100	4000°K - CRI>80	on/off	16286	163	365	150	5.8
8408CU4120GL	120	4000°K - CRI>80	on/off	19012	158	365	150	5.8
8408CU4130GL	130	4000°K - CRI>80	on/off	20524	158	365	150	5.8
8408CU4140GL	140	4000°K - CRI>80	on/off	21853	156	365	150	5.8
8408CU4150GL	150	4000°K - CRI>80	on/off	23021	153	365	150	5.8
8408CU4170GL	170	4000°K - CRI>80	on/off	25905	152	365	150	5.8
8408CU4190GL	190	4000°K - CRI>80	on/off	29856	157	365	150	5.8
8408CU4230GL	230	4000°K - CRI>80	on/off	33880	147	365	150	5.8
8408CU4080GD	80	4000°K - CRI>80	dali	13275	166	365	150	5.8
8408CU4090GD	90	4000°K - CRI>80	dali	14805	165	365	150	5.8
8408CU4100GD	100	4000°K - CRI>80	dali	16286	163	365	150	5.8
8408CU4120GD	120	4000°K - CRI>80	dali	19012	158	365	150	5.8
8408CU4130GD	130	4000°K - CRI>80	dali	20524	158	365	150	5.8
8408CU4140GD	140	4000°K - CRI>80	dali	21853	156	365	150	5.8
8408CU4150GD	150	4000°K - CRI>80	dali	23021	153	365	150	5.8
8408CU4170GD	170	4000°K - CRI>80	dali	25905	152	365	150	5.8
8408CU4190GD	190	4000°K - CRI>80	dali	29856	157	365	150	5.8
8408CU4230GD	230	4000°K - CRI>80	dali	33880	147	365	150	5.8
