AERO/RD

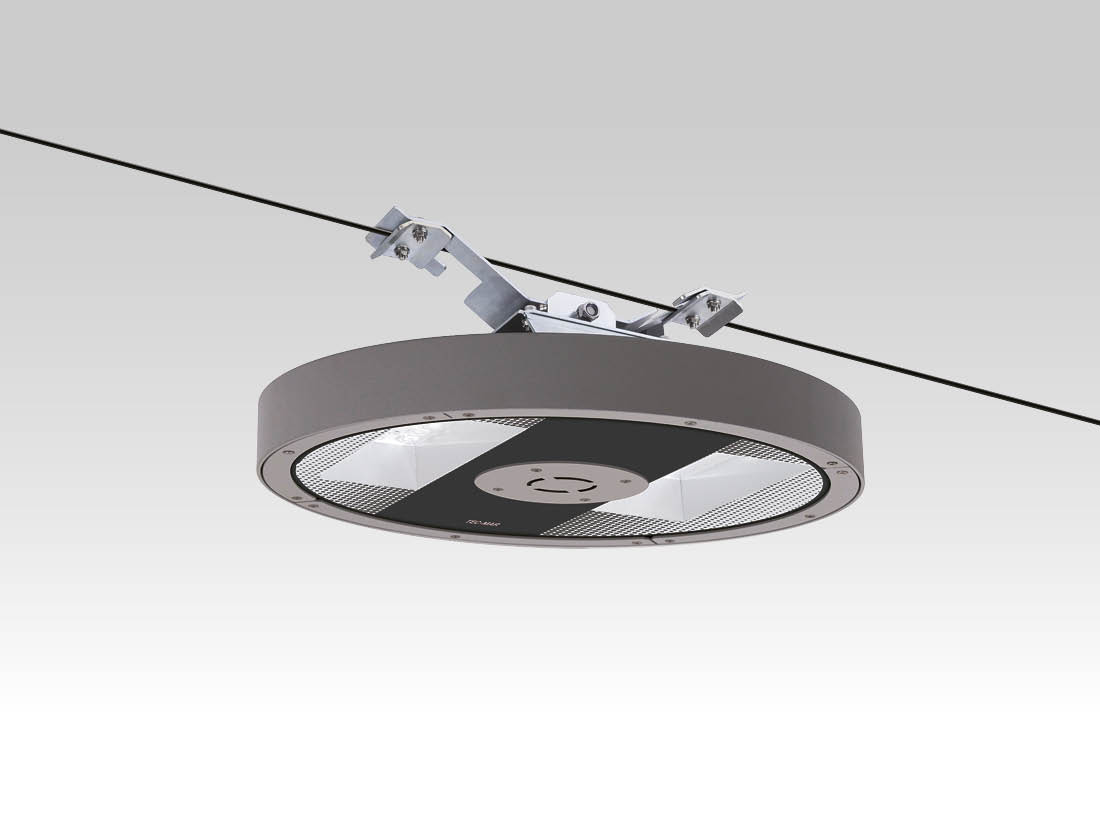

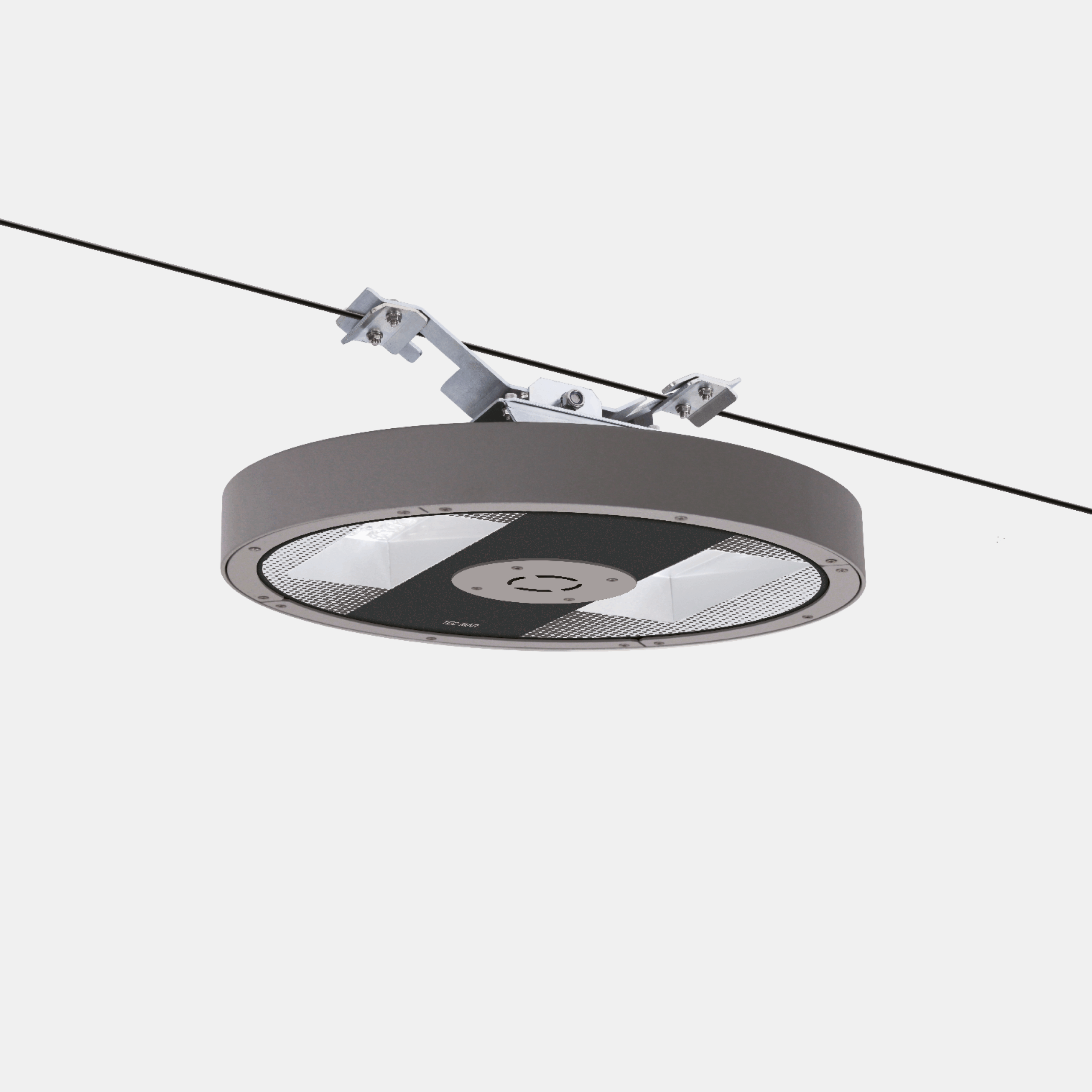

Led street light to illuminate large urban streets, intersections and city junctions. The overhead cable interface allows the device to adjust itself in space with more freedom, ensuring high performance and visual comfort. Die-cast aluminum body painted with thermosetting polyester powder anticorrosion graphite color, transparent tempered glass thickness 4 mm, silicone gasket, electronic driver 220-240V 50/60Hz. Head attachment in galvanized steel. Manufactured in accordance with EN/ IEC 60598-1.
Categories: Led, Street lighting, art. 9301 Aero
Models: 340
Color: Graphite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9301RD2= ambra (CRI >70) 016048RL= on/off
3= 3000°K (CRI >70)017052RM= 1-10v
4= 4000°K (CRI >70)024054RD= dali 2
5= 5000°K (CRI >70)025058MR= virtual midnight
027069ZR= zhaga socket dali D4i
033080
034090
036107
043

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9301RD4016RL164000°K - CRI>70on/off284817846017020010.0
9301RD4025RL254000°K - CRI>70on/off427217146017020010.0
9301RD4033RL334000°K - CRI>70on/off569517346017020010.0
9301RD4024RL244000°K - CRI>70on/off399316646017020010.0
9301RD4036RL364000°K - CRI>70on/off599016646017020010.0
9301RD4048RL484000°K - CRI>70on/off798816646017020010.0
9301RD4043RL434000°K - CRI>70on/off709716546017020010.0
9301RD4058RL584000°K - CRI>70on/off930416046017020010.0
9301RD4017RL174000°K - CRI>70on/off272416046017020010.0
9301RD4034RL344000°K - CRI>70on/off544916046017020010.0
9301RD4052RL524000°K - CRI>70on/off817315746017020010.0
9301RD4069RL694000°K - CRI>70on/off1061415446017020010.0
9301RD4090RL904000°K - CRI>70on/off1363915246017020010.0
9301RD4027RL274000°K - CRI>70on/off389414446017020010.0
9301RD4054RL544000°K - CRI>70on/off778814446017020010.0
9301RD4080RL804000°K - CRI>70on/off1168314646017020010.0
9301RD4107RL1074000°K - CRI>70on/off1557814646017020010.0
9301RD4016RM164000°K - CRI>701-10v284817846017020010.0
9301RD4025RM254000°K - CRI>701-10v427217146017020010.0
9301RD4033RM334000°K - CRI>701-10v569517346017020010.0

Accessories
