RETROLED/A4

Retrofit kit for converting traditional lanterns to LED. Die cast alluminium body, coated with polyester anticorrosion powder black color, electronic driver 220V-240V 50/60Hz. Fixing interface included. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Street lighting, art. P902 Retroled

Models: 96

Color: Matt black

Catalogue abstract

Installation instructions

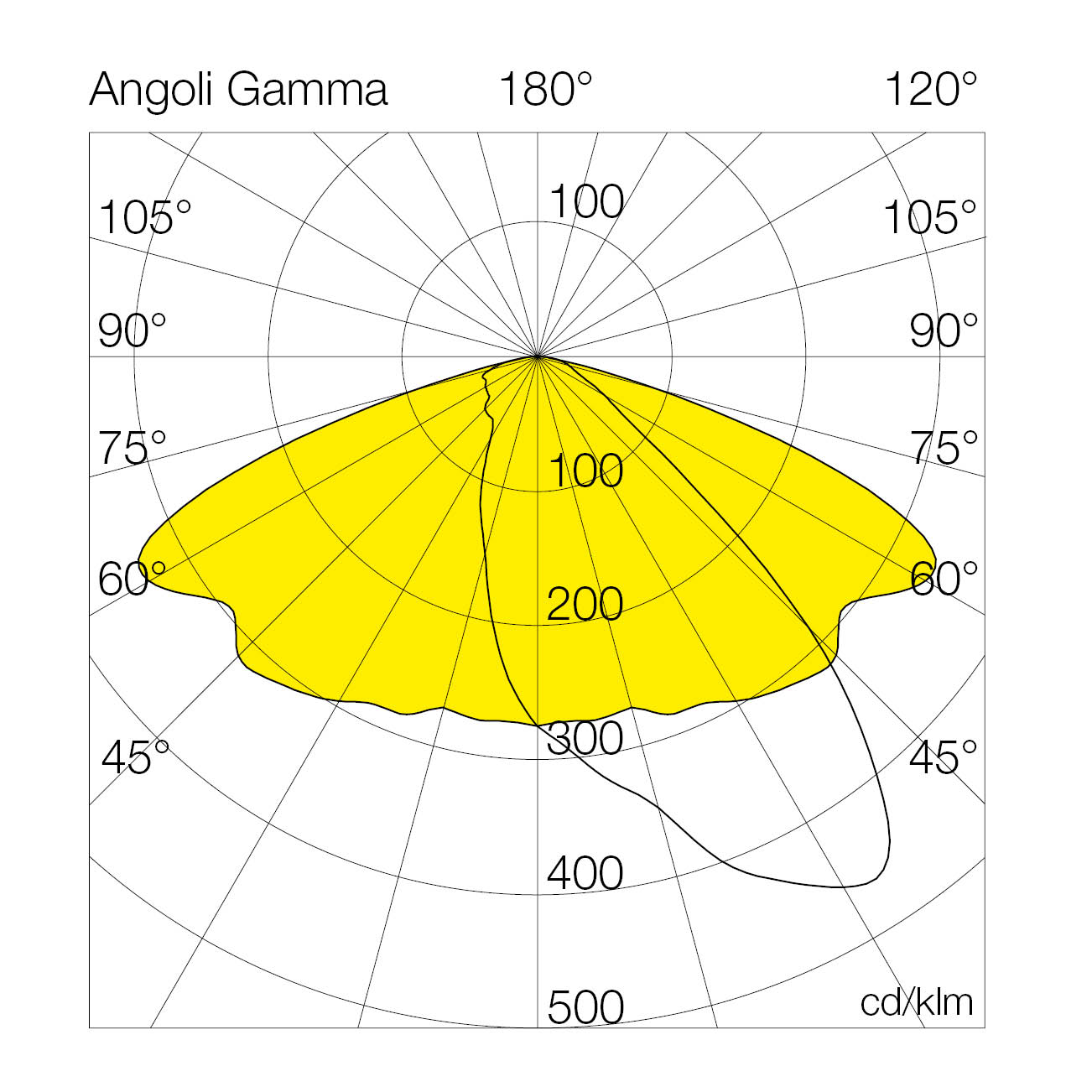

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
P902	A4	72	= ambra (CRI >70)	12	PL	= on/off
		73	= 3000°K (CRI >70)	16	PM	= 1-10v
		74	= 4000°K (CRI >70)	24	PD	= dali 2
				25	PA	= virtual midnight
				30
				33
				48
				60

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
P902A47412PL	12	4000°K - CRI>70	on/off	2008	167	280	280	150	3.1
P902A47416PL	16	4000°K - CRI>70	on/off	2514	157	280	280	150	3.1
P902A47424PL	24	4000°K - CRI>70	on/off	3471	145	280	280	150	3.1
P902A47425PL	25	4000°K - CRI>70	on/off	4018	161	280	280	150	3.3
P902A47430PL	30	4000°K - CRI>70	on/off	4139	138	280	280	150	3.3
P902A47433PL	33	4000°K - CRI>70	on/off	5028	152	280	280	150	3.3
P902A47448PL	48	4000°K - CRI>70	on/off	6941	145	280	280	150	3.3
P902A47460PL	60	4000°K - CRI>70	on/off	8280	138	280	280	150	3.3
P902A47412PM	12	4000°K - CRI>70	1-10v	2008	167	280	280	150	3.1
P902A47416PM	16	4000°K - CRI>70	1-10v	2514	157	280	280	150	3.1
P902A47424PM	24	4000°K - CRI>70	1-10v	3471	145	280	280	150	3.1
P902A47425PM	25	4000°K - CRI>70	1-10v	4018	161	280	280	150	3.3
P902A47430PM	30	4000°K - CRI>70	1-10v	4139	138	280	280	150	3.3
P902A47433PM	33	4000°K - CRI>70	1-10v	5028	152	280	280	150	3.3
P902A47448PM	48	4000°K - CRI>70	1-10v	6941	145	280	280	150	3.3
P902A47460PM	60	4000°K - CRI>70	1-10v	8280	138	280	280	150	3.3
P902A47412PD	12	4000°K - CRI>70	dali 2	2008	167	280	280	150	3.1
P902A47416PD	16	4000°K - CRI>70	dali 2	2514	157	280	280	150	3.1
P902A47424PD	24	4000°K - CRI>70	dali 2	3471	145	280	280	150	3.1
P902A47425PD	25	4000°K - CRI>70	dali 2	4018	161	280	280	150	3.3
